S 350 BLUETEC (221.183) V6-3.0L DSL Turbo (642.868)
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Entertainment Systems
>>
Television / Monitor
>>
Service and Repair
>>
Removal and Replacement
Removal and Replacement
AR82.85-P-7366SX Remove/Install TV Tuner
- with CODE (863) Digital/analog TV tuner

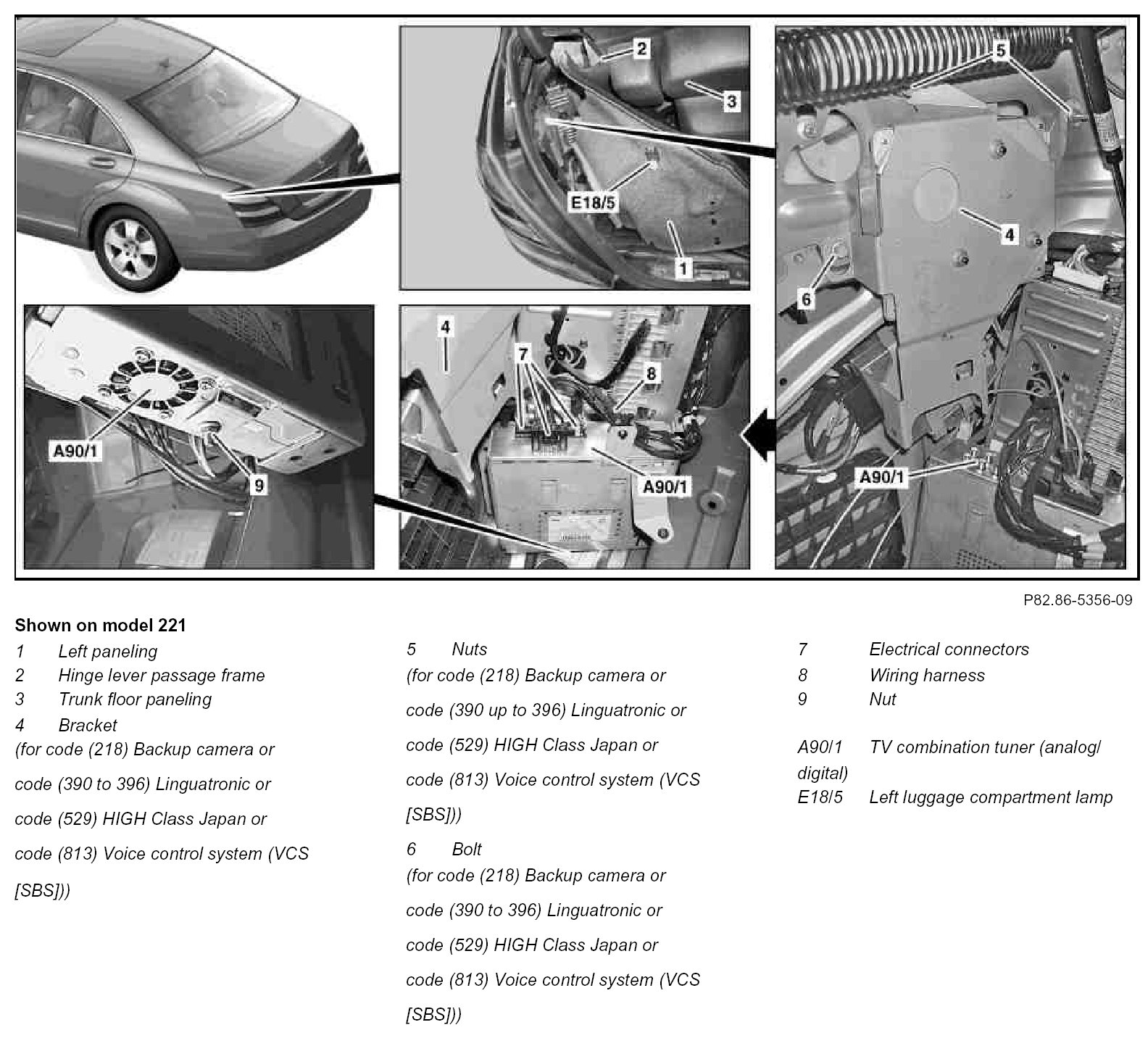

Component Identification:

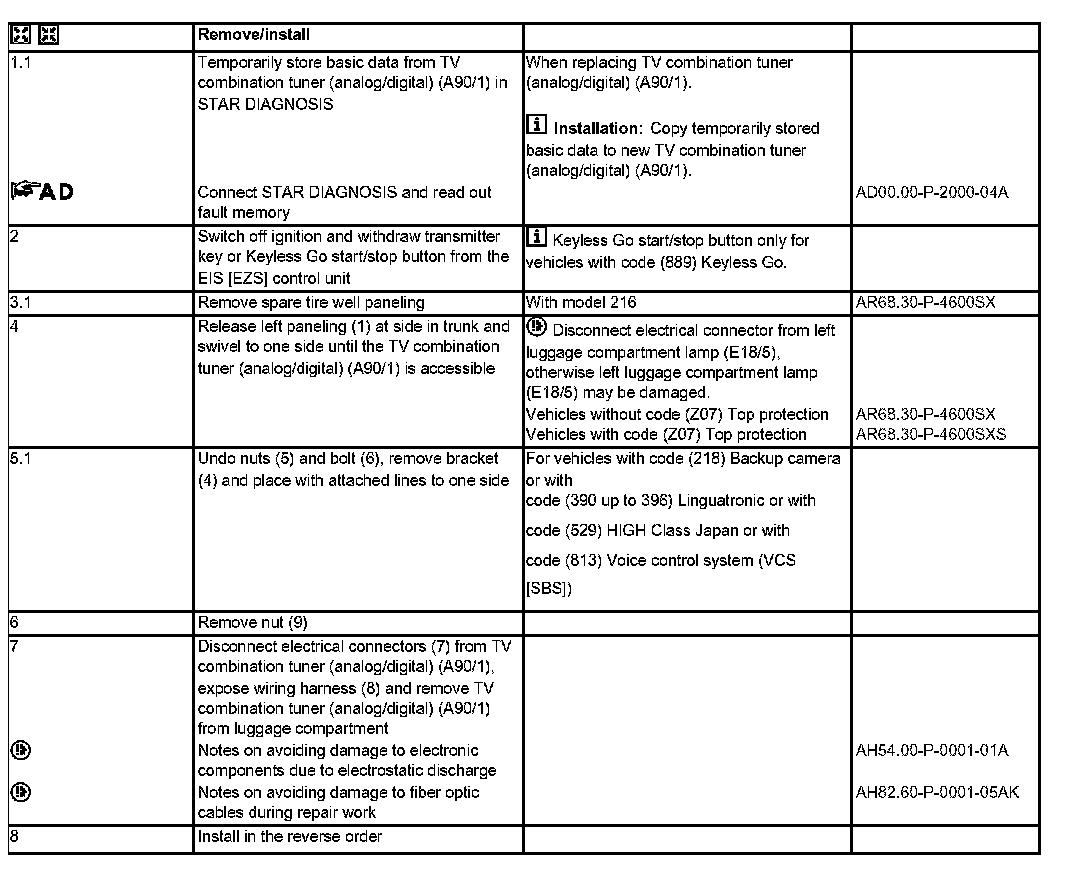

Steps 1.1 - 8:
