AN82.60-P-0001SX Retrofit TV Tuner

AN82.60-P-0001SX Retrofit TV Tuner
- except CODE (Z07) Top protection
- except CODE (494) USA version
- except CODE (498) Japan version

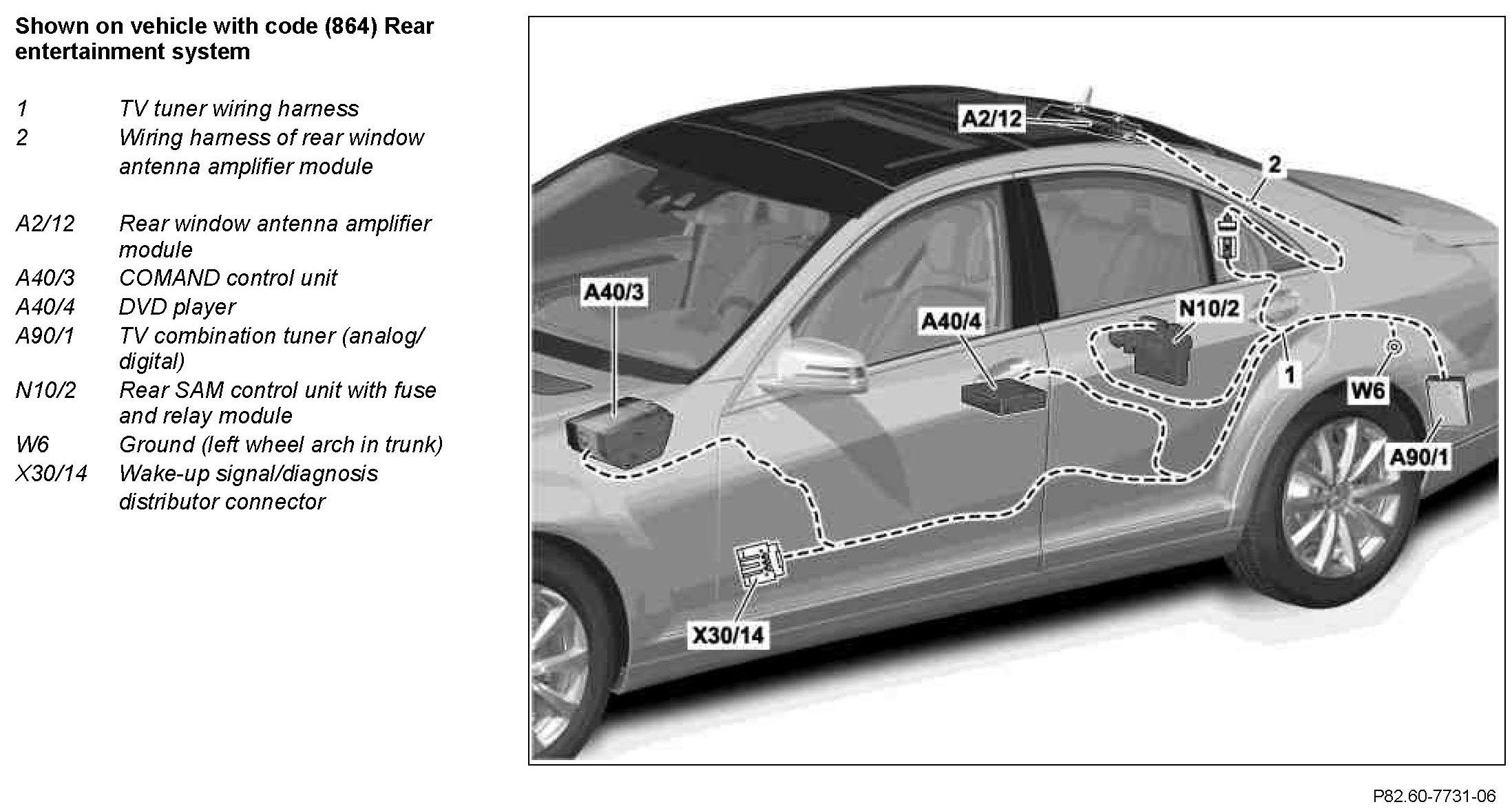

Component Identification:

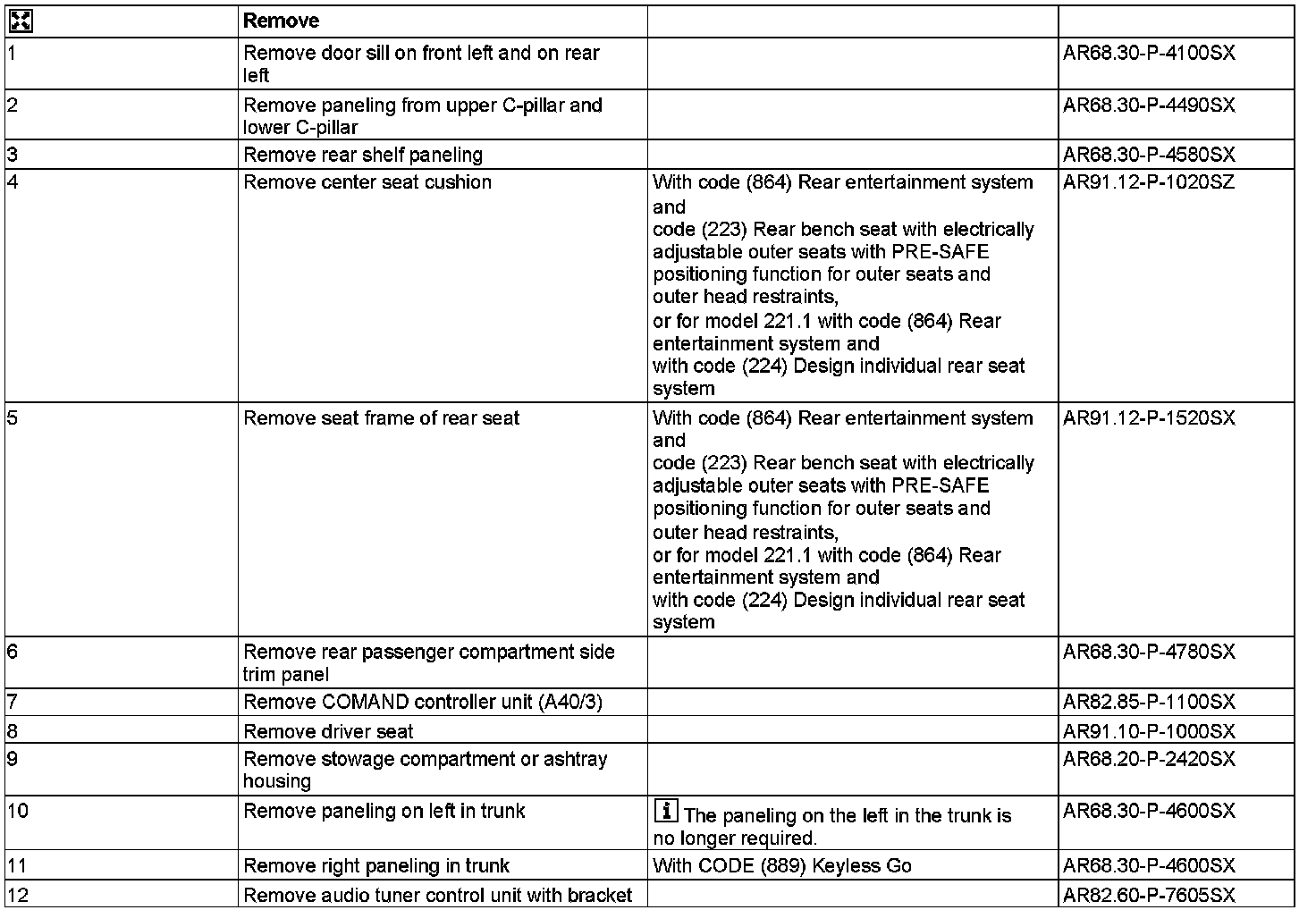

Steps 1 - 12:

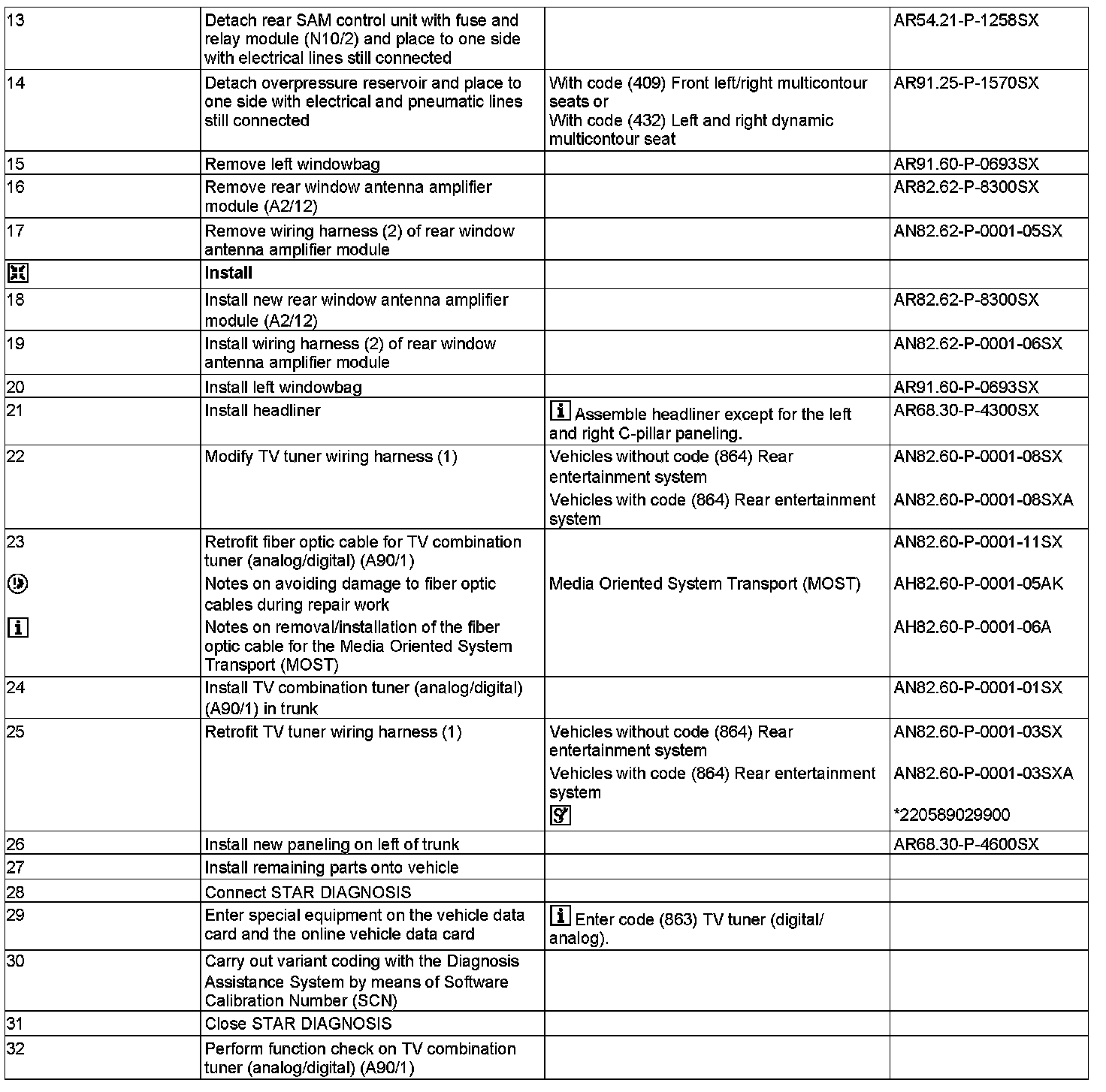

Steps 13 - 32:

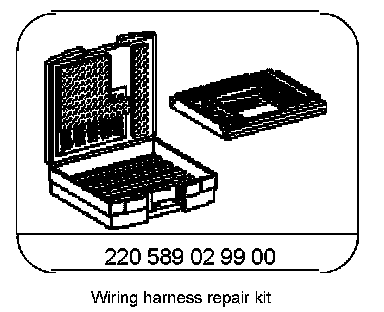

Special Tools:

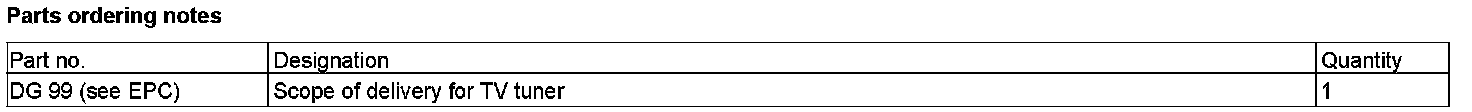

Parts Ordering Notes:
