AN82.60-P-0001-08SX Modifying TV Tuner Wiring Harness

AN82.60-P-0001-08SX Modifying TV Tuner Wiring Harness
- except CODE (864) Rear entertainment system

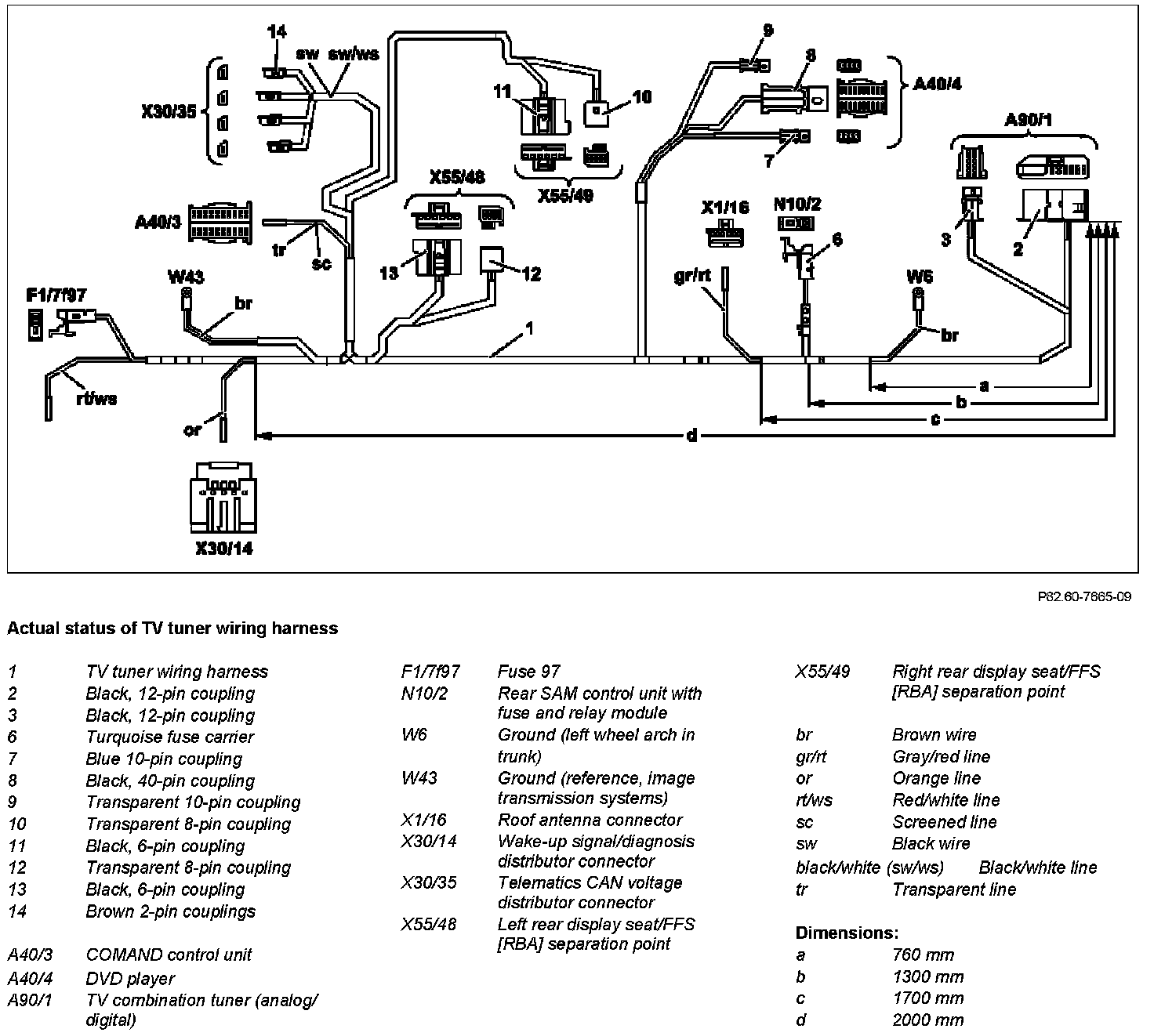

Component Identification:

1 Remove insulation on black 12-pin coupling (2) starting from TV tuner wiring harness (1).
2 Expose branch-off line with black 12-pin coupling (2).

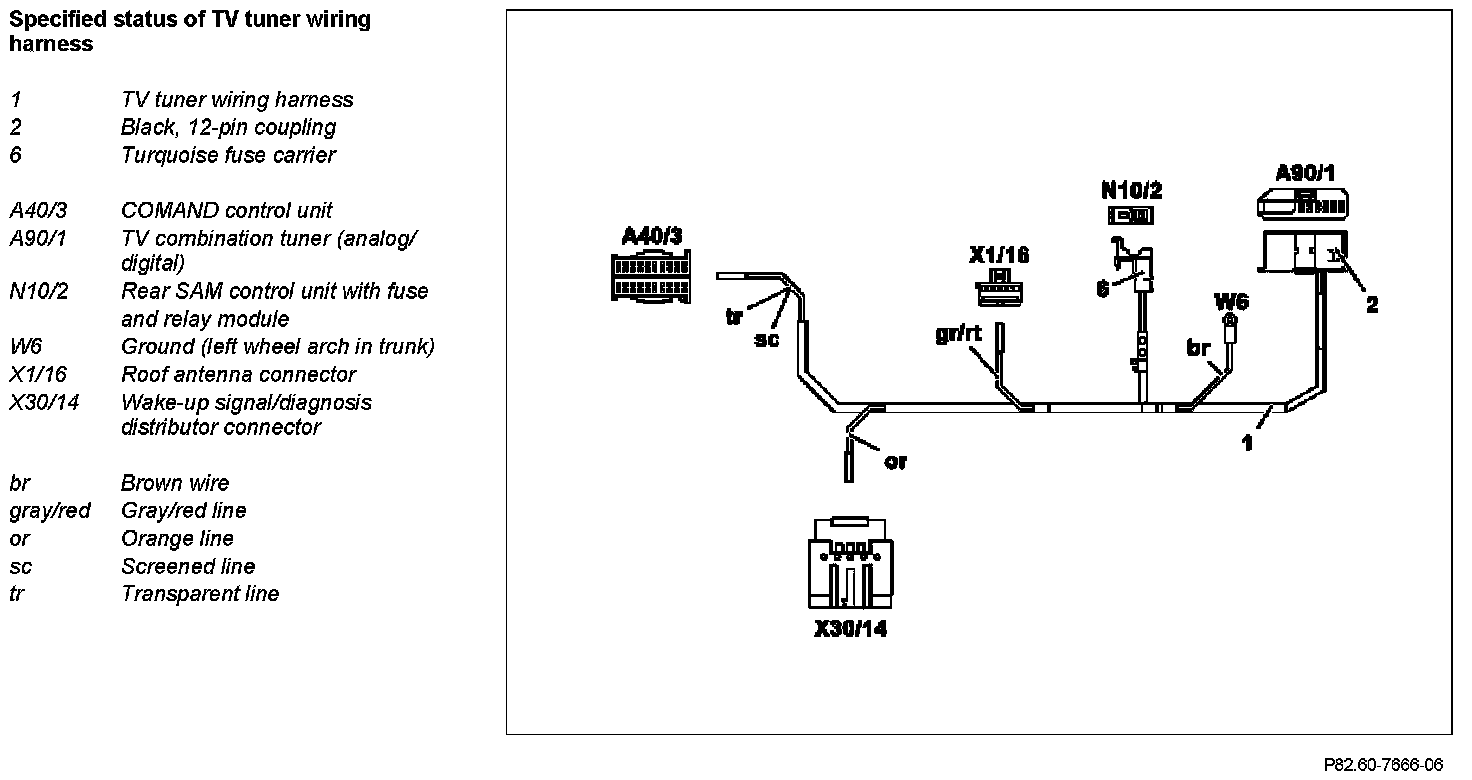

To install the TV combination tuner (analog/digital), only the branch-off line with the black 12-pin coupling (2) is required. The rest of the TV tuner wiring harness (1) is a discontinued part.

The following connections can be found at the branch-off line with the black 12-pin coupling (2):
- Gray/red line (gr/rt)
- Brown line (br) of ground (left wheel arch in trunk) (W6)
- Turquoise fuse carrier (6)
- Screened line (sc) and transparent line (tr)
- Orange line (or)

3 Wrap insulation tape around branch-off line with black 12-pin coupling (2) in accordance with the length measurements listed below.

- Branch off brown line (br) of ground (left wheel arch in trunk) (W6) according to dimension (a) behind the black 12- pin coupling (2).
- Branch off turquoise fuse carrier (6) according to dimension (b) behind the black 12-pin coupling (2).
- Branch off gray/red line (gr/rt) according to dimension (c) behind the black 12-pin coupling (2).
- Branch off orange line (or) according to dimension (d) behind the black 12-pin coupling (2).
