AN82.60-P-0001-03SXA Retrofit TV Tuner Wiring Harness

AN82.60-P-0001-03SXA Retrofit TV Tuner Wiring Harness
- with CODE (864) Rear entertainment system

Special Tools:

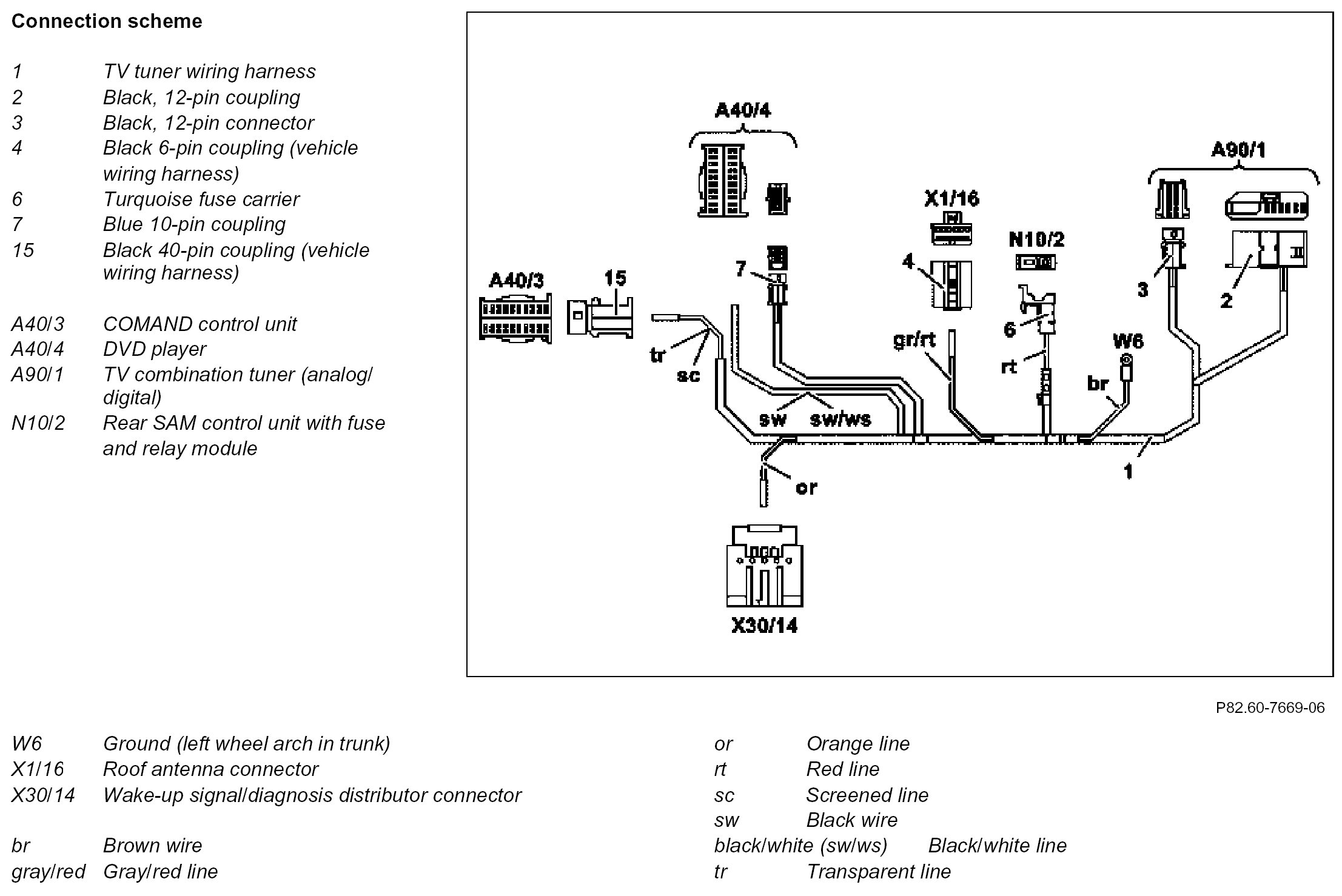

Component Identification:

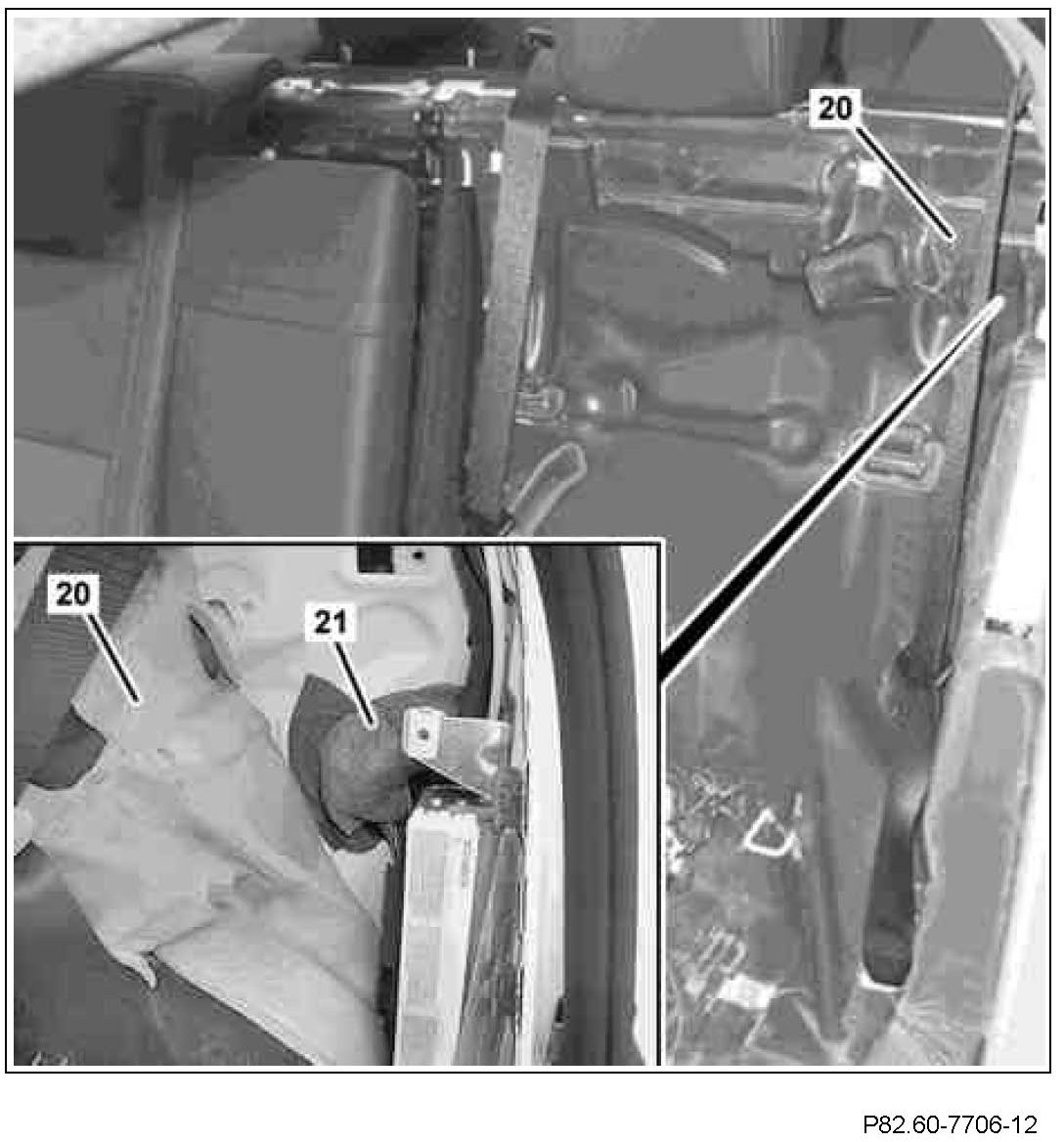

1 Pull insulation mat (20) behind left rear seat backrest to one side and take foam material (21) out of body opening.

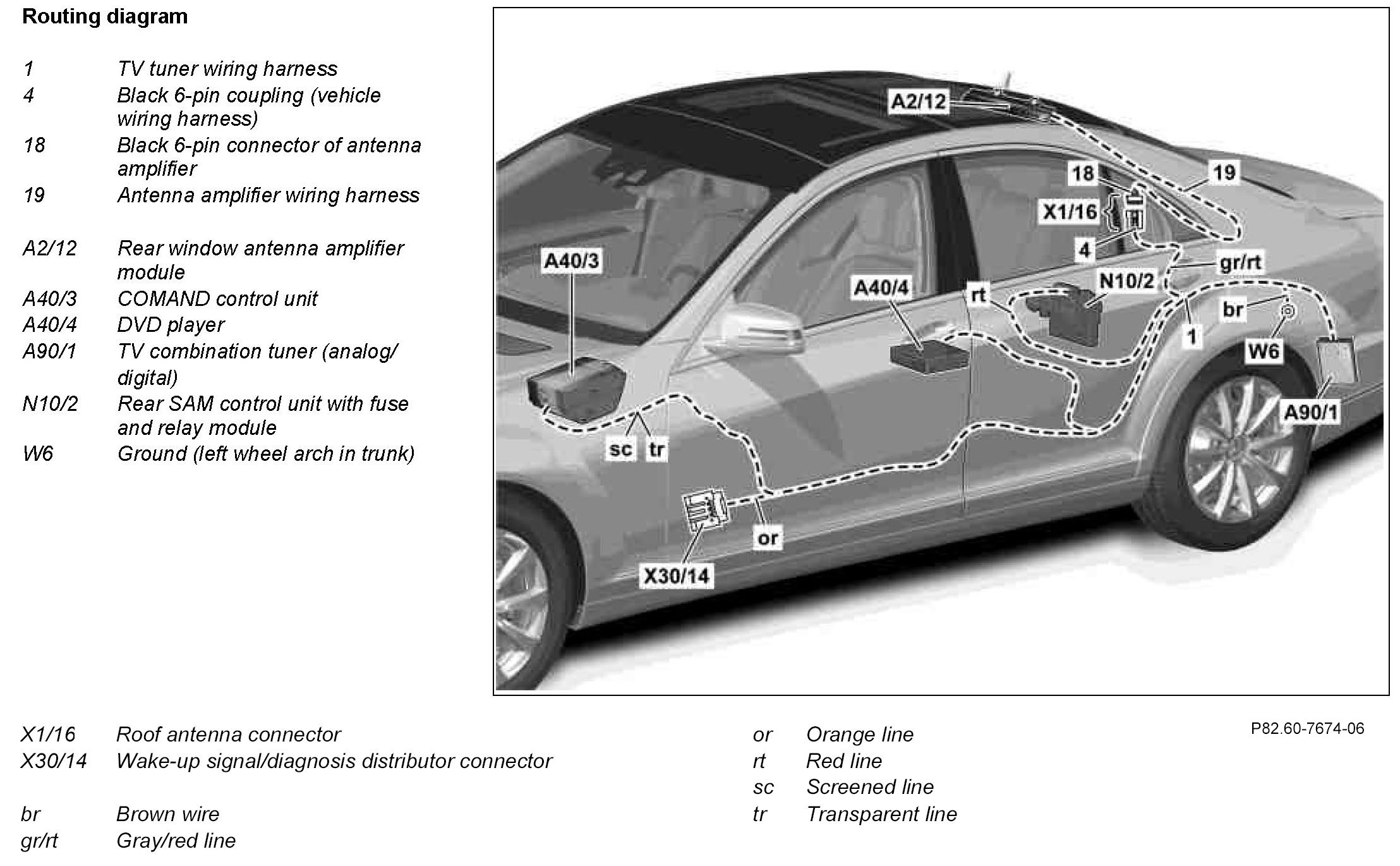

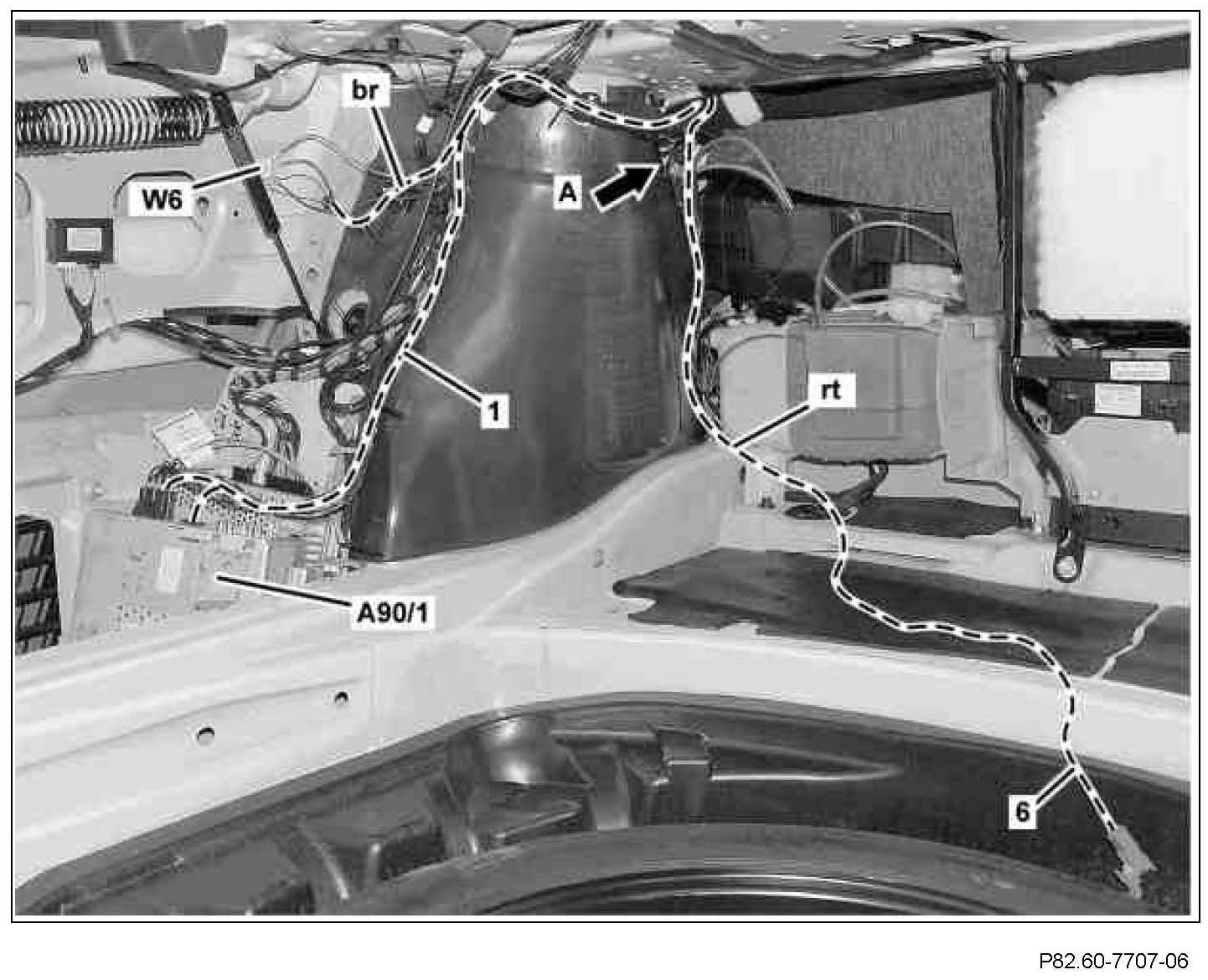

2 Route TV tuner wiring harness (1) along vehicle wiring harness in trunk, as shown.
3 Route brown line (br) to ground (left wheel arch in trunk) (W6).
4 Route TV tuner wiring harness (1) through body opening (arrow A) into the passenger compartment.

The red line (rt) remains in the trunk. It will be routed to the rear SAM control unit with fuse and relay module and connected at a later time.

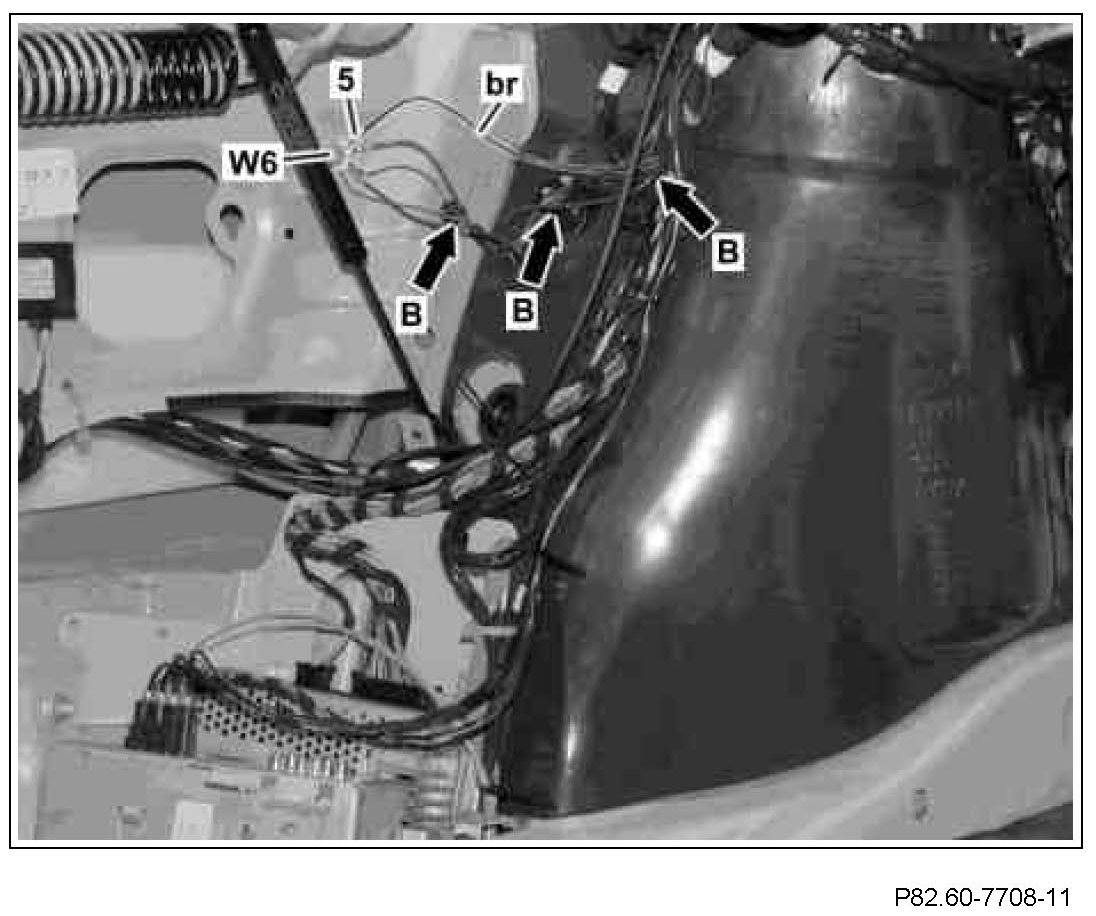

5 Connect brown line (br) with round cable lug (5) to ground (left wheel arch in trunk) (W6).
6 Fix brown line (br) in place on vehicle wiring harness (arrows B) using cable ties.

7 Route TV tuner wiring harness (1) along vehicle wiring harness into left rear footwell.

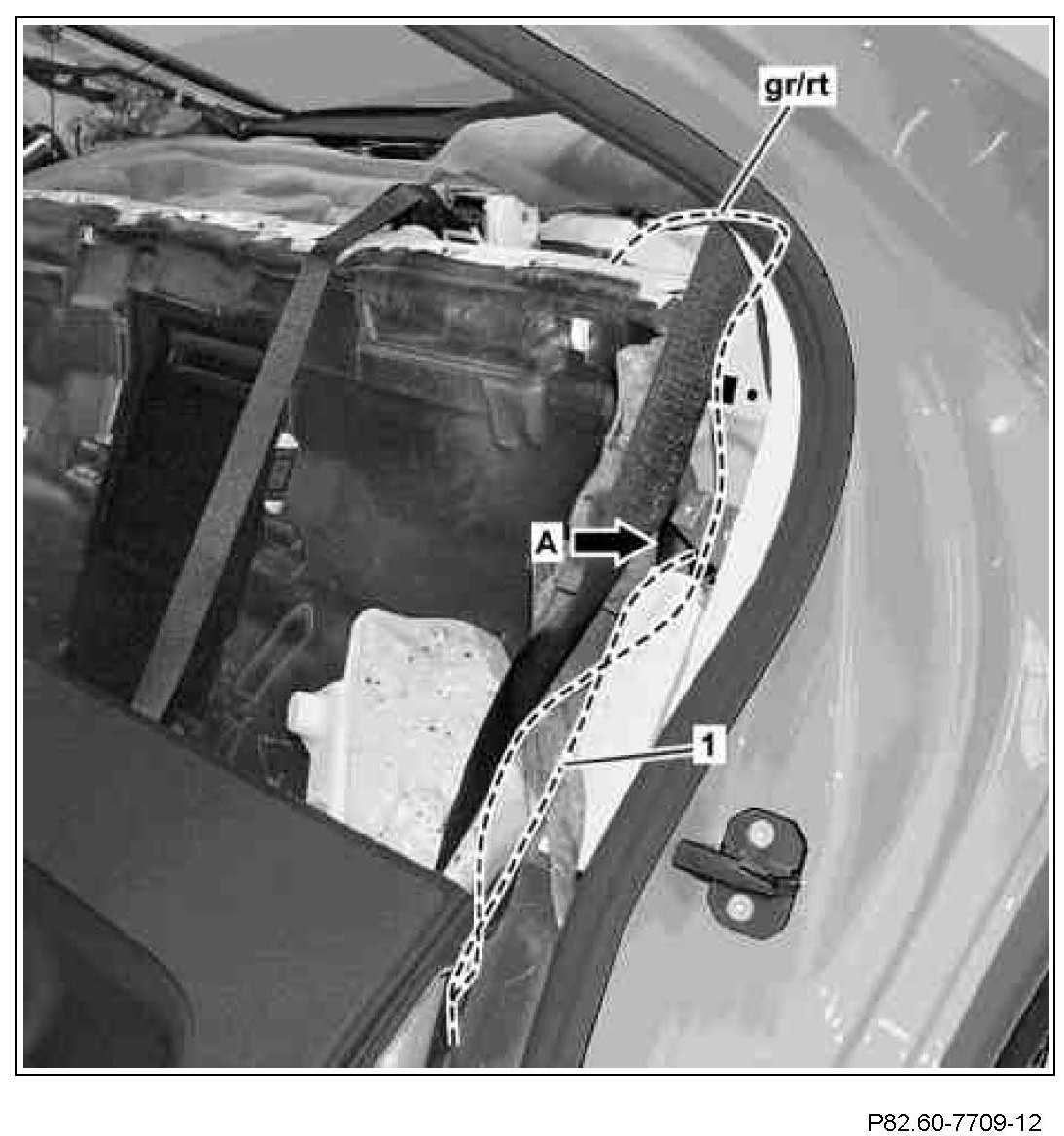

The TV tuner wiring harness (1) has already been guided through the body opening (arrow A) and out of the trunk.

8 Route gray/red line (gr/rt) of TV tuner wiring harness (1) along vehicle wiring harness to the previously installed black 6-pin antenna amplifier connector on the rear shelf.

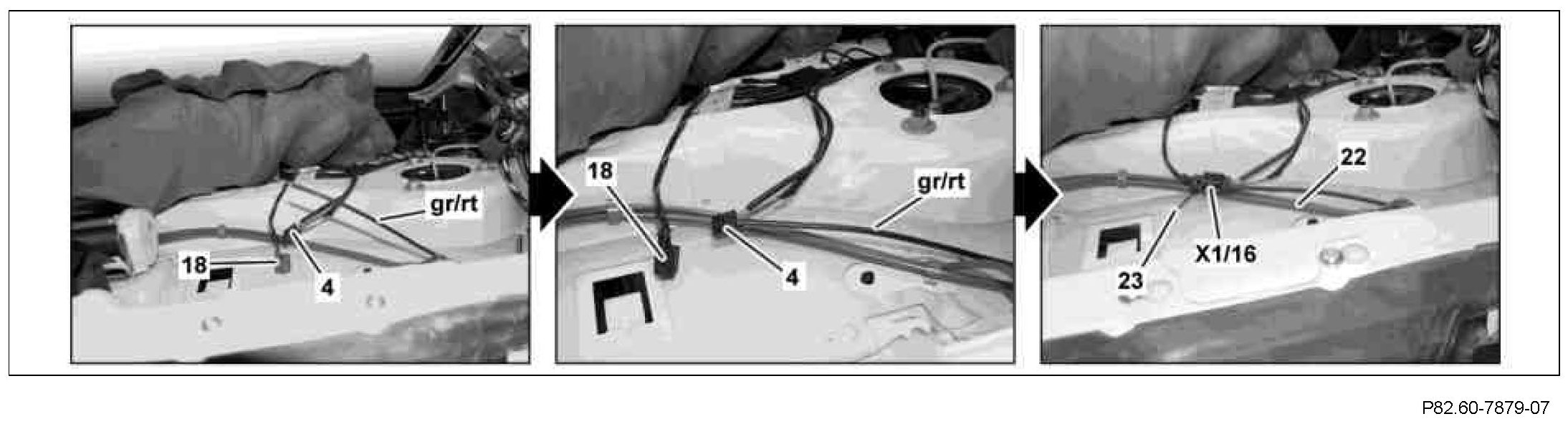

9 Open lock on black 6-pin coupling (4) of vehicle wiring harness.

The black 6-pin coupling (4) belongs to the previously disconnected roof antenna connector (X1/16).

10 Install gray/red line (gr/rt) in slot "4" of black 6-pin coupling (4).
11 Close lock on black 6-pin coupling (4).
12 Connect black 6-pin coupling (4) to black 6-pin antenna amplifier connector (18) of roof antenna connector (X1/16).
13 Fix roof antenna connector (X1/16) and gray/red line (gr/rt) place on vehicle wiring harness (22) using cable tie (23).

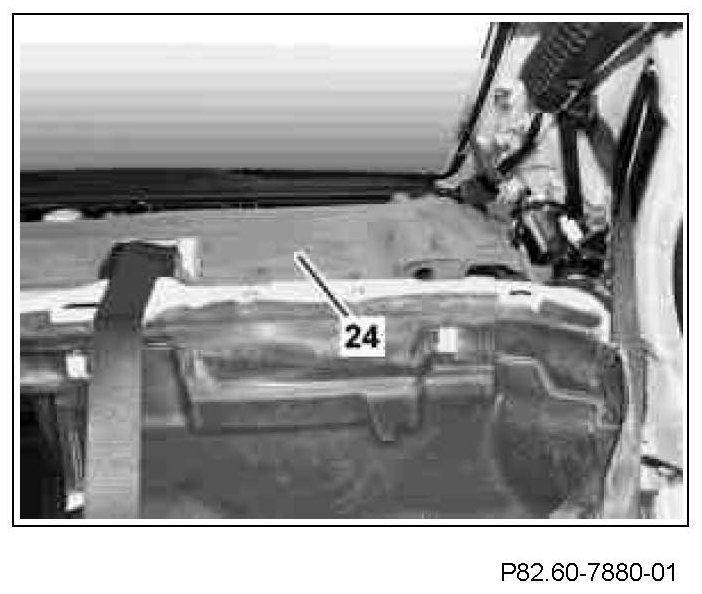

14 Align insulation mat (24).

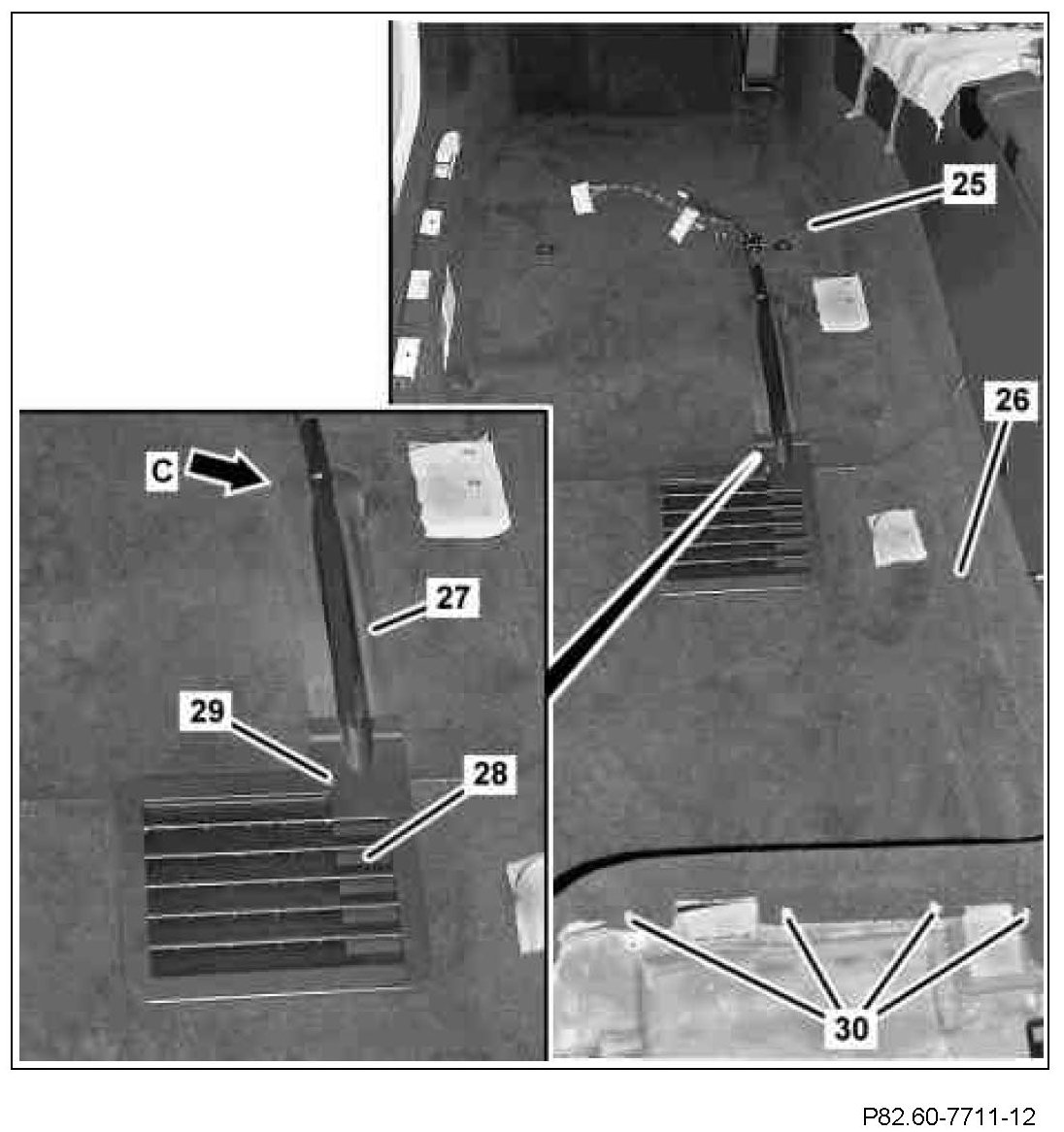

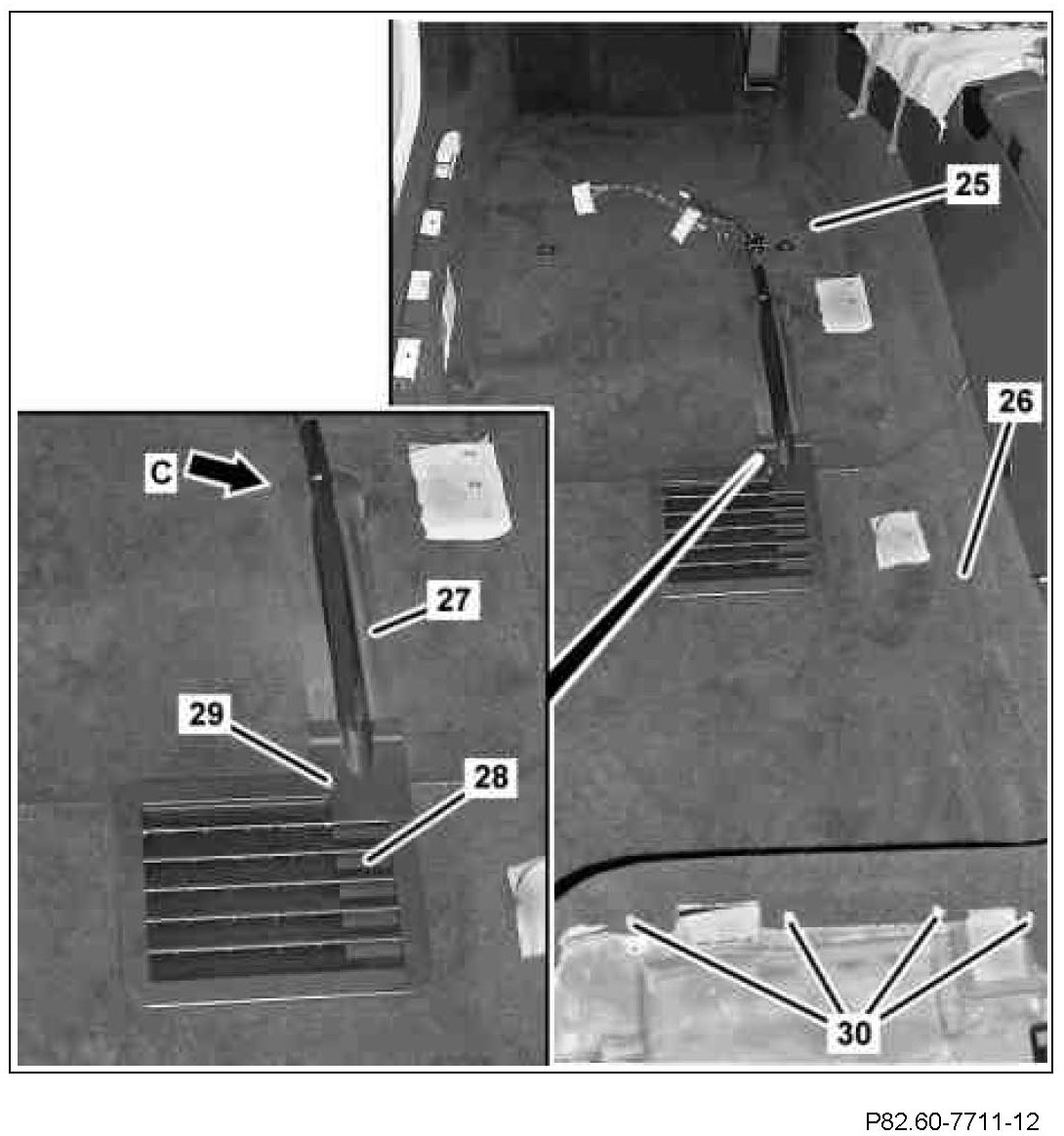

15 Remove screw/bolt (29) and remove air duct cover (28).
16 Unclip floor covering cover (27) in the front area (arrow C), lift and unhook at the rear.
17 Lift left front floor covering (25) until cable duct underneath is accessible.
18 Remove clips (30) and lift left rear floor covering (26).

19 Pull insulation mat in left rear footwell to one side and take foam material (31) out of body opening.

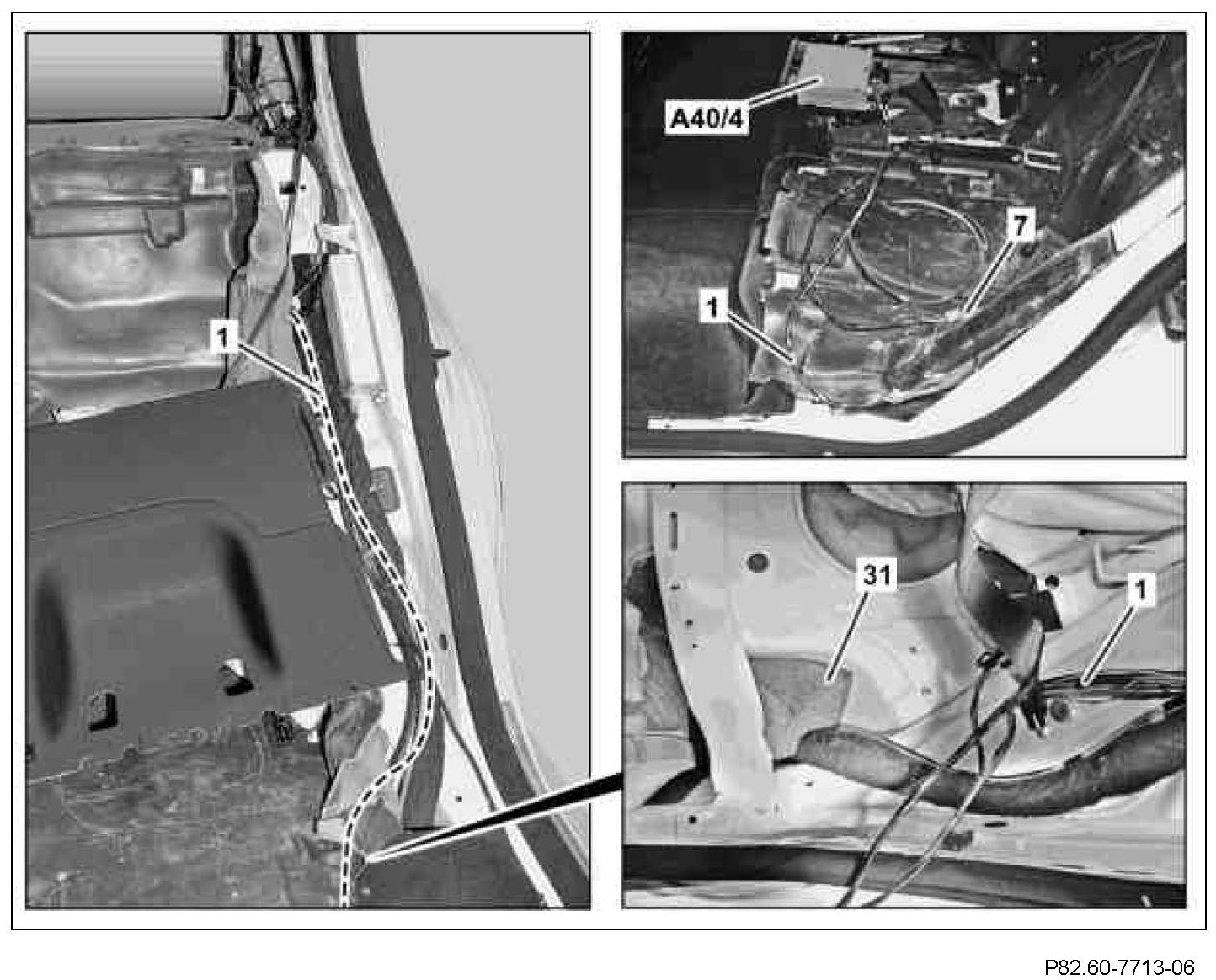

20 Route TV tuner wiring harness (1) along vehicle wiring harness in left rear footwell, as shown, and fix in place using cable ties.
21 Route TV tuner wiring harness (1) through body opening behind foam material (31) into cable duct under left rear floor covering.

Do not route the branch-off line with the blue 10-pin coupling through the body opening into the cable duct under the left rear floor covering at the same time.

It will be routed to the DVD player (A40/4) at a later time.

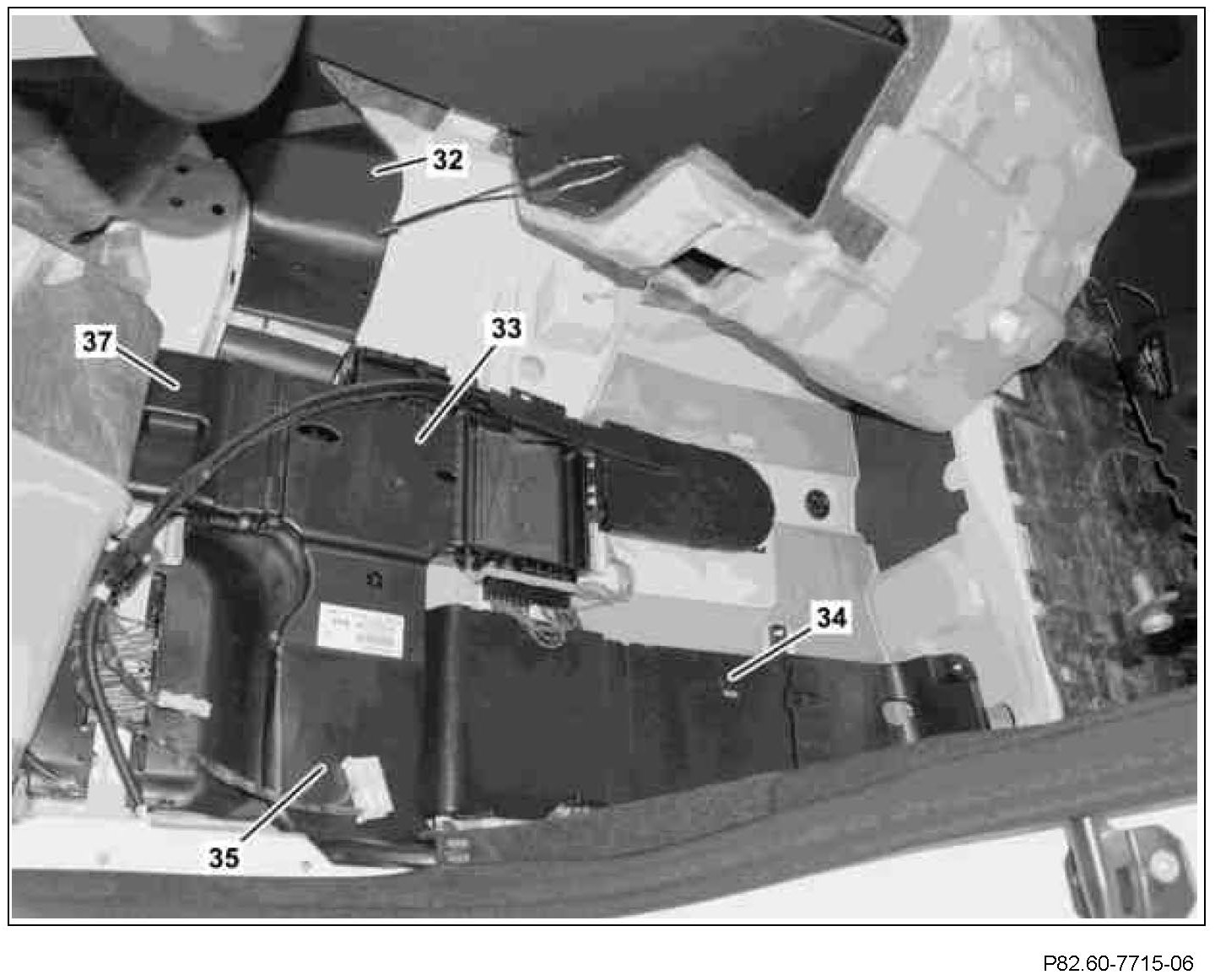

22 Remove air duct (33)
23 Open cable ducts (32, 34) of frame floor assembly.
24 Lift covers of cable ducts (32, 34) above the air ducts (35, 37).
25 Route TV tuner wiring harness (1) and orange line (or) in cable duct (34).
26 Route orange line (or) further to cable duct (36).
27 Route TV tuner wiring harness (1) further in the cable duct (32) and guide out of the opening (arrow D).

28 Lay air ducts (35, 37) above cable ducts (32, 34) of frame floor assembly and close cable ducts (32, 34) of frame floor assembly.
29 Install air duct (33)

30 Lift left front floor covering (25) until cable duct (36) in the rear area can be opened.
31 Open cable duct (36) in the rear area.

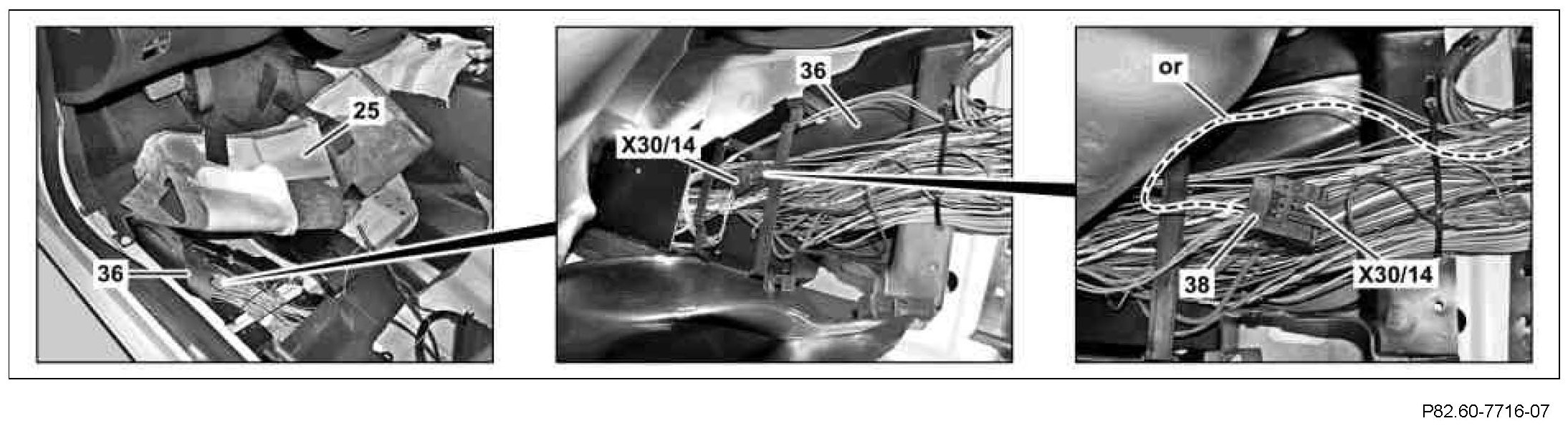

32 Expose wake-up signal/diagnosis distributor connector (X30/14) in cable duct (36).
33 Release contact carrier (38) of wake-up signal/diagnosis distributor connector (X30/14).
34 Route orange line (or) to wake-up signal/diagnosis distributor connector (X30/14) and fit in a free slot at the wake-up signal/diagnosis distributor connector (X30/14).
35 Lock contact carrier (38) of wake-up signal/diagnosis distributor connector (X30/14).
36 Close cable duct (36).

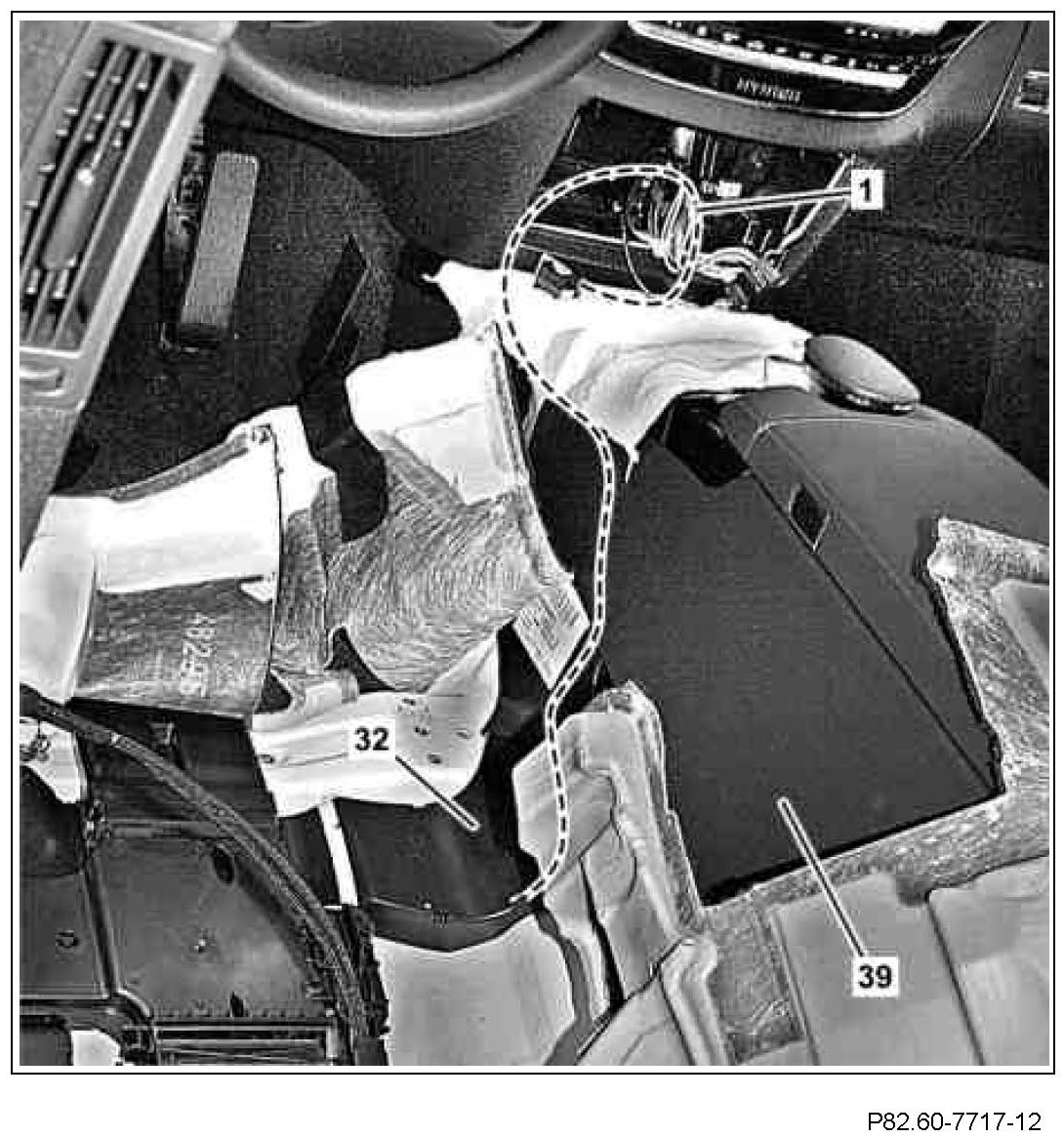

37 Route TV tuner wiring harness (1) from cable duct (32) under center console (39) into mounting opening of COMAND controller unit, as shown, using a pull-through device.

Route TV tuner wiring harness (1) first in the installation opening of the cup holder and from there on to the mounting opening of the COMAND controller unit.

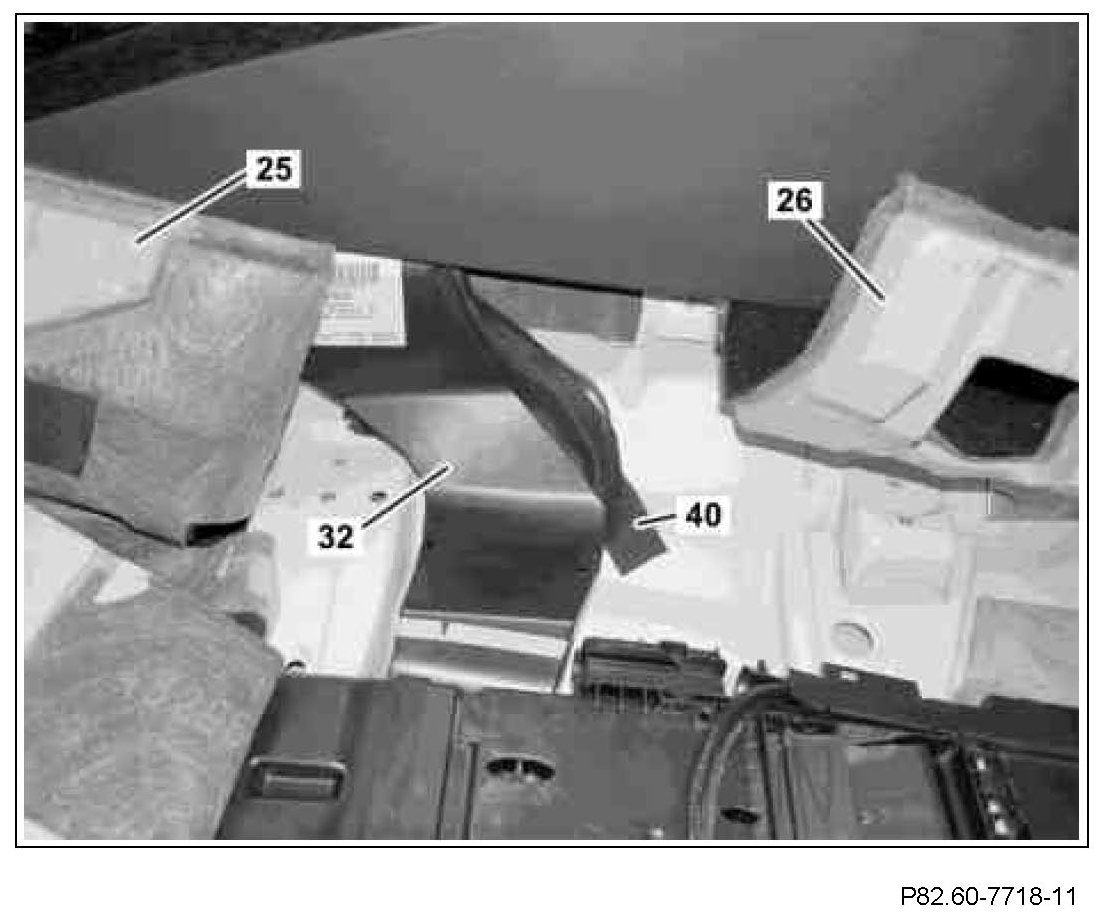

38 Fix TV tuner wiring harness in place on cable duct (32) using felt tape (40).
39 Fold back left front floor covering (25) and left rear floor covering (26) and align.

40 Attach floor covering cover (27) at the rear in the air duct and clip in at the front (arrow C).
41 Install air duct cover (28) and screw down using screw/bolt (29).

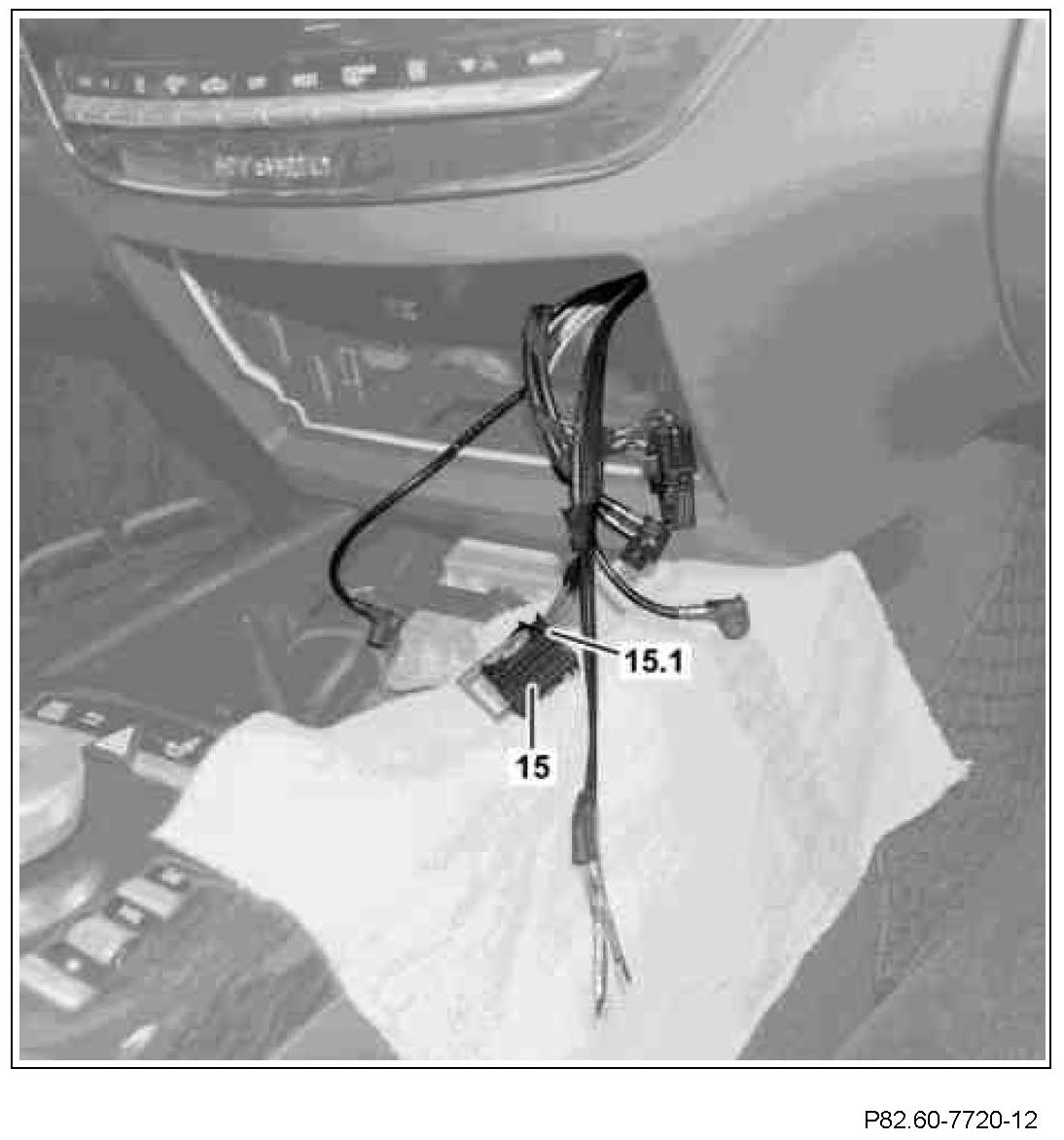

42 Remove black 20-pin contact carrier (15.1) with contact cavity assignment 21 to 40 from black 40-pin coupling (15).

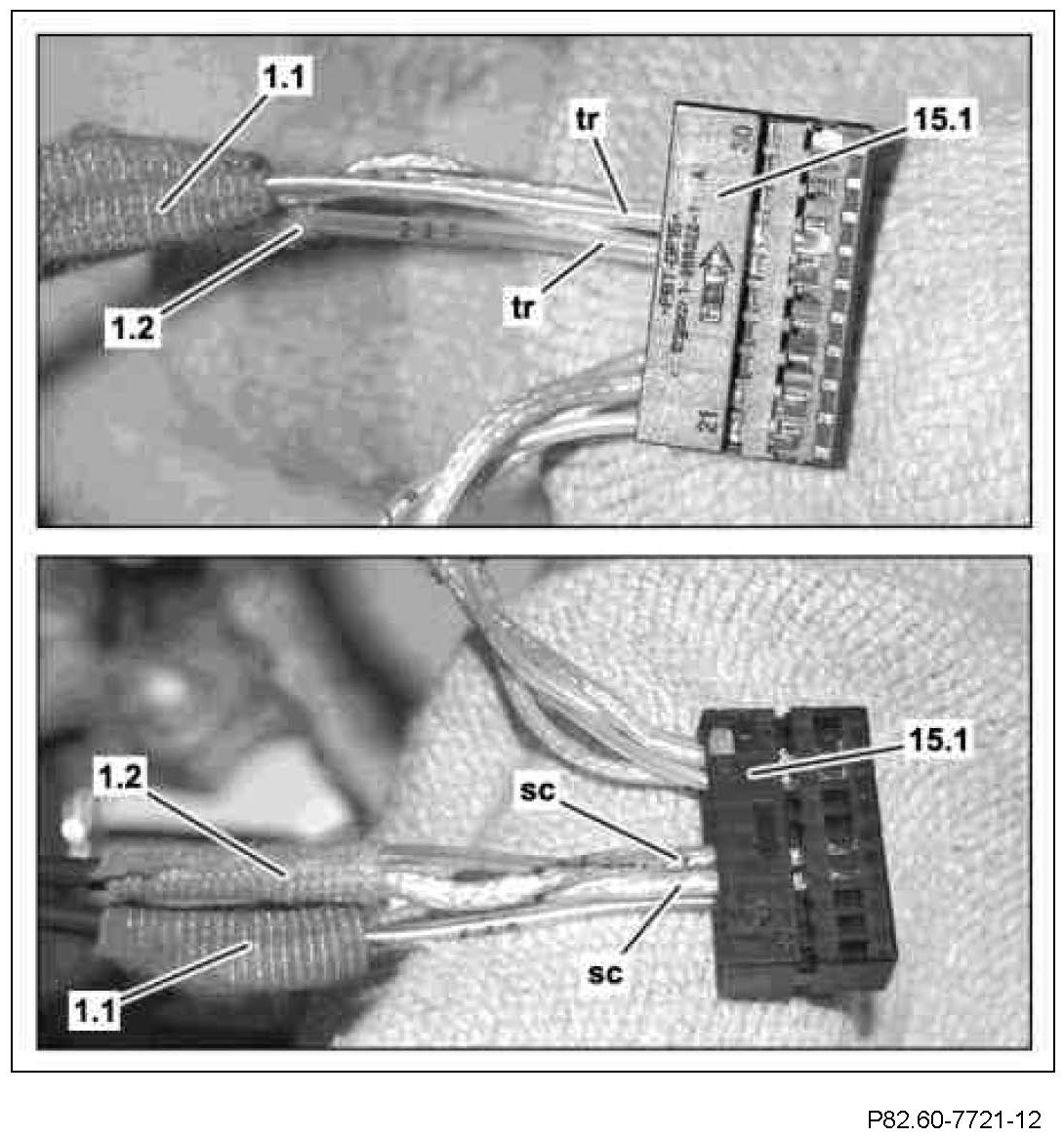

43 Install lines in the black 20-pin contact carrier (15.1) as follows:

- Contact cavity 26 = Transparent line (tr) of blue-marked branch-off line of TV tuner wiring harness (1.2)
- Contact cavity 27 = Transparent line (tr) of red-marked branch-off line of TV tuner wiring harness (1.1)
- Contact cavity 36 = Screened line (sc) of blue-marked branch-off line of TV tuner wiring harness (1.2)
- Contact cavity 37 = Screened line (sc) of red-marked branch-off line of TV tuner wiring harness (1.1)

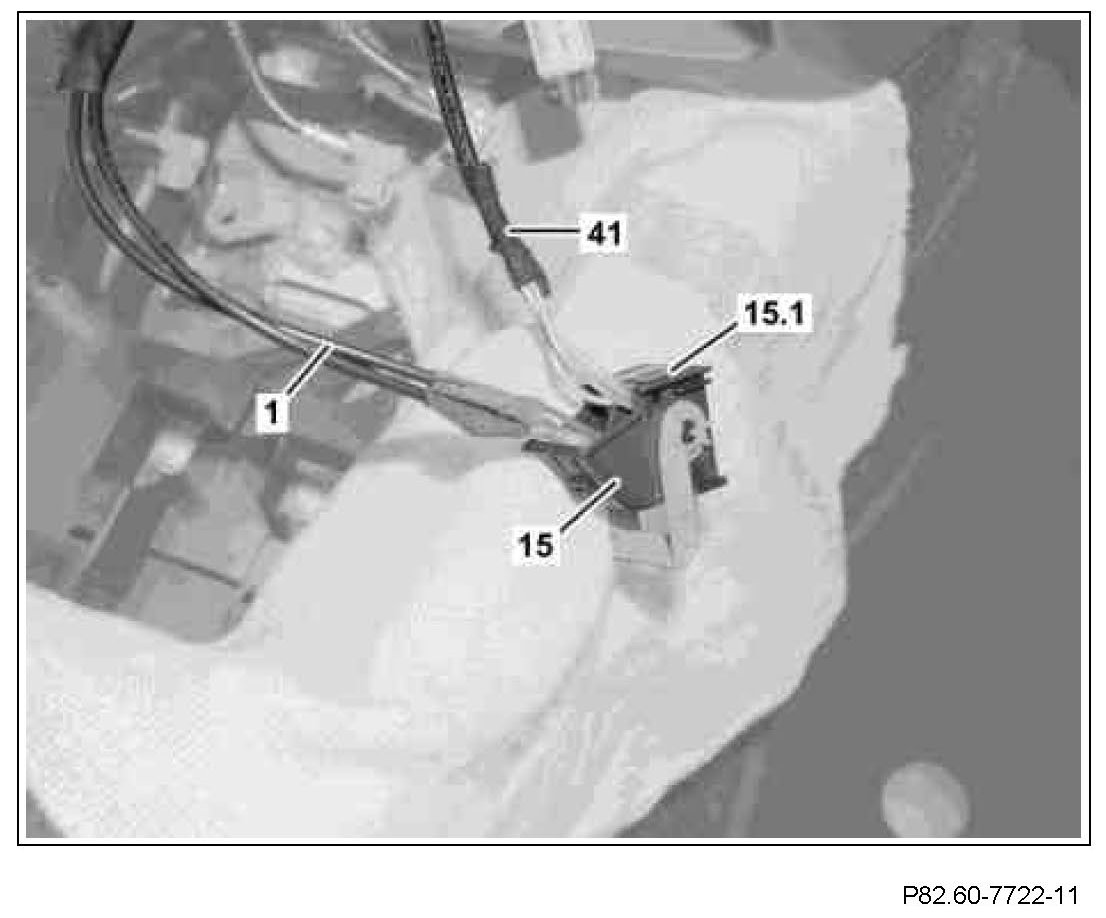

44 Install black 20-pin contact carrier (15.1) in the black 40-pin coupling (15).
45 Fix TV tuner wiring harness (1) in place on vehicle wiring harness (41) using cable tie.

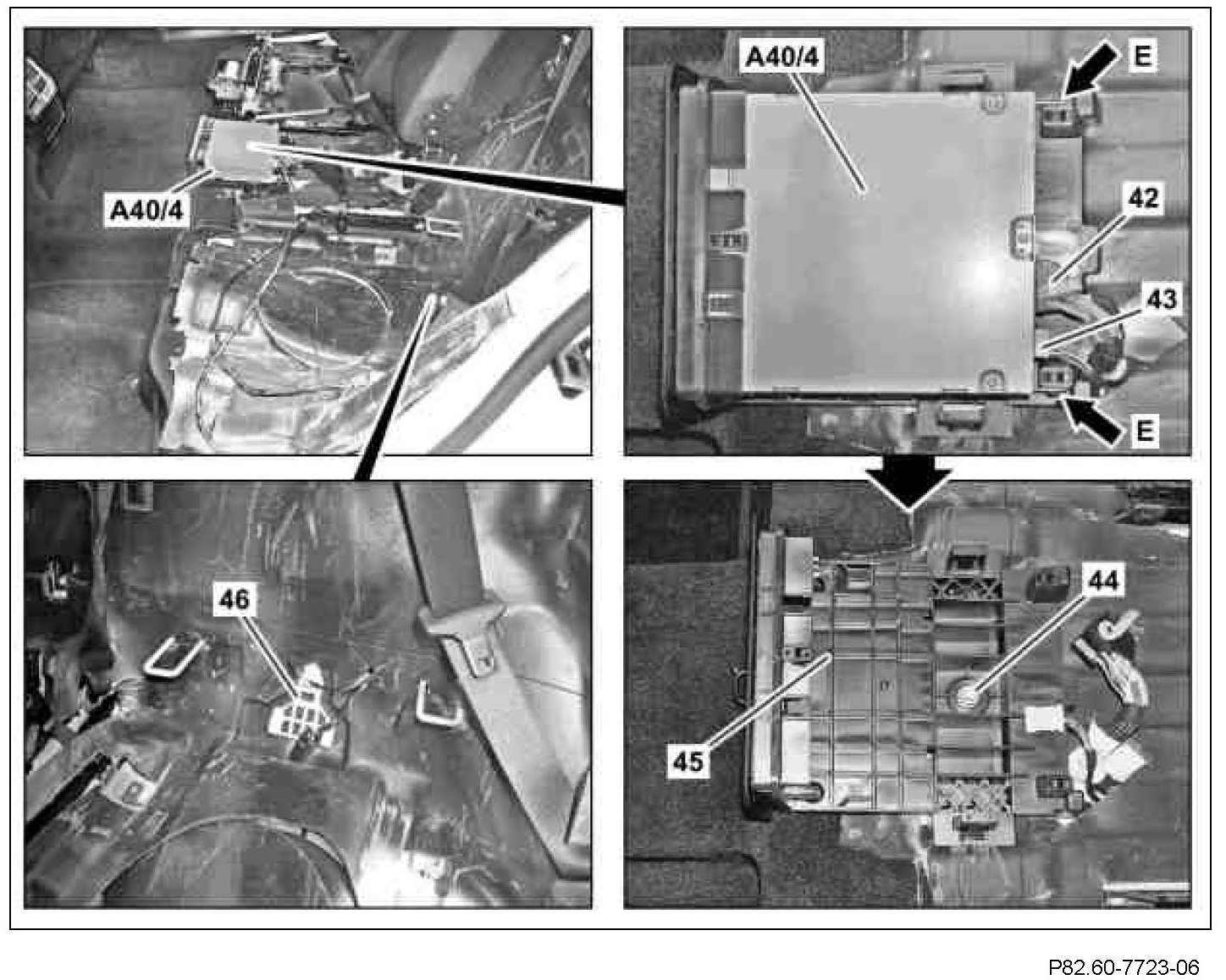

46 Remove bracket (46).
47 Disconnect black 40-pin coupling (42) and transparent 10-pin coupling (43) at DVD player (A40/4).
48 Unscrew screws/bolts (arrows E) and remove DVD player (A40/4).
49 Remove nut (44) and remove bracket (45).

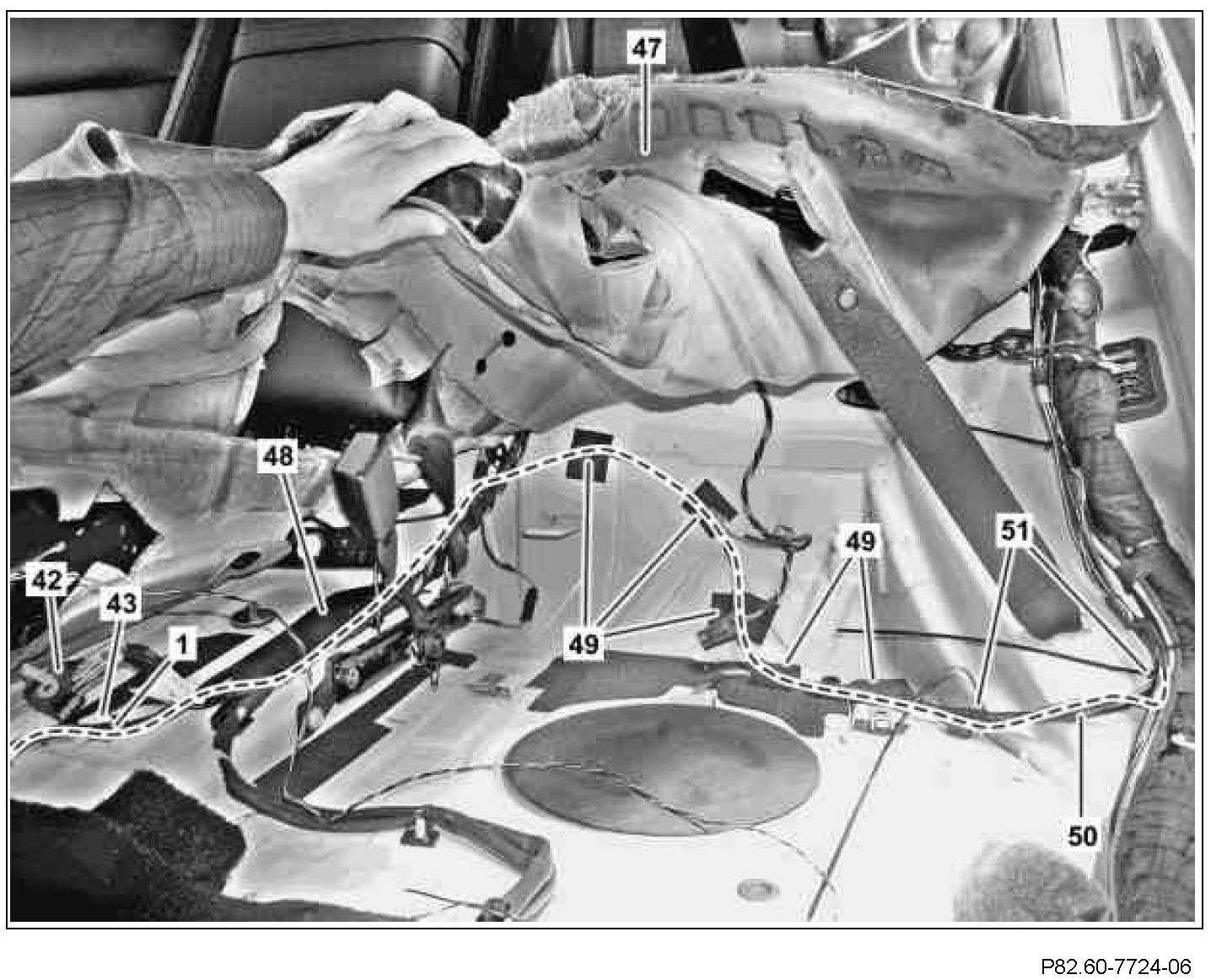

50 Lift insulation mat (47).
51 Open cable duct (48).
52 Route branch-off line with blue 10-pin coupling of TV tuner wiring harness (1) to black 40-pin coupling (42) and transparent 10-pin coupling (43), as shown.
53 Fix branch-off line with blue 10-pin coupling in place on vehicle wiring harness (50) using cable ties (51).

54 Fix branch-off line with blue 10-pin coupling in place on body using felt tape (49).
55 Close cable duct (48) and align insulation mat (47).

56 Install bracket (46).
57 Install bracket (45) and screw down using nut (44).

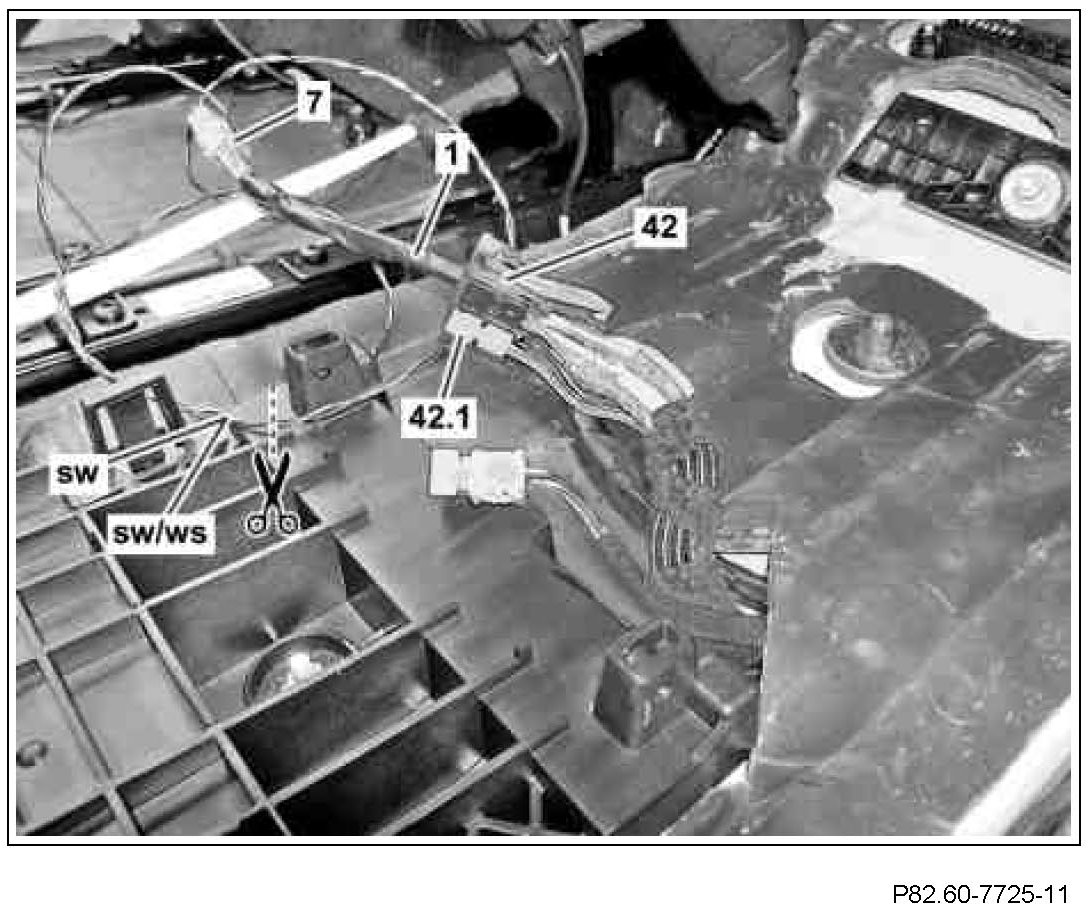

58 Cut off approx. 200 mm of the black line (sw) and black/white line (sw/ws), which are twisted together, of the TV tuner wiring harness (1) after the blue 10-pin coupling (7).
59 Remove gray 20-pin contact carrier (42.1) out of black 40-pin coupling (42).

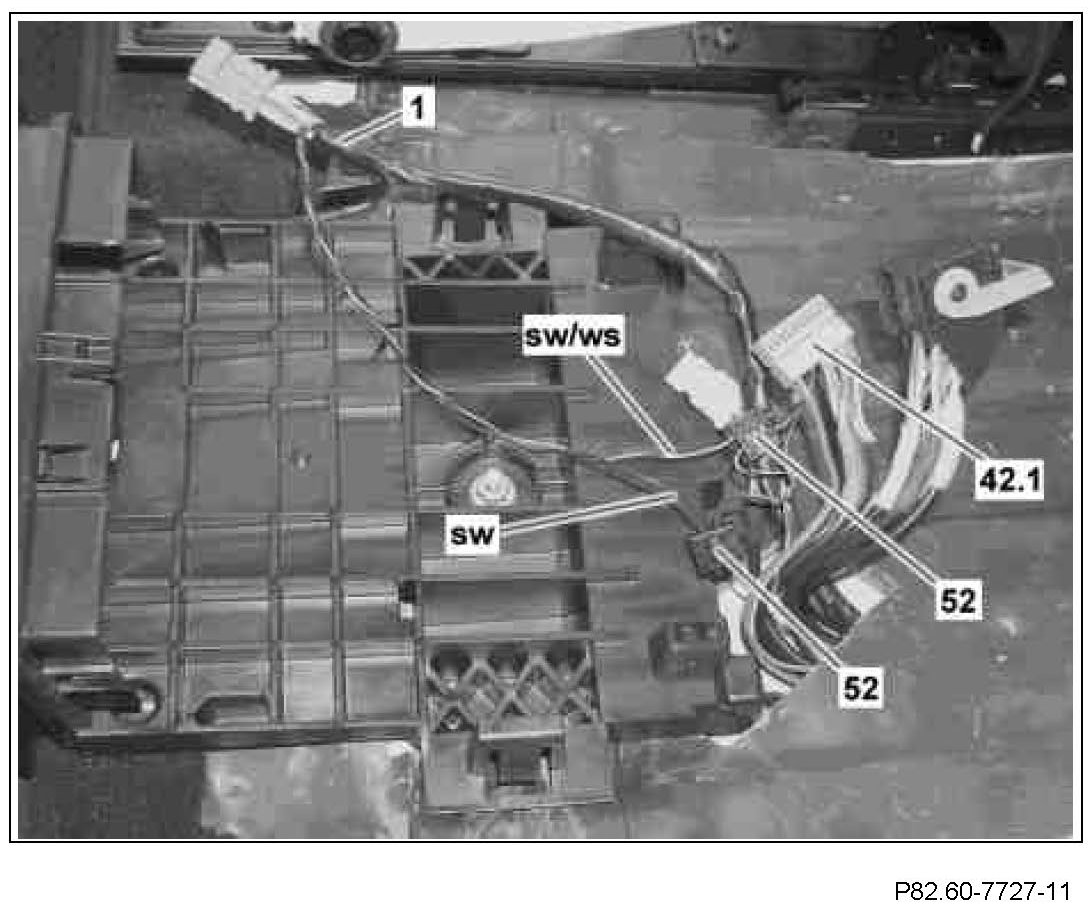

60 Connect black line (sw) of TV tuner wiring harness (1) to the black line from contact cavity 14 of the gray 20-pin contact carrier (42.1) using a potential distributor (52).

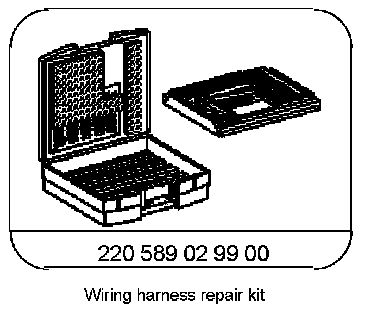

The potential distributor (52) can be found in the wiring harness repair kit.

61 Connect black/white line (sw/sw) of TV tuner wiring harness (1) to the black/white line from contact cavity 4 of the gray 20-pin contact carrier (42.1) using a potential distributor (52).

The potential distributor (52) can be found in the wiring harness repair kit.

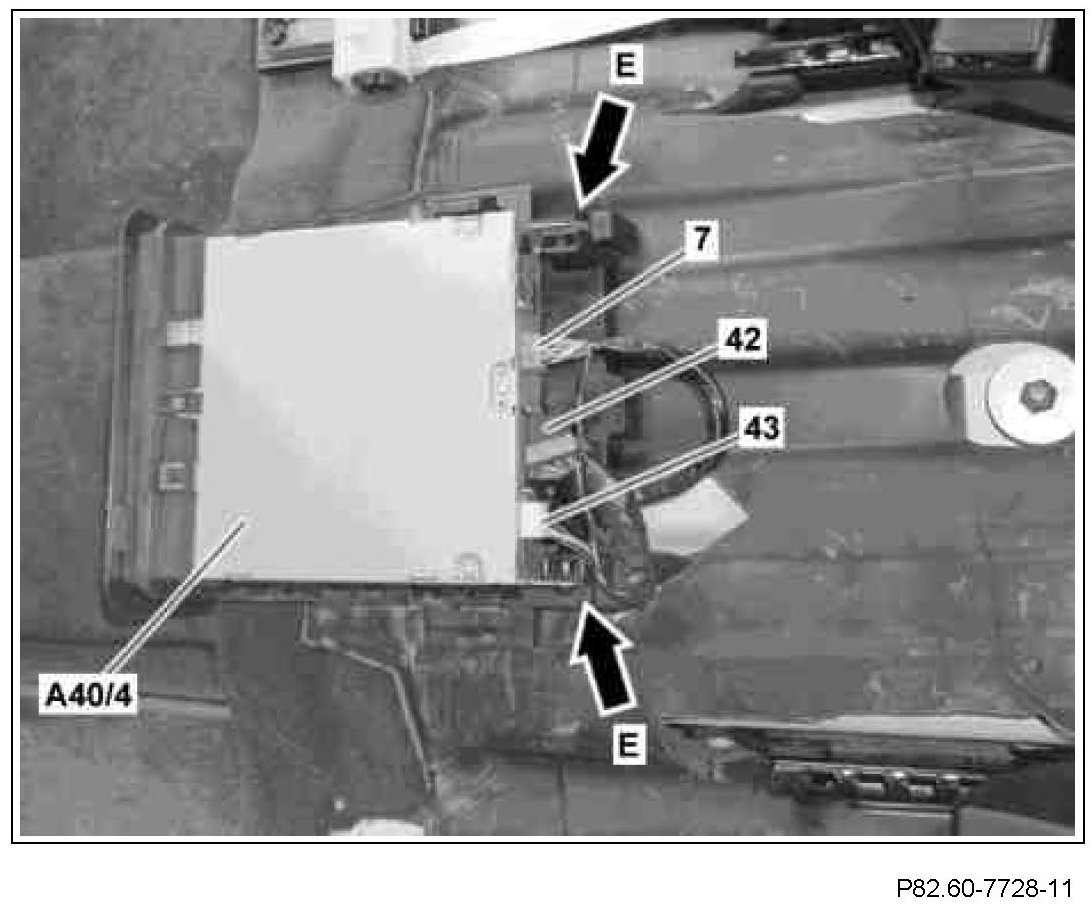

62 Install DVD player (A40/4) and screw down using screws/bolts (arrows E).
63 Connect black 40-pin coupling (42), transparent 10-pin coupling (43) and blue 10-pin coupling (7) to DVD player (A40/4).

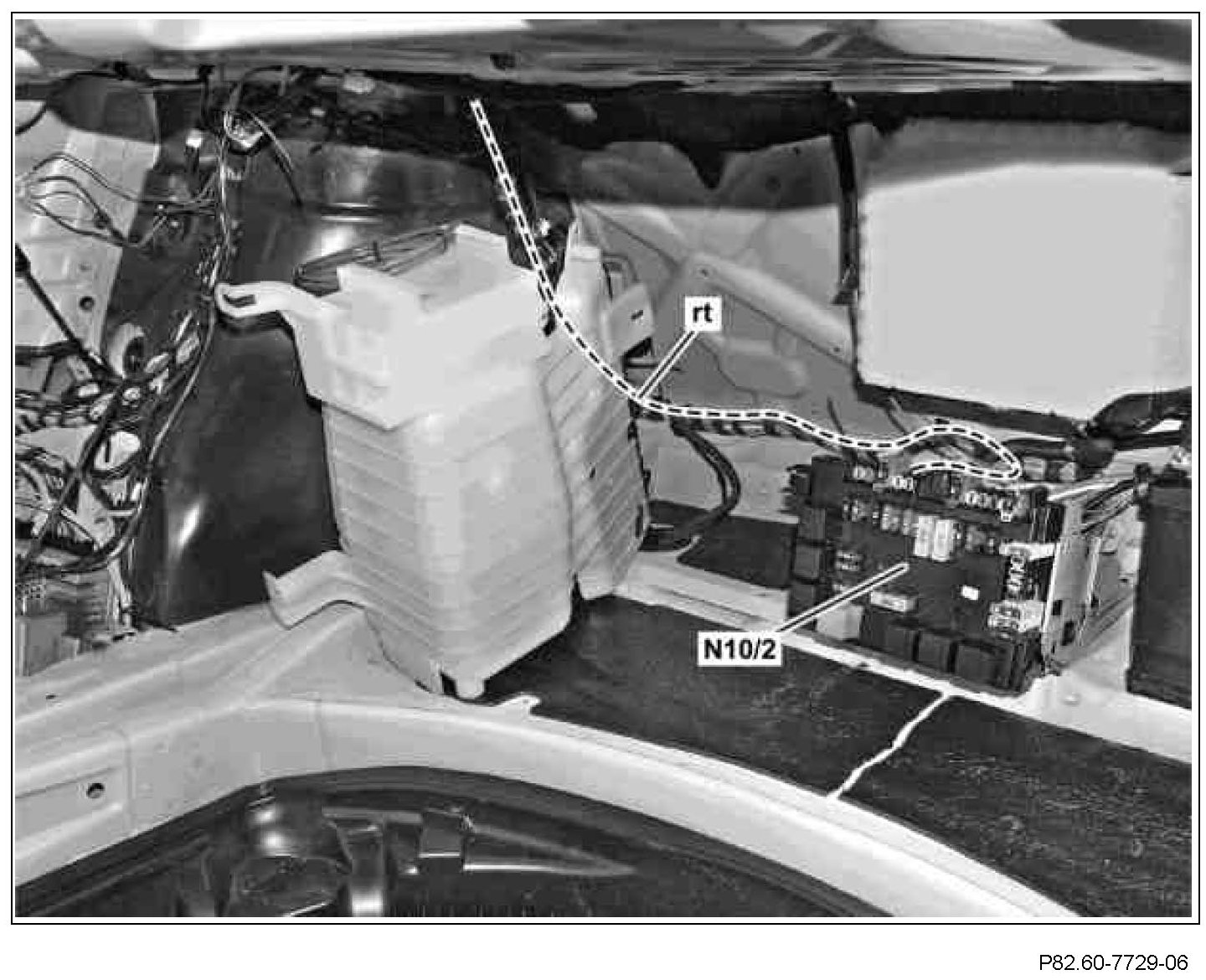

64 Route red line (rt) with turquoise fuse carrier along vehicle wiring harness to rear SAM control unit with fuse and relay module (N10/2), as shown.
65 Fix red line (rt) in place on vehicle wiring harness using cable ties.

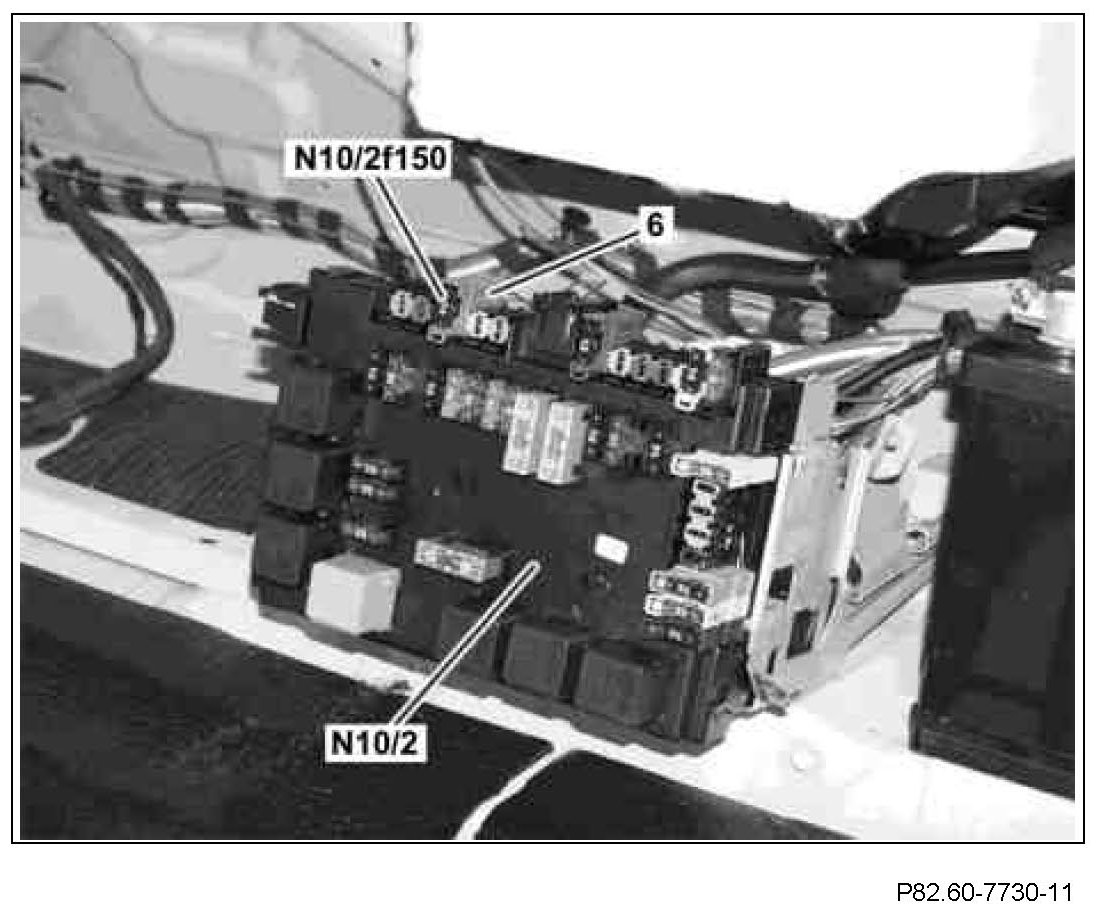

66 Insert turquoise fuse carrier (6) with fuse 150 (N10/2f150) into slot 150 on rear SAM control unit with fuse and relay module (N10/2).

The numbers of the slots are stamped onto the rear SAM control unit with fuse and relay module (N10/2). Fuse 150 (N10/2f150) must have an amperage of 7.5 amps.
