AN82.60-P-0001-03SX Retrofit TV Tuner Wiring Harness

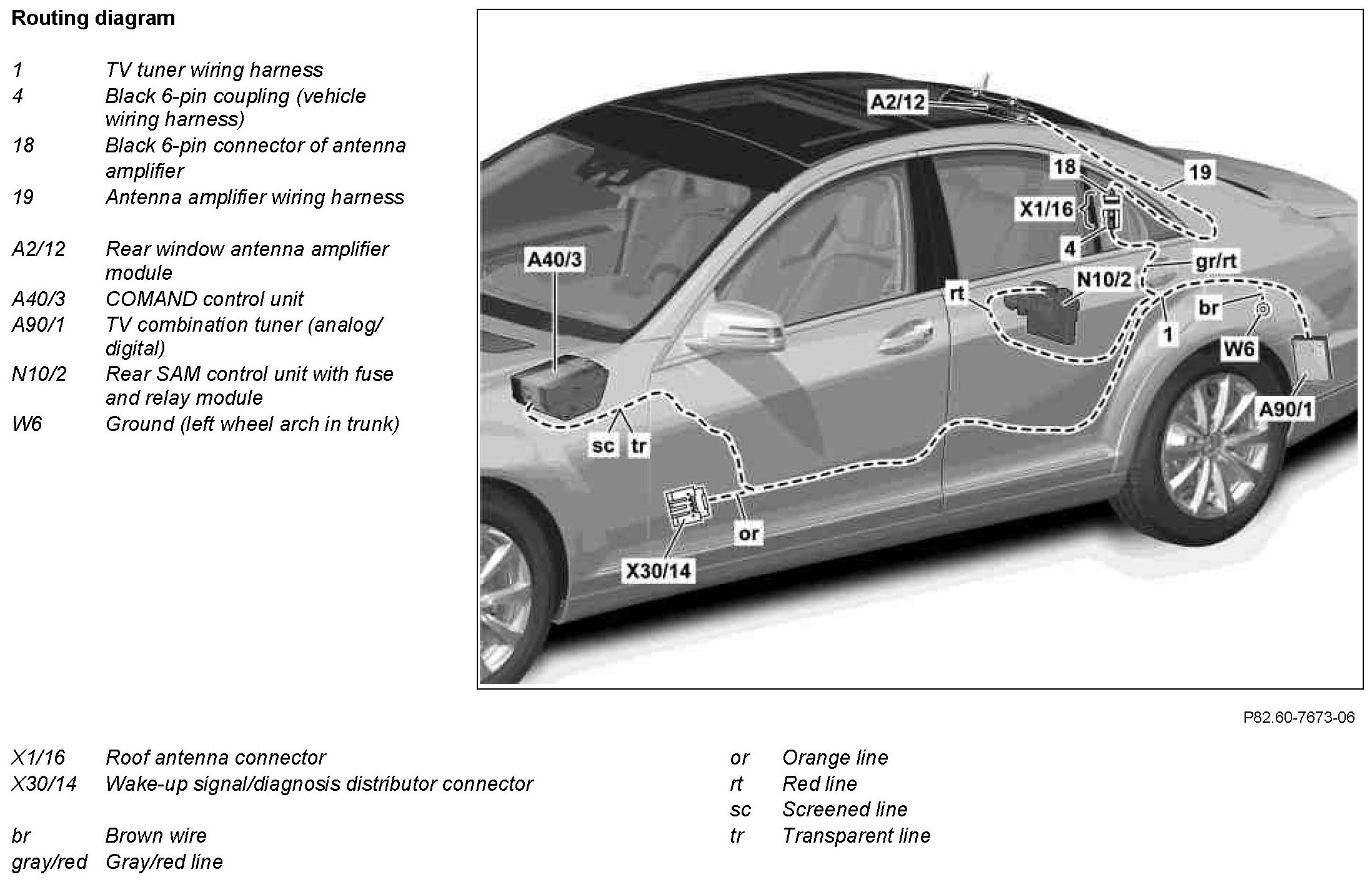

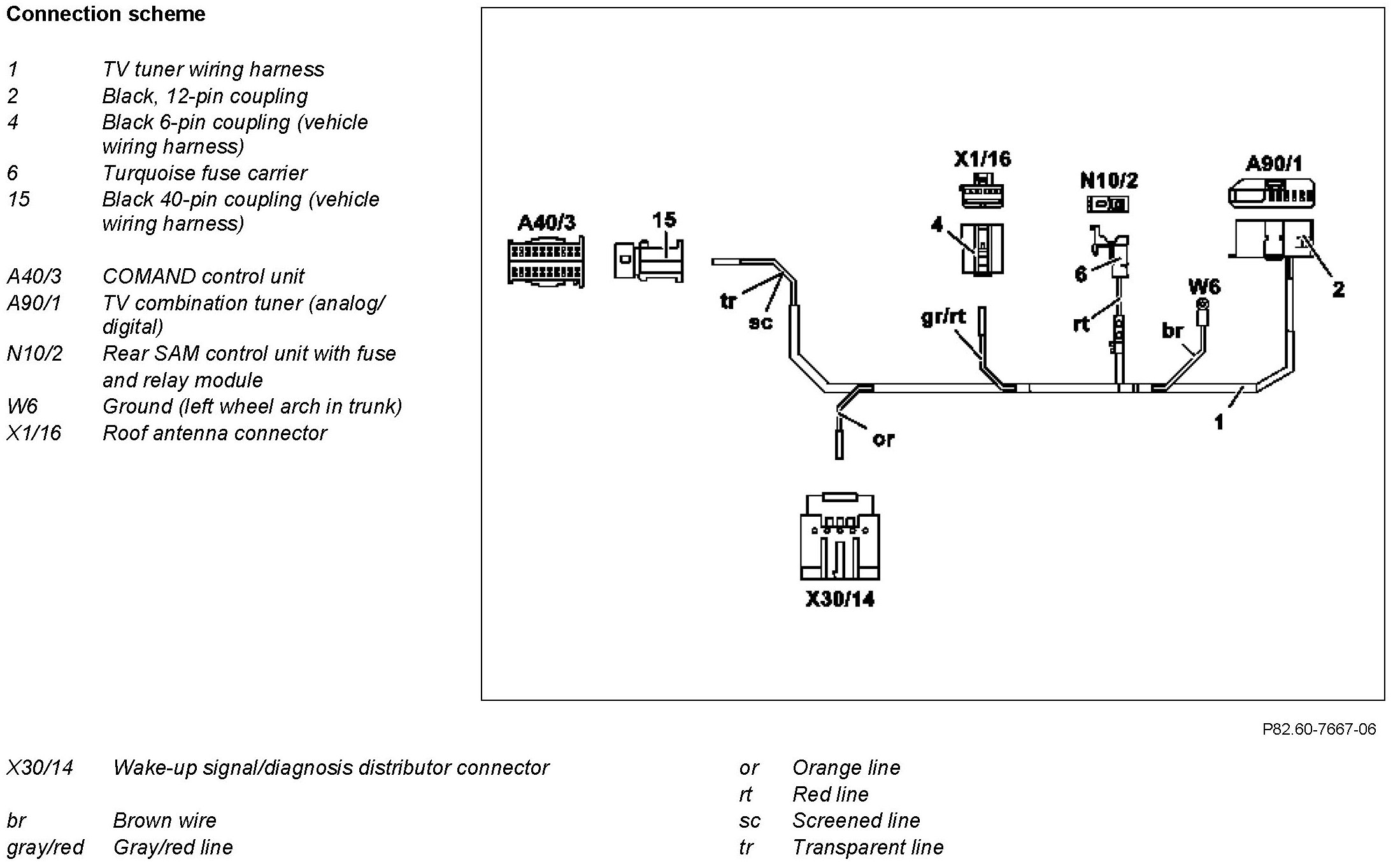

AN82.60-P-0001-03SX Retrofit TV Tuner Wiring Harness
- except CODE (864) Rear entertainment system

Component Identification:

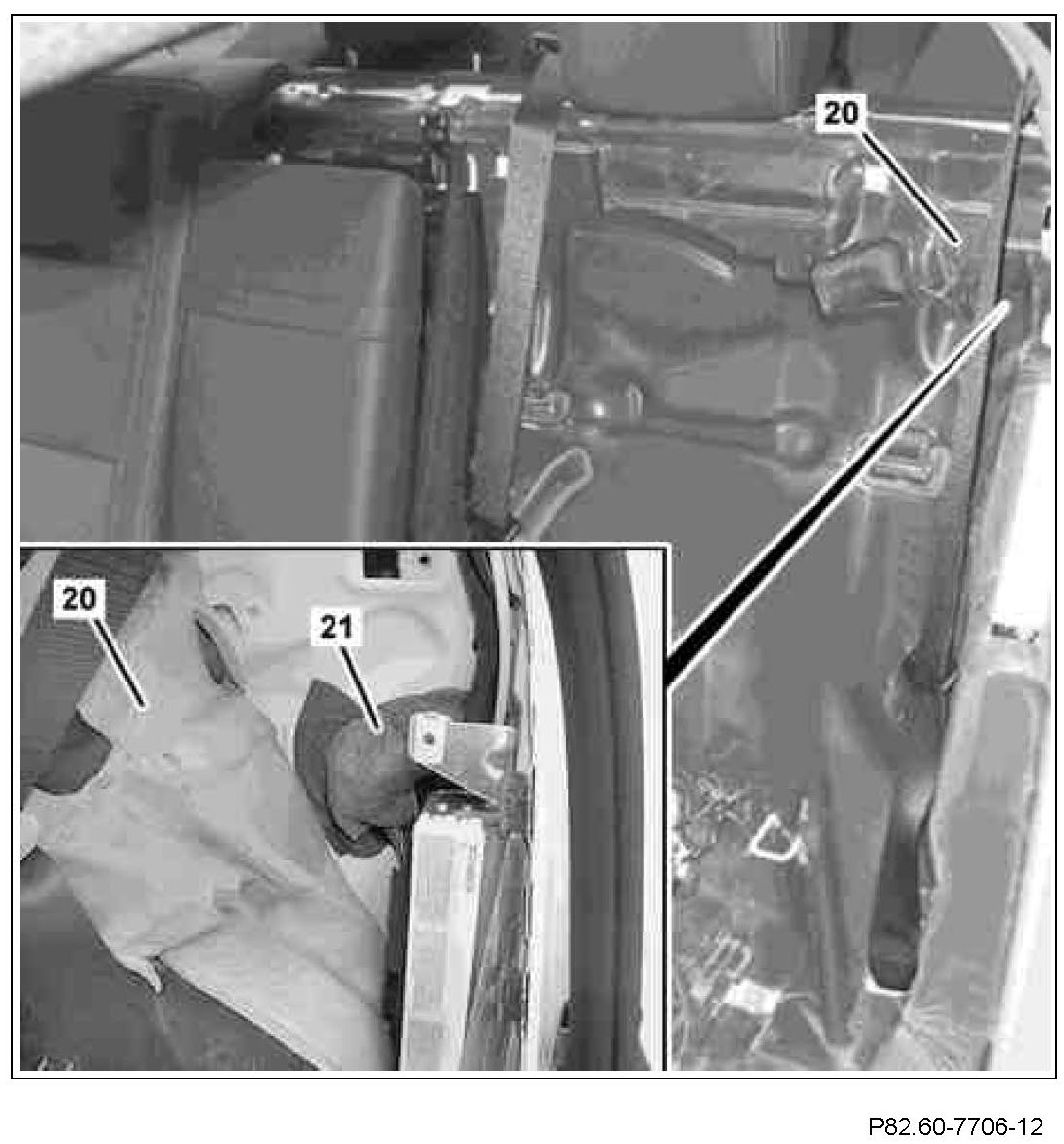

1 Pull insulation mat (20) behind left rear seat backrest to one side and take foam material (21) out of body opening.

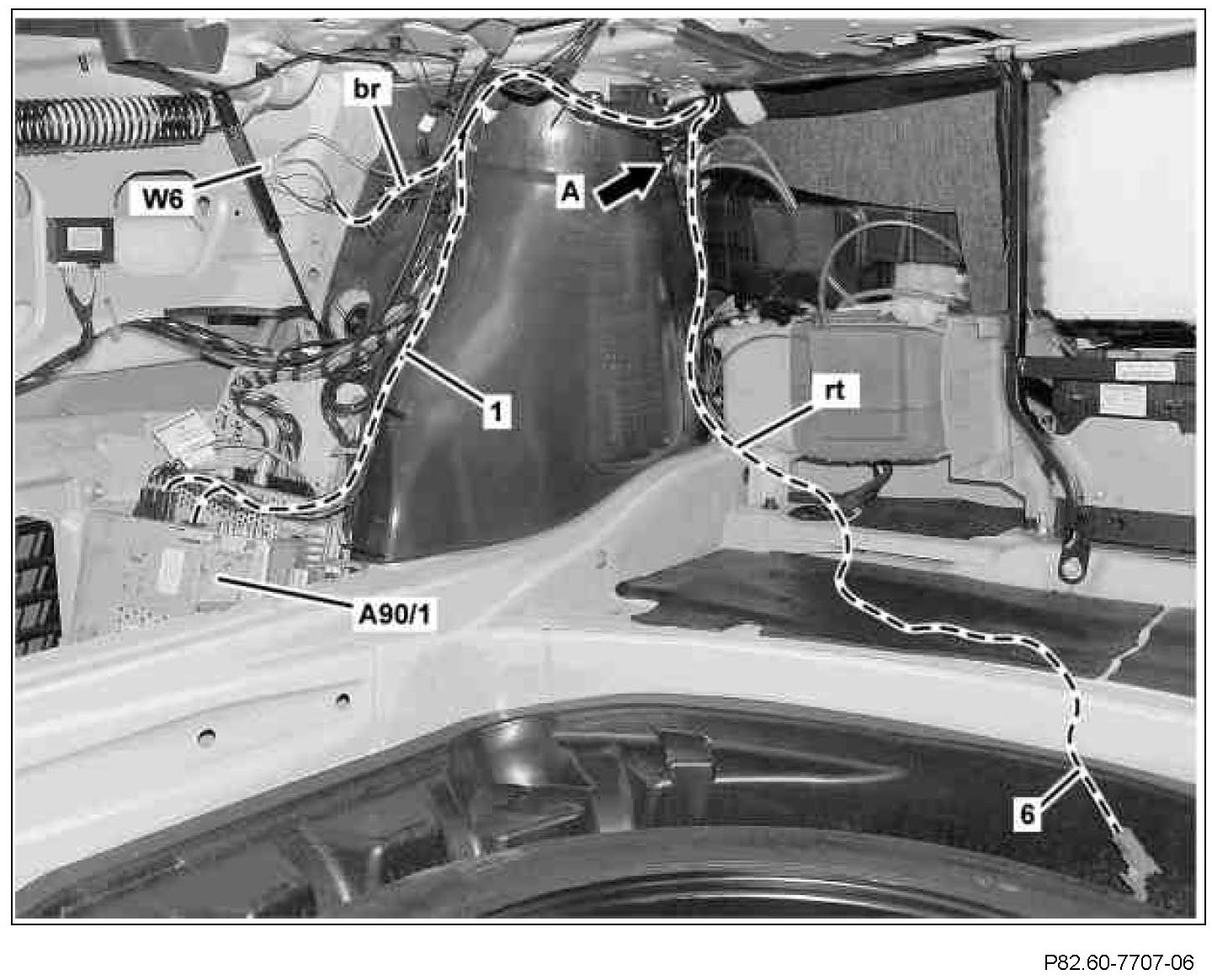

2 Route TV tuner wiring harness (1) along vehicle wiring harness in trunk, as shown, and fix in place using cable ties.
3 Route brown line (br) to ground (left wheel arch in trunk) (W6) and connect.
4 Route TV tuner wiring harness (1) through body opening (arrow A) into the passenger compartment.

The red line (rt) remains in the trunk. It will be routed to the rear SAM control unit with fuse and relay module and connected at a later time.

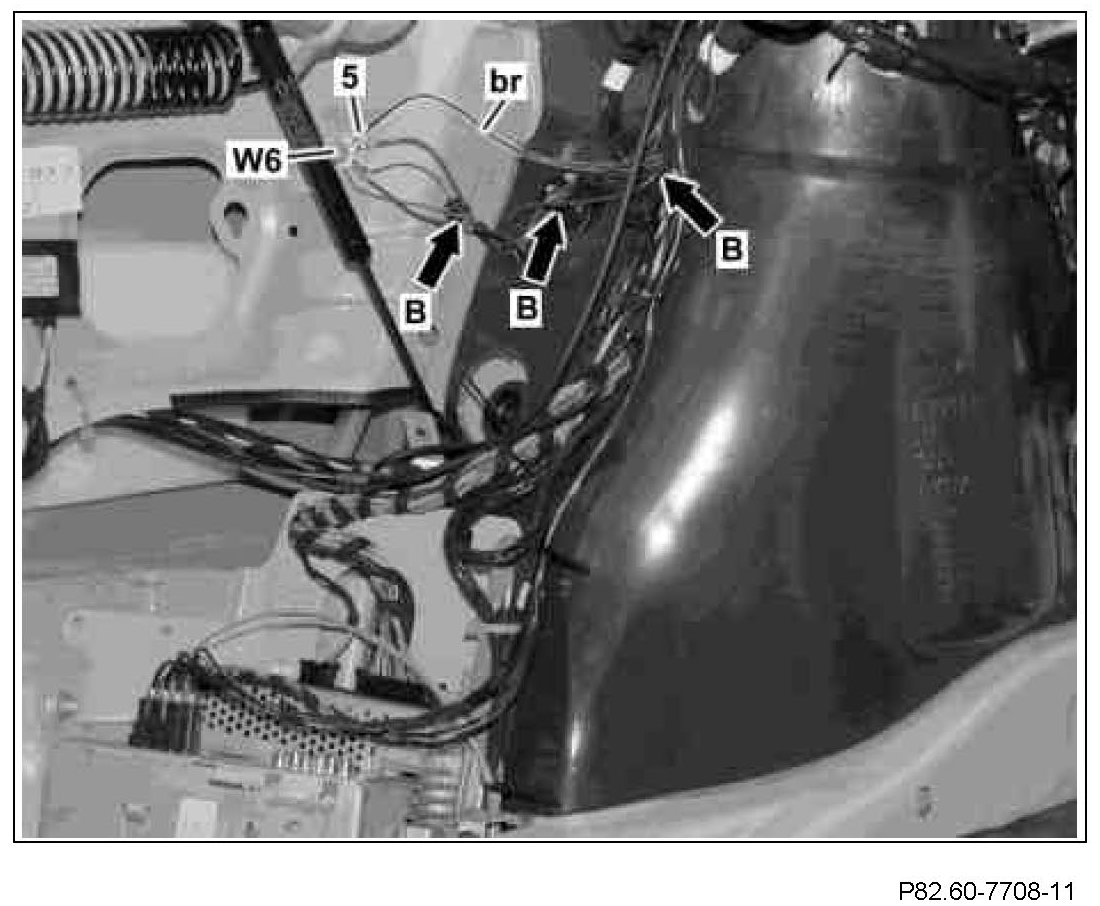

5 Connect brown line (br) with round cable lug (5) to ground (left wheel arch in trunk) (W6).
6 Fix brown line (br) in place on vehicle wiring harness (arrows B) using cable ties.

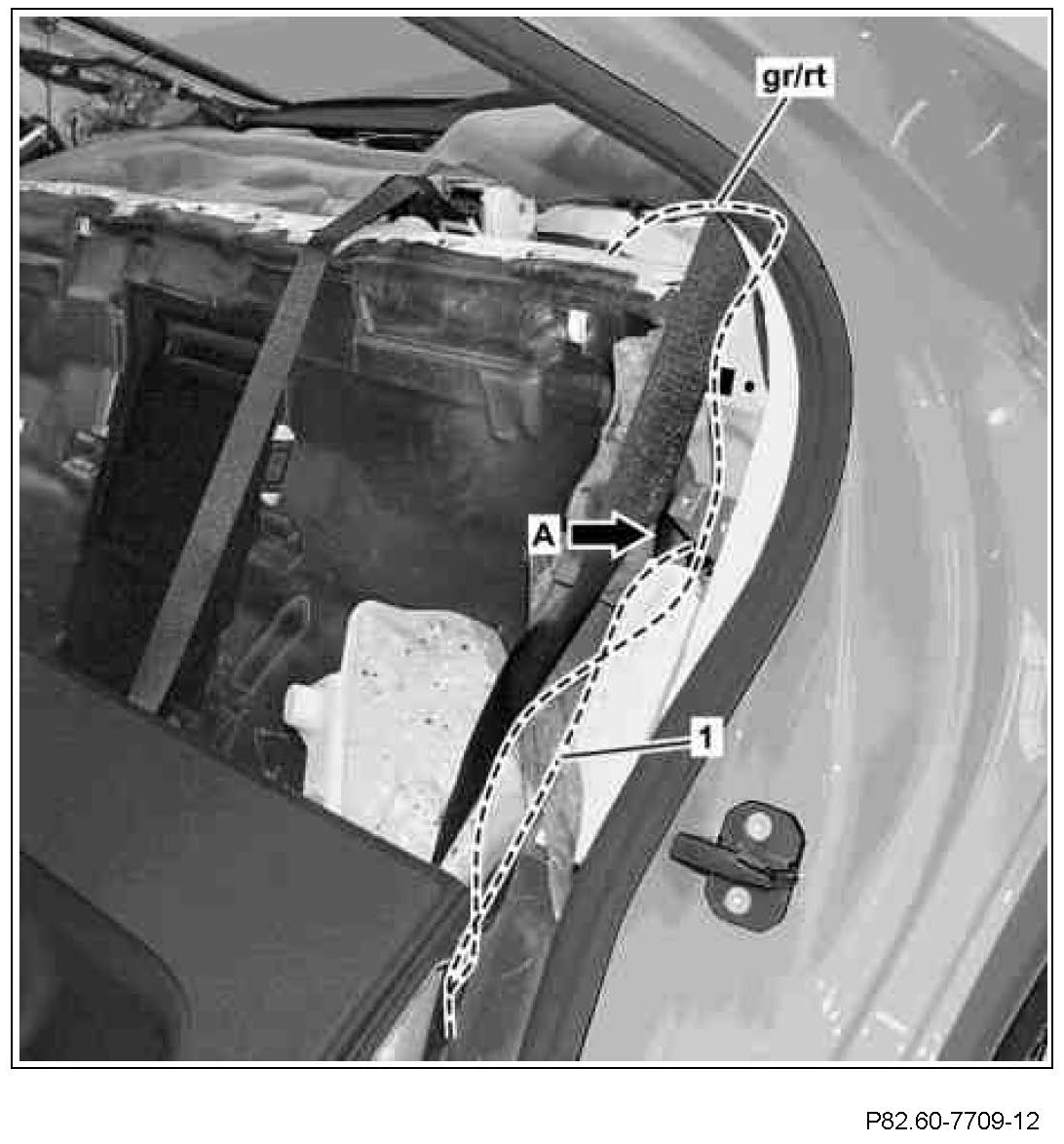

7 Route TV tuner wiring harness (1) along vehicle wiring harness into left rear footwell.

The TV tuner wiring harness (1) has already been guided through the body opening (arrow A) and out of the trunk.

8 Route gray/red line (gr/rt) of TV tuner wiring harness (1) along vehicle wiring harness to the previously installed black 6-pin antenna amplifier connector on the rear shelf.

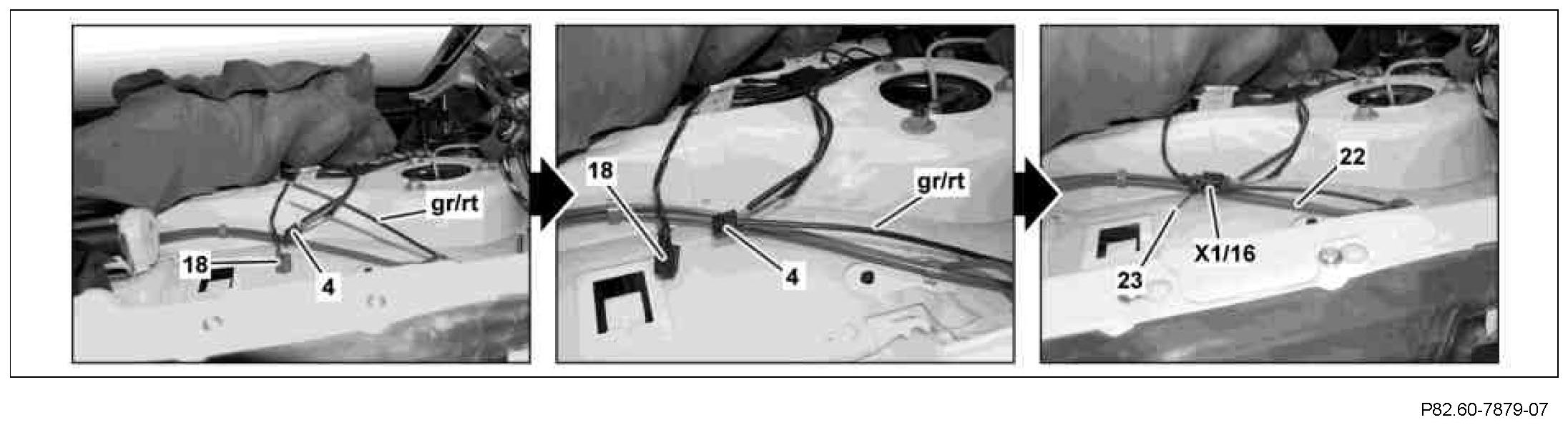

9 Open lock on black 6-pin coupling (4) of vehicle wiring harness.

The black 6-pin coupling (4) belongs to the previously disconnected roof antenna connector (X1/16).

10 Install gray/red line (gr/rt) in slot "4" of black 6-pin coupling (4).
11 Close lock on black 6-pin coupling (4).
12 Connect black 6-pin coupling (4) to black 6-pin antenna amplifier connector (18) of roof antenna connector (X1/16).
13 Fix roof antenna connector (X1/16) and gray/red line (gr/rt) in place on vehicle wiring harness (22) using cable tie (23).

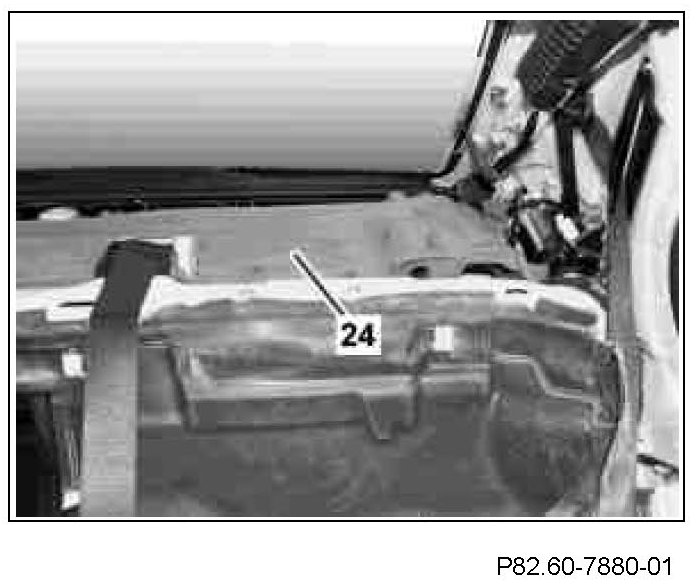

14 Align insulation mat (24).

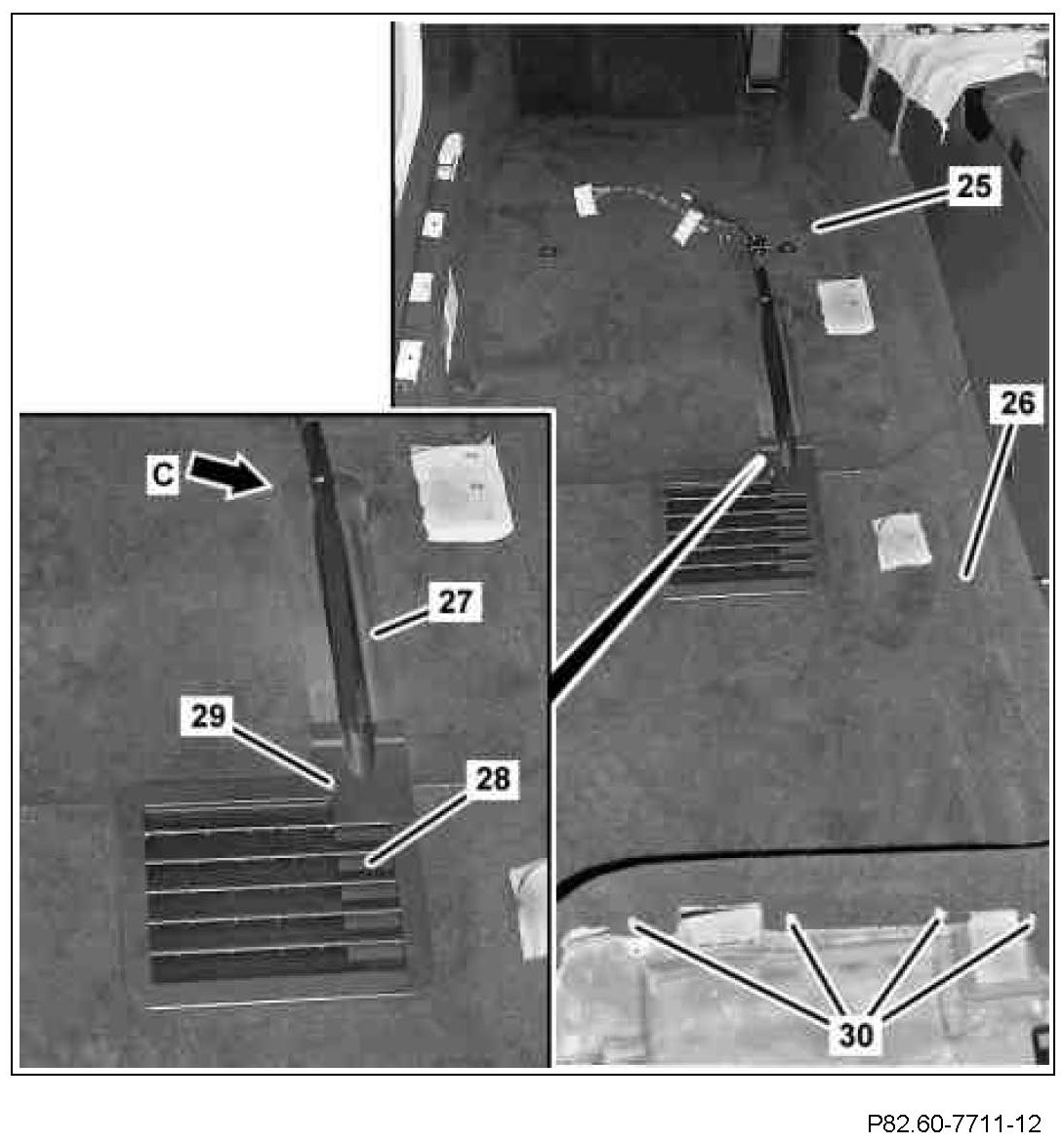

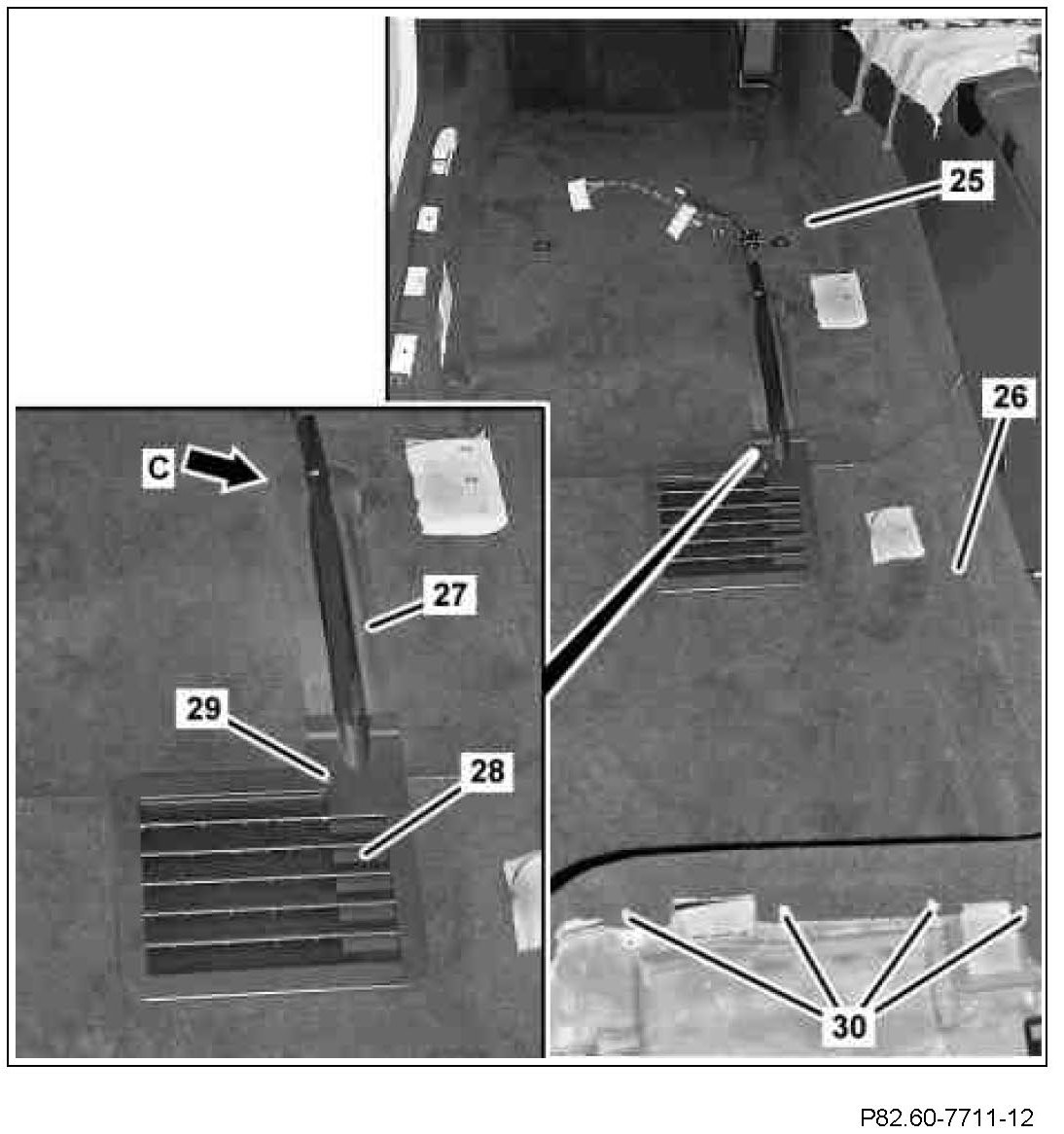

15 Remove screw/bolt (29) and remove air duct cover (28).
16 Unclip floor covering cover (27) in the front area (arrow C), lift and unhook at the rear.
17 Lift left front floor covering (25) until cable duct underneath is accessible.
18 Remove clips (30) and lift left rear floor covering (26).

19 Pull insulation mat in left rear footwell to one side and take foam material (31) out of body opening.

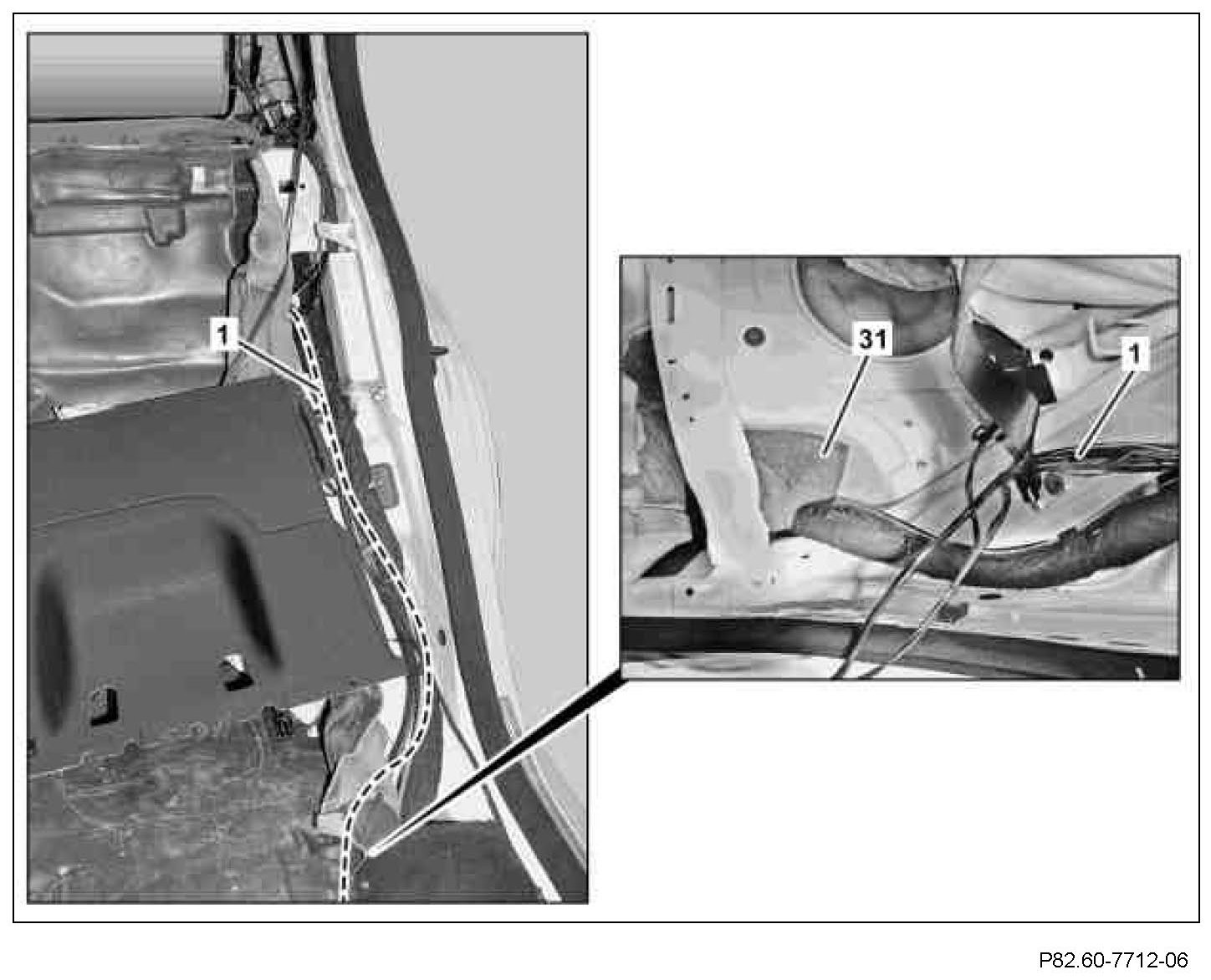

20 Route TV tuner wiring harness (1) along vehicle wiring harness in left rear footwell, as shown, and fix in place using cable tie.
21 Route TV tuner wiring harness (1) through body opening behind foam material (31) into cable duct under left rear floor covering.

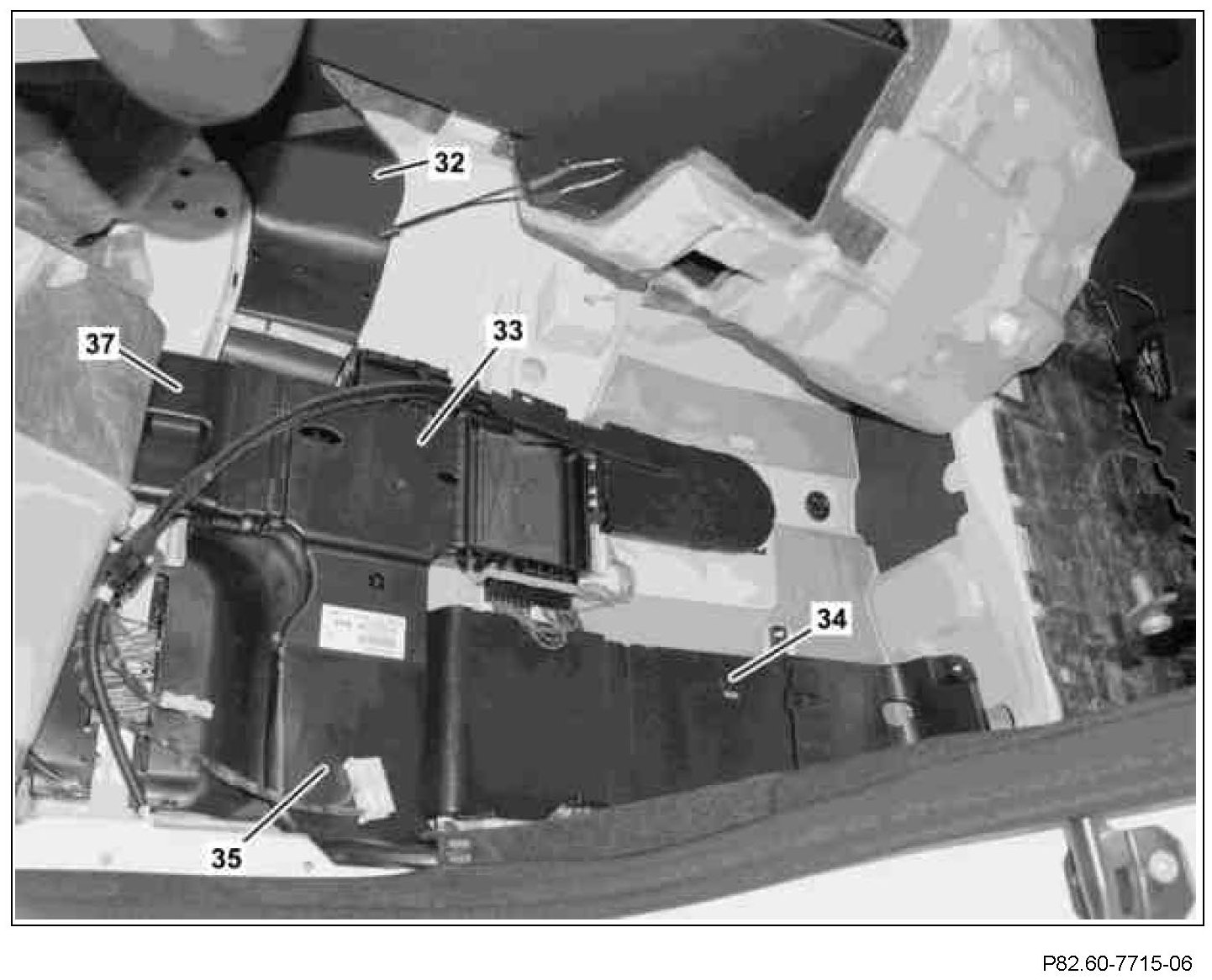

22 Remove air duct (33)
23 Open cable ducts (32, 34) of frame floor assembly.
24 Lift covers of cable ducts (32, 34) above the air ducts (35, 37).
25 Route TV tuner wiring harness (1) and orange line (or) in cable duct (34).
26 Route orange line (or) further to cable duct (36).
27 Route TV tuner wiring harness (1) further in the cable duct (32) and guide out of the opening (arrow D).

28 Lay air ducts (35, 37) above cable ducts (32, 34) of frame floor assembly and close cable ducts (32, 34) of frame floor assembly.
29 Install air duct (33)

30 Lift left front floor covering (25) until cable duct (36) in the rear area can be opened.
31 Open cable duct (36) in the rear area.
32 Expose wake-up signal/diagnosis distributor connector (X30/14) in cable duct (36).
33 Release contact carrier (38) of wake-up signal/diagnosis distributor connector (X30/14).
34 Route orange line (or) to wake-up signal/diagnosis distributor connector (X30/14) and fit in a free slot at the wake-up signal/diagnosis distributor connector (X30/14).
35 Lock contact carrier (38) of wake-up signal/diagnosis distributor connector (X30/14).
36 Close cable duct (36).

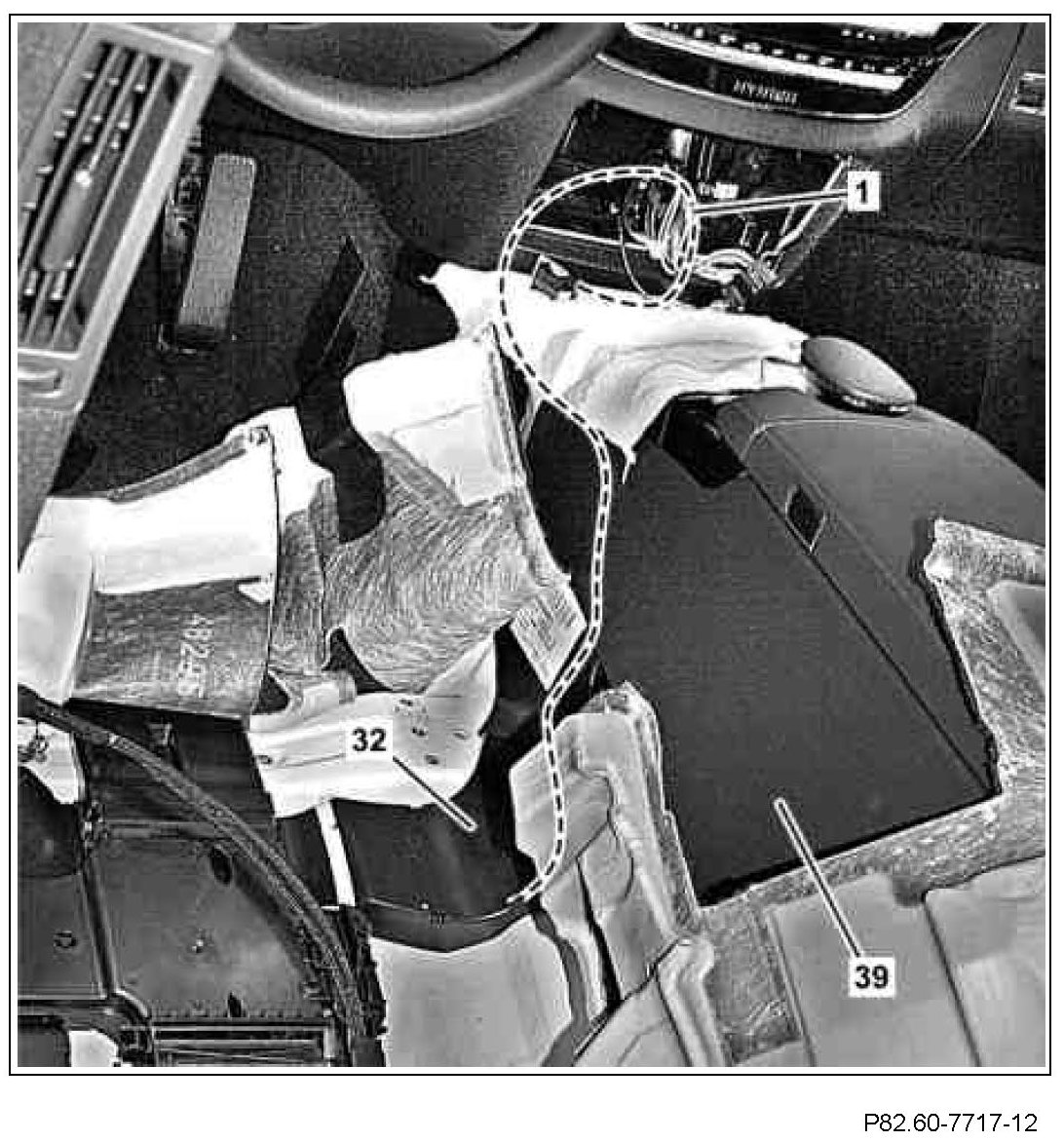

37 Route TV tuner wiring harness (1) from cable duct (32) under center console (39) into mounting opening of COMAND controller unit, as shown, using a pull-through device.

Route TV tuner wiring harness (1) first in the installation opening of the cup holder and from there on to the mounting opening of the COMAND controller unit.

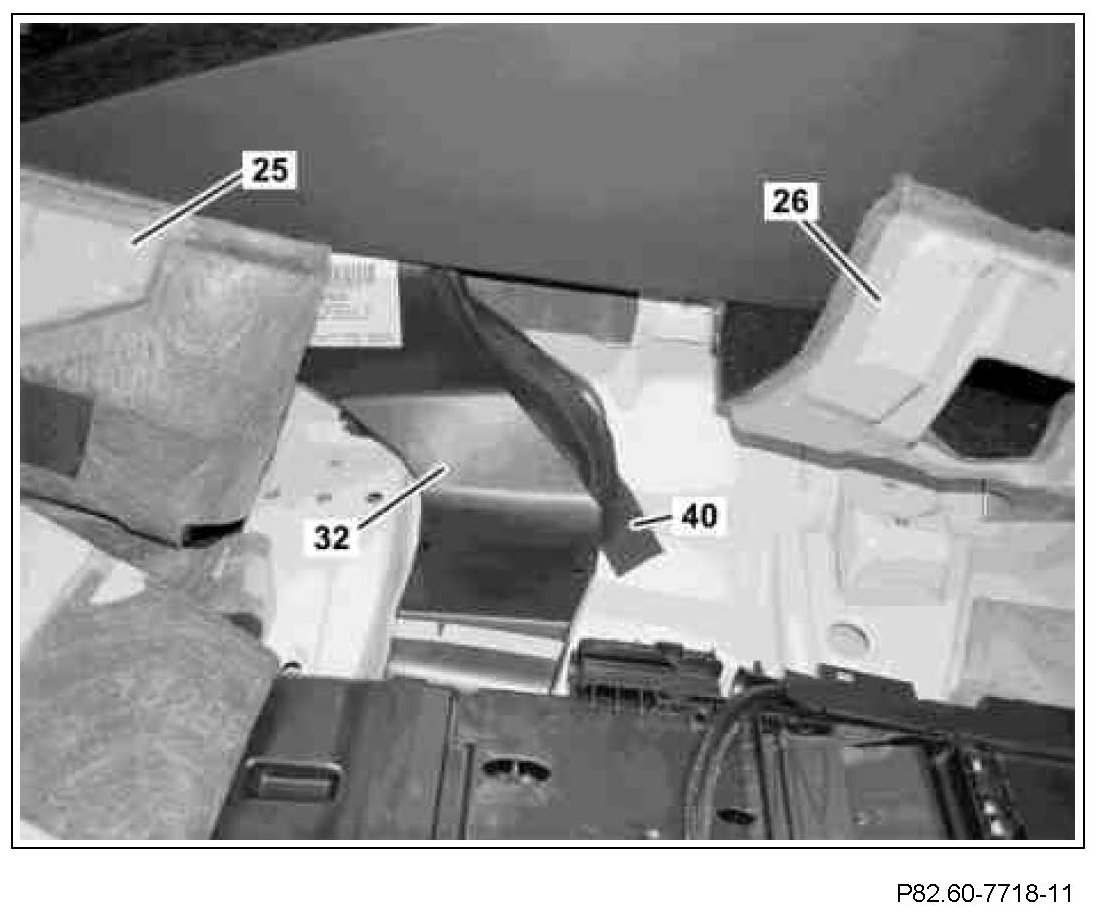

38 Fix TV tuner wiring harness in place on cable duct (32) using felt tape (40).
39 Fold back left front floor covering (25) and left rear floor covering (26) and align.

40 Secure left rear floor covering (26) using the clips (30).
41 Attach floor covering cover (27) at the rear in the air duct and clip in at the front (arrow C).
42 Install air duct cover (28) and screw down using screw/bolt (29).

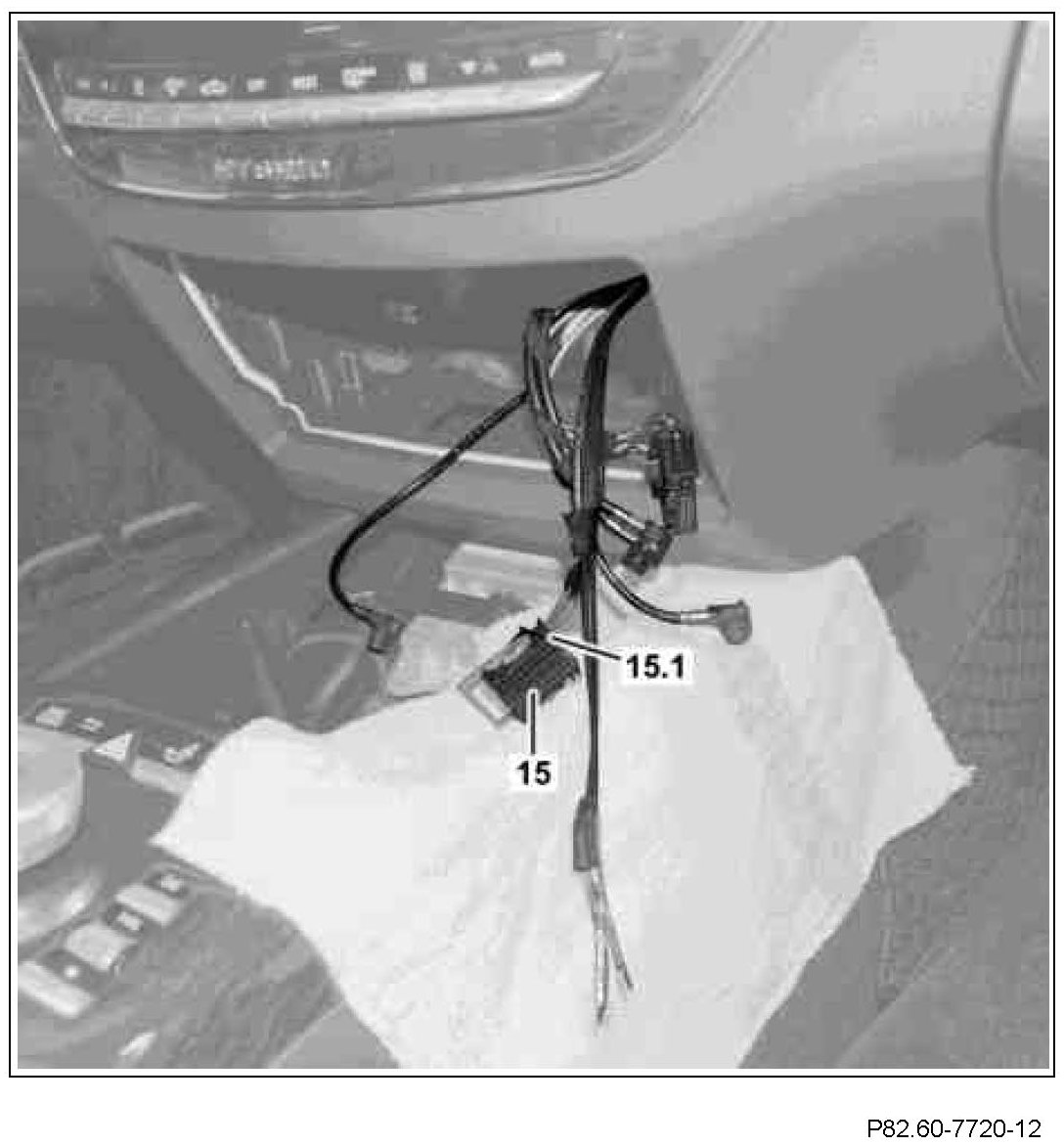

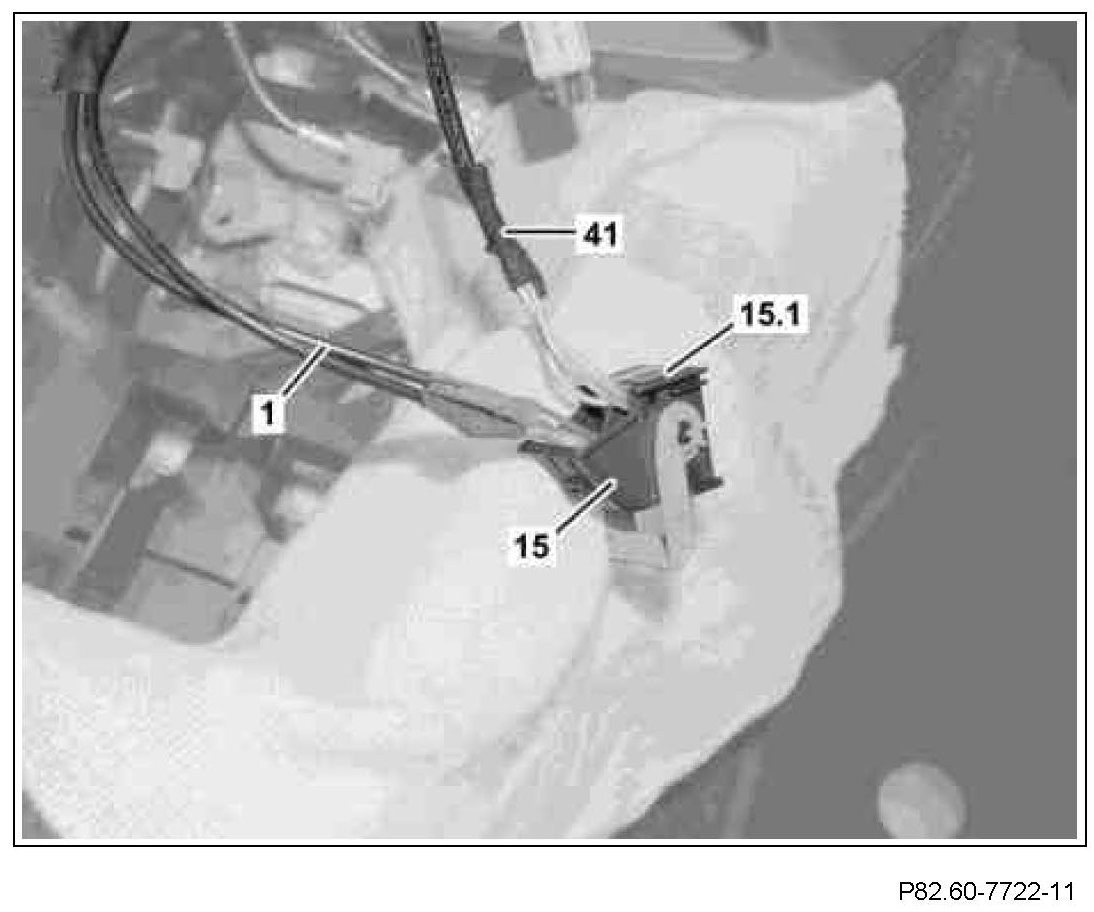

43 Remove black 20-pin contact carrier (15.1) with contact cavity assignment 21 to 40 from black 40-pin coupling (15).

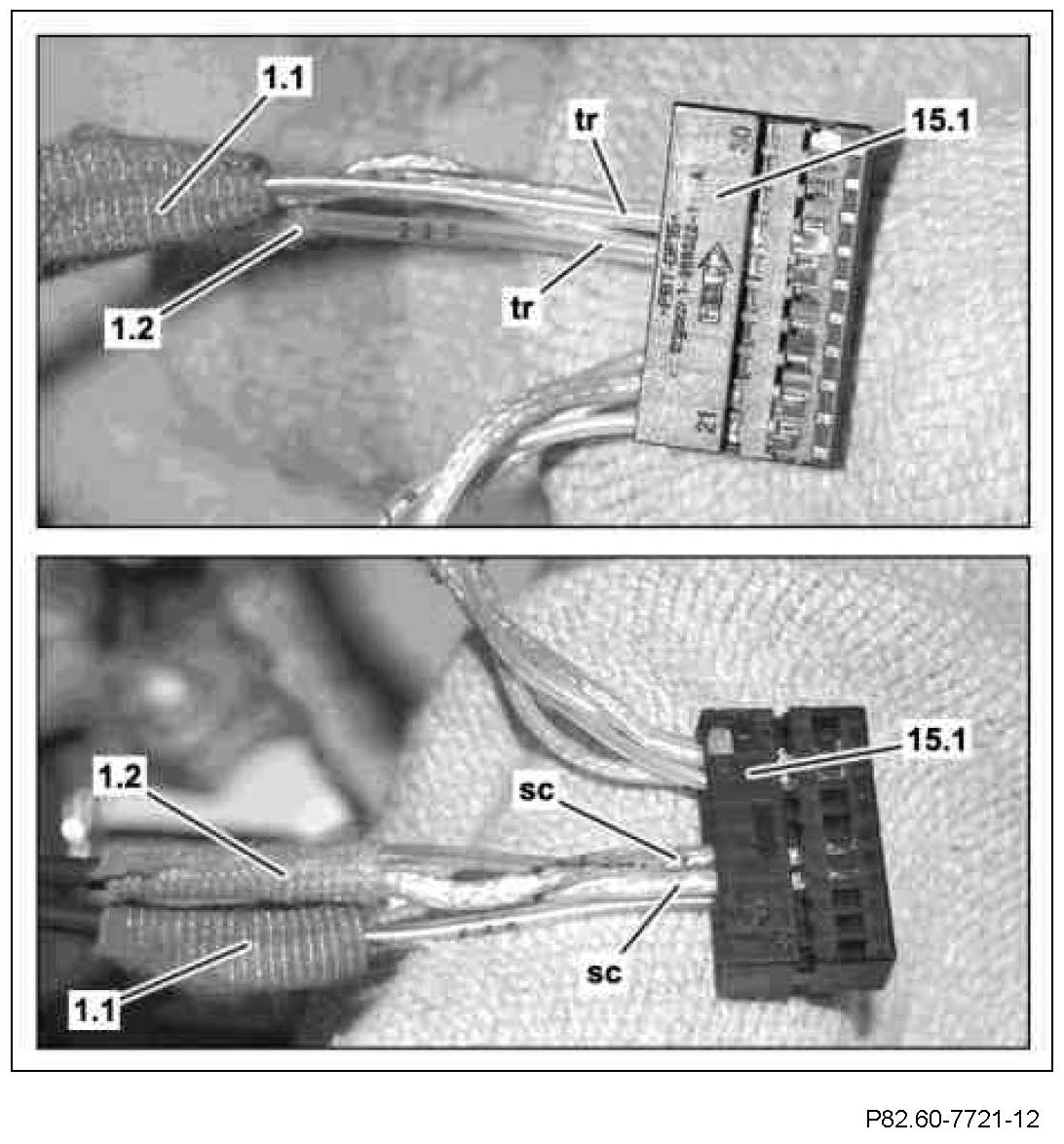

44 Install lines in the black 20-pin contact carrier (15.1) as follows:

- Contact cavity 26 = Transparent line (tr) of blue-marked branch-off line of TV tuner wiring harness (1.2)
- Contact cavity 27 = Transparent line (tr) of red-marked branch-off line of TV tuner wiring harness (1.1)
- Contact cavity 36 = Screened line (sc) of blue-marked branch-off line of TV tuner wiring harness (1.2)
- Contact cavity 37 = Screened line (sc) of red-marked branch-off line of TV tuner wiring harness (1.1)

45 Install black 20-pin contact carrier (15.1) in the black 40-pin coupling (15).
46 Fix TV tuner wiring harness (1) in place on vehicle wiring harness (41) using cable tie.

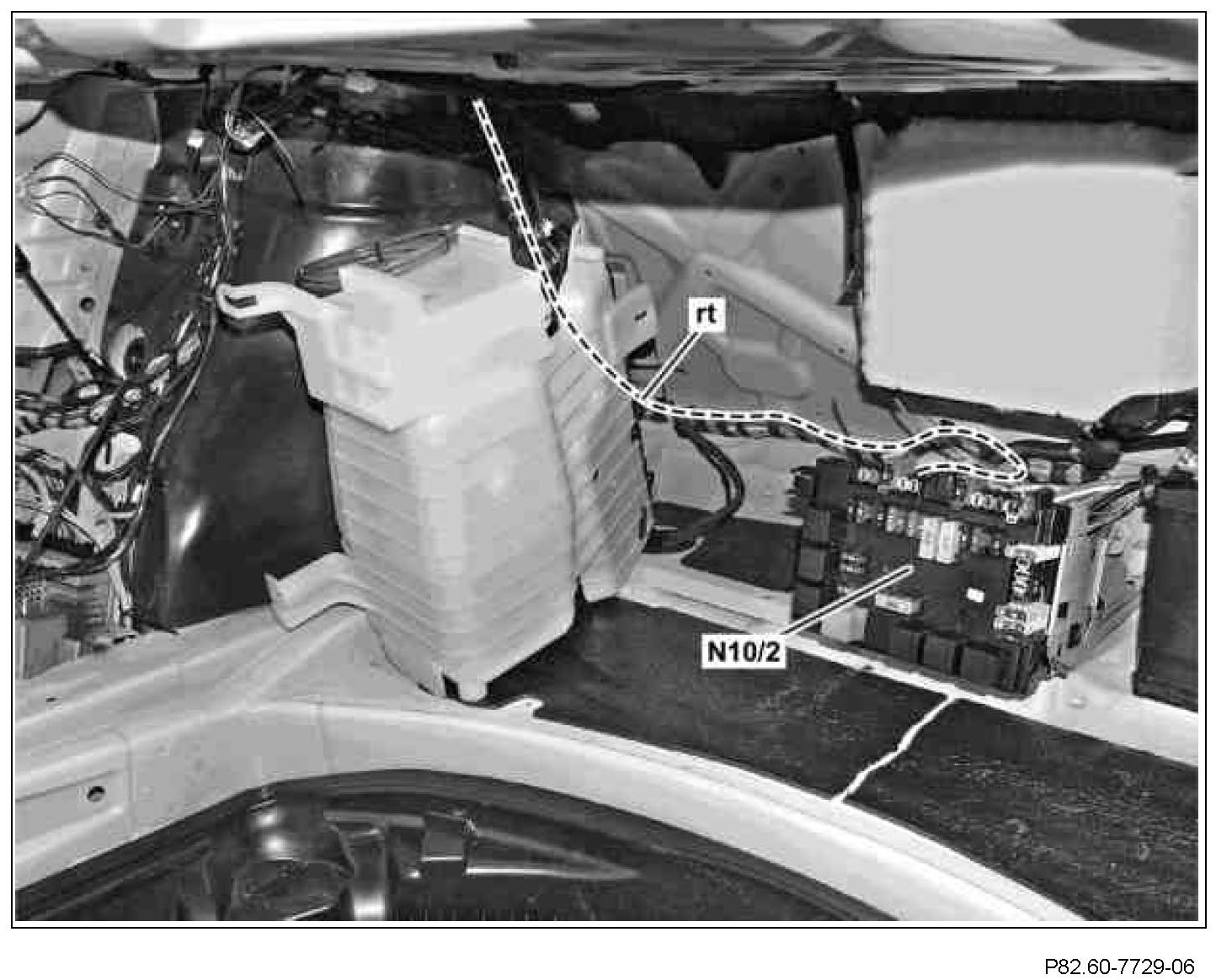

47 Route red line (rt) with turquoise fuse carrier along vehicle wiring harness to rear SAM control unit with fuse and relay module (N10/2), as shown.
48 Fix red line (rt) in place on vehicle wiring harness using cable tie.

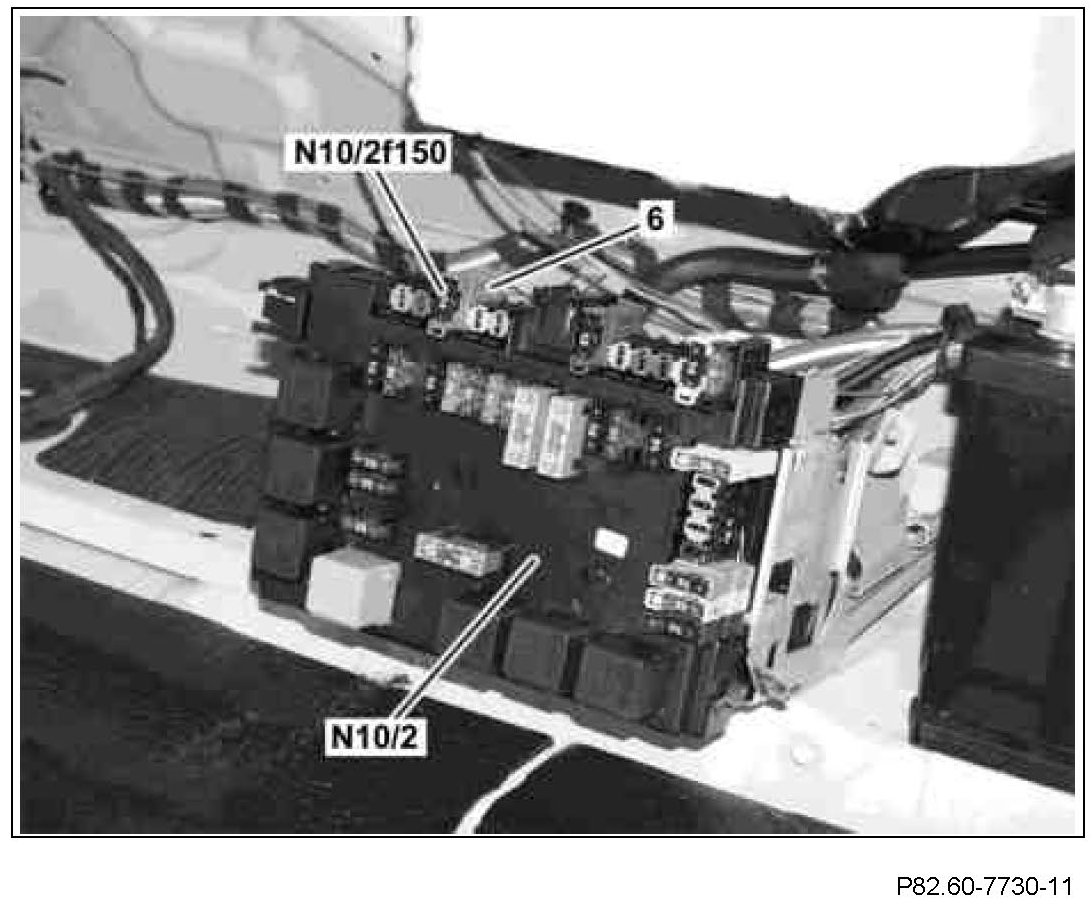

49 Insert turquoise fuse carrier (6) with fuse 150 (N10/2f150) into slot 150 on rear SAM control unit with fuse and relay module (N10/2).

The numbers of the slots are stamped onto the rear SAM control unit with fuse and relay module (N10/2). Fuse 150 (N10/2f150) must have an amperage of 7.5 amps.
