AZ82.85-P-0005-04SX Retrofit Mercedes-Benz InCar Internet Control Unit

AZ82.85-P-0005-04SX Retrofit Mercedes-Benz InCar Internet Control Unit
- MODEL 216.3##, 221.0## /1## 1#

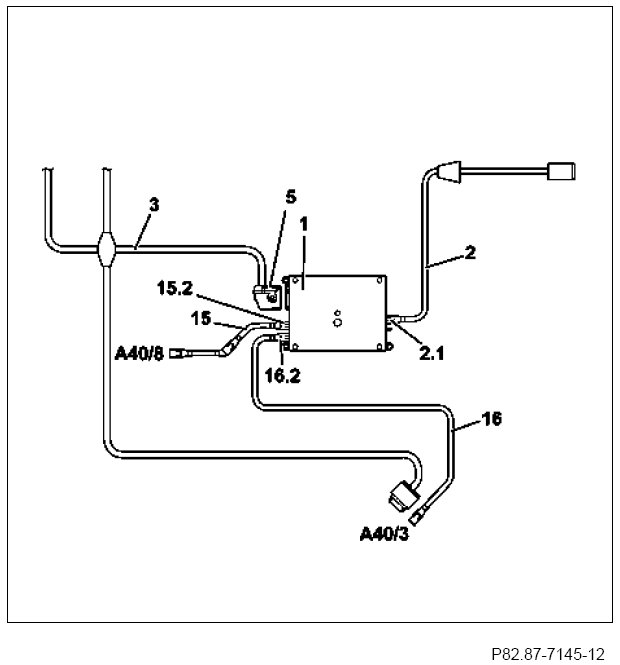

Connection scheme






1 InCar Internet control unit
2 Connecting cable
2.1 Blue, 1-pin connector for connecting cable
3 InCar Internet adapter wiring harness
5 Black 32-pin connector
15 Low voltage differential signal (LVDS) display wiring harness
15.2 LVDS display wiring harness connector
16 LVDS head unit wiring harness
16.2 LVDS head unit wiring harness connector
A40/3 COMAND control unit
A40/8 Audio/COMAND display

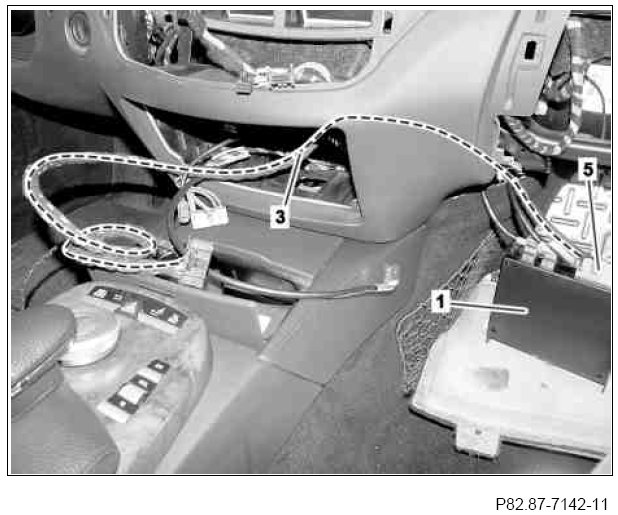

Routing diagram, shown on model 221






1 InCar Internet control unit
2 Connecting cable
3 InCar Internet adapter wiring harness
A40/3 COMAND control unit






1 Connect black 32-pin connector (5) of InCar Internet adapter wiring harness (3) to InCar Internet control unit (1).

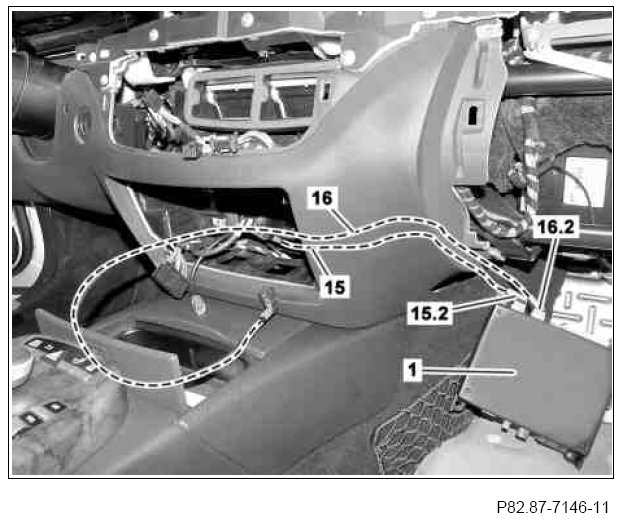

2 Connect LVDS display wiring harness connector (15.2) of LVDS display wiring harness (15) and LVDS head unit wiring harness connector (16.2) of LVDS head unit wiring harness (16), as shown, to the InCar Internet control unit (1).






3 Place glove box into front passenger footwell.

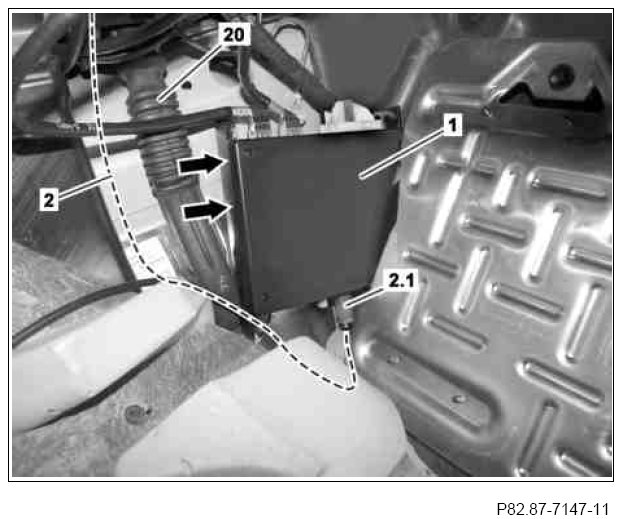

4 Connect connecting cable blue 1-pin connector (2.1) of connecting cable (2) to InCar Internet control unit (1).
5 Clamp InCar Internet control unit (1) in between footrest and propeller shaft tunnel and fasten in place using felt tape (arrows).
Do not compress the condensation water drain hose (20) of the air conditioner housing. The A/C system's condensation drain may no longer function properly.

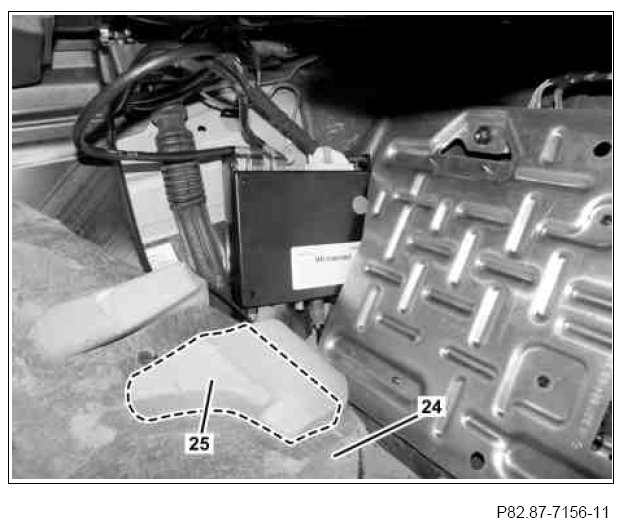

6 Cut foam material (25) on floor covering (24) (along broken line) and remove.
