AN82.60-P-0016SX Retrofit Media Interface



AN82.60-P-0016SX Retrofit Media Interface
- except CODE (Z07) Top protection
- except CODE (494) USA version
- except CODE (498) Japan version

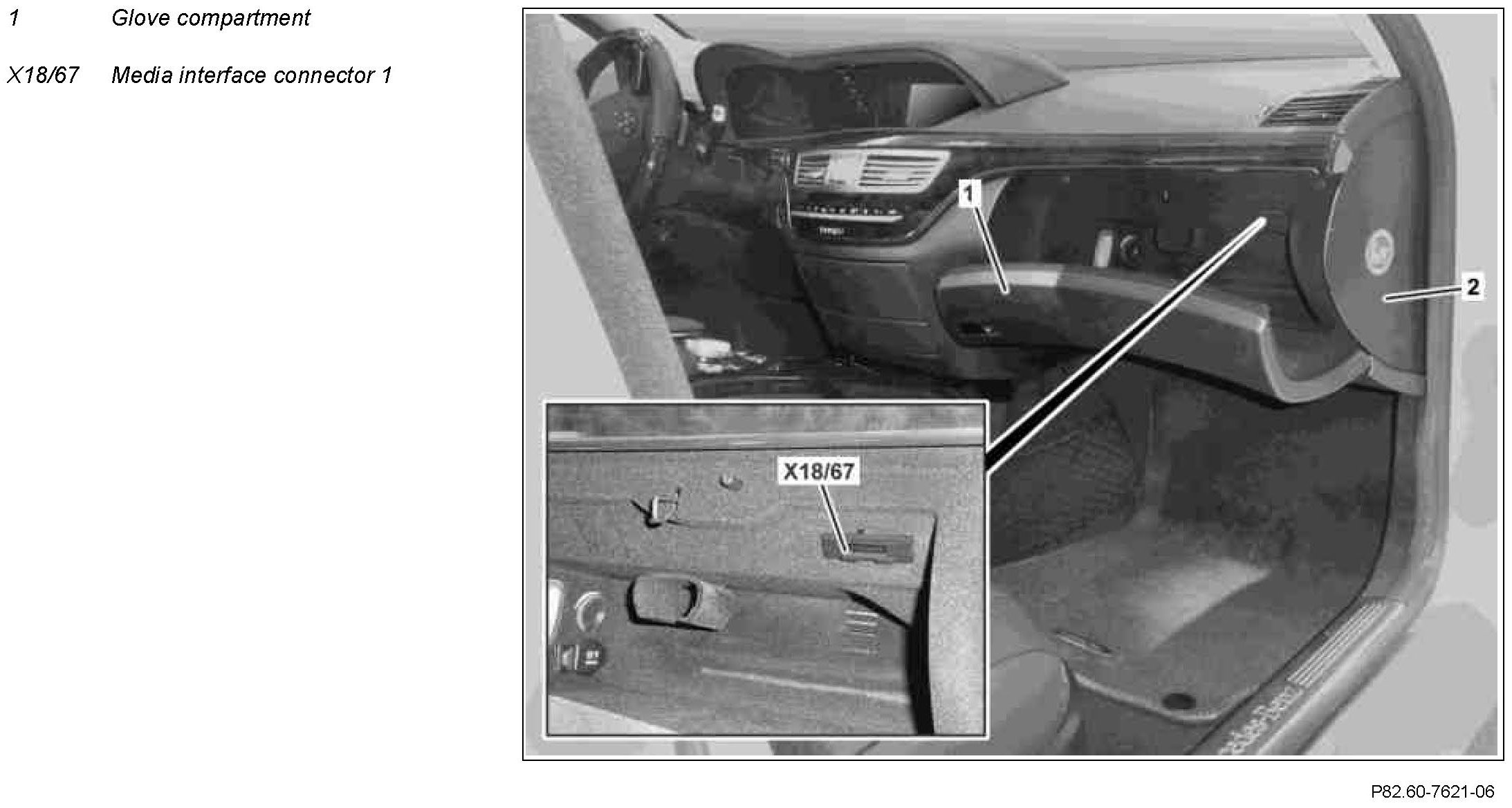

Component Identification:

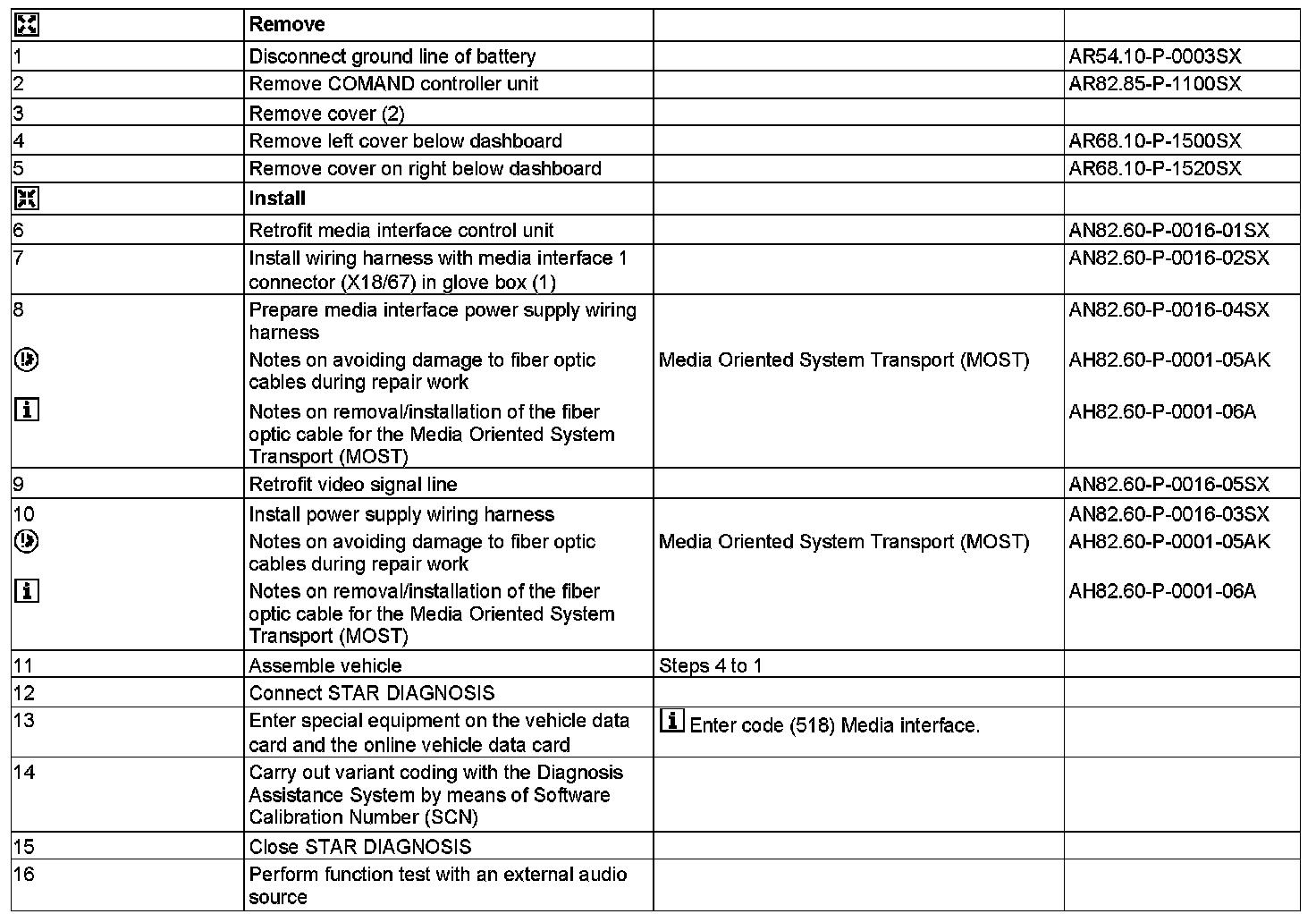

Steps 1 - 16:

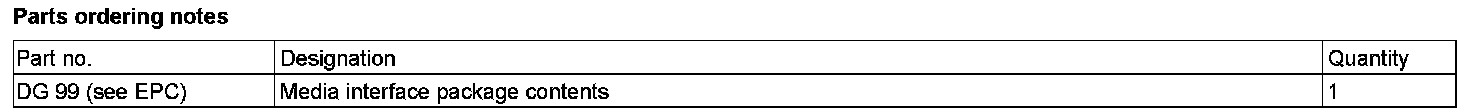

Parts Ordering Notes:
