AN54.65-P-0030-03SX Retrofit Backup Camera Wiring Harness

AN54.65-P-0030-03SX Retrofit Backup Camera Wiring Harness

Component Identification:

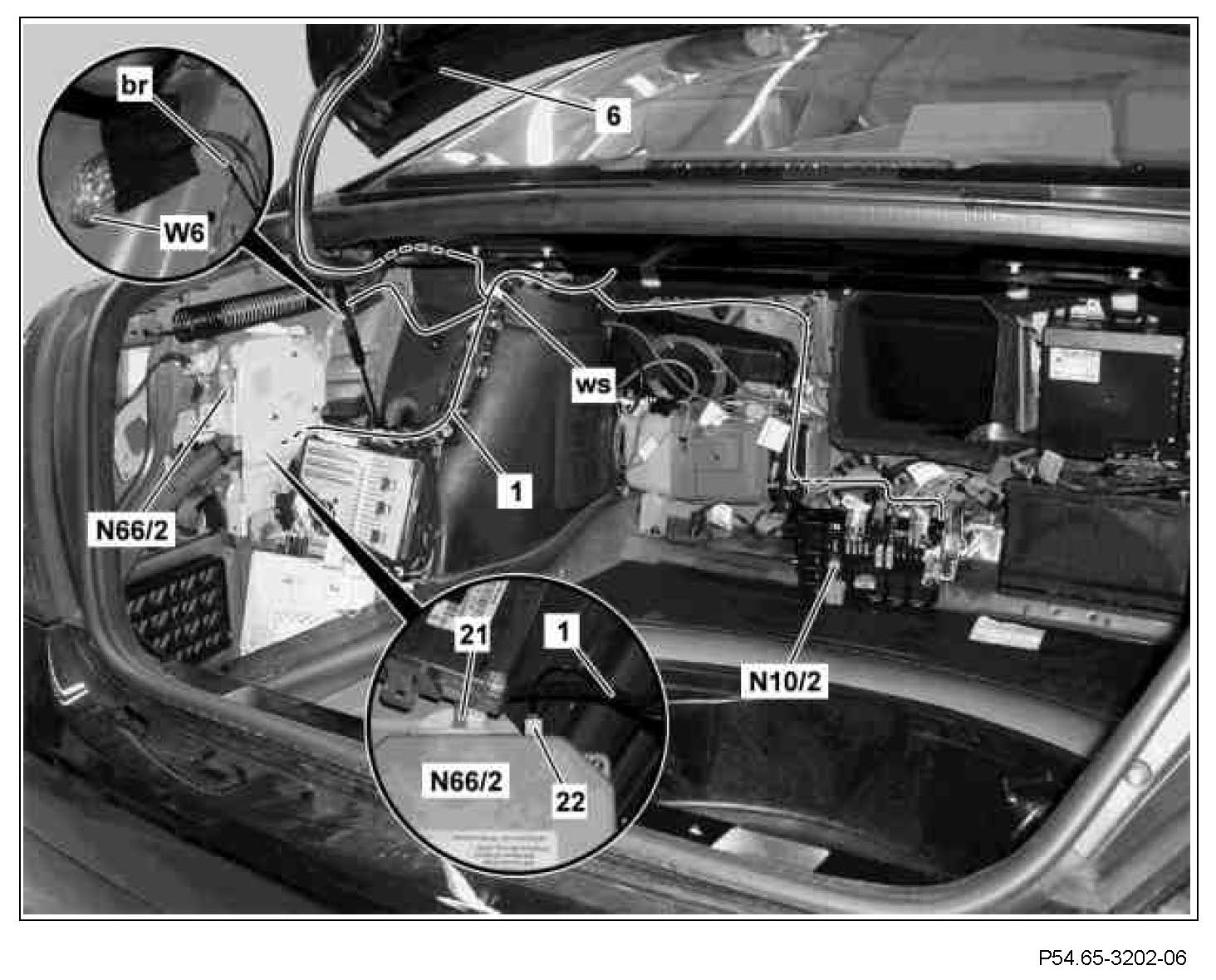

1. Contact white 32-pin coupling (21) and white 1-pin coupling (22) of backup camera wiring harness (1) at backup camera control unit (N66/2) (see enlarged detail at bottom).
2. Route and fasten backup camera wiring harness (1) in luggage compartment as per picture.
Position white length adjustment marking (ws) of backup camera wiring harness (1) in alignment on the white length adjustment markings of the vehicle's own wiring harnesses.
3. Connect brown line of ground (br) of backup camera wiring harness (1) to ground (left wheelhouse in luggage compartment) (W6) and fasten to vehicle's own wiring harnesses (see enlarged detail at top).
4. Route black 4-pin coupling of backup camera wiring harness (1) to the trunk lid (6) as per picture.
5. Route black fuse carrier of backup camera wiring harness (1) to the rear end SAM control unit with rear fuse and relay module (N10/2) and attach to the vehicle's own wiring harnesses.
6. Route the remaining line branch offs of the backup camera wiring harness (1) through the body punched hole from the luggage compartment into the left of the interior.

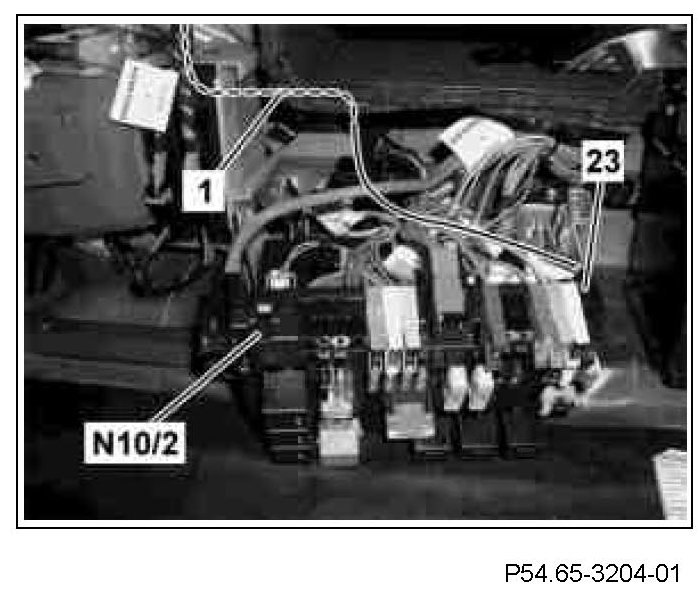

7. Contact the black fuse carrier (23) of the backup camera wiring harness (1) as per picture on slot 141 of the rear end SAM control unit with rear fuse and relay module (N10/2) and equip with 5 amp fuse.
The slot 141 of the rear end SAM control unit with rear fuse and relay module (N10/2) is marked in color and mechanically coded.

8. Fix the line branch off with black 4-pin coupling of the backup camera wiring harness (1) in position with the fixing clips attached to the line branch off as per picture (see arrows).

9. Route black 4-pin coupling (24) of the backup camera wiring harness (1) in the trunk lid as per picture (6) and fix in position with the fixing clips attached (see arrows).
10. Install line holder (25) (see enlarged detail).

11. Connect black 4-pin connector (19) of backup camera (B84/3) with black 4-pin coupling (24) of backup camera wiring harness (1) and pull protective sleeve (26) over the backup camera connector.
12. Route line branch off (20) of backup camera (B84/3) as per picture into a loop and fasten to the vehicle's own wiring harnesses with cable ties (see arrow).

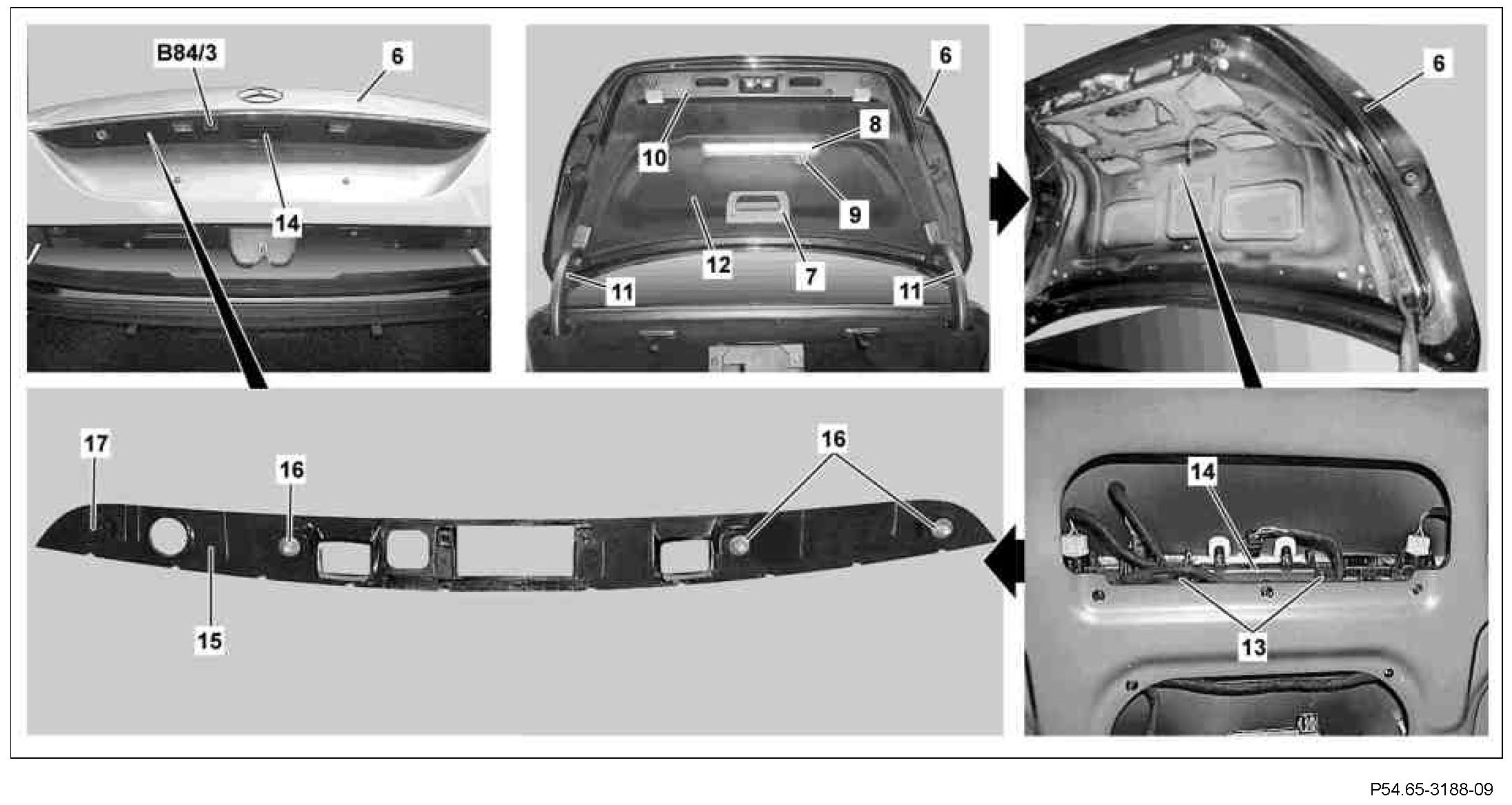

13. Attach adhesive tape (17) to cover of the trunk lid release (15) with cutout for Backup camera.
14. Starting from the right clip in cover of trunk lid release (15) with clips (16) at the trunk lid (6) and press on adhesive tape (17) of the cover of the trunk lid release (15) at the trunk lid (6)
15. Remove protective foil from lens of backup camera (B84/3).
16. Screw in the screws (13) on inside of trunk lid release (14).
17. Install trim of trunk lid (12).
18. Install hinge bracket trim piece (11).
19. Install cover (10).
20. Install holder (9) and insert hazard warning triangle (8).
21. Install umbrella holder (7).
22. Attach license plate to trunk lid (6).

23. Open covers of cable duct (27) (see enlarged detail).

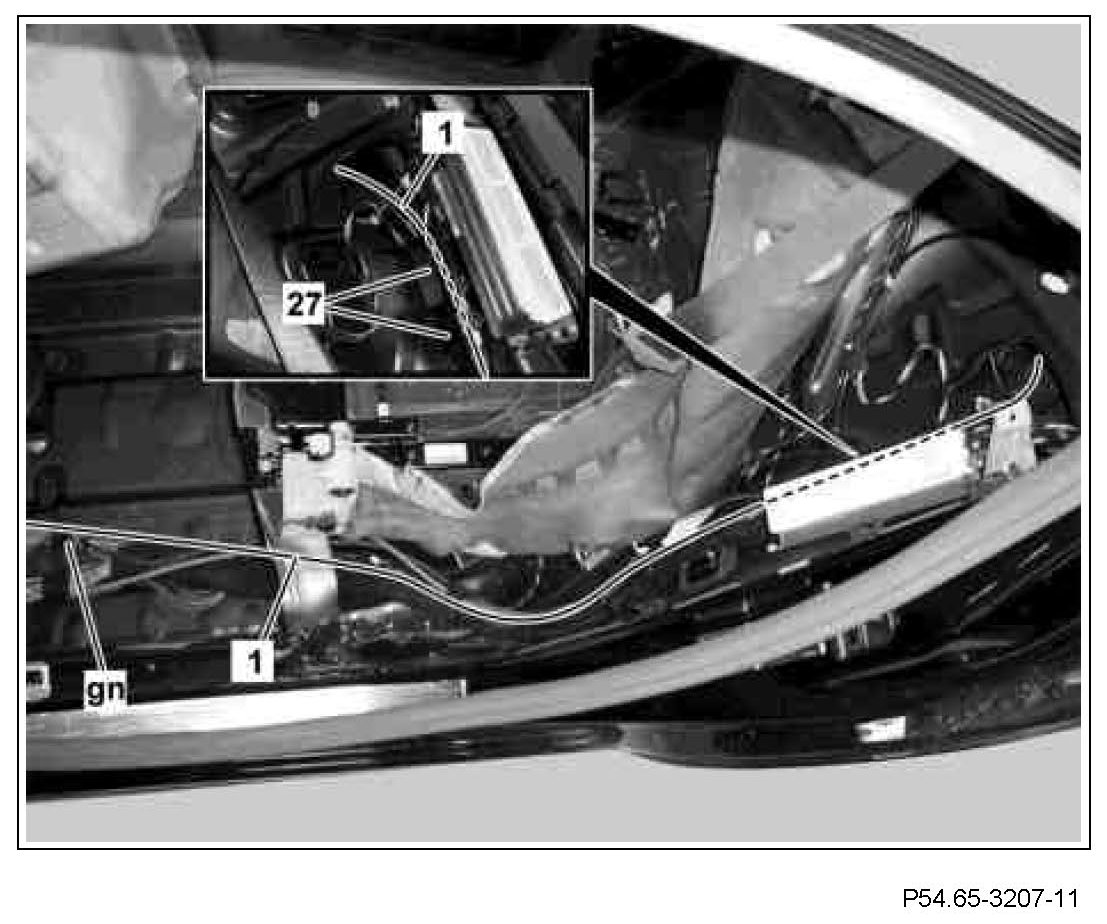

24. Route backup camera wiring harness (1) as per picture from the body punched hole of the luggage compartment into the rear footwell and fasten to the vehicle's own wiring harnesses.
Position green length adjustment marking (gn) of backup camera wiring harness (1) in alignment on the green length adjustment markings of the vehicle's own wiring harnesses.
25. Close the covers of the cable duct (27).

26. Route line branch off with blue (bl) length adjustment marking of the backup camera wiring harness(1) (see enlarged detail) in the cable ducts up to the center console and fasten to the vehicle's own wiring harnesses.
Route line branch off with blue (bl) length adjustment marking of the backup camera wiring harness (1) with the pull-in aid when the cable duct covers are only partially open into the center console and position the blue (bl) length adjustment marking in alignment on the blue (bl) length adjustment markings of the vehicle's own wiring harnesses (see enlarged detail).
27. Route the line branch off with black 2-pin coupling of the backup camera wiring harness (1) to the voltage distributor connector (X30/32), contact the black 2-pin coupling of the backup camera wiring harness (1) at any free slot of the voltage distributor connector (X30/32) and fasten the line branch off to the vehicle's own wiring harness.

28. Unlock lock (see arrow) to the side of the vehicle's own COMAND coupling housing (29) and remove black 20-pin contact carrier (28) from the COMAND coupling housing (29).
29. Install transparent line (tr) of backup camera wiring harness (1) in contact cavity 7 of the black 20-pin contact carrier (28).
Depending on the version the transparent line (tr) of the backup camera wiring harness (1) may also be black.
30. Install screening line (sc) of the backup camera wiring harness (1) in contact cavity 17 of the black 20-pin contact carrier (28).
The screening line (sc) of the backup camera wiring harness (1) is thicker than the transparent line (tr) of the backup camera wiring harness (1).
31. Install 20-pin contact carrier (28) in COMAND coupling housing (29).
