AN54.65-P-0030-01SX Retrofit Backup Camera Control Unit

AN54.65-P-0030-01SX Retrofit Backup Camera Control Unit
- except CODE (498) Japan version







Vehicles with voice control system (VCS [SBS]) control unit (N41/3)

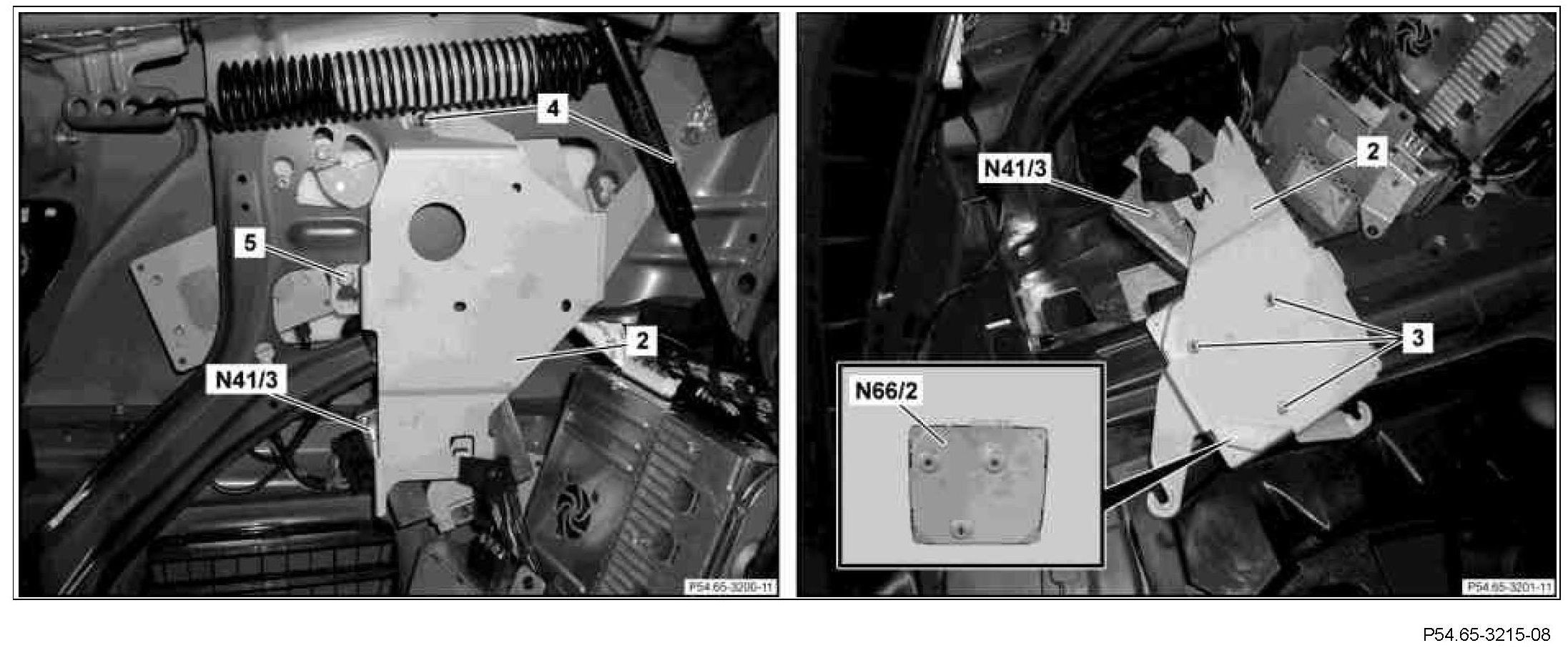

1. Loosen nuts (4) and bolt (5), remove bracket (2) with voice control system (VCS [SBS]) control unit (N41/3).
Do not disconnect electrical connectors of voice control system (VCS [SBS]) control unit (N41/3).
2. Insert backup camera control unit (N66/2) with studs in bracket (2) and fasten with nuts (3).
3. Position bracket (2) with backup camera control unit (N66/2) on body studs and fasten with nuts (4) and bolt (5).

Vehicles without voice control system (VCS [SBS]) control unit (N41/3)
4. Fasten backup camera control unit (N66/2) in new bracket (2) and with nuts (3).
5. Position bracket (2) with backup camera control unit (N66/2) on body studs and fasten with nuts (4) and bolt (5).
