GF54.65-P-0005-01LEJ Backup Camera (RFK) Location of Components



GF54.65-P-0005-01LEJ Backup Camera (RFK) Location Of Components
- with CODE (218) Backup camera
- with CODE (498) Japan version

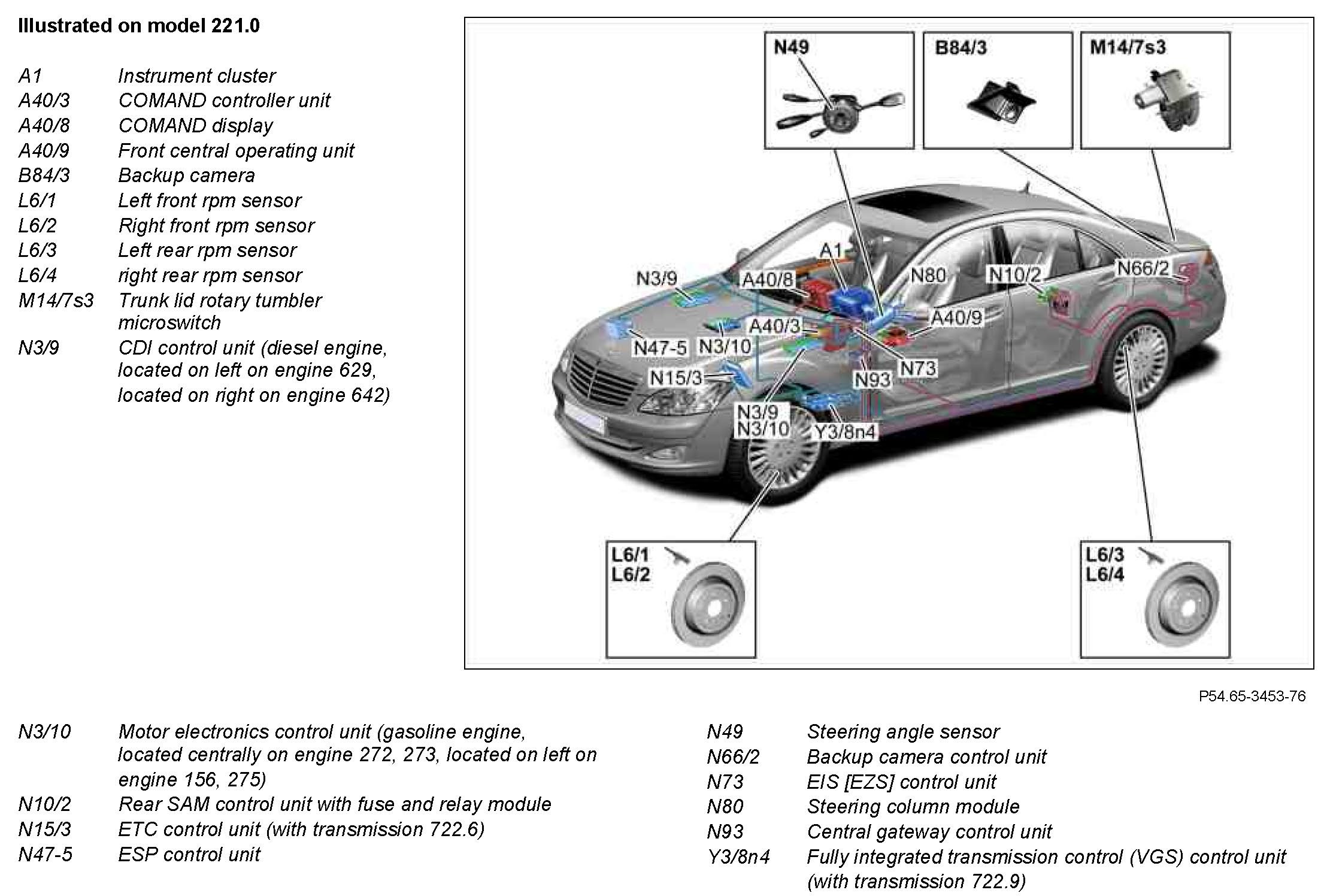

Component Identification:
