Home >> Mercedes Benz >> 2012 >> S 350 BLUETEC (221.183) V6-3.0L DSL Turbo (642.868) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Collision Avoidance and Parking Assist Systems >> Rear Vision Camera >> Description and Operation >> GF54.65-P-0005-01LE Backup Camera (RFK) Location of Components

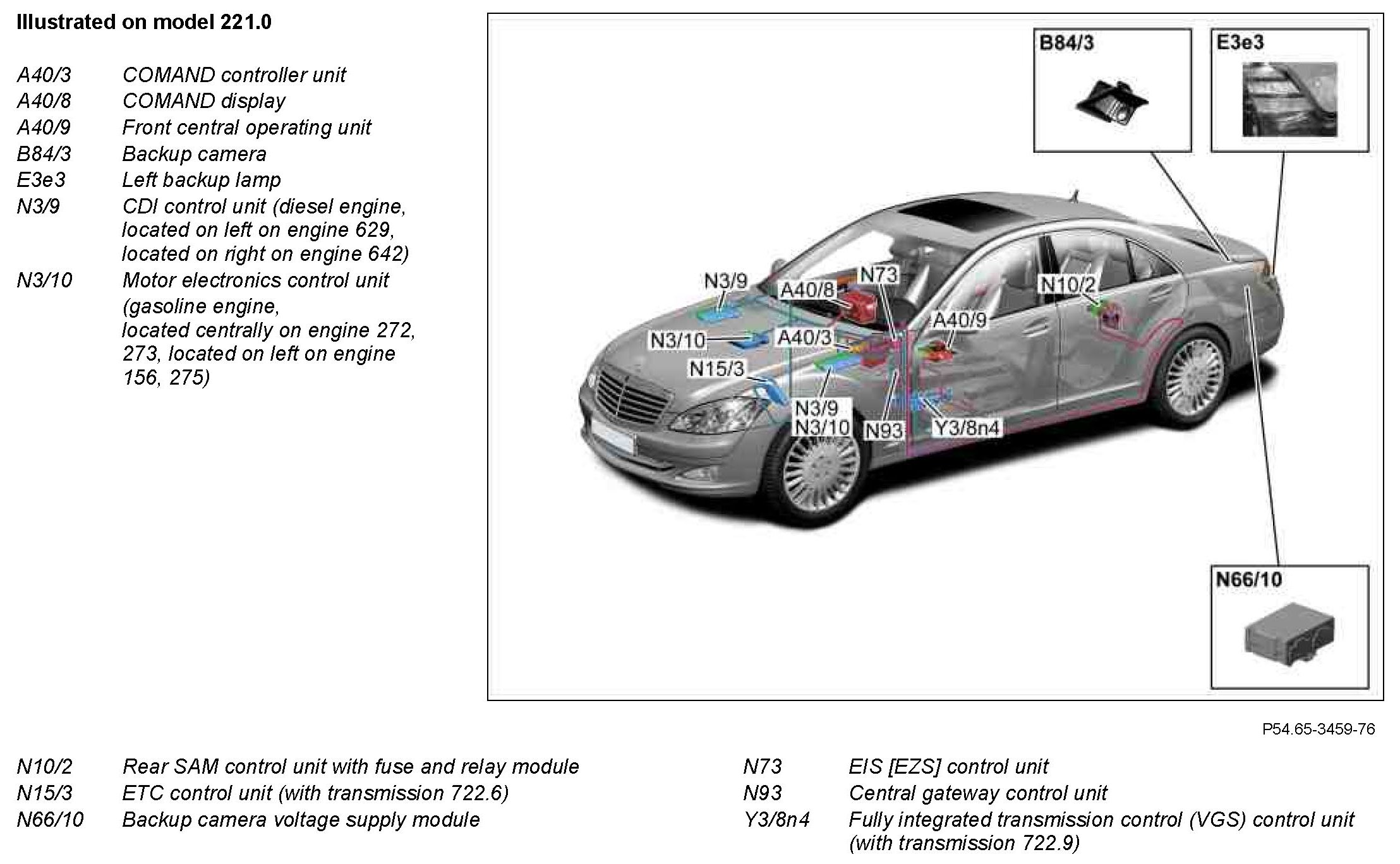

GF54.65-P-0005-01LE Backup Camera (RFK) Location of Components



GF54.65-P-0005-01LE Backup Camera (RFK) Location Of Components
- with CODE (218) Backup camera
- except CODE (498) Japan version



Component Identification:
