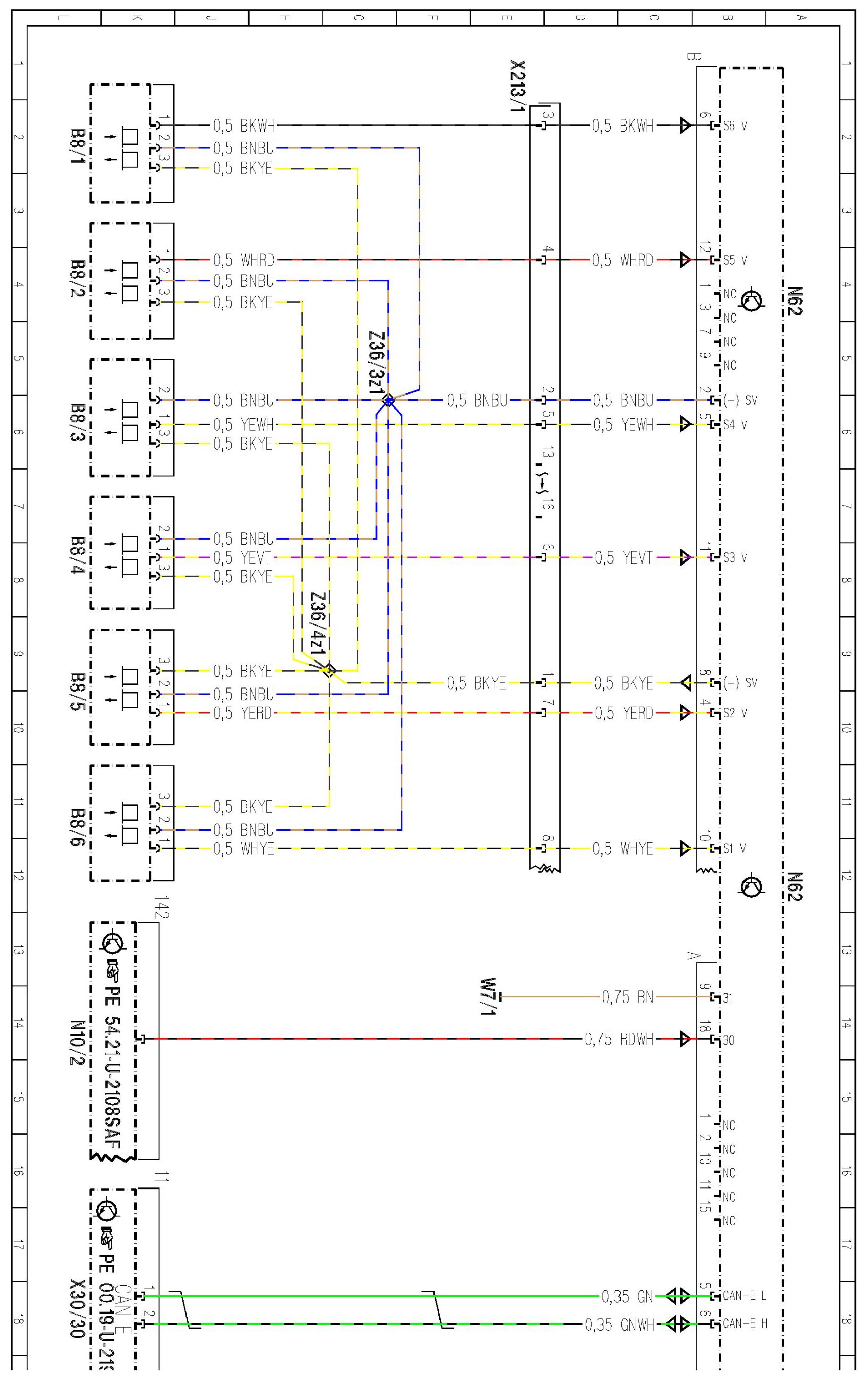

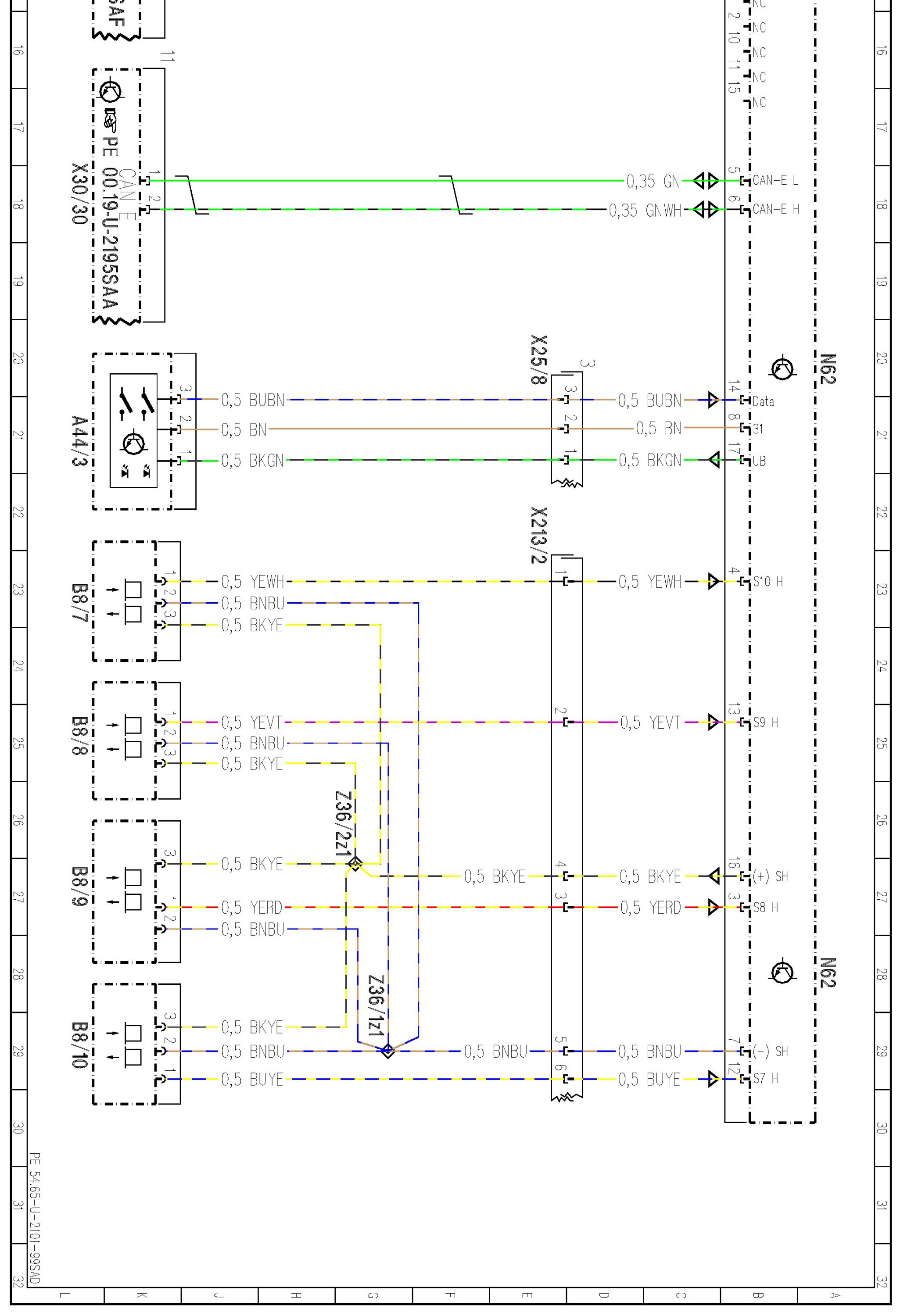

PE54.65-U-2101SAD Parktronic System (PTS) Control Module

PE54.65-U-2101SAD Parktronic System (PTS) Control Module

MODEL 221
- with CODE (220) PARKTRONIC
- with CODE (230) Advanced Parking Guidance
- as of Model Year 2010

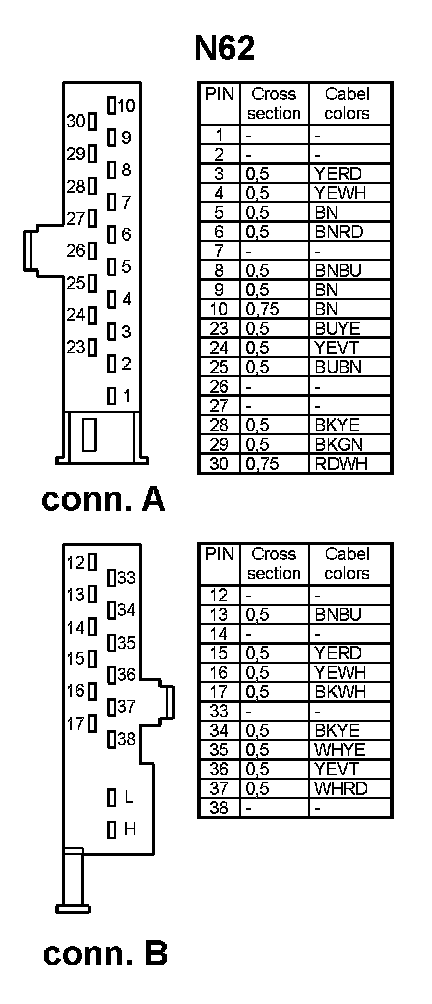

- Control unit N62











































































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
