PE54.65-U-2101SAC Parktronic System (PTS) Control Module

PE54.65-U-2101SAC Parktronic System (PTS) Control Module

MODEL 221
- with CODE (220) PARKTRONIC

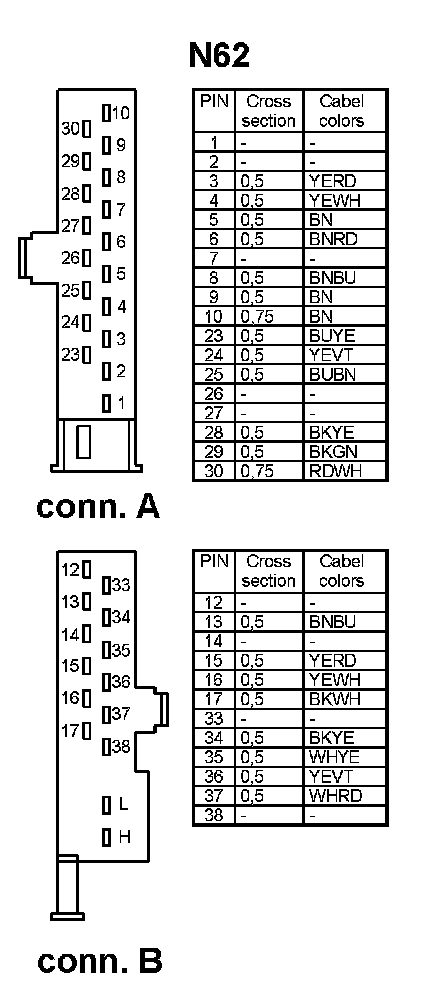

- As of 09/07, Control unit N62



















































































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
