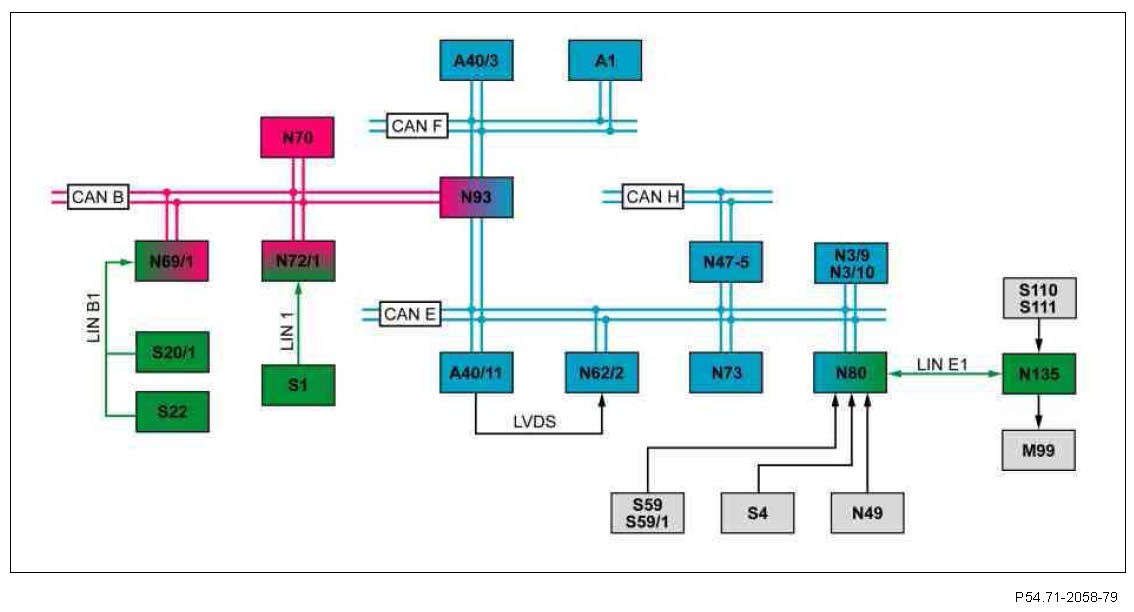

GF54.71-P-0004-02LE Active Lane Keeping Assist, Block Diagram

GF54.71-P-0004-02LE Active Lane Keeping Assist, Block Diagram
MODEL 216.3
- with CODE (238) Active Lane Keeping Assist as of Model Year 2011 /AEJ 10 MOPF
MODEL 221.0 /1 (except 221.095 /195)
- with CODE (238) Active Lane Keeping Assist as of Model Year 2011






A1 Instrument cluster
A40/3 COMAND control unit
A40/11 Multifunction camera
M99 Steering wheel vibration motor
N3/9 CDI control unit (for model 221 with diesel engine)
N3/10 ME-SFI [ME] control unit (with gasoline engine)
N47-5 ESP control unit
N49 Steering angle sensor
N62/2 Video and radar sensor system control unit
N69/1 Left door control unit (model 216), Left front door control unit (model 221)
N70 Overhead control panel control unit
N72/1 Upper control panel control unit
N73 EIS [EZS] control unit
N80 Steering column module
N93 Central gateway control unit
N135 Steering wheel electronics
S1 Exterior lamp switch
S4 Combination switch
S20/1 Driver power window, outside mirror and trunk lid switch group
S22 Left front seat operation switch group
S59 Steering column adjustment switch (without code (443) Steering wheel heater)
S59/1 Steering column adjustment/ steering wheel heater switch (with code (443) Steering wheel heater)
S110 Left multifunction steering wheel button group
S111 Right multifunction steering wheel button group
CAN B Interior CAN
CAN E Chassis CAN
CAN F Central CAN
CAN H Vehicle dynamics CAN
LIN 1 Instrument panel LIN
LIN B1 Front door LIN
LIN E1 Steering LIN
LVDS Low voltage differential signal
