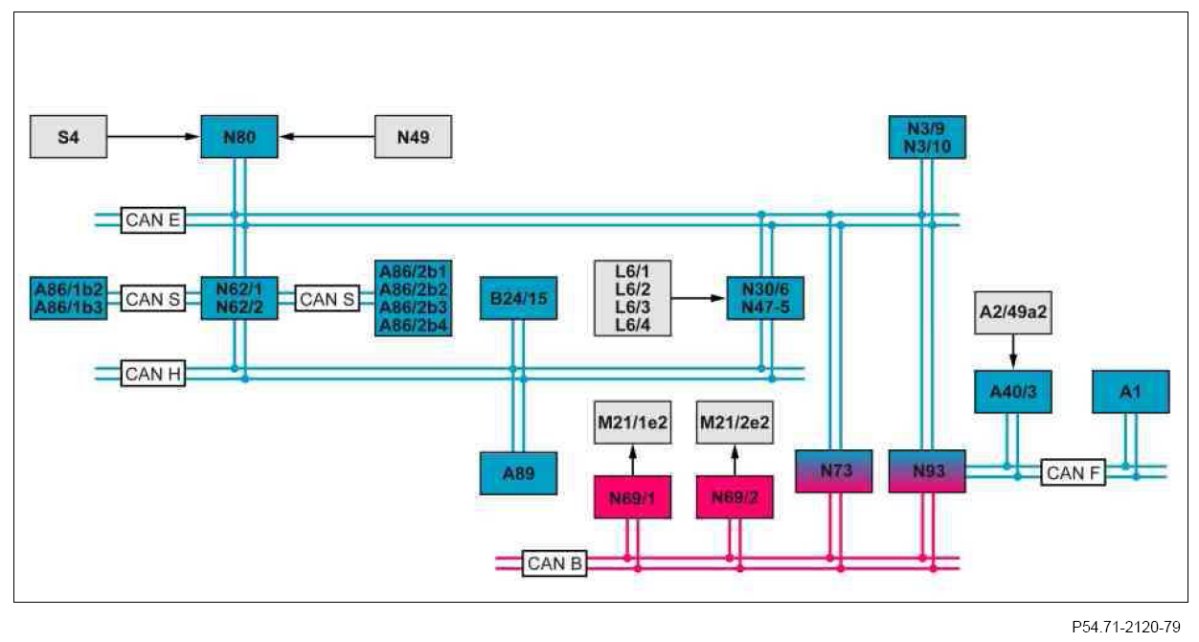

GF54.71-P-0003-01LE Blind Spot Assist Block Diagram

GF54.71-P-0003-01LE Blind Spot Assist Block Diagram
- MODEL 216.3, 221.0 /1 up to 31.8.10
- with CODE (234) Blind Spot Assist as of Model Year 2009 /AEJ 08
- MODEL 216.3
- with CODE (237) Active Blind Spot Assist as of Model Year 2011 /AEJ 10 MOPF






A1 Instrument cluster
A2/49a2 GPS antenna
A40/3 COMAND control unit
A86/1b2 Inner left radar sensor, front bumper (with code (237) Active Blind Spot Assist)
A86/1b3 Inner right radar sensor, front bumper (with code (237) Active Blind Spot Assist)
A86/2b1 Outer right radar sensor, rear bumper (as of 1.9.09)
A86/2b2 Inner right radar sensor, rear bumper (up to 31.8.09)
A86/2b3 Inner left radar sensor, rear bumper (up to 31.8.09)
A86/2b4 Outer left radar sensor, rear bumper (as of 1.9.09)
A89 DTR controller unit (with code (237) Active Blind Spot Assist)
B24/15 Yaw rate sensor for lateral and longitudinal acceleration (with code (237) Active Blind Spot Assist)
L6/1 Left front rpm sensor
L6/2 Right front rpm sensor
L6/3 Left rear rpm sensor
L6/4 right rear rpm sensor
M21/1e2 Left Blind Spot Assist readiness and warning indicator
M21/2e2 Right Blind Spot Assist readiness and warning indicator
N3/9 CDI control unit (on diesel engines)
N3/10 ME-SFI [ME] control unit (on gasoline engines)
N30/6 Regenerative braking system control unit (model 221.095/195)
N47-5 ESP control unit (without model 221.095/195)
N49 Steering angle sensor (with code (237) Active Blind Spot Assist)
N62/1 Radar sensors control unit (SGR) (with code (234) Blind Spot Assist up to 31.8.10 or code (234) Blind Spot Assist in model 221.095/195)
N62/2 Video and radar sensor system control unit (with code (237) Active Blind Spot Assist)
N69/1 Left front door control unit (model 221) Left door control unit (model 216)
N69/2 Right front door control unit (model 221) right door control unit (model 216)
N73 EIS [EZS] control unit
N80 Steering column module
N93 Central gateway control unit
S4 Combination switch
CAN B Interior CAN
CAN E Chassis CAN
CAN F Central CAN
CAN H Vehicle dynamics CAN
CAN S Sensor CAN
