Home >> Mercedes Benz >> 2012 >> S 350 BLUETEC (221.183) V6-3.0L DSL Turbo (642.868) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Collision Avoidance and Parking Assist Systems >> Description and Operation >> GF54.65-P-0006-01LE Parking System, Location of Components

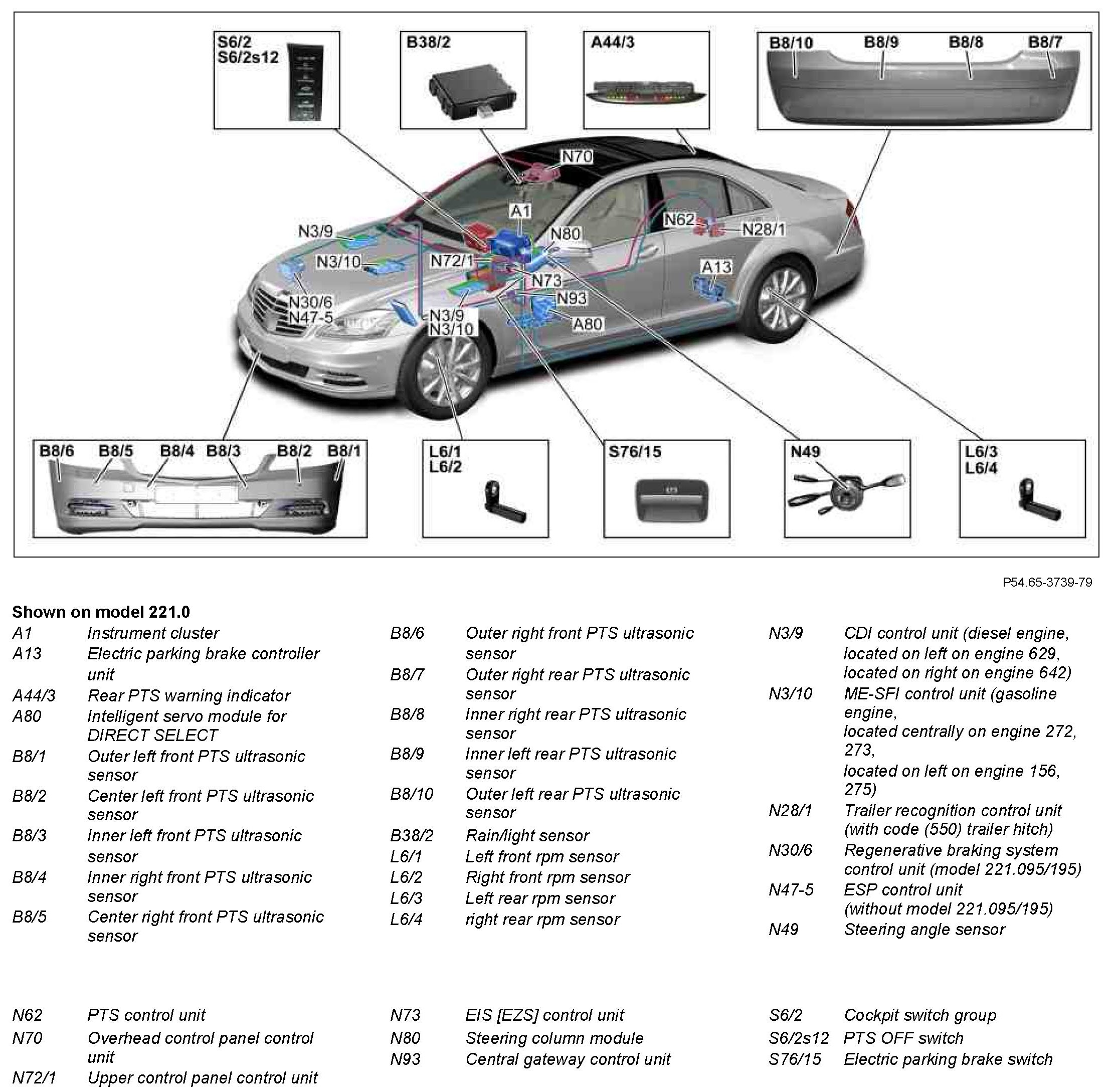

GF54.65-P-0006-01LE Parking System, Location of Components



GF54.65-P-0006-01LE Parking System, Location Of Components
- with CODE (230) Advanced Parking Guidance
- with CODE (220) PARKTRONIC



Component Identification:
