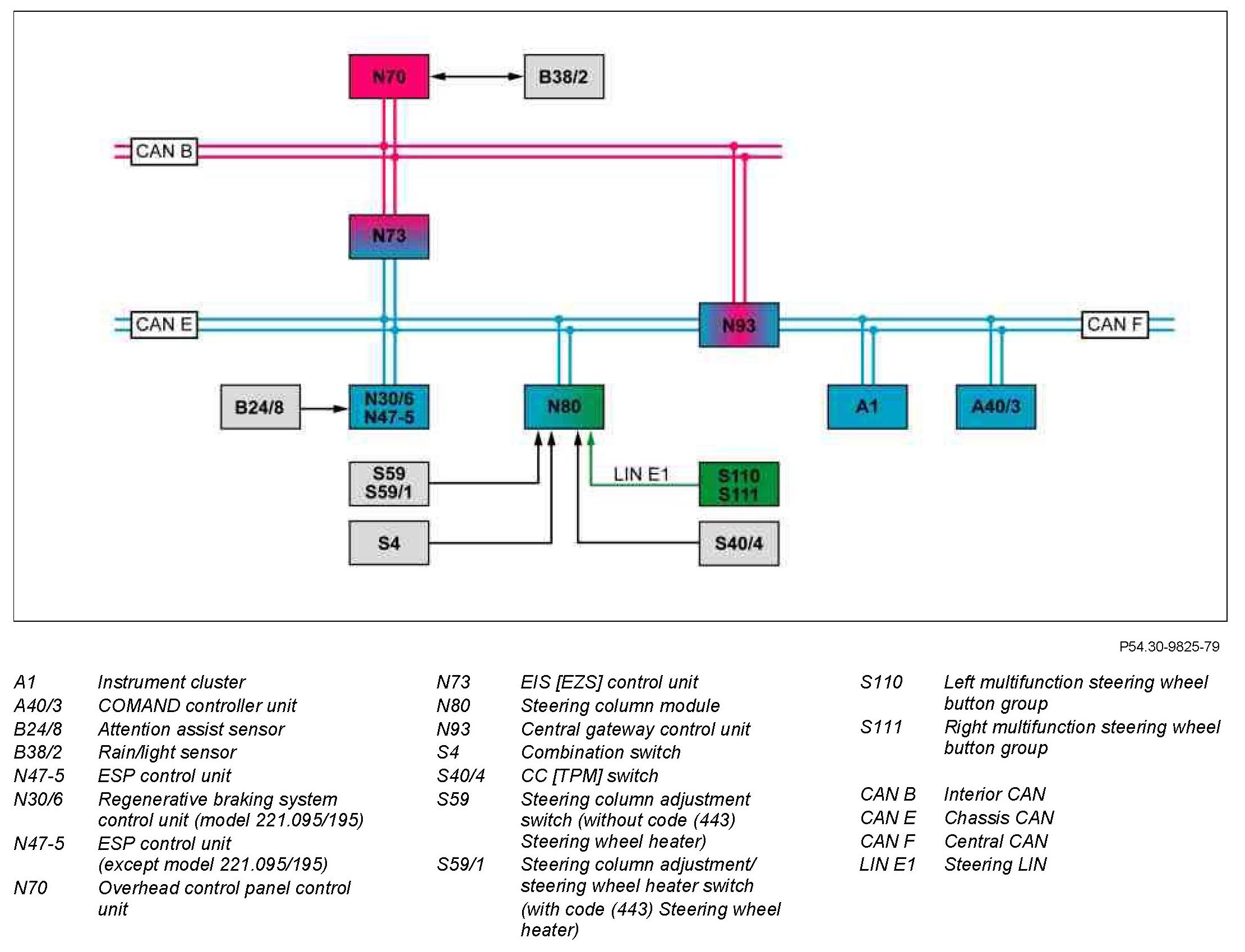

GF54.30-P-0009-03LE Attention Assist, Block Diagram
GF54.30-P-0009-03LE Attention Assist, Block Diagram
GF54.30-P-0009-03LE Attention Assist, Block Diagram
- as of model year 2010
Component Identification:
