Home >> Mercedes Benz >> 2012 >> S 350 BLUETEC (221.183) V6-3.0L DSL Turbo (642.868) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Collision Avoidance and Parking Assist Systems >> Description and Operation >> GF54.30-P-0009-02LE Attention Assist, Location of Components

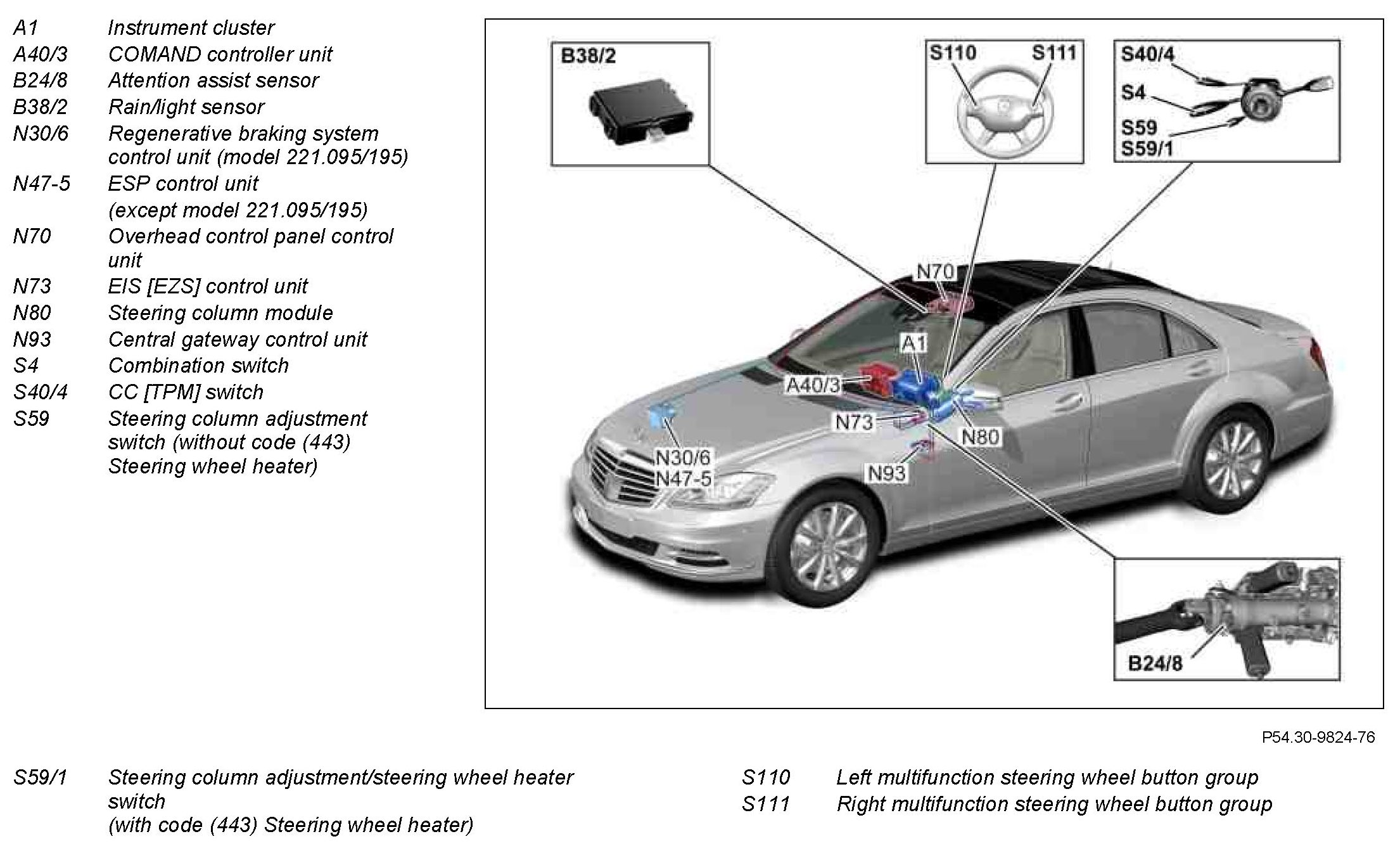

GF54.30-P-0009-02LE Attention Assist, Location of Components



GF54.30-P-0009-02LE Attention Assist, Location Of Components
- as of model year 2010

Component Identification:
