GF82.70-P-5201SX Telephone/Portable CTEL/STH Radio Remote Control Antenna Splitter Component Description

GF82.70-P-5201SX Telephone/Portable CTEL/STH Radio Remote Control Antenna Splitter Component Description
- with CODE (228) Stationary heater
- with CODE (386) Preinstallation for telephone "Handy", UPCI system
- with CODE (388) Telephone "Handy", UPCI system
- with CODE (856) 2nd handset in rear armrest
- except CODE (498) Japan version
- except CODE (494a) USA version

Component Identification:

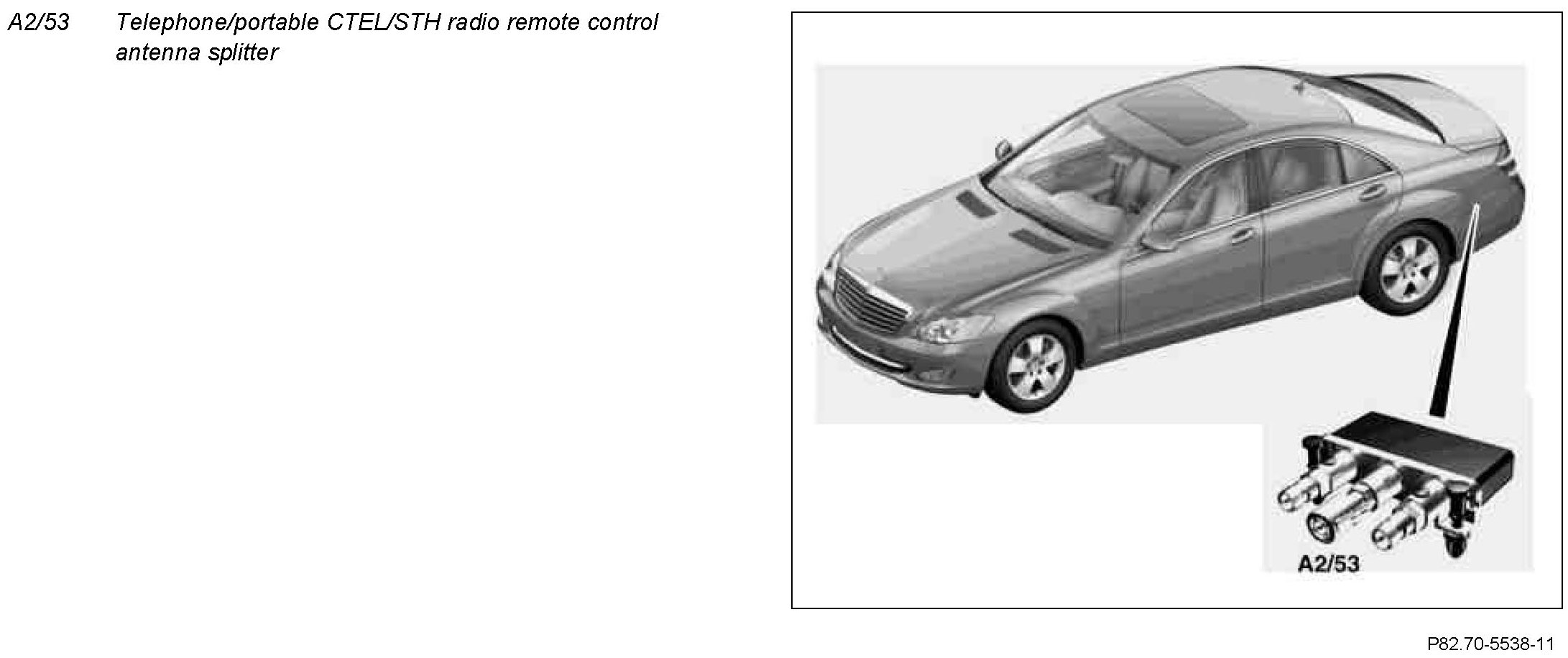

Location
The telephone/portable CTEL/STH radio remote control antenna splitter is installed in the rear of the trunk on the left-hand side.

Task
The antenna splitter has the task of relaying the telephone signals coming from the telephone antenna (A2/49a1) and the signals from the STH radio remote control transmitter (A8/3) to the STH radio remote control receiver (A6/1) and the E-net compensator (A28/3).
