GF82.70-P-5001SX UPCI Portable CTEL Holder (Universal Portable CTEL Interface), Component Description

GF82.70-P-5001SX UPCI Portable CTEL Holder (Universal Portable CTEL Interface), Component Description
- with CODE (387) Preinstallation for telephone "Handy", UPCI system, USA/Canada
- with CODE (389) Mobile phone preinstallation with universal interface, USA/Canada
- with CODE (386) Preinstallation for telephone "Handy", UPCI system
- with CODE (388) Telephone "Handy", UPCI system

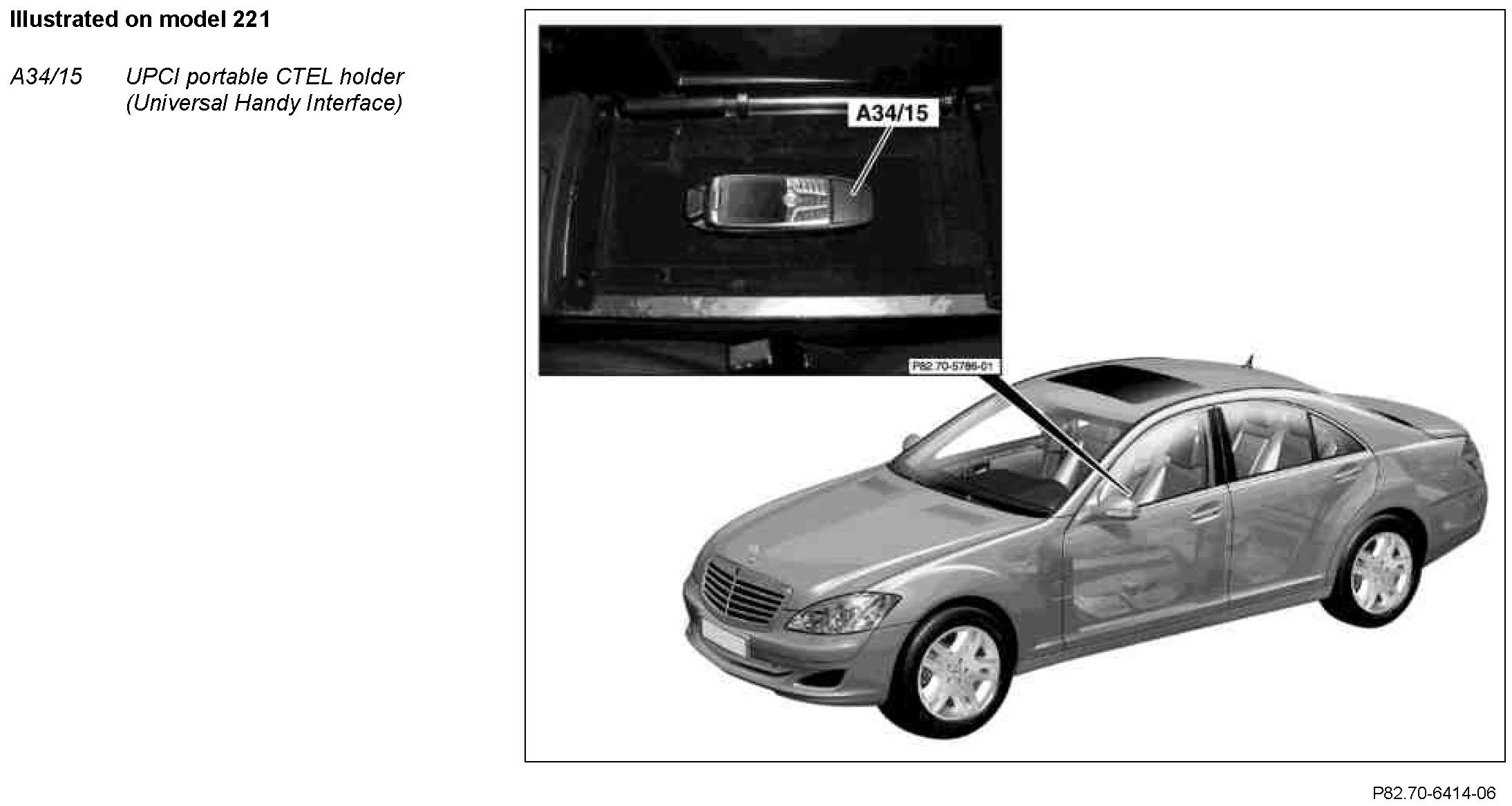

Component Identification:

Location
The UPCI [UHI] portable CTEL holder (Universal Portable CTEL Interface) is in the center console.

Task
The different UPCI [UHI] portable CTEL holders (Universal Handy Interface) enable various portable CTELs (A34/6) (e.g. Motorola) to be used. The portable CTEL is directly connected to the Universal Portable CTEL Interface (UPCI [UHI]) control unit (N123/1) via the UPCI [UHI] portable CTEL holder (Universal Portable CTEL Interface) via a contact plate.
