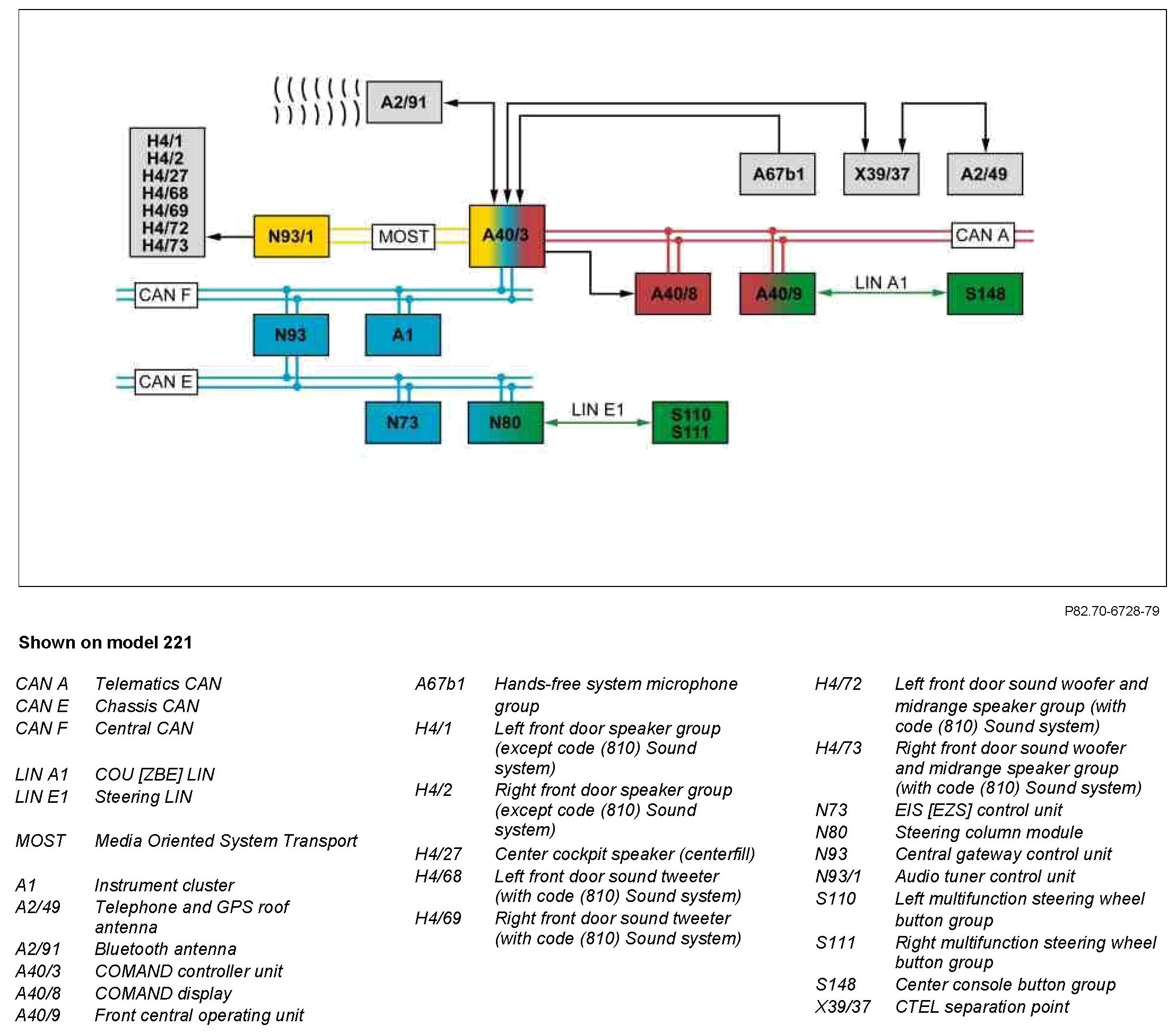

GF82.70-P-0007-02LEJ Mobile Phone System, Block Diagram



GF82.70-P-0007-02LEJ Mobile Phone System, Block Diagram
- with CODE (529) HIGH Class Japan

Component Identification:






Component Identification:
