Home >> Mercedes Benz >> 2012 >> S 350 BLUETEC (221.183) V6-3.0L DSL Turbo (642.868) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Cellular Phone >> Description and Operation >> GF82.70-P-0007-01LEJ Mobile Phone System, Location of Components

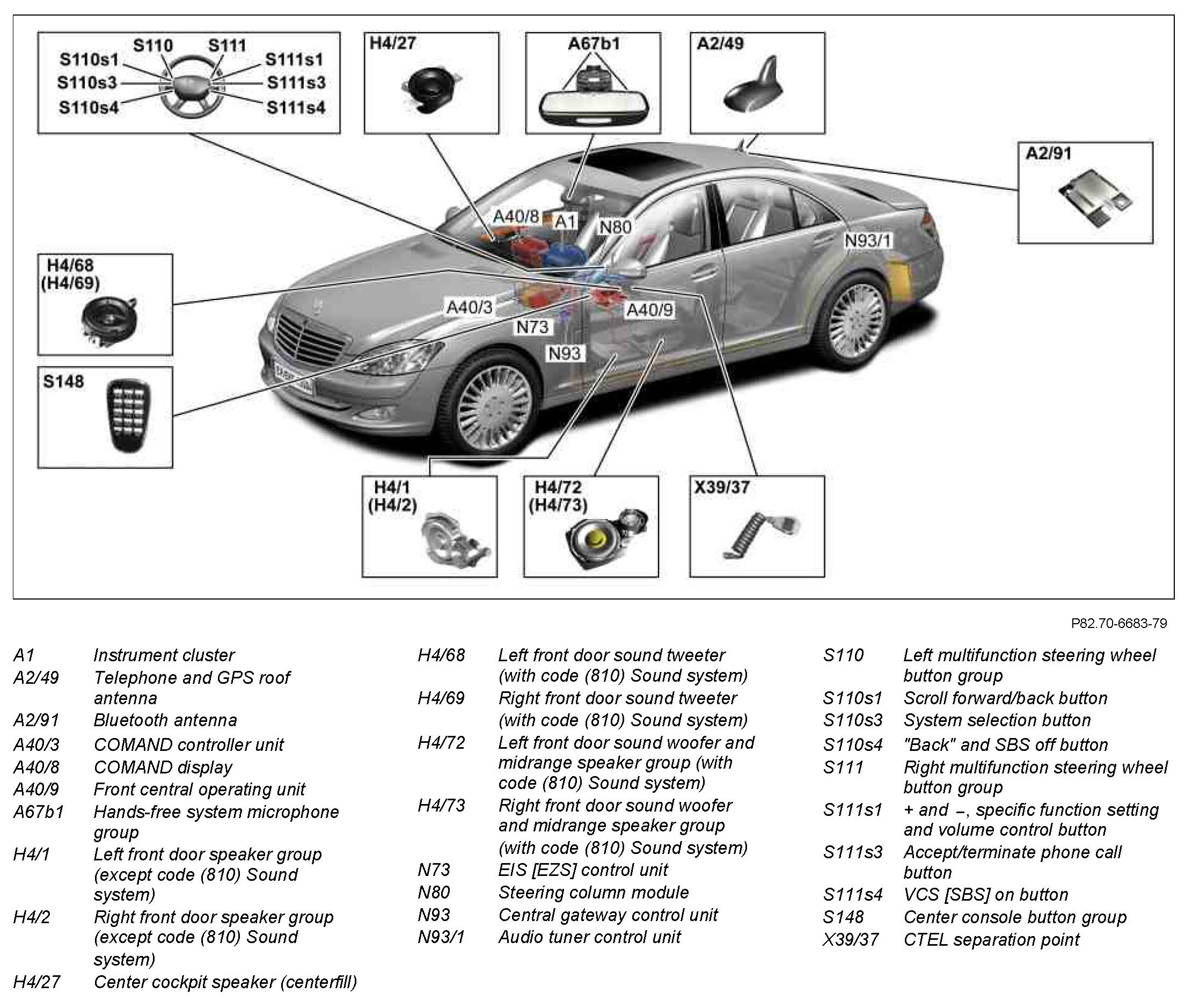

GF82.70-P-0007-01LEJ Mobile Phone System, Location of Components



GF82.70-P-0007-01LEJ Mobile Phone System, Location Of Components
- with CODE (529) HIGH Class Japan


Component Identification:
