AN82.70-P-8969-04SX Retrofit Hands-Free System Microphone

AN82.70-P-8969-04SX Retrofit Hands-Free System Microphone
- except CODE (494) USA version
- except CODE (498) Japan version








1 Connect connector of microphone (B25/1) to microphone coupling (B25/1).
2 Fasten mirror base cover (35).
3 Clean bonding surface on mirror base cover (35).

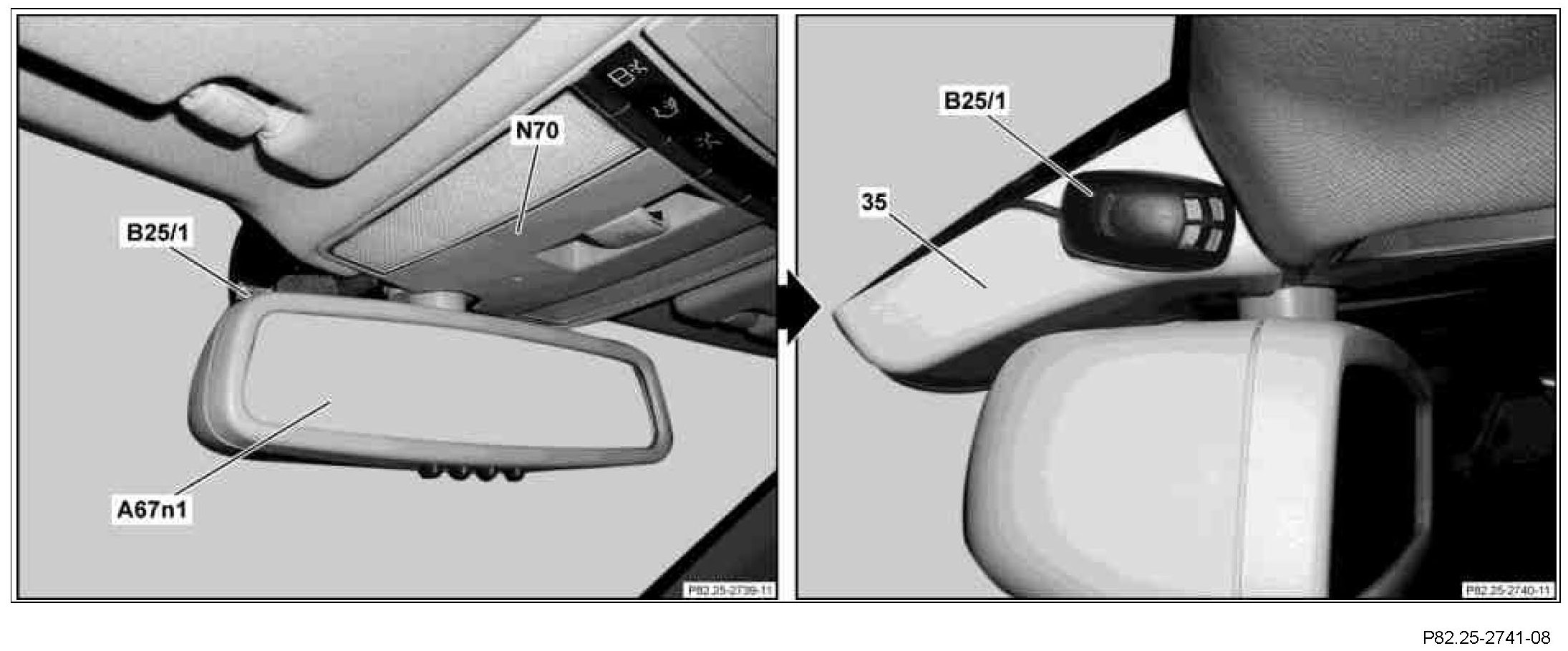

4 Bond microphone (B25/1) onto mirror base cover (35) as per picture.
