AN54.65-P-0030-03SY Retrofit Backup Camera Wiring Harness

AN54.65-P-0030-03SY Retrofit Backup Camera Wiring Harness

Special Tools:

Component Identification:

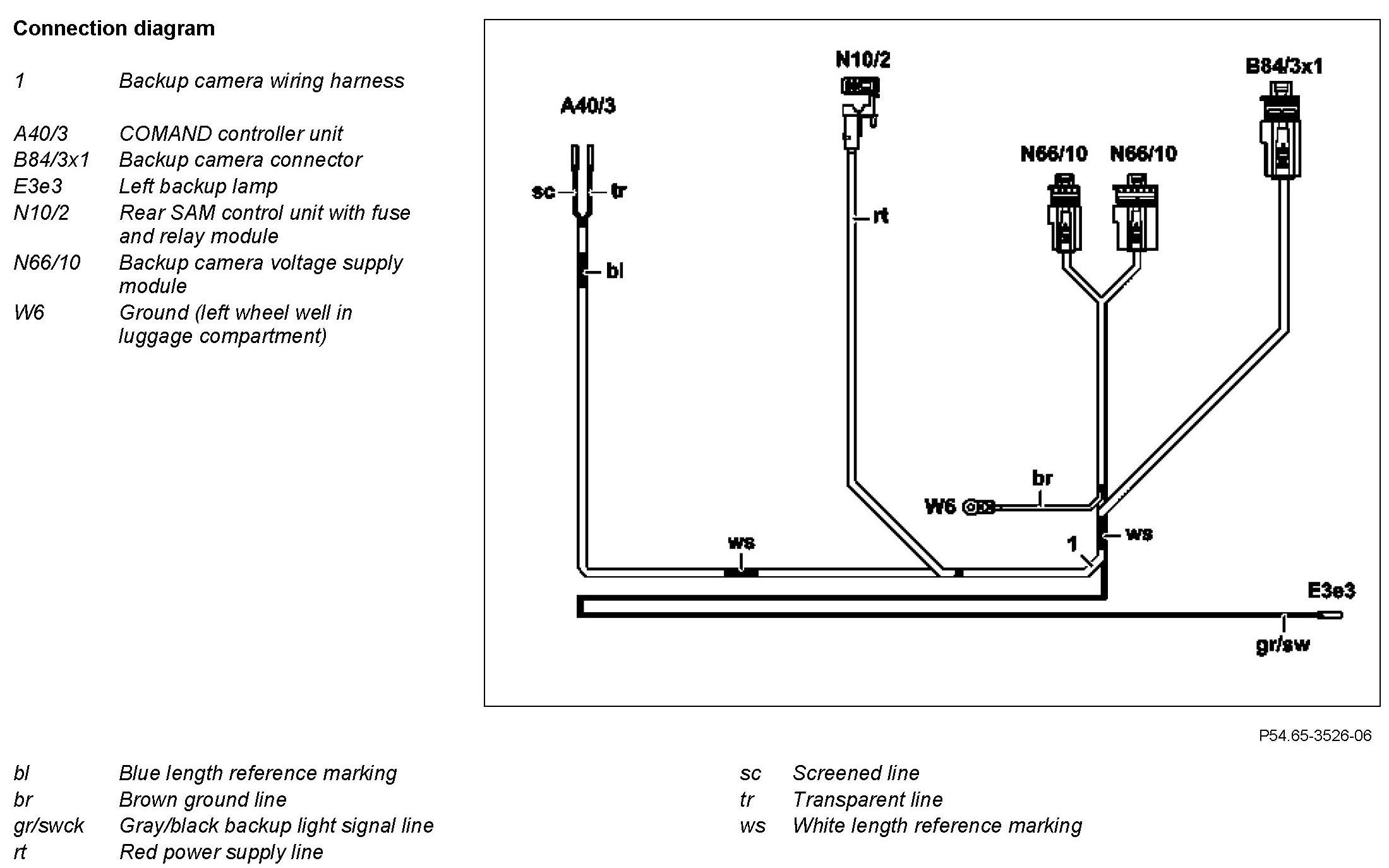

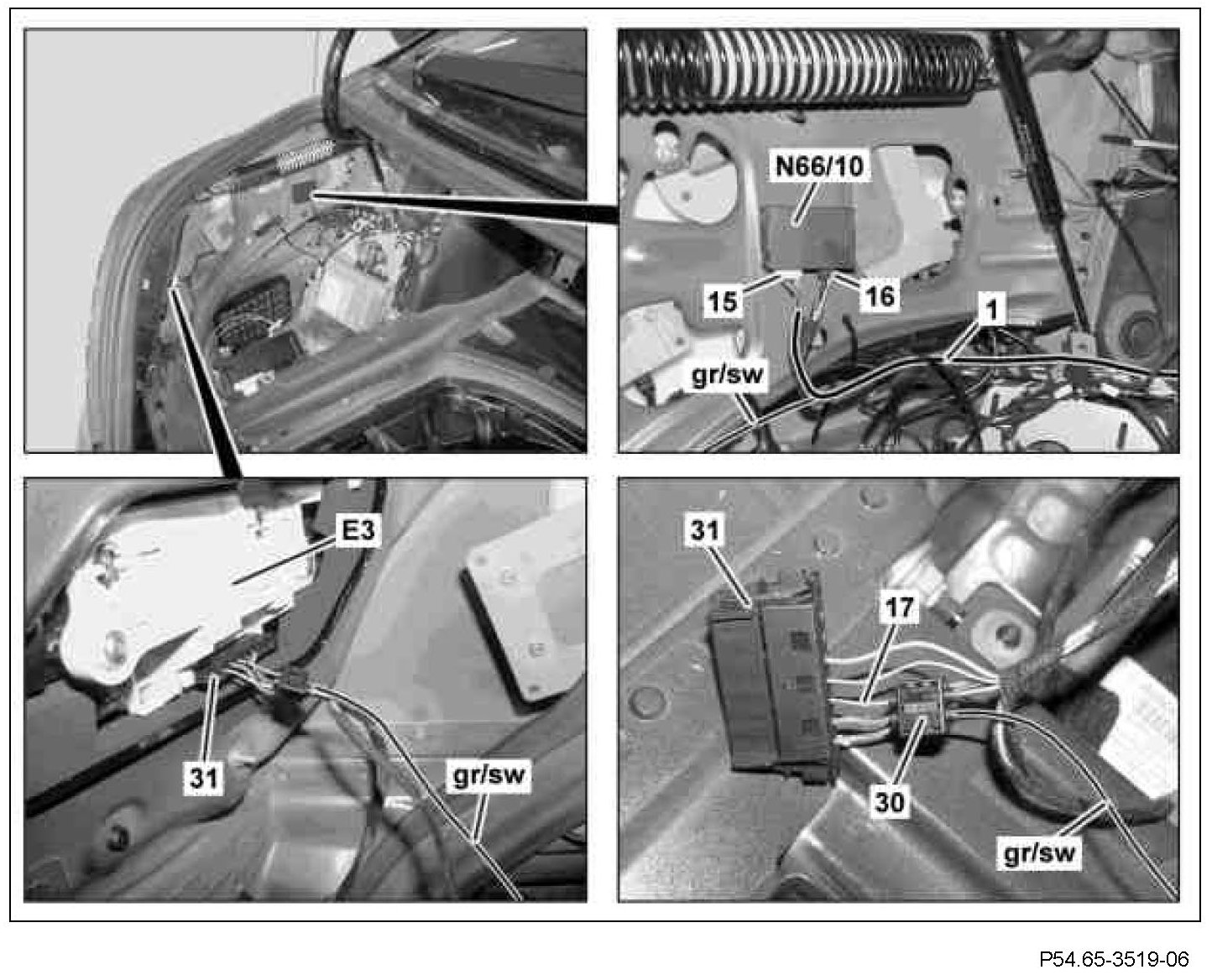

1. Connect white 6-pin connector (15) and black 4-pin connector (16) of reversing camera wiring harness (1) to power supply module for reversing camera (N66/10).
2. Detach gray/black backup light signal line (gr/sw) from reversing camera wiring harness (1) and route to rear of left taillamp (E3).
3. Shorten gray/black backup light signal line (gr/sw).
The gray/black backup light signal line (gr/sw) is too long and must be shortened. The length must be measured such that the gray/black backup light signal line (gr/sw) and the electrical line (17) can be connected to a potential distributor (30).
4. Connect gray/black backup light signal line (gr/sw) and electrical line (17) to potential distributor (30).

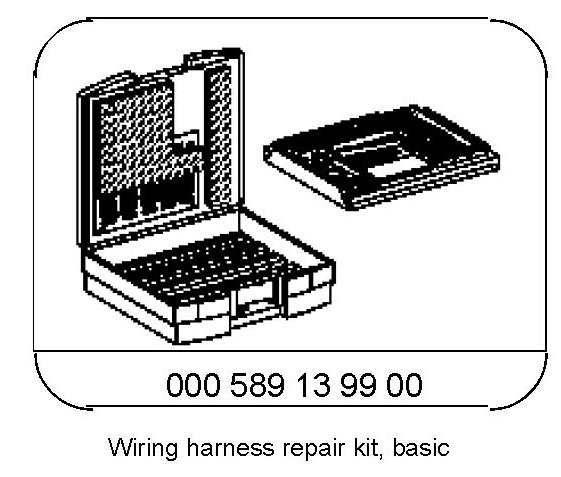

The electrical line (17) is in slot 3 of coupling (31). Use the potential distributor (30) from the basic wiring harness repair kit.
5. Secure gray/black backup light signal line (gr/sw) to on-board wiring harnesses.

Shown on code (432) Left and right dynamic multicontour seat
When carrying out the following work procedure, make sure that the reversing camera wiring harness (1) is installed such that is not kinked and does not rub against other components, otherwise the reversing camera wiring harness (1) could be damaged.

The reversing camera wiring harness (1) must be routed and secured such that the existing length reference markings correspond to the markings on the on-board wiring harnesses, otherwise it could cause noises when the vehicle is in use.

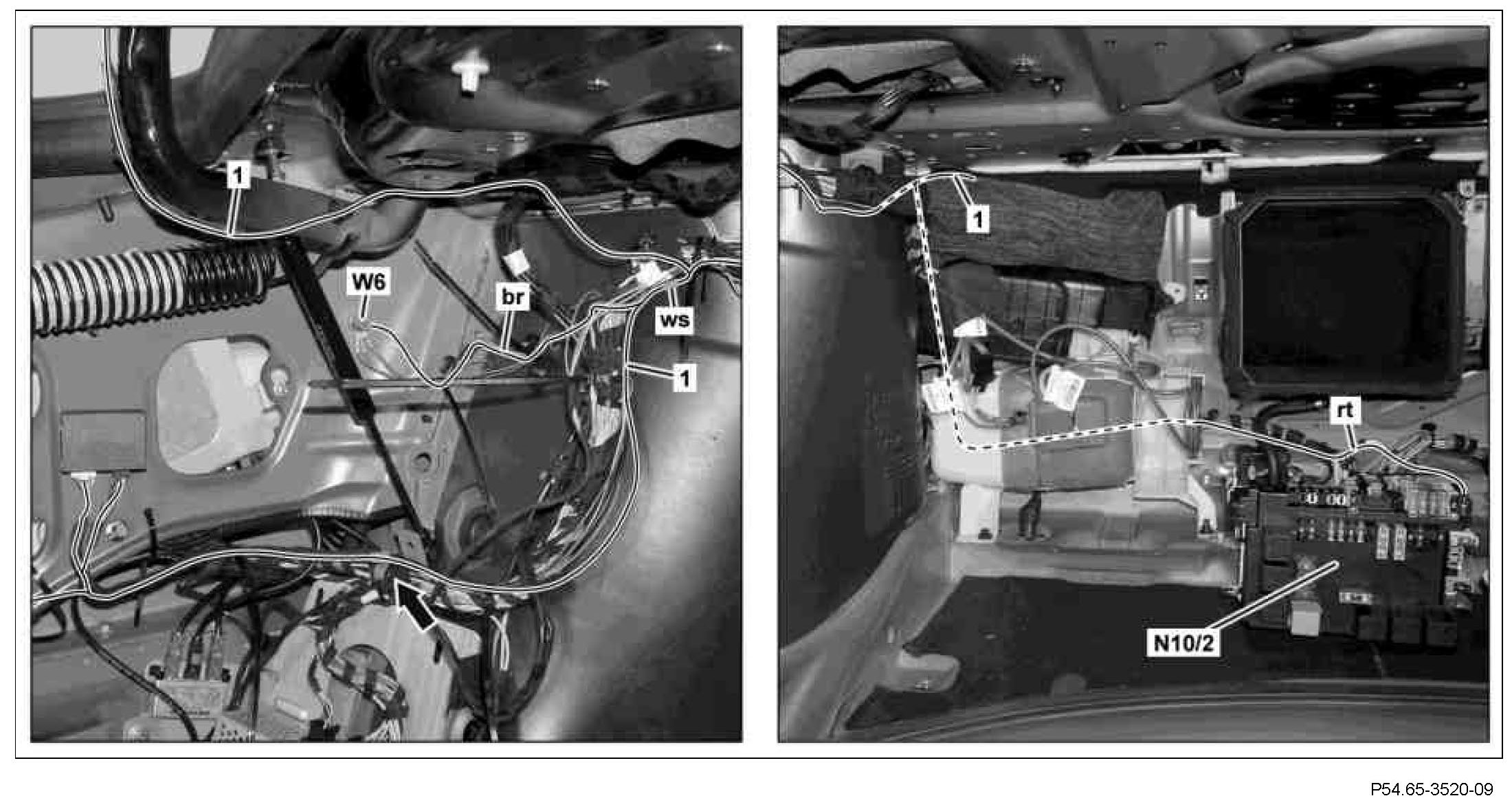

6. Route and secure reversing camera wiring harness (1) in luggage compartment as shown in picture.
Observe the white length reference marking (ws) and the corresponding length reference markings on the on-board wiring harnesses.
7. Connect brown ground line (br) of reversing camera wiring harness (1) to ground (left wheel well in luggage compartment) (W6) and secure to vehicle's wiring harness.
8. Route branch-off line of reversing camera wiring harness (1) with black 4-pin connector for reversing camera connector to trunk lid as shown in picture
9. Route red power supply line (rt) of reversing camera wiring harness (1) to SAM control unit with rear fuse and relay module (N10/2) as shown in picture and secure to on-board wiring harnesses.
10. Route remaining branch-off lines of reversing camera wiring harness (1) from luggage compartment to vehicle interior through body opening on left C-pillar.

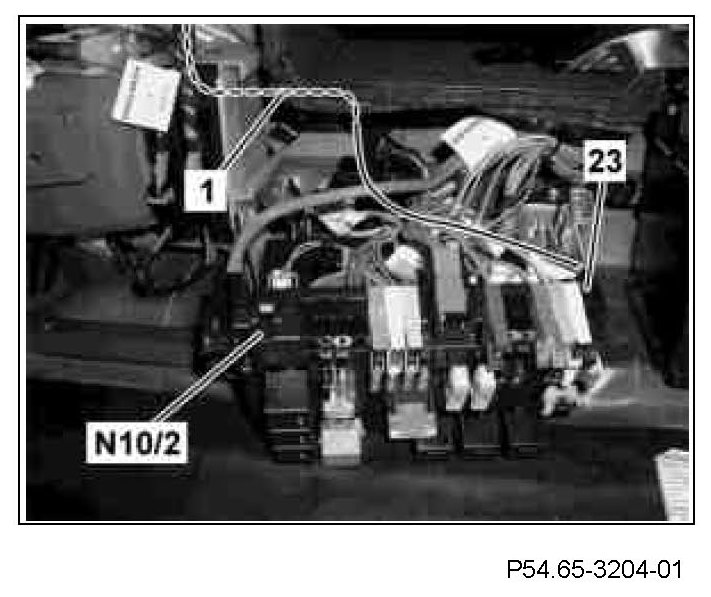

11. Connect black fuse carrier (23) of reversing camera wiring harness (1) to slot 141 on SAM control unit with rear fuse and relay module (N10/2) as shown in picture and insert 5 A fuse.
Slot 141 on the SAM control unit with rear fuse and relay module (N10/2) is colored and mechanically coded.

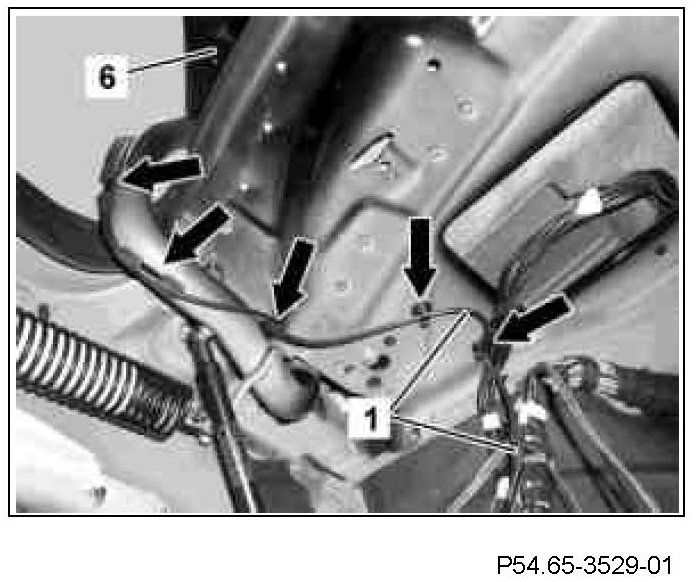

12. Secure branch-off line of reversing camera wiring harness (1), with black 4-pin connector for reversing camera connector, to left hinge lever of trunk lid (6) and to underside of rear shelf (arrows) as shown in picture.
Secure the branch-off line of the reversing camera wiring harness (1) using the attached clips.

13. Route black 4-pin connector (24) of reversing camera wiring harness (1) along trunk lid (6) as shown in picture, and secure using clips attached to branch-off line (arrows).
14. Secure reversing camera wiring harness (1) along trunk lid (6) using cable tie (25) as shown in picture.

15. Connect black 4-pin connector (41) of reversing camera (B84/3) to black 4-pin connector (24) of reversing camera wiring harness (1).
The reversing camera connector (B84/3x1) is now complete.
16. Pull protective sleeve (26) over reversing camera connector (B84/3x1).

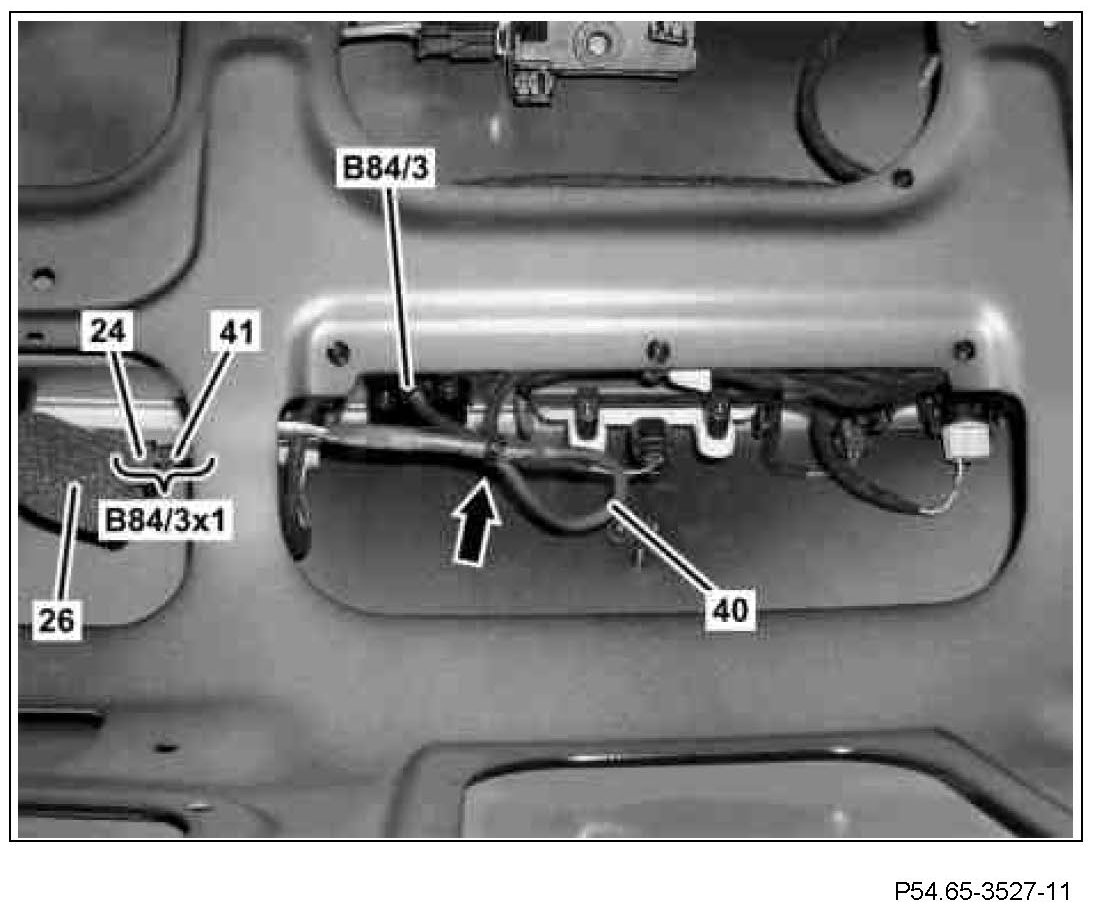

17. Route line (40) of reversing camera (B84/3) as shown in picture so that it forms a loop, and secure to on-board wiring harnesses using cable tie (arrow).

18. Peel protective foil off adhesive pad (14).

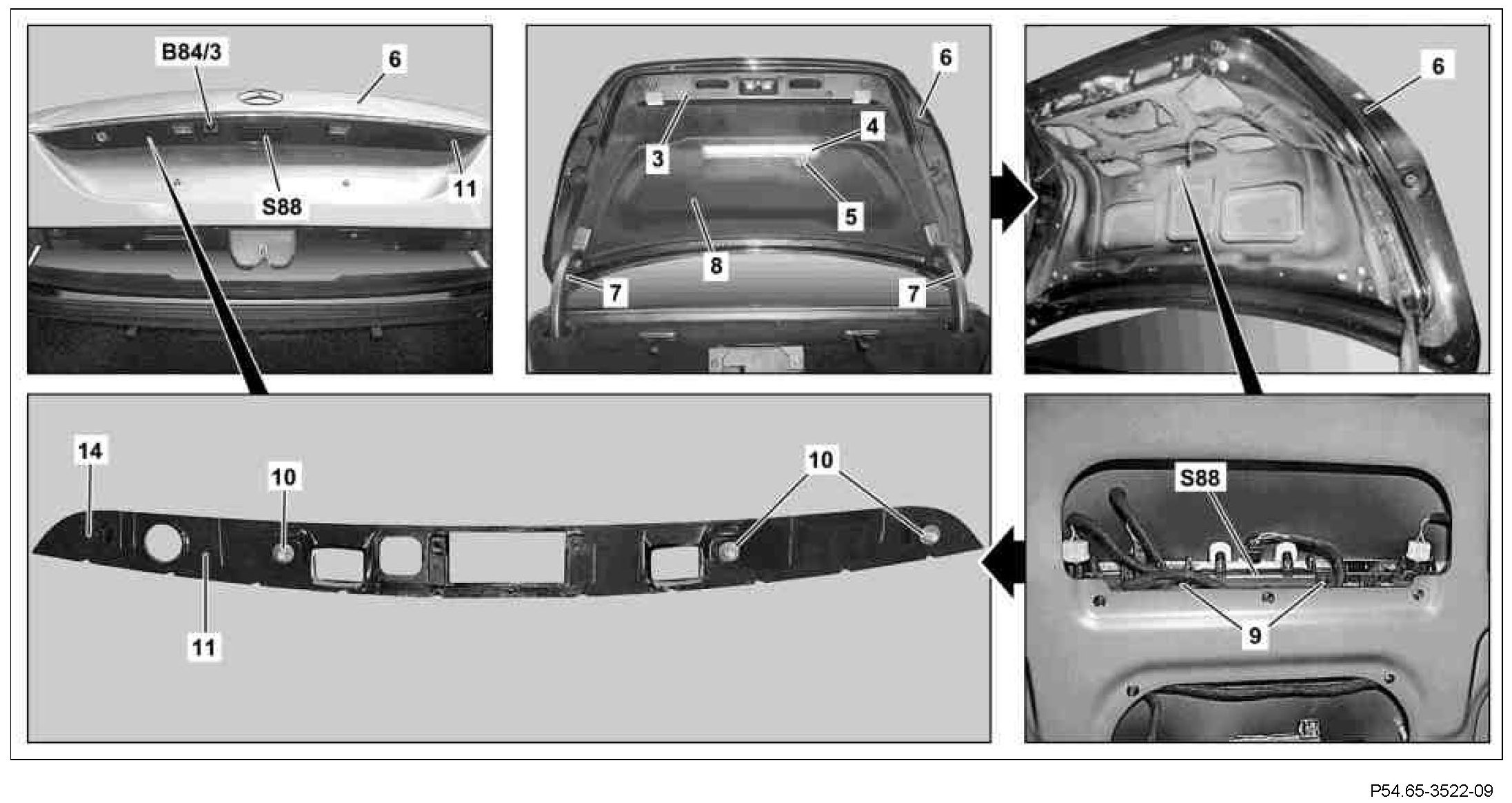

19. Clip new cover (11) with recess into trunk lid (6) starting from right, and press adhesive pad (14) of cover (11) firmly onto trunk lid (6).
Make sure that all clips (10) are engaged fully.
20. Remove protective foil from lens of reversing camera (B84/3).
21. Tighten bolts (9) on inside of trunk lid switch group (S88).
22. Install trim of trunk lid (8).
23. Install left and right hinge bracket trim piece (7).
24. Install panel (3).
25. Install holder (5) and insert hazard warning triangle (4).

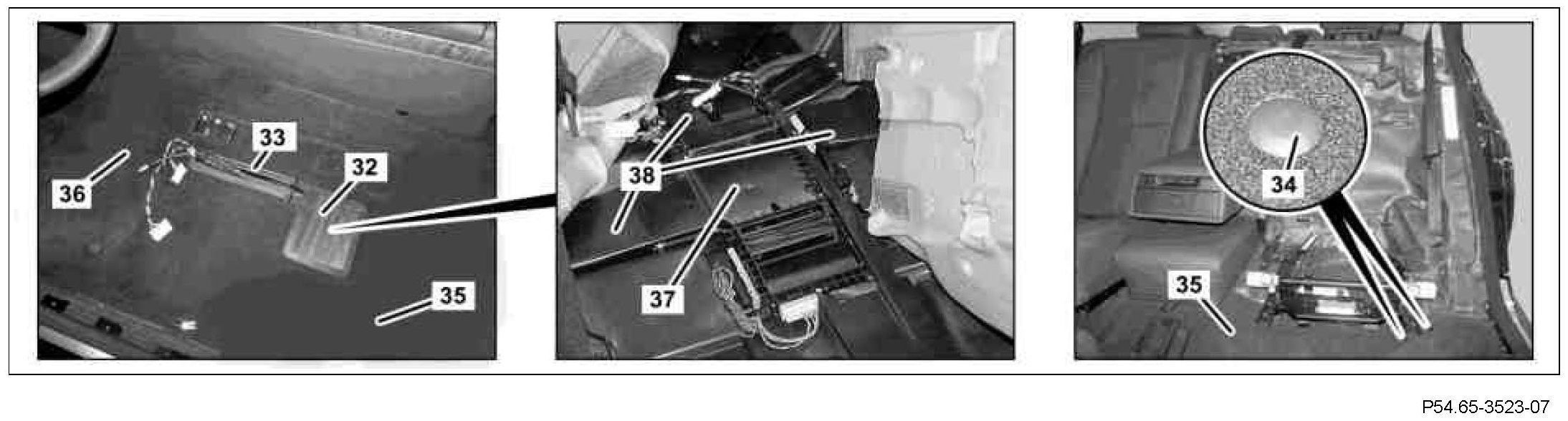

26. Install air vent (32) below driver seat.
27. Unclip and remove line guide (33).
28. Remove expansion clips (34) and fold rear floor covering (35) over toward vehicle center.
29. Fold front floor covering (36) over until air distribution flap (37) is accessible.
30. Detach air distribution flap (37) from air ducts (38) and place to one side.

31. Open cable duct covers (27).
32. Open cable duct (39) of left frame floor assembly.

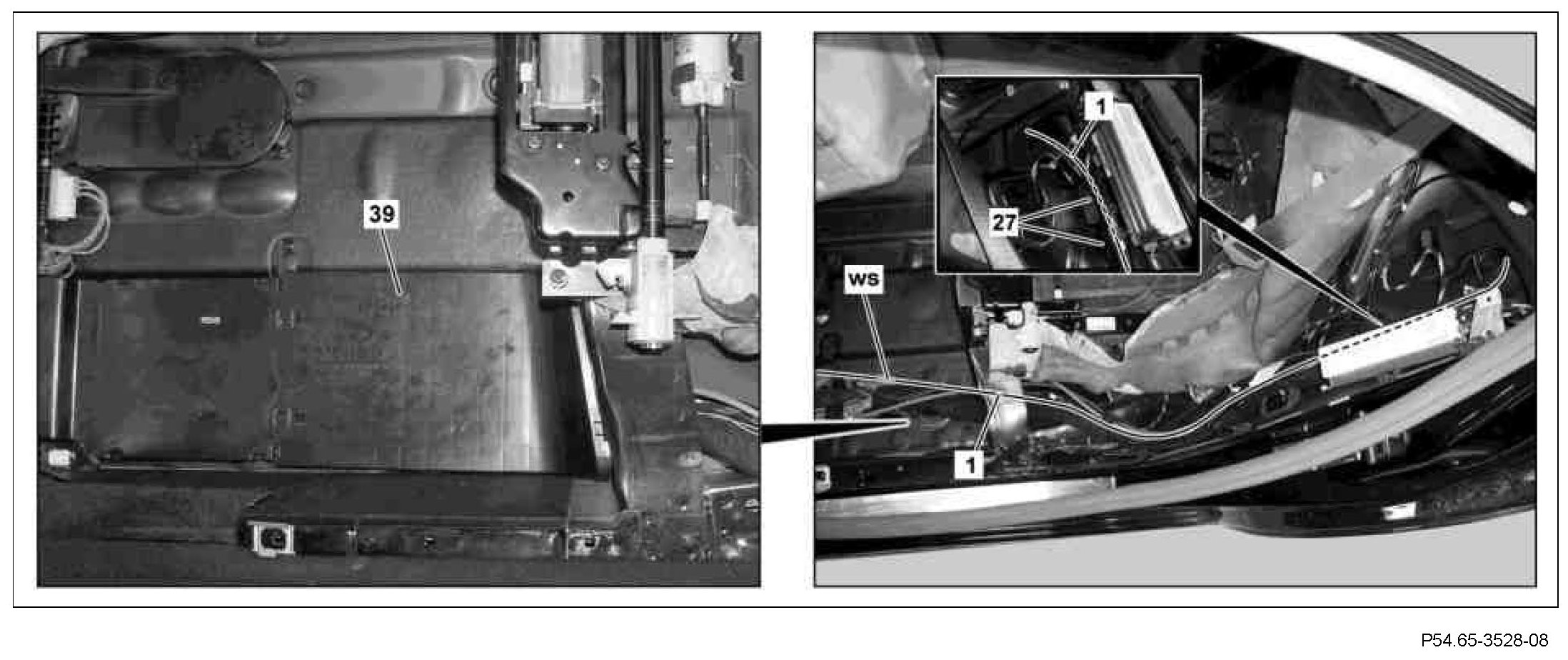

33. Route reversing camera wiring harness (1), as shown, and fasten to vehicle's wiring harnesses.
Observe the white length reference marking (ws) and the corresponding length reference markings on the on-board wiring harnesses.
34. Close cable duct covers (27).

35. Route reversing camera wiring harness (1) into cable duct (39) as shown in picture, and secure to on-board wiring harness.

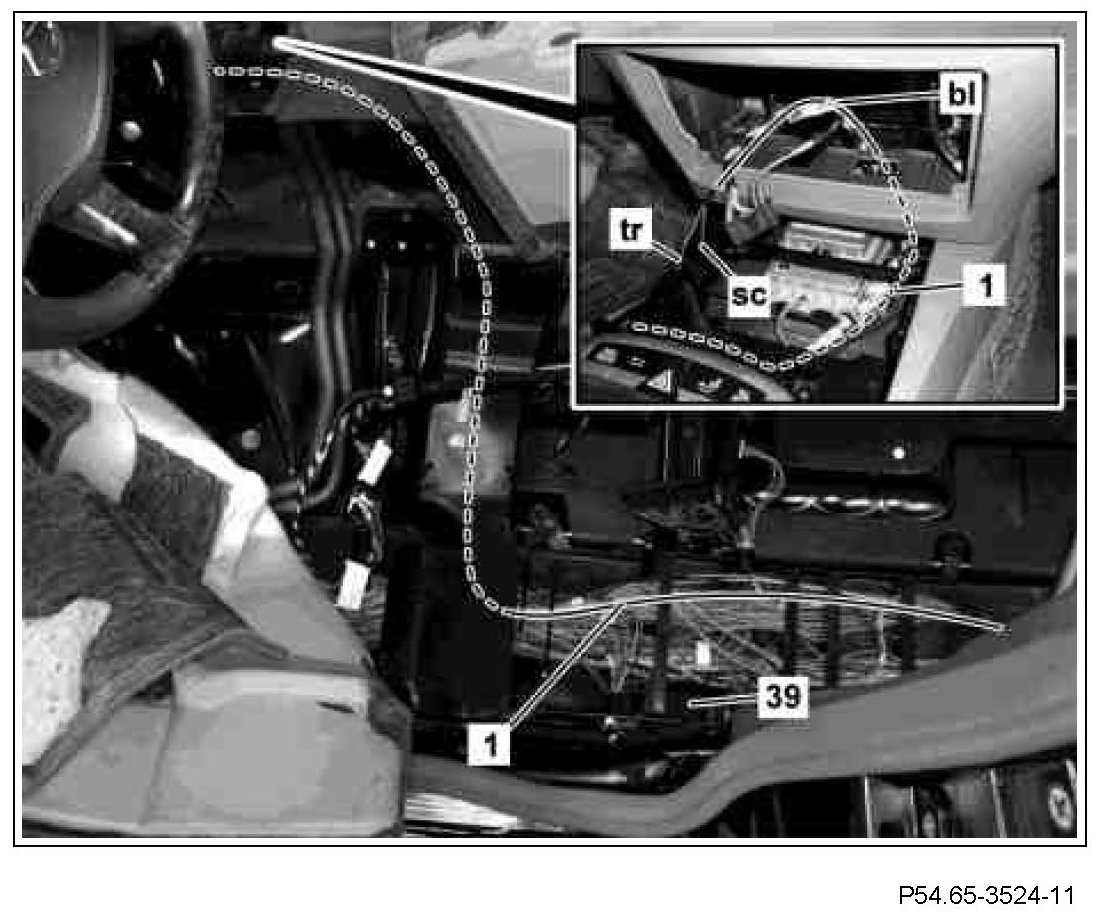

36. Using an insertion aid, route reversing camera wiring harness (1) forwards into corresponding cable ducts as far as installation location of COMAND controller unit in center console. Position blue length reference marking (bl) of reversing camera wiring harness (1) so that it is in alignment with length reference marking of same color on on-board wiring harness.
37. Secure reversing camera wiring harness (1) to on-board wiring harness.

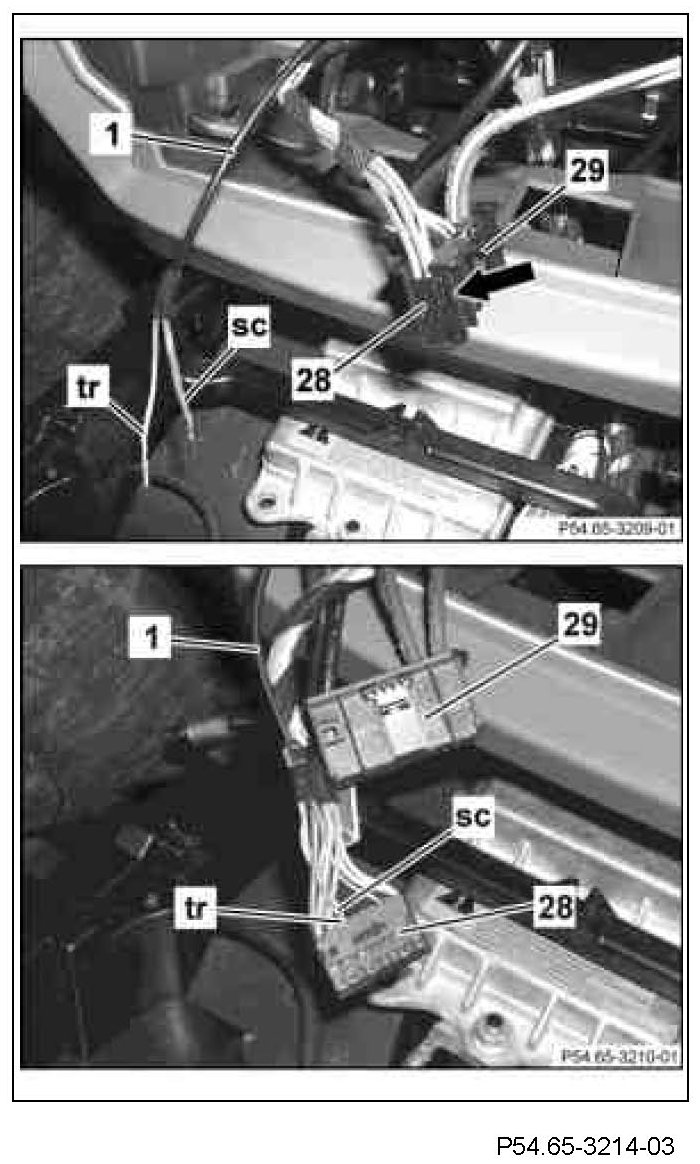

38. Unlock lock (arrow) on side of on-board COMAND coupling housing (29) and remove black 20-pin contact carrier (28) from COMAND coupling housing (29).
39. Install transparent line (tr) of reversing camera wiring harness (1) in contact cavity 7 of black 20-pin contact carrier (28).
40. Install screened line (sc) of reversing camera wiring harness (1) in contact cavity 17 of black 20-pin contact carrier (28).
The screened line (sc) is thicker than the transparent line (tr).
41. Install black 20-pin contact carrier (28) in COMAND coupling housing (29).
