S 350 BLUETEC (221.183) V6-3.0L DSL Turbo (642.868)
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Antitheft and Alarm Systems
>>
Testing and Inspection
>>
AP82.25-P-8290SX Check Panic Alarm System
AP82.25-P-8290SX Check Panic Alarm System
AP82.25-P-8290SX Check Panic Alarm System
- with CODE (Z07) Top protection

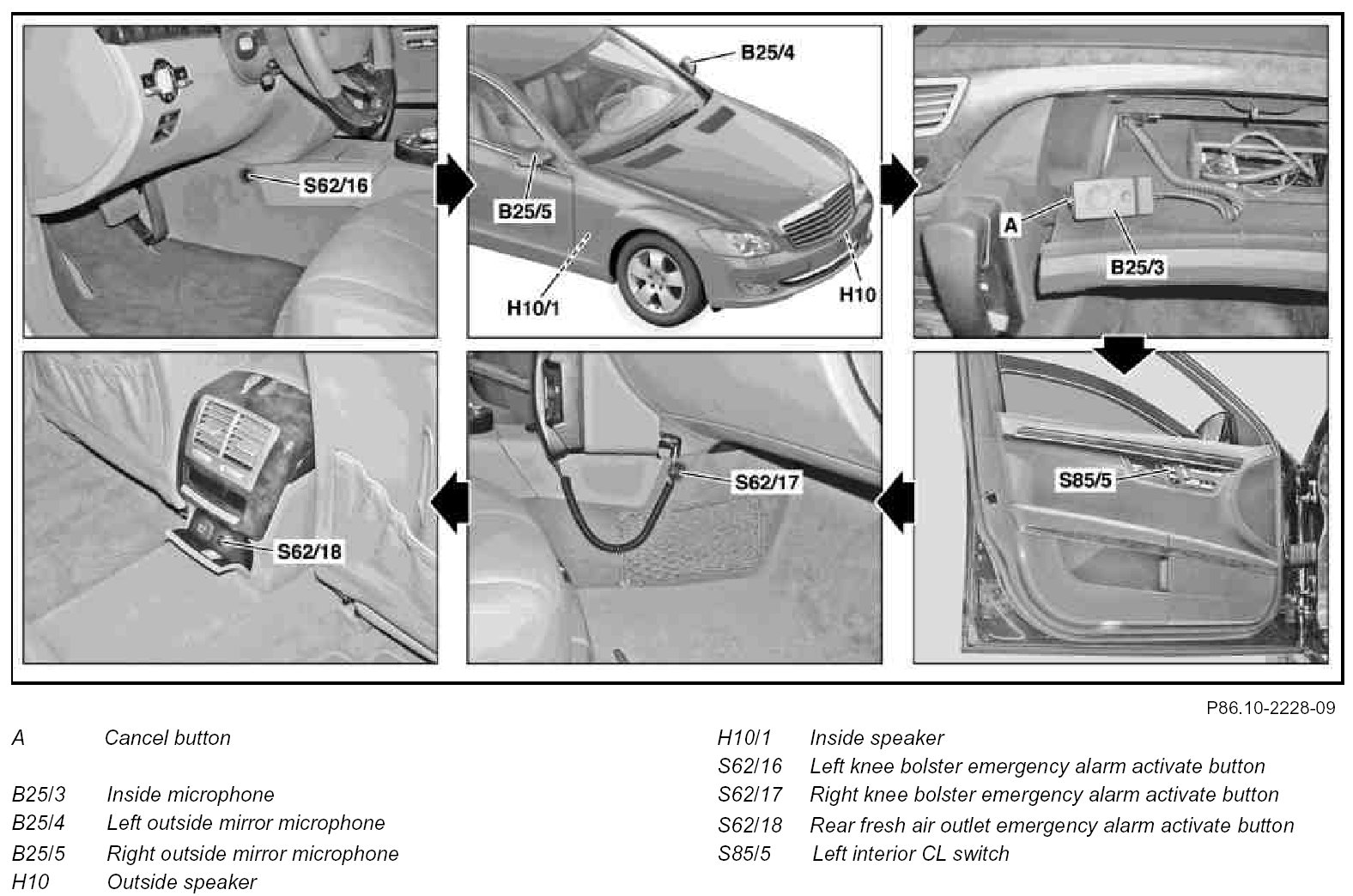

Component Identification:

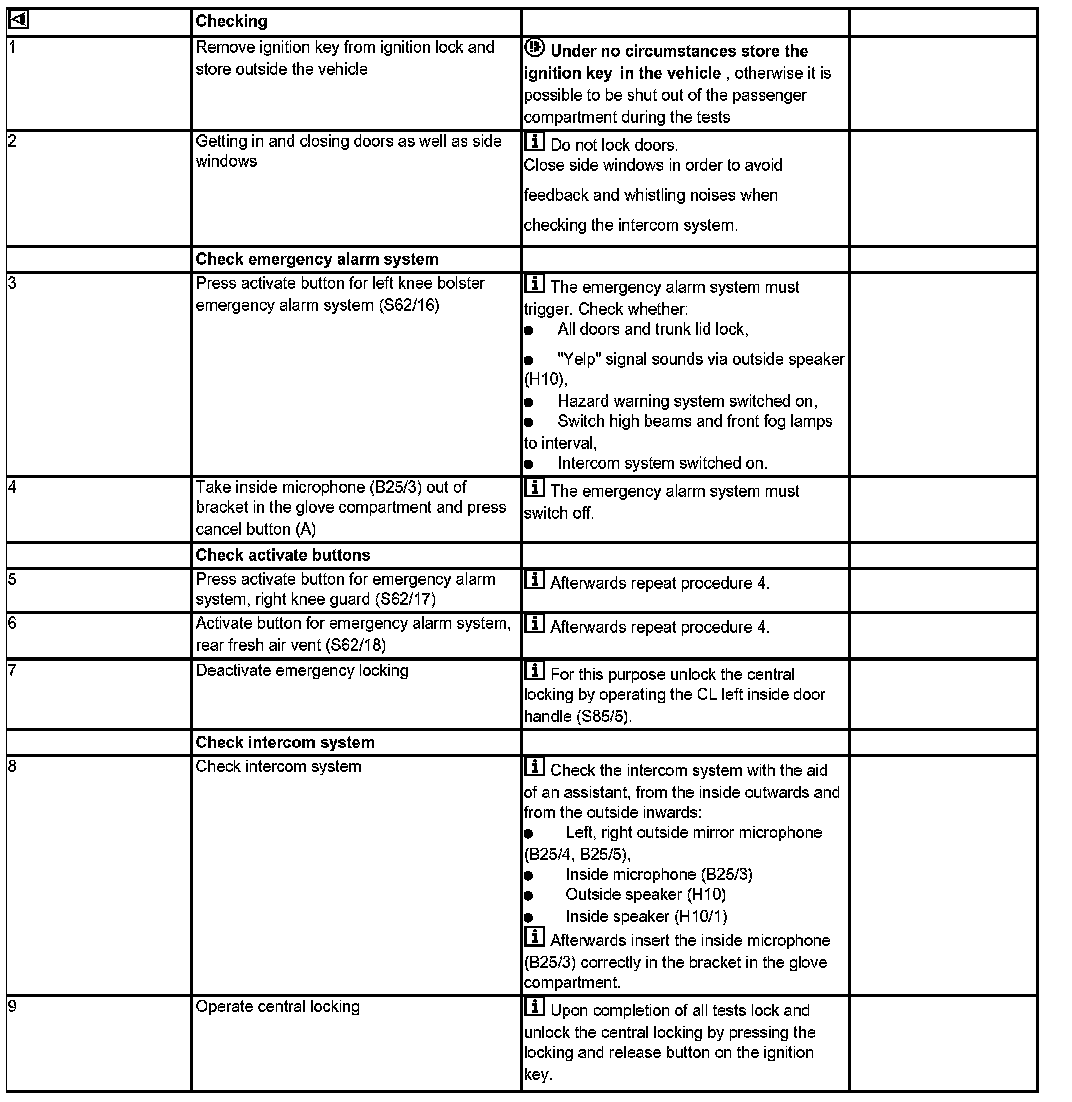

Steps 1 - 9:
