Antitheft and Alarm Systems: Service and Repair



AR82.25-P-1206SXS Remove/Install Panic Alarm System Control Unit (PAS)
- with CODE (Z07) Top protection

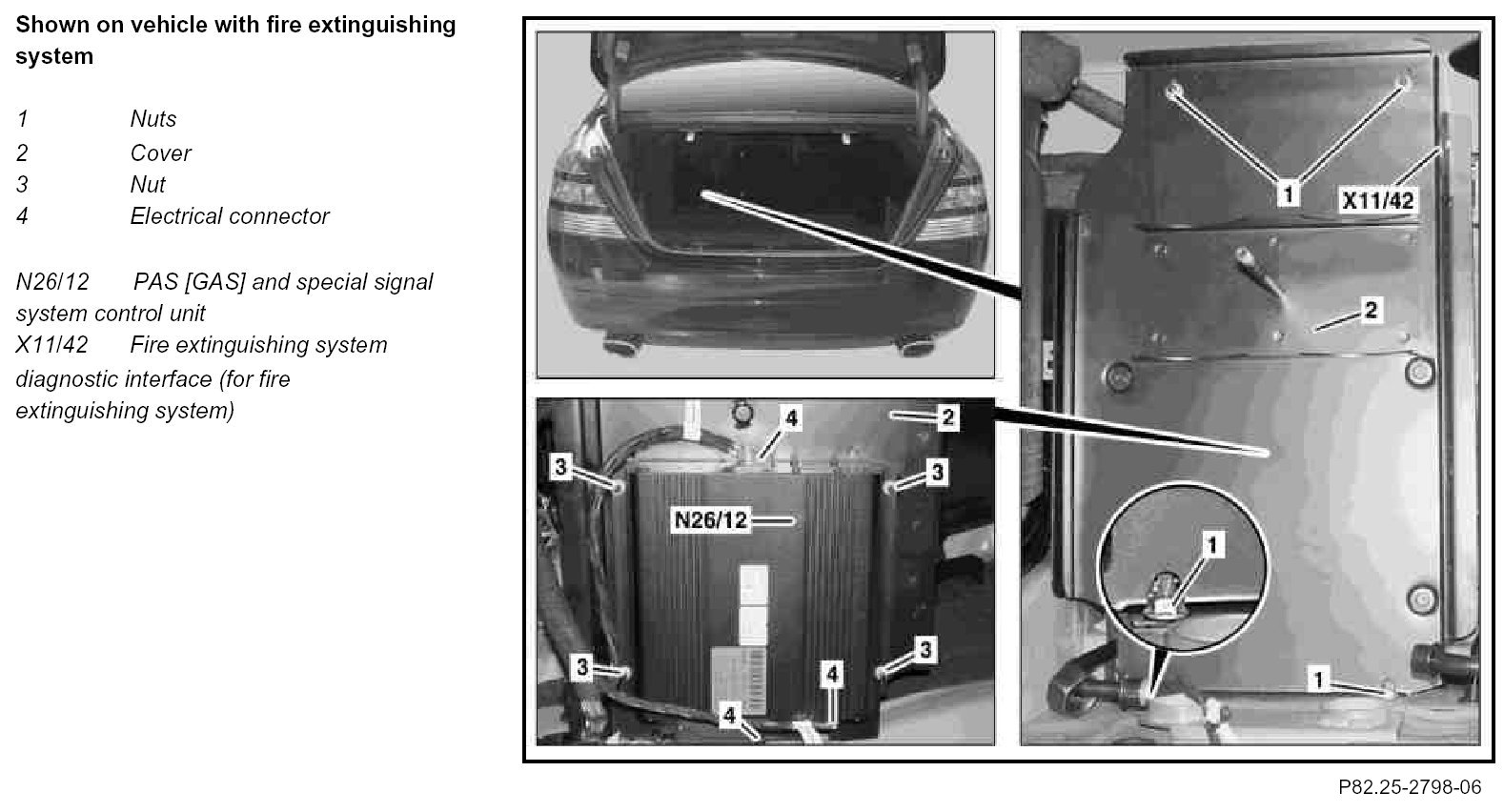

Component Identification:

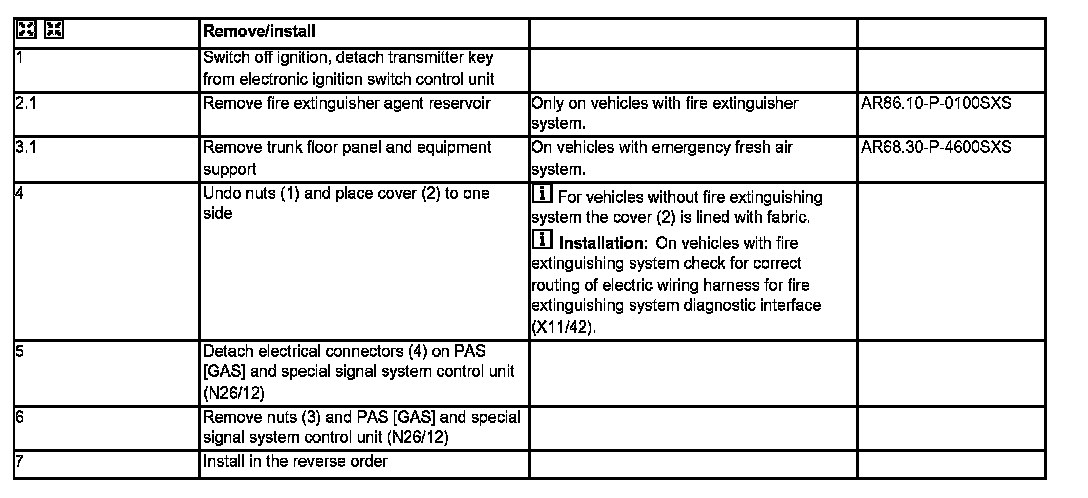

Steps 1 - 7:
