Keyless Entry Receiver: Service and Repair
AR80.30-P-4305SX Remove/Install Front Door Infrared Remote Control Receiver
Component Identification:

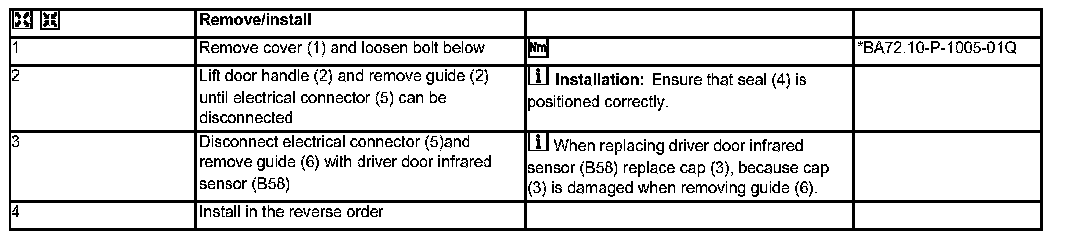

Steps 1 - 4:

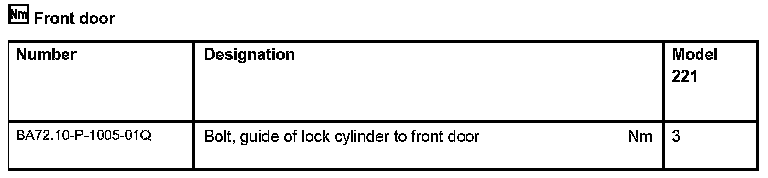

Front Door:
