AR82.62-P-8980SX Remove/Install Bluetooth Antenna



AR82.62-P-8980SX Remove/Install Bluetooth Antenna
- with CODE (359) TELE AID emergency call system
- with CODE (386) Preinstallation for telephone "Handy", UPCI system
- with CODE (388) Telephone "Handy", UPCI system

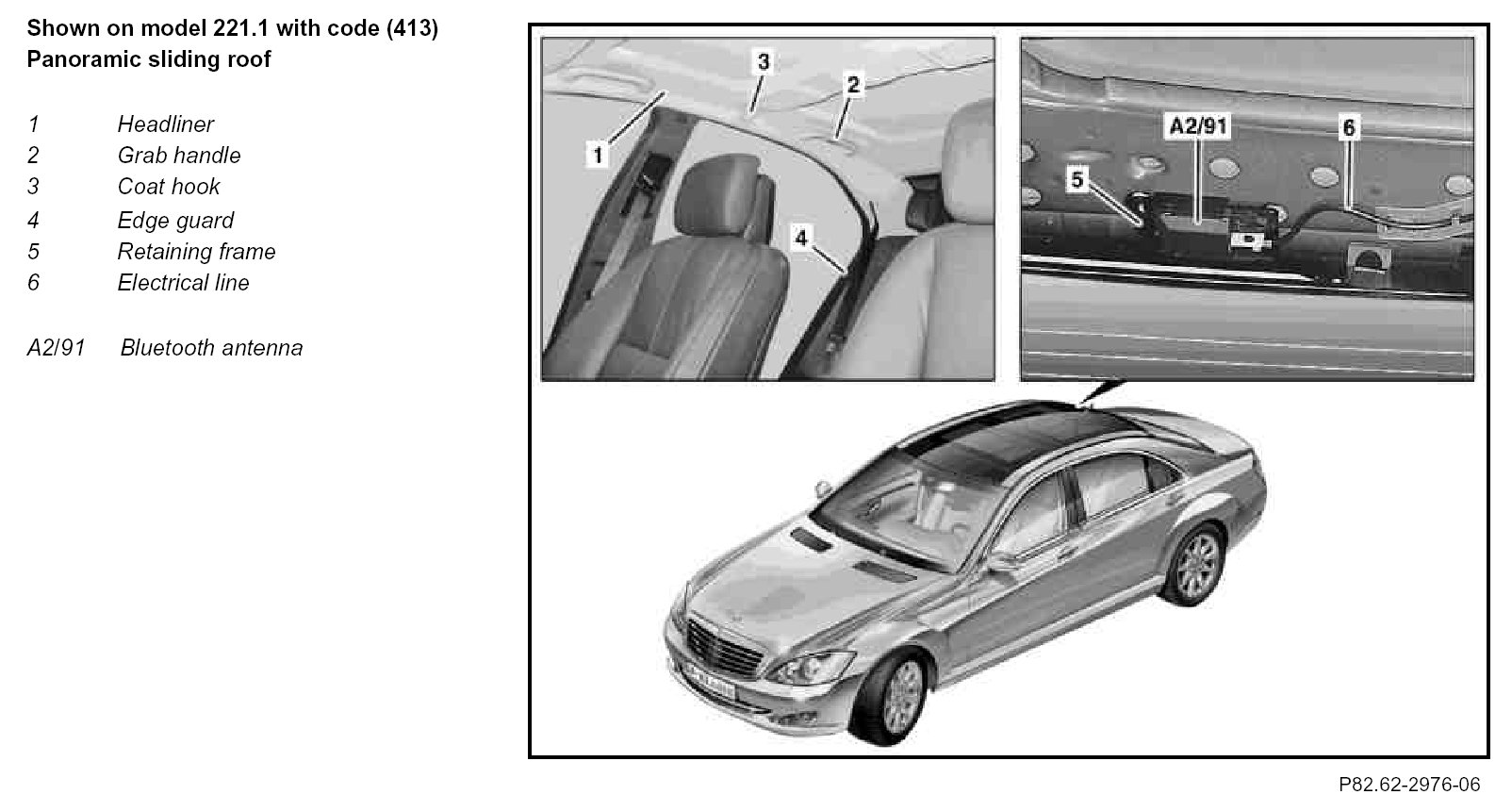

Component Identification:

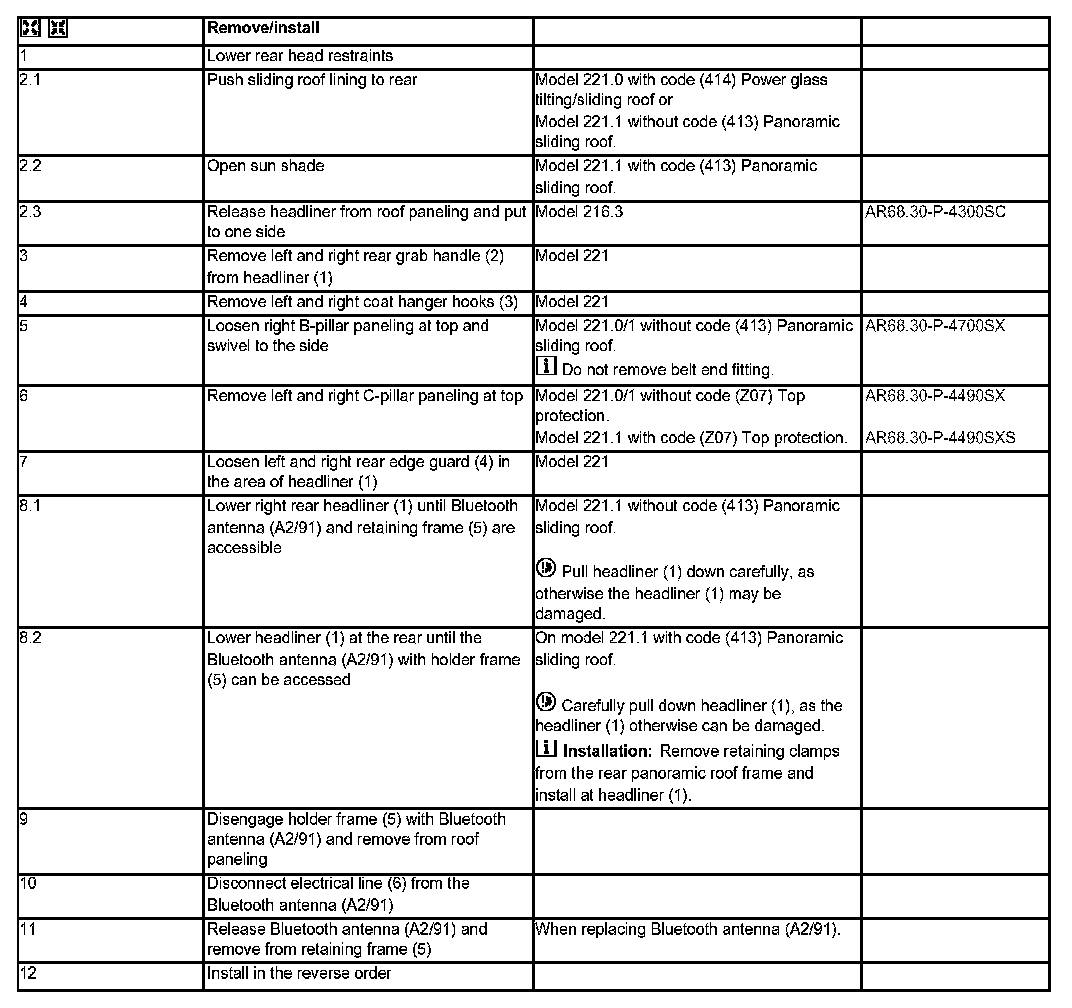

Steps 1 - 12:
