GF82.95-P-4002SXU Emergency Call System Backup Antennas Component Description

GF82.95-P-4002SXU Emergency Call System Backup Antennas Component Description
- Model 221
- with CODE (389) Mobile phone preinstallation with universal interface, USA/Canada

Component Identification:

Location

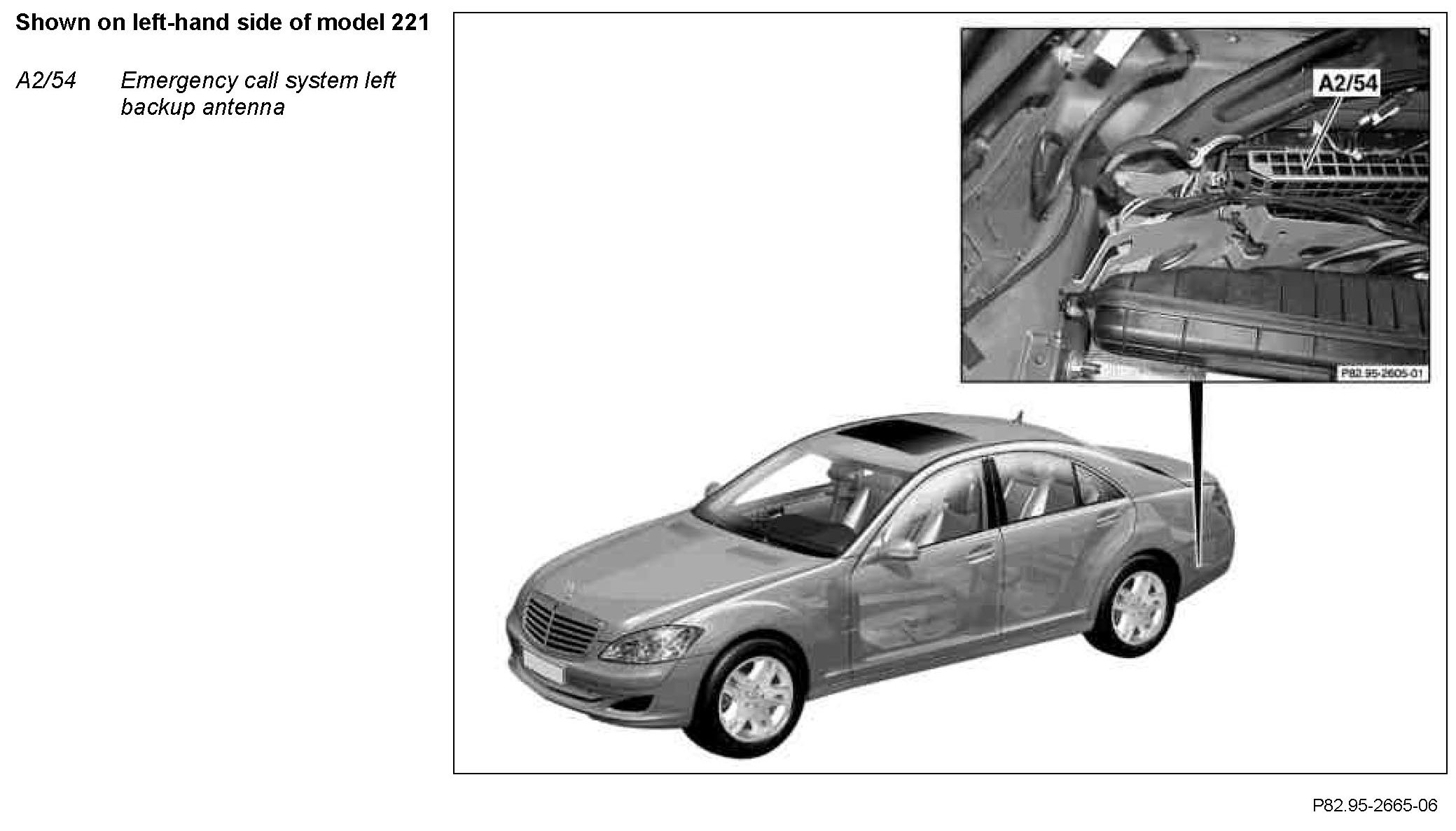

The emergency call system left backup antenna is installed at the left rear and the emergency call system right backup antenna (A2/55) at the right rear behind the bumper. The emergency call system left backup antenna and the emergency call system right backup antenna are accessible from the trunk.

Task and function
On model 221 up to 31.12.05, the emergency call system left backup antenna and the emergency call system right backup antenna receive and transmit - in the event of a failure of the emergency call antenna (A2/52) - the mobile phone network data over the emergency call system antenna splitter (A2/25) from and to the emergency call system control unit (N123/4).

On model 221 as of 1.1.06 and on model 216 as of 1.1.06, the emergency call system left backup antenna and the emergency call system right backup antenna receive and transmit - in the event of a failure of the telephone and GPS roof antenna (A2/49) (model 221) or of the telephone and GPS antenna (A2/49) (model 216) - the mobile phone network data over the emergency call system antenna splitter from and to the emergency call system control unit.
