GF82.70-P-3111SXU Portable CTEL Antenna Amplifier Component Description

GF82.70-P-3111SXU Portable CTEL Antenna Amplifier Component Description
- with CODE (387) Preinstallation for telephone "Handy", UPCI system, USA/Canada

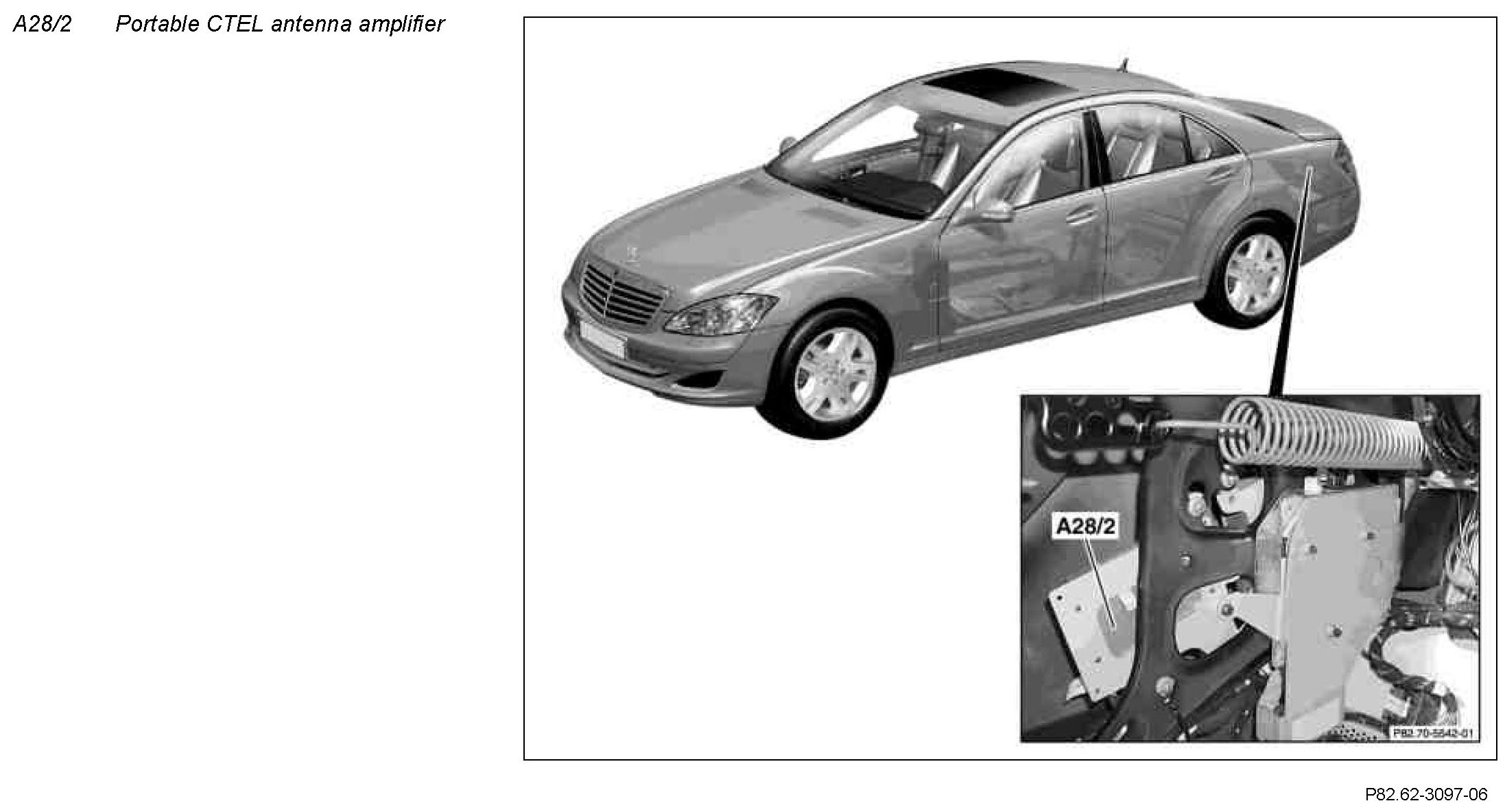

Component Identification:

Location
The portable CTEL antenna amplifier is in the rear of the trunk on the left-hand side.

Task and function
The portable CTEL antenna amplifier compensates for transmission and reception losses in the antenna line. These physical losses can occur during use of the portable CTEL (A34/6), depending on the mobile telephone network frequency.
