AR82.62-P-8300SXS Remove/Install Antenna Amplifier Module

AR82.62-P-8300SXS Remove/Install Antenna Amplifier Module
- with CODE (Z07) Top protection

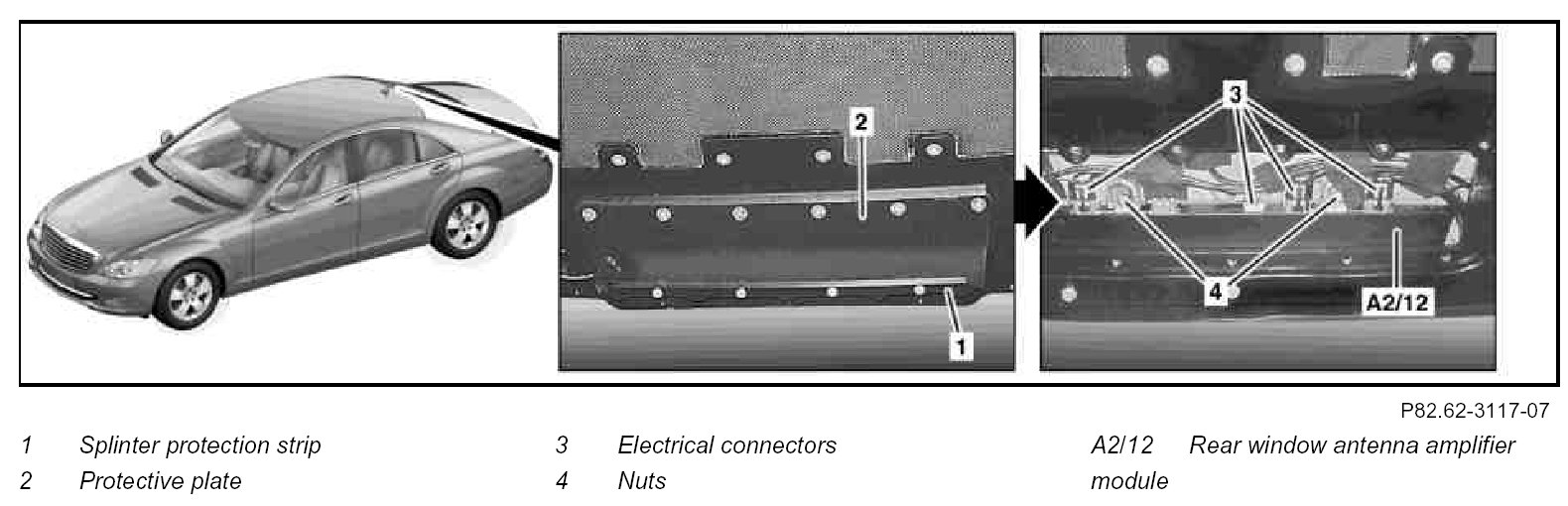

Component Identification:

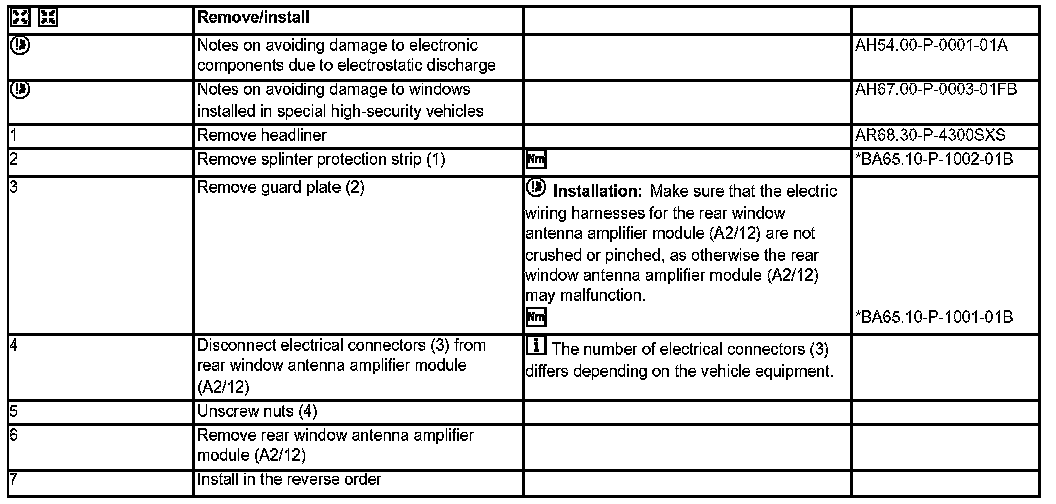

Steps 1 - 7:

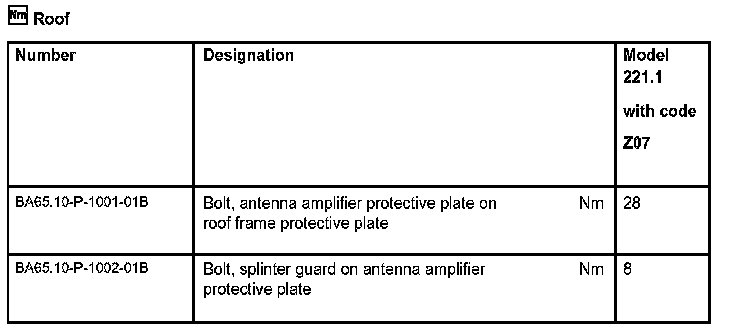

Roof:
