AN82.85-P-0010-02SX Retrofit Comand Remote Control For Rear Passengers

AN82.85-P-0010-02SX Retrofit COMAND Remote Control For Rear Passengers
- except CODE (494) USA version
- except CODE (498) Japan version

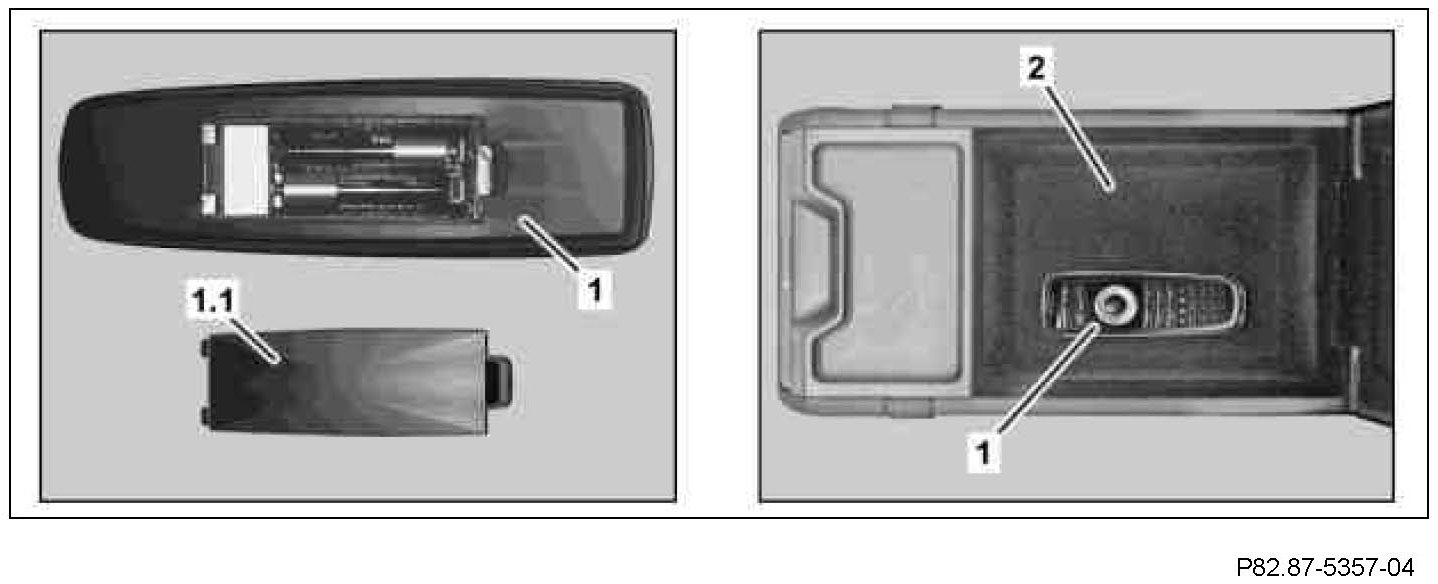

1 Clip stowage compartment (2) into rear armrest (3).







2 Remove battery compartment cover (1.1) from COMAND remote control (1), insert the batteries supplied into the COMAND remote control (1) and close battery compartment cover (1.1) again.
3 Insert COMAND remote control (1) into mount on stowage compartment (2).
