AN54.30-P-1000-02SX Prepare Wiring Harness For Retrofitting to SPLITVIEW Display

AN54.30-P-1000-02SX Prepare Wiring Harness For Retrofitting To SPLITVIEW Display







1. Spread main wiring harness for instrument panel over a worktable

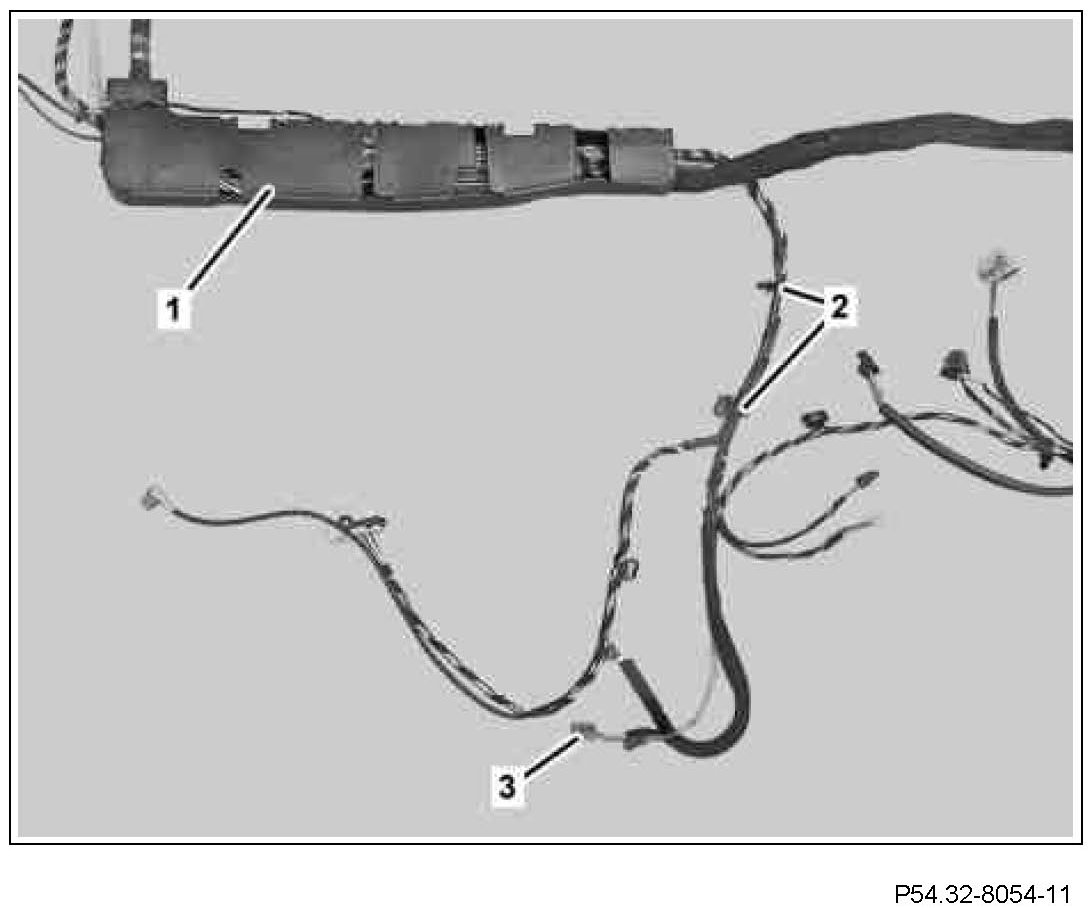

2. Release and open cable duct (1).
3. Remove cable ties (2) on main wiring harness for instrument panel.
4. Remove felt tape on main wiring harness for instrument panel, starting from the blue 12-pin coupling (3) and into the cable duct (1).

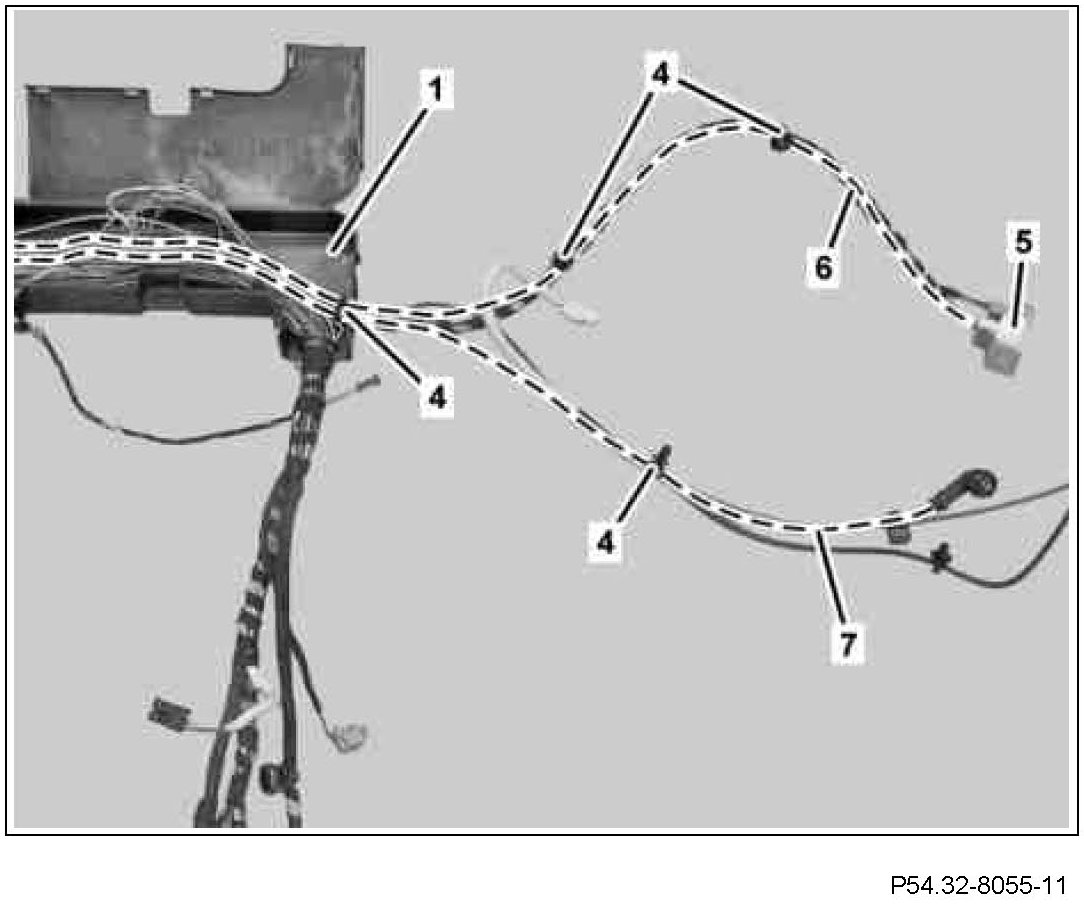

5. Remove cable ties (4) on main wiring harness for instrument panel.
6. Remove felt tape on the main wiring harness for the instrument panel, starting from the cable duct (1) up to the white 20-pin plug (5), and expose the SPLITVIEW display (6) wiring harness and the headphones wiring harness (7) by doing so.

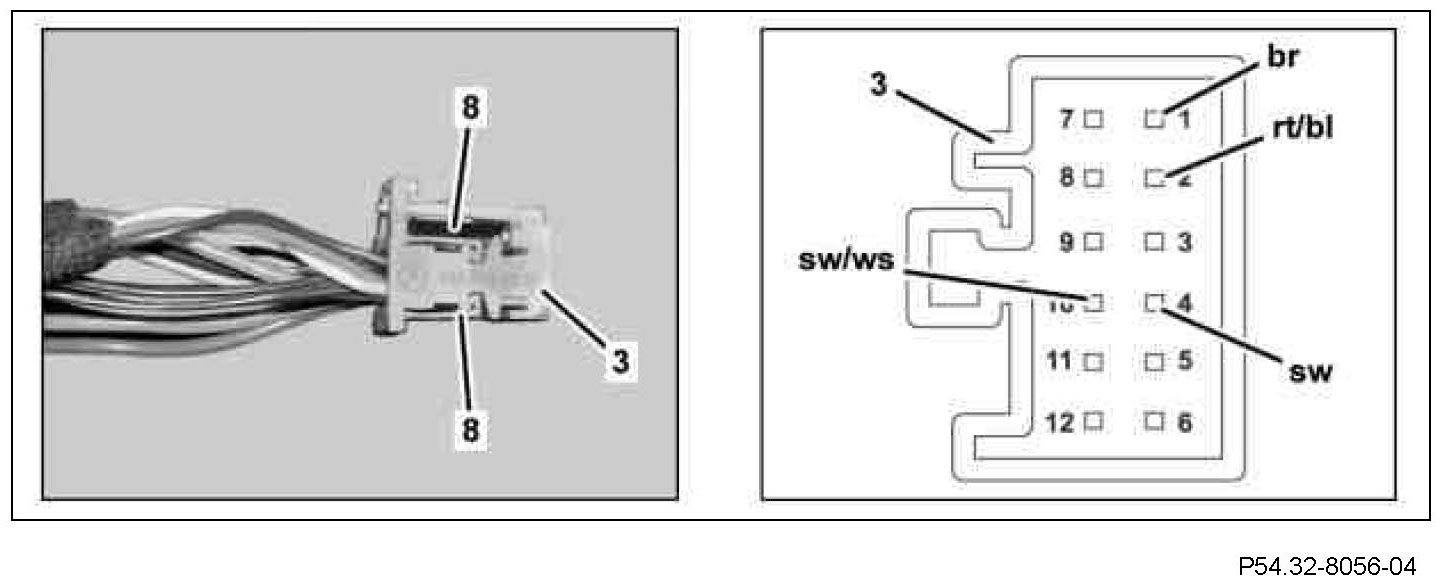

7. Release locks (8) on blue 12-pin coupling (3).
8. Remove main wiring harness for the instrument panel as follows from the blue 12-pin coupling (3):
- Contact cavity 1 = brown line (br)
- Contact cavity 2 = red/blue line (rt/bl)
- Contact cavity 4 = black line (sw)
- Contact cavity 10 = black/white line (sw/ws)

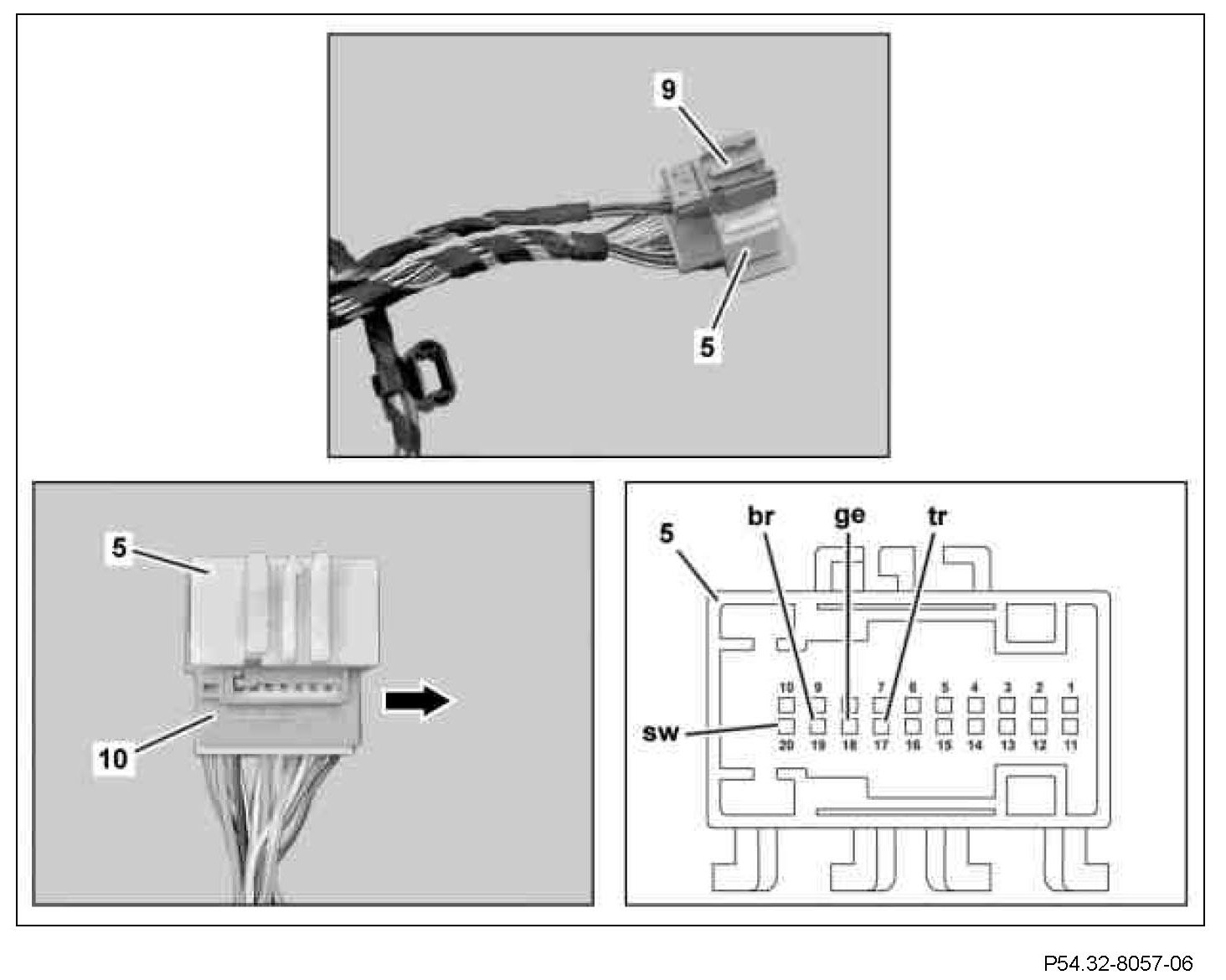

9. Release blue 10-pin plug (9) from white 20-pin plug (5) and remove.
10. Release lock (10) from white 20-pin plug (5), slide out in direction of the arrow at side and remove.
11. Remove SPLITVIEW display wiring harness as follows from the white 20- pin plug (5):
- Contact cavity 17 = transparent line (tr)
- Contact cavity 18 = yellow line (ge)
- Contact cavity 19 = brown line (br)
- Contact cavity 20 = black line (sw)

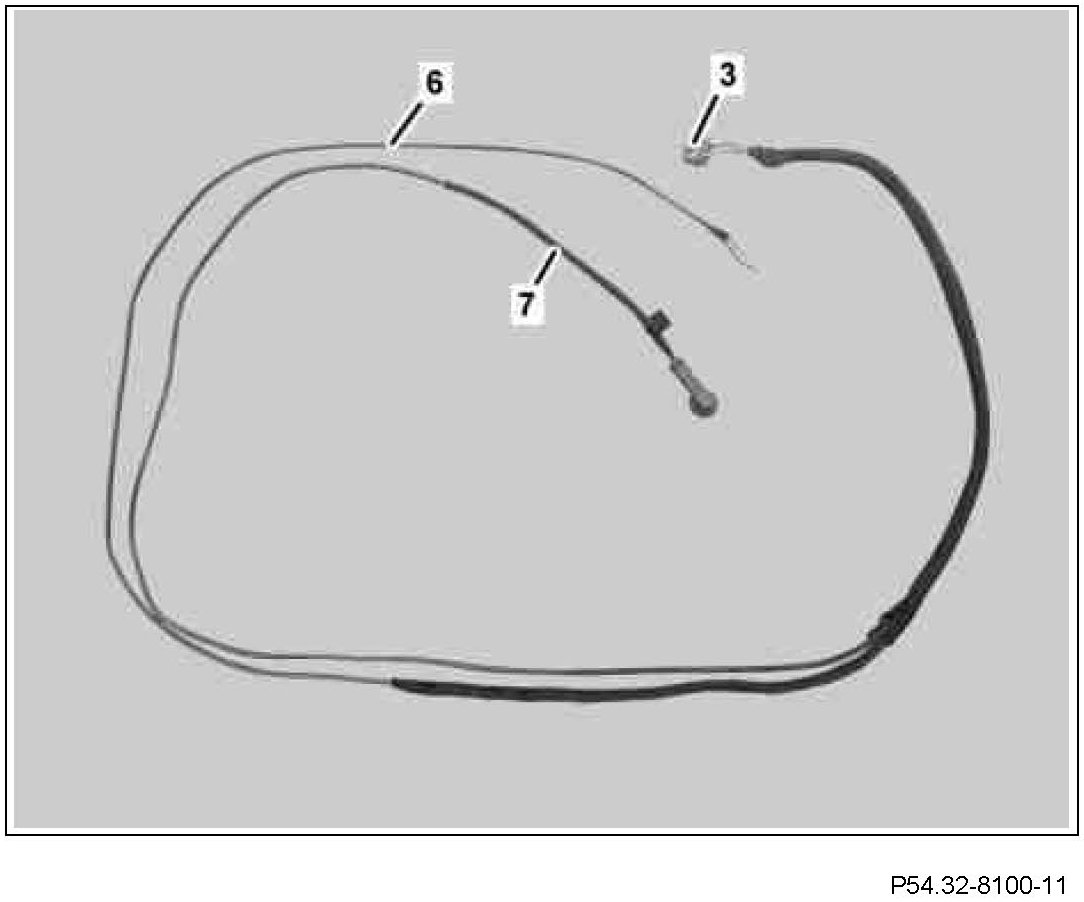

12. Use felt tape to wrap the SPLITVIEW display (6) wiring harness together with the headphones wiring harness (7) to a length of approx. 400 mm from the blue 12-pin coupling (3).
13. Wrap felt tape another approx. 400 mm around the SPLITVIEW display (6) wiring harness.







14. Use felt tape to wrap COMAND wiring harness (11) approx. 180 mm behind the red/gray marking (arrow) to a length of approx. 600 mm.
