AN54.30-P-1000-01SX Retrofit SPLITVIEW Display Wiring Harness

AN54.30-P-1000-01SX Retrofit SPLITVIEW Display Wiring Harness

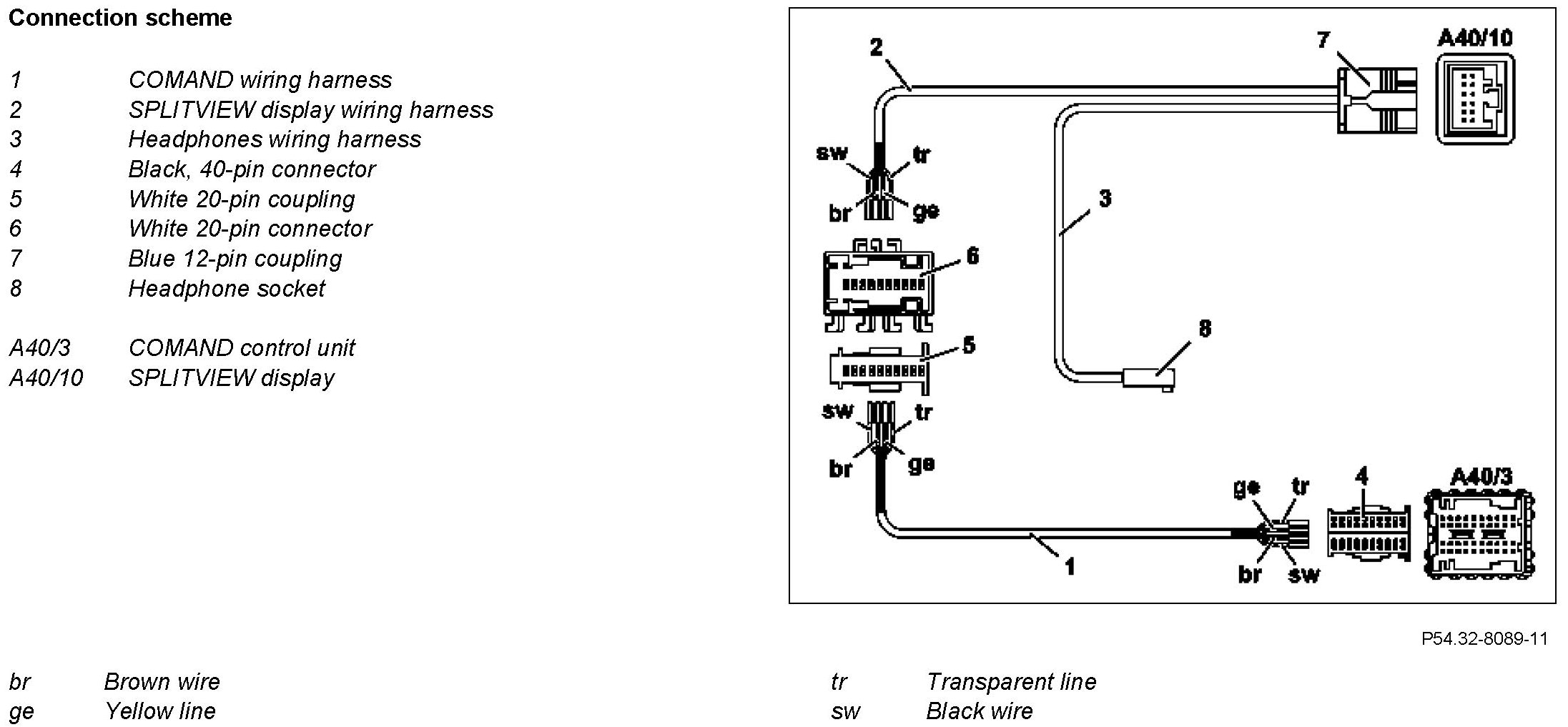

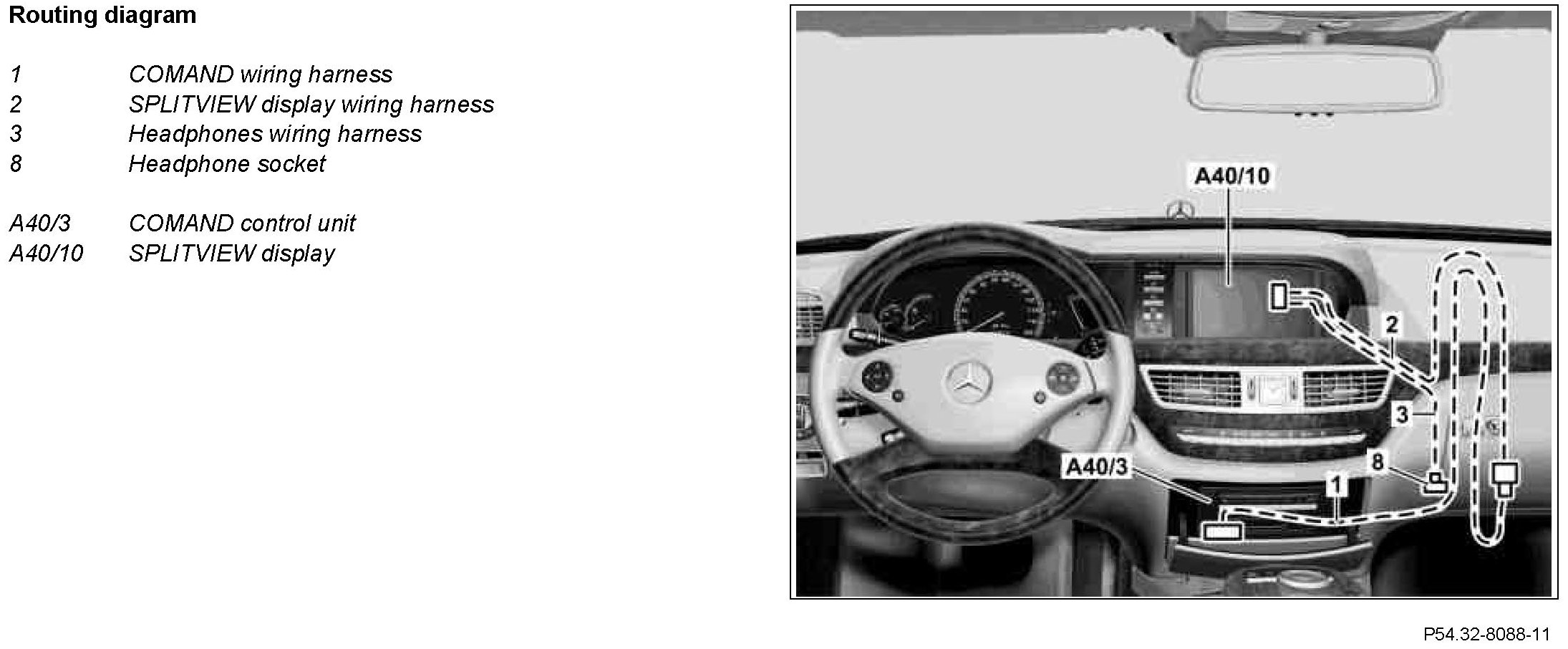

Component Identification:

1. Rotate cockpit wiring harness and FFS [RBA] connector (X18) and detach from bracket (9).
2. Release blue connector (10-pin) (10) from white connector (20-pin) (6) and detach together with the white connector (10-pin) (11).
3. Release bracket (12) at connector (20- pin) (6) and remove.
4. Release white coupling (20-pin) (5) and detach from white connector (20-pin) (6).
5. Release lock (13) on white connector (20-pin) (6) and detach in the direction of the arrow.

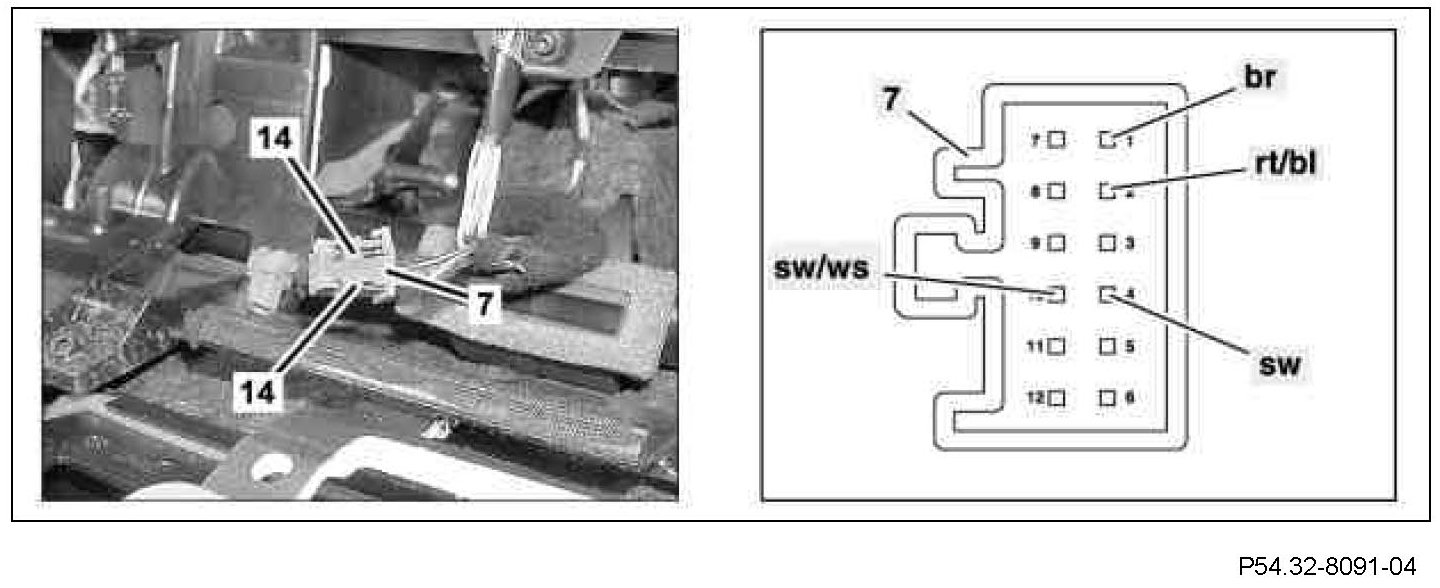

6. Release locks (14) on blue coupling (12-pin) (7) of vehicle wiring harness.
7. Remove vehicle wiring harness from blue coupling (12-pin) (7) as follows:
- Contact cavity 1= brown line (br)
- Contact cavity 2= red/blue line (rt/bl)
- Contact cavity 4= black line (sw)
- Contact cavity 10= black/white line (sw/ws)

The blue coupling (12-pin) (7) of the vehicle wiring harness is no longer required.

8. Route SPLITVIEW display wiring harness (2) and headphones wiring harness (3) to the right to the glove box.

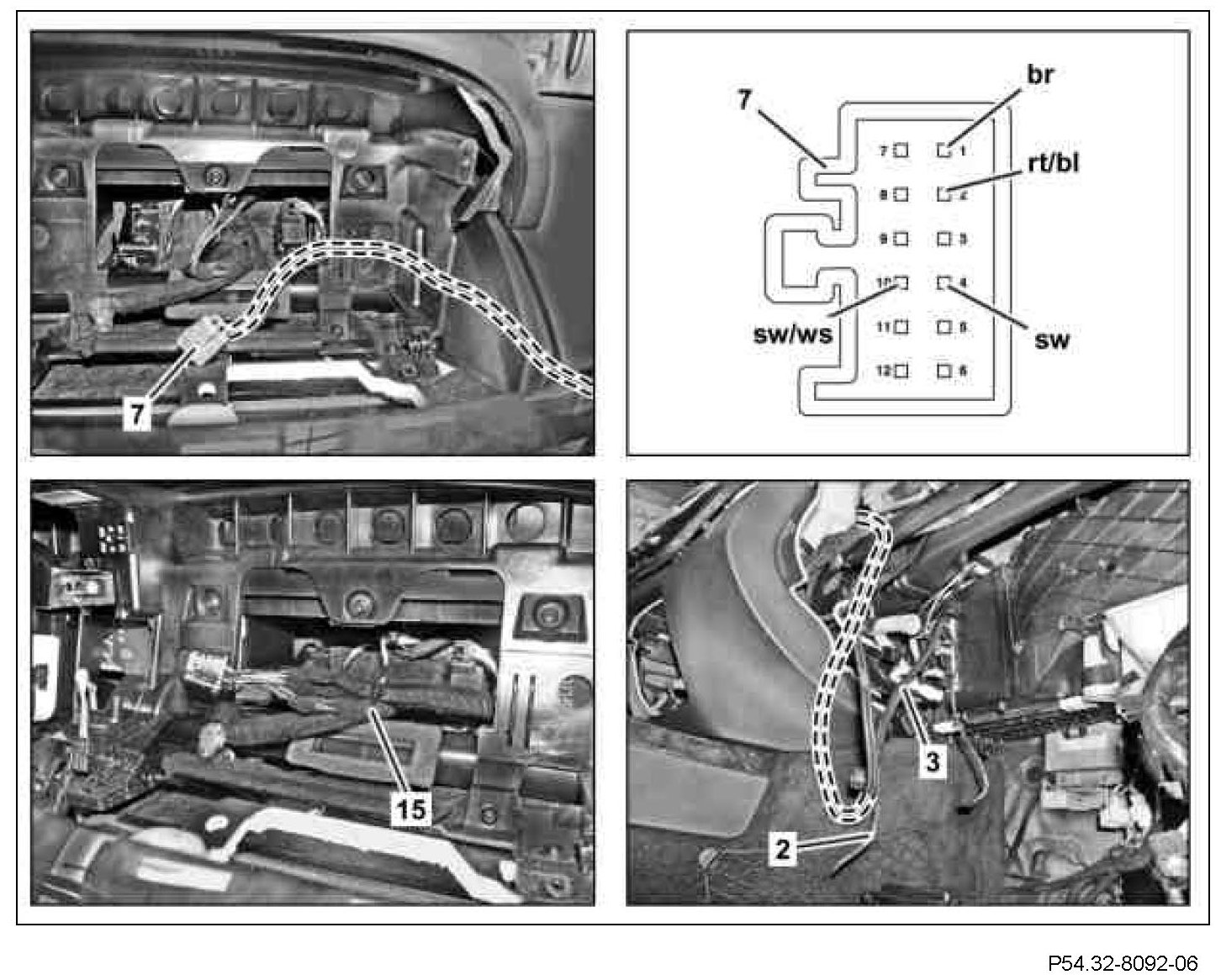

9. Install vehicle wiring harness in blue coupling (12-pin) (7) on SPLITVIEW display wiring harness (2):
- Contact cavity 1= brown line (br)
- Contact cavity 2= red/blue line (rt/bl)
- Contact cavity 4= black line (sw)
- Contact cavity 10= black/white line (sw/ws)

10. Fix SPLITVIEW display wiring harness (2) and headphones wiring harness (3) in place on vehicle wiring harness with a cable tie (15).

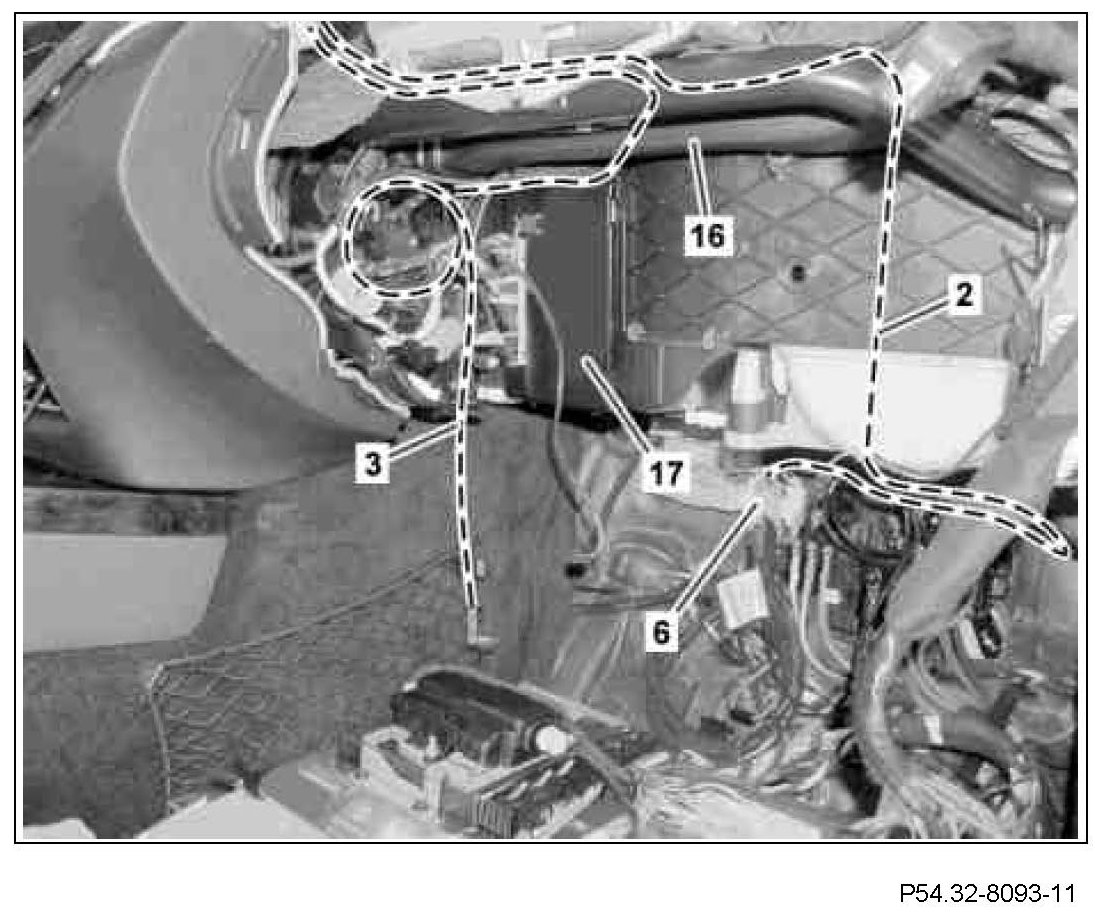

11. Route SPLITVIEW display wiring harness (2) and headphones wiring harness (3) over air duct (16).
12. Route headphones wiring harness (3) behind air conditioner housing (17) into front passenger footwell.
13. Route SPLITVIEW display wiring harness (2) in front of air conditioner housing (17) to white connector (20-pin) (6) using a pull-through device.
14. Fix SPLITVIEW display wiring harness (2) and headphones wiring harness (3) in place on existing wiring harnesses with cable ties.

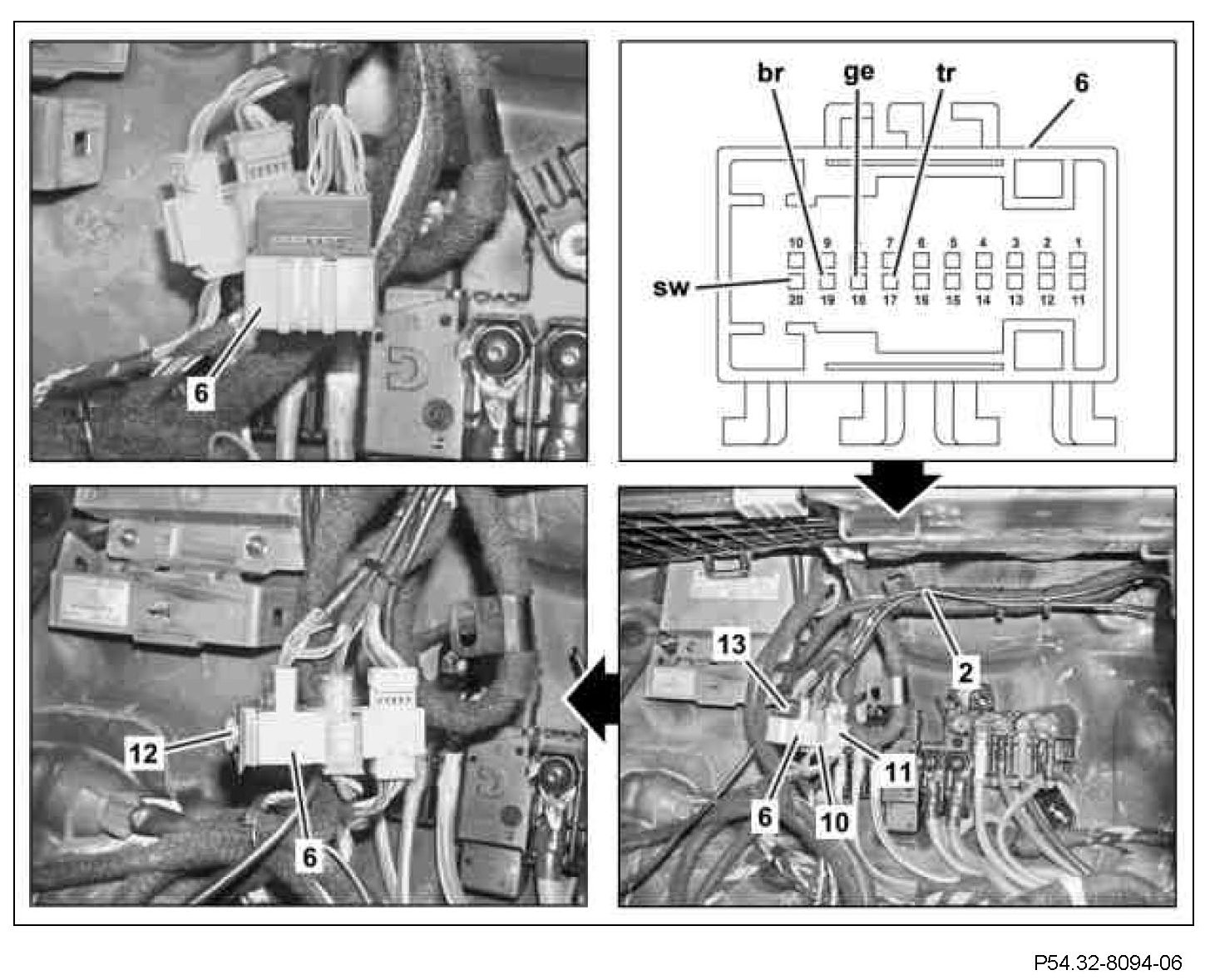

15. Install SPLITVIEW display wiring harness (2) in white connector (20-pin) (6) as follows:
- Contact cavity 17 = transparent line (tr)
- Contact cavity 18 = yellow line (ge)
- Contact cavity 19= brown line (br)
- Contact cavity 20= black line (sw)

16. Install lock (13) and bracket (12) on white connector (20-pin) (6).
17. Connect blue connector (10-pin) (10) and white connector (10-pin) (11) to white connector (20-pin) (6).

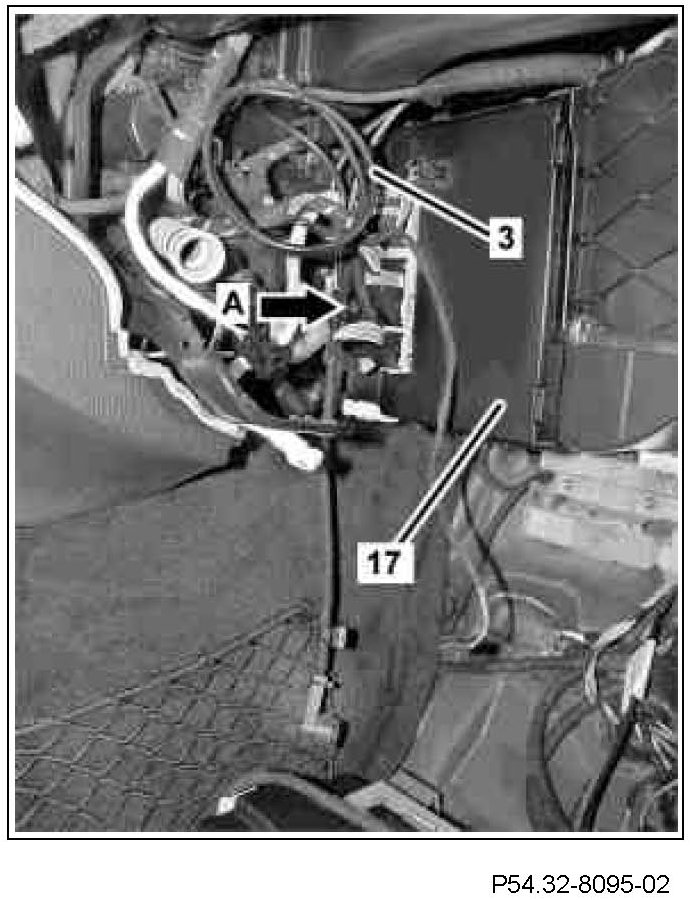

18. Allow headphones wiring harness (3) to hang into the front passenger footwell with a length of approx. 300 mm measured from the attachment (arrow A) of the existing wiring harness on the air conditioner housing (17).
19. Fix headphones wiring harness (3) in place on the existing wiring harness with a cable tie, place any excess length in loops and also fix in place with cable ties.

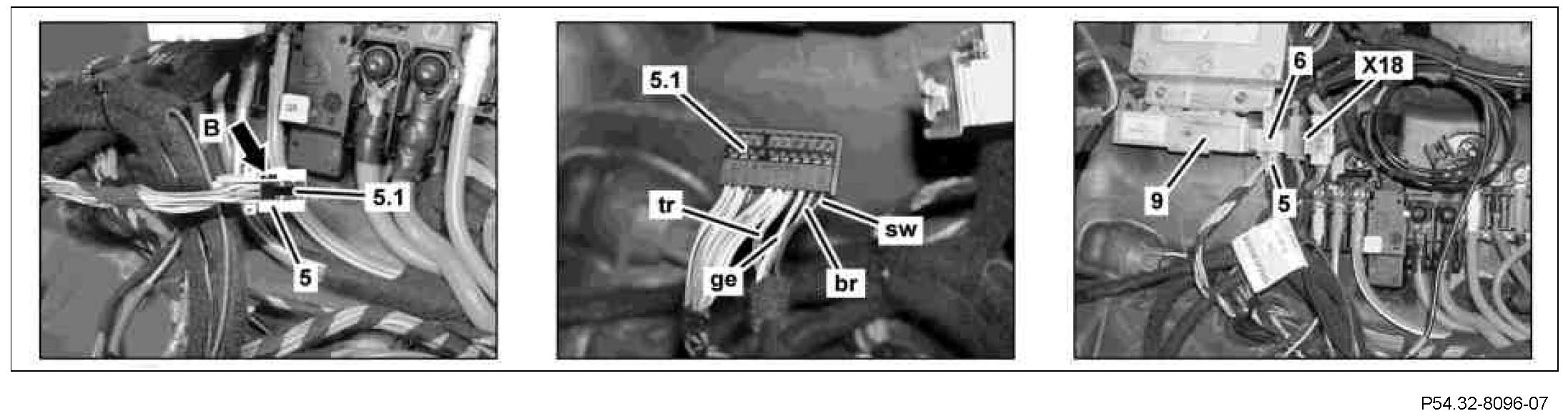

20. Release black contact carrier (20-pin) (5.1) of white coupling (20-pin) (5) (arrow B) and guide out of the housing to the side.
21. Install COMAND wiring harness into black contact carrier (20- pin) (5.1) as follows:
- Contact cavity 17 = transparent line (tr)
- Contact cavity 18 = yellow line (ge)
- Contact cavity 19= brown line (br)
- Contact cavity 20= black line (sw)

22. Insert black contact carrier (20-pin) (5.1) into housing of white coupling (20-pin) (5) and lock.
23. Connect white coupling (20-pin) (5) and white connector (20- pin) (6) and lock.
24. Attach cockpit wiring harness and FFS [RBA] connector (X18) to bracket (9).

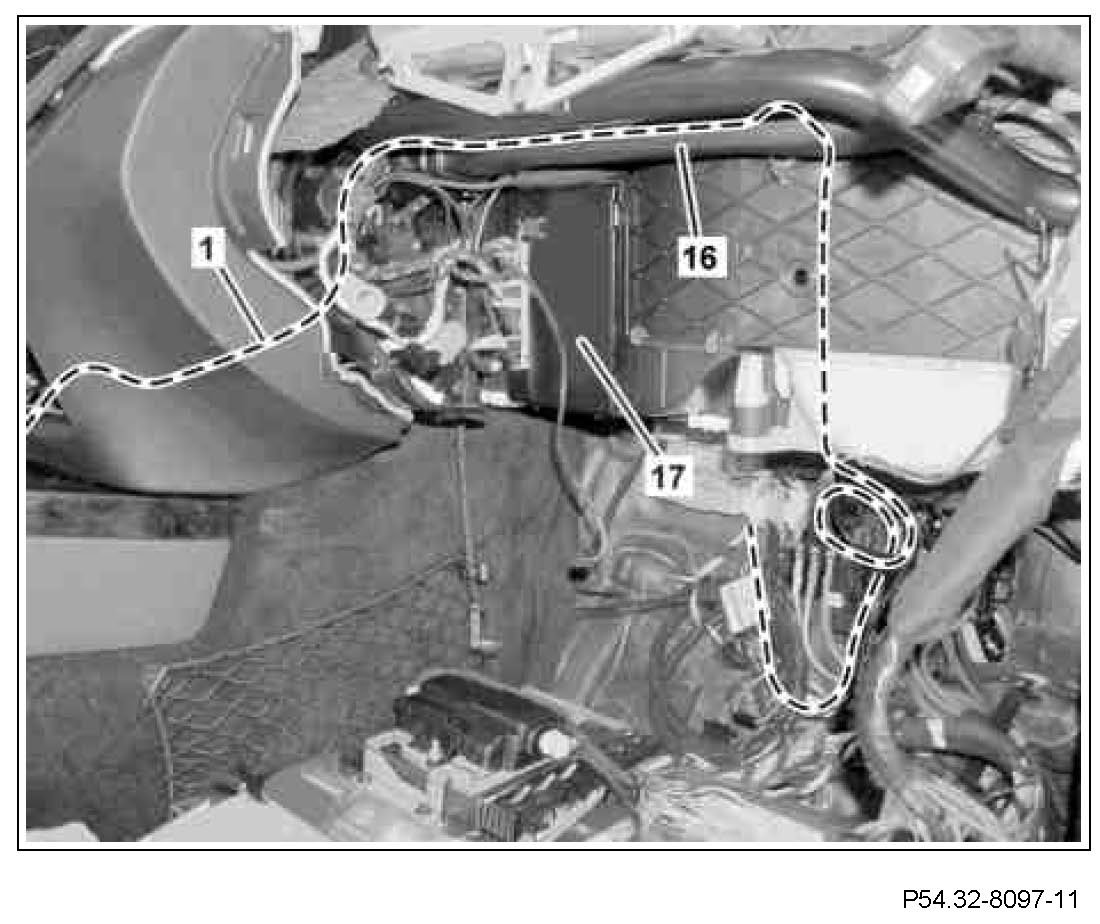

25. Using a pull-through device, route COMAND wiring harness (1) along existing wiring harnesses in front of air conditioner housing (17) and over air duct (16) to installation opening of COMAND controller unit.

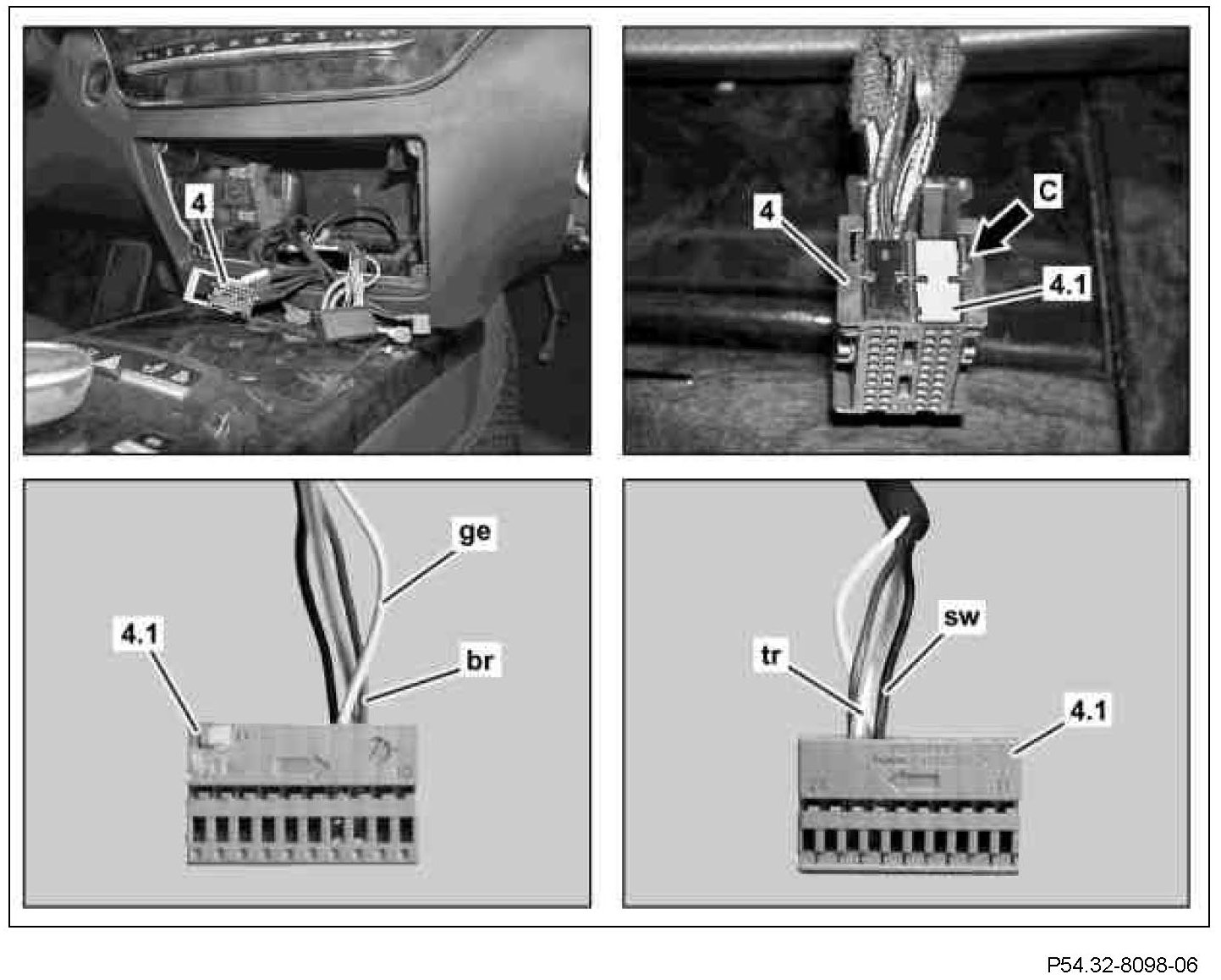

26. Release gray contact carrier (20-pin) (4.1) in black coupling (40-pin) (4) (arrow C) and guide out of the housing to the side.
27. Install COMAND wiring harness into gray contact carrier (20-pin) (4.1) as follows:
- Contact cavity 7 = yellow line (ge)
- Contact cavity 8= brown line (br)
- Contact cavity 17= black line (sw)
- Contact cavity 18 = transparent line (tr)

28. Install gray contact carrier (20-pin) (4.1) into housing of black coupling (40-pin) (4).

29. Clip headphones jack (8) on headphones wiring harness (3) into the corresponding hole in the cover under the instrument panel on the right (18).
30. Fix headphones wiring harness (3) to cover under instrument panel on right (18) (arrow D).
