PE82.85-U-2101SAE Cockpit Management and Data System (COMAND) Control Module

PE82.85-U-2101SAE Cockpit Management And Data System (COMAND) Control Module

MODEL 221
- as of Model Year 2010

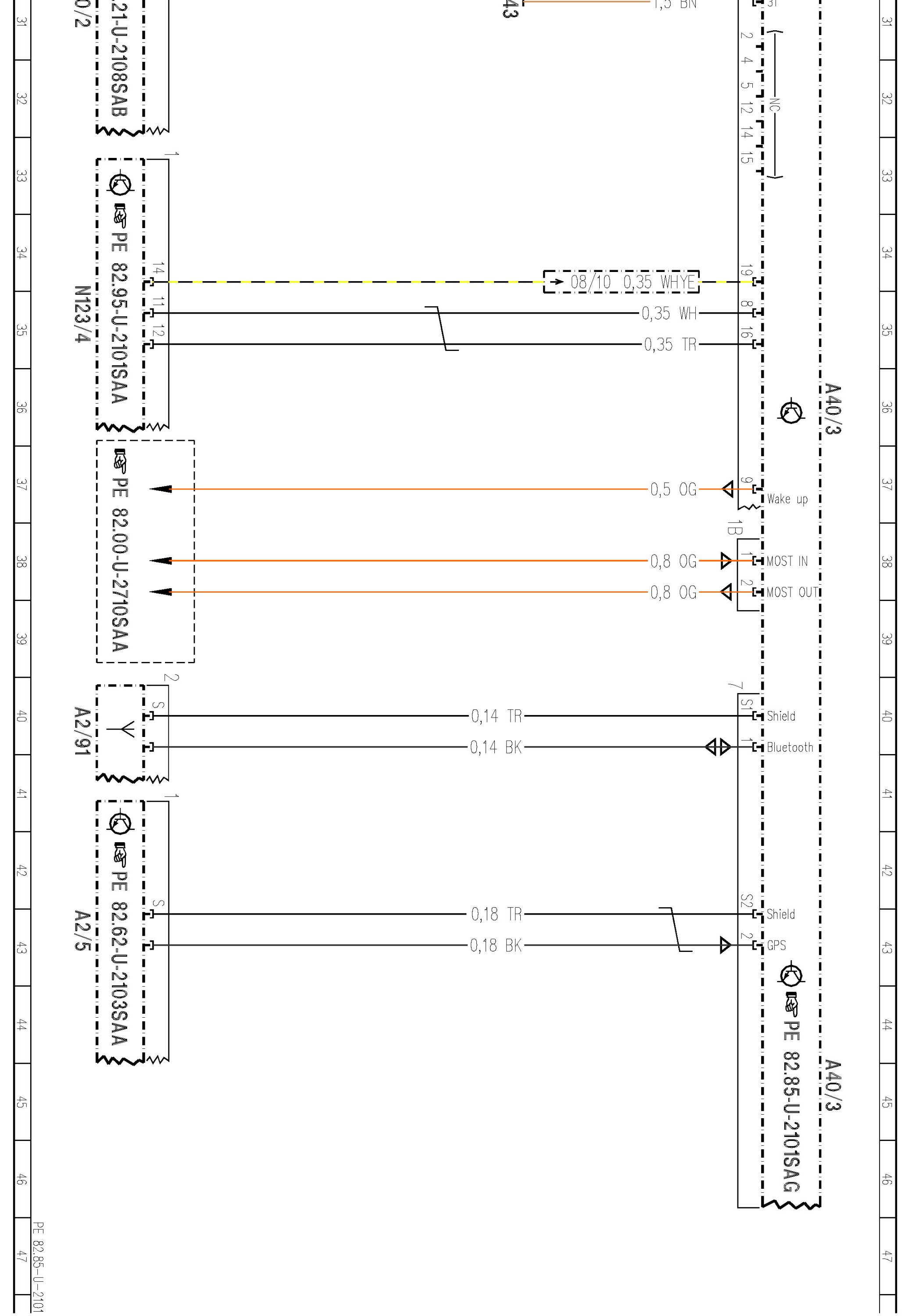

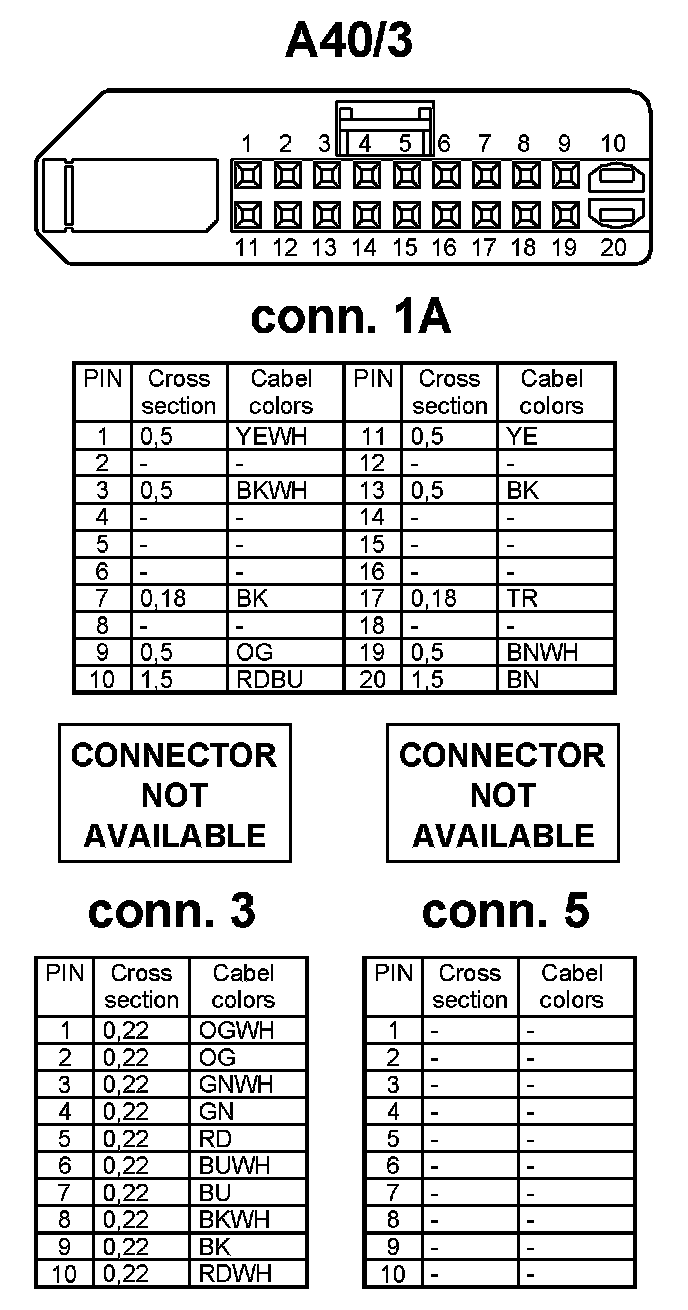

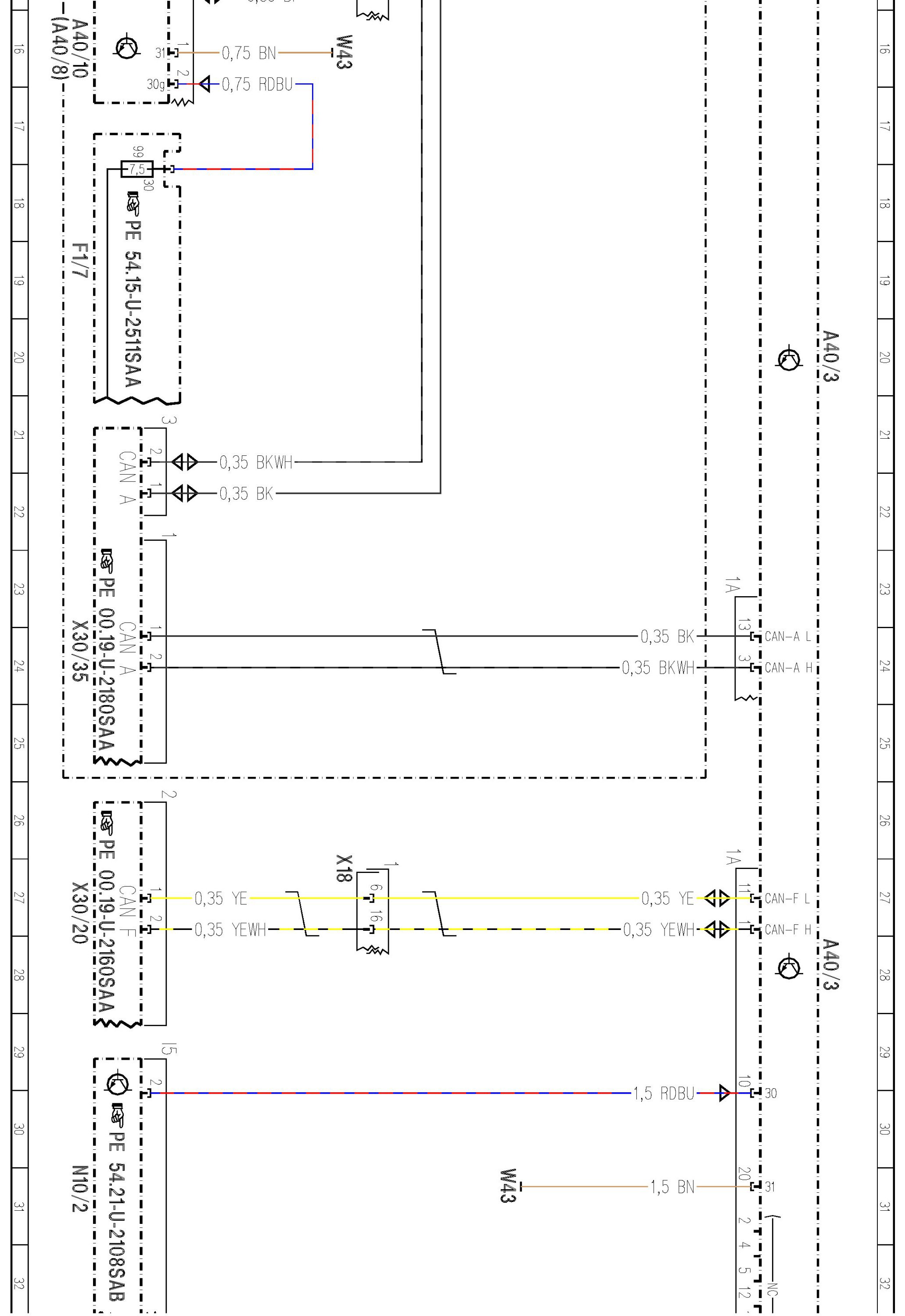

- HIGH Class, control unit A40/3, Sheet 1



















































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
