GF82.85-P-0003LEJ Cockpit Management and Data System (COMAND), Function

GF82.85-P-0003LEJ Cockpit Management And Data System (COMAND), Function
- with CODE (529) HIGH Class Japan

Function requirements
^ Status "Circuit 30 ON" or "Circuit 15 ON"
^ Cockpit Management and Data System (COMAND) authorized and working correctly
^ COMAND control unit (A40/3) activated over the "ON" button (A40/9s6) on the front central operating unit (A40/9)

General
The Cockpit Management and Data System (COMAND) encompasses the entertainment, communication and information system in the vehicle.

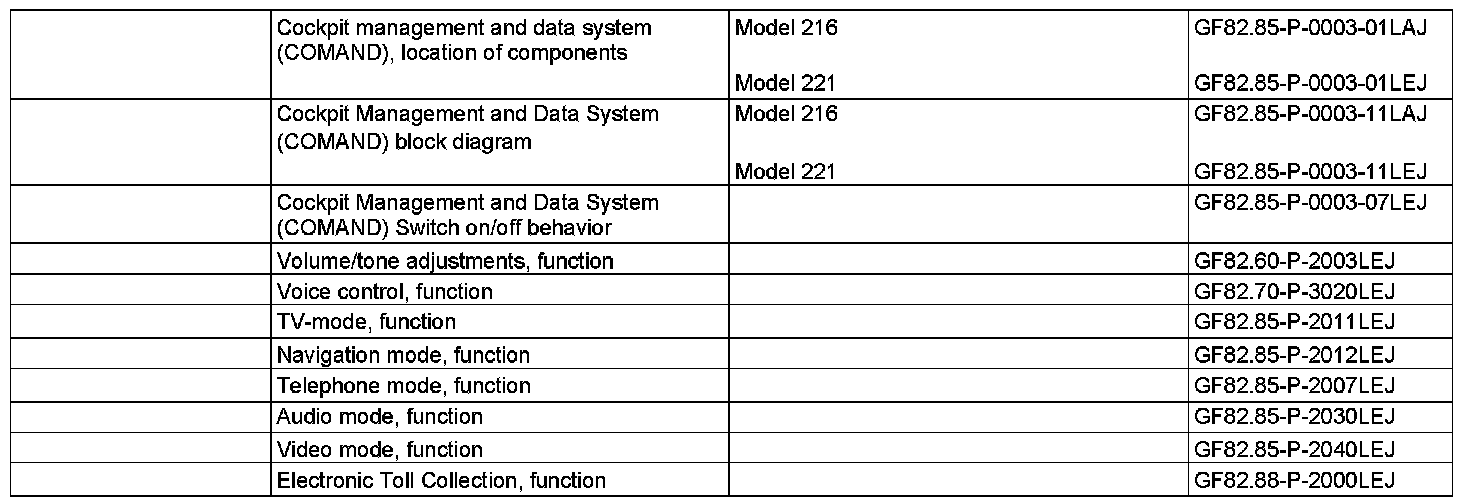

The COMAND controller unit contains the following subfunctions, which are described in separate documents:
^ COMAND switch-on/switch-off characteristics, function
^ Volume/tone settings, function
^ Voice control, function
^ TV-mode, function
^ Navigation mode, function
^ Telephone operation, function
^ Audio mode, function
^ Video mode, function
^ Electronic Toll Collection System (ETC), function

The displays and menu presentations for the COMAND display (A40/8) are generated in the COMAND controller unit. Relevant displays are also shown in the instrument cluster (A1).
