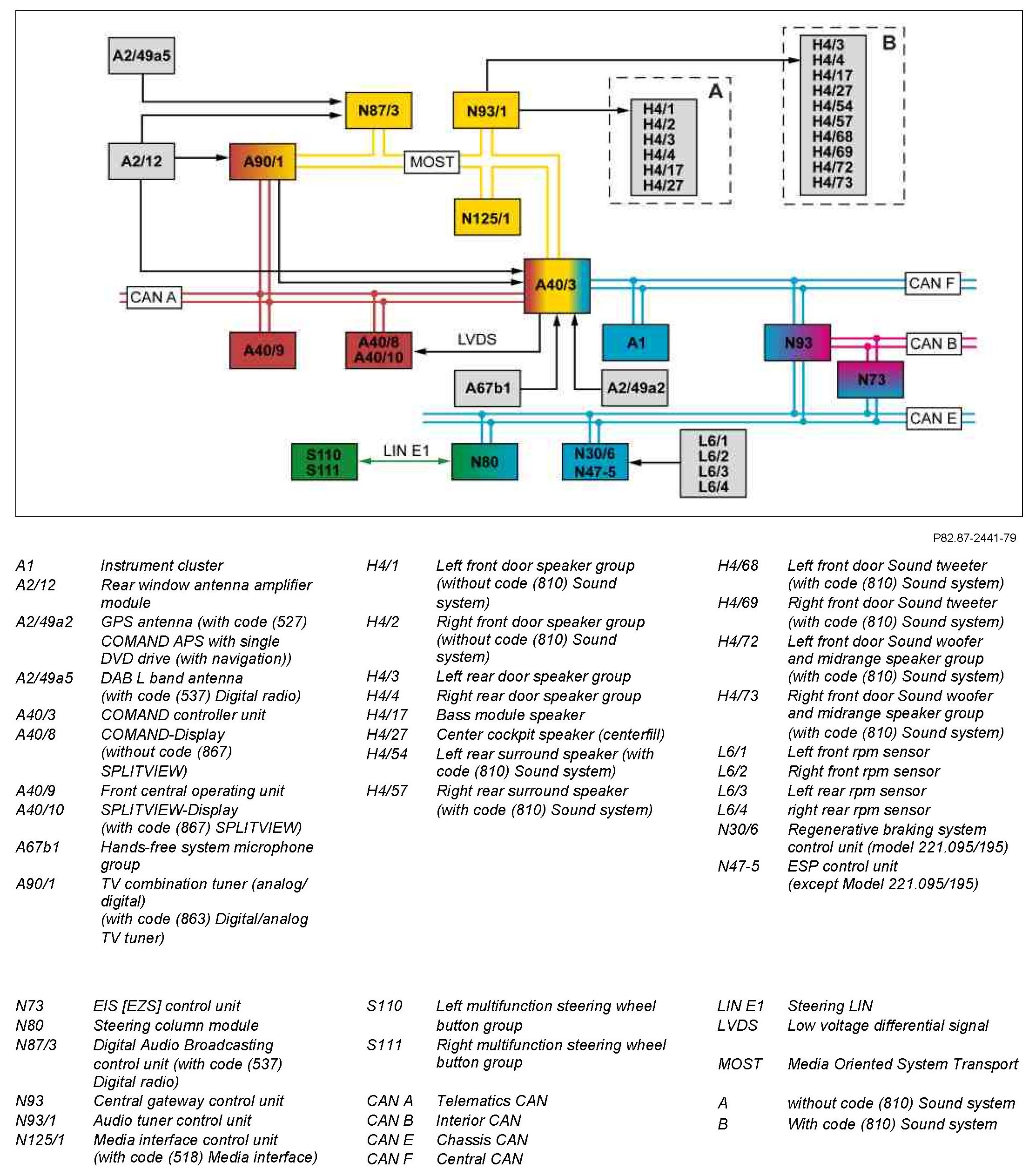

GF82.85-P-0003-11LEA Cockpit Management and Data System (COMAND) Block Diagram



GF82.85-P-0003-11LEA Cockpit Management And Data System (COMAND) Block Diagram
- with CODE (526) COMAND with single DVD drive (without navigation)
- with CODE (527) COMAND APS with single DVD drive (with navigation)


Component Identification:
