Home >> Mercedes Benz >> 2012 >> S 350 BLUETEC (221.183) V6-3.0L DSL Turbo (642.868) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Accessory Control Display >> Description and Operation >> GF82.85-P-0003-01LEJ Cockpit Management and Data System (COMAND), Location of Components

GF82.85-P-0003-01LEJ Cockpit Management and Data System (COMAND), Location of Components



GF82.85-P-0003-01LEJ Cockpit Management And Data System (COMAND), Location Of Components
- with CODE (529) HIGH Class Japan

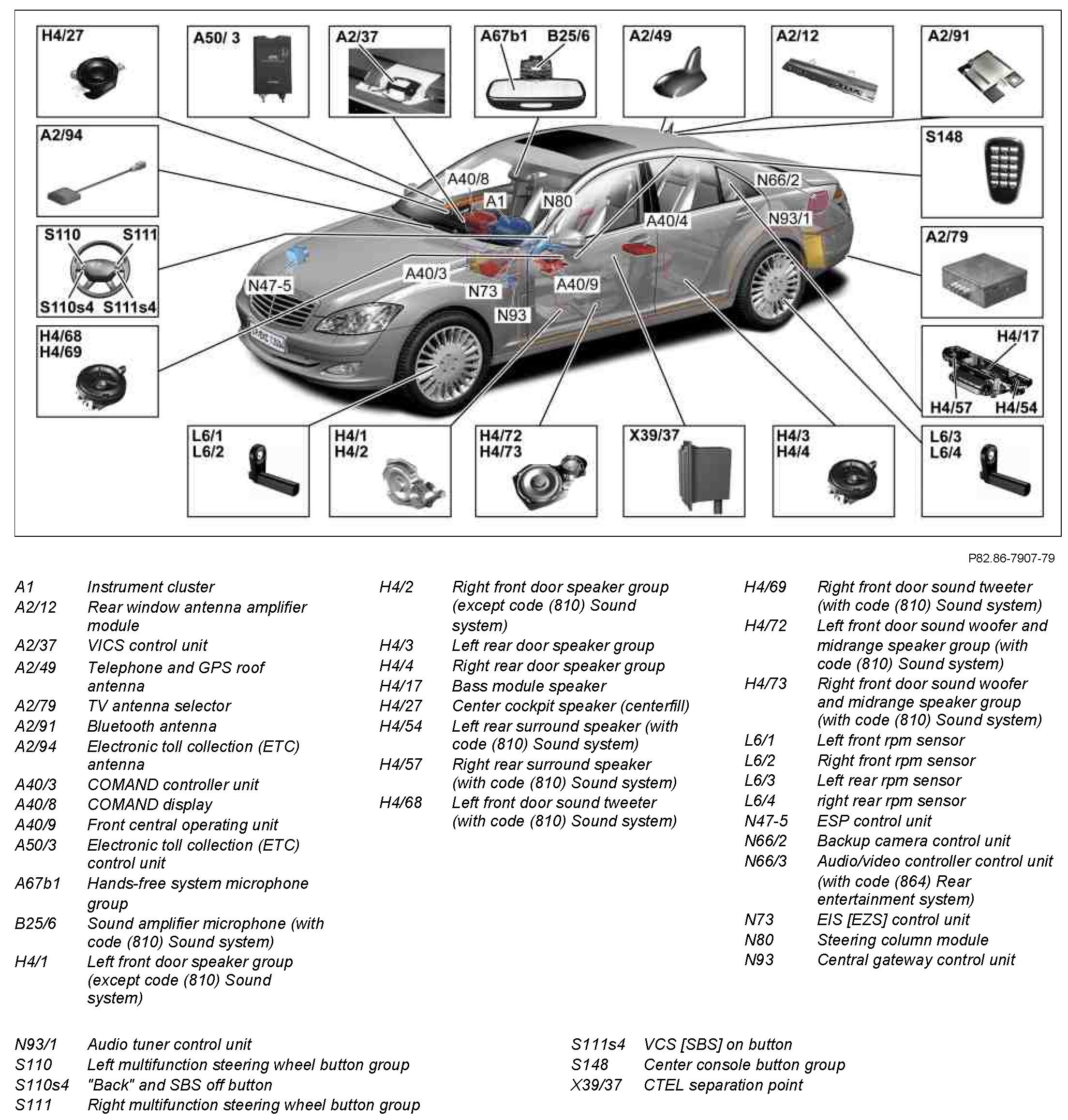

Component Identification:
