GF82.85-P-0003-01LE Cockpit Management and Data System (COMAND), Location of Components



GF82.85-P-0003-01LE Cockpit Management And Data System (COMAND), Location Of Components
- with CODE (526) COMAND with single DVD drive (without navigation)
- with CODE (527) COMAND APS with single DVD drive (with navigation)

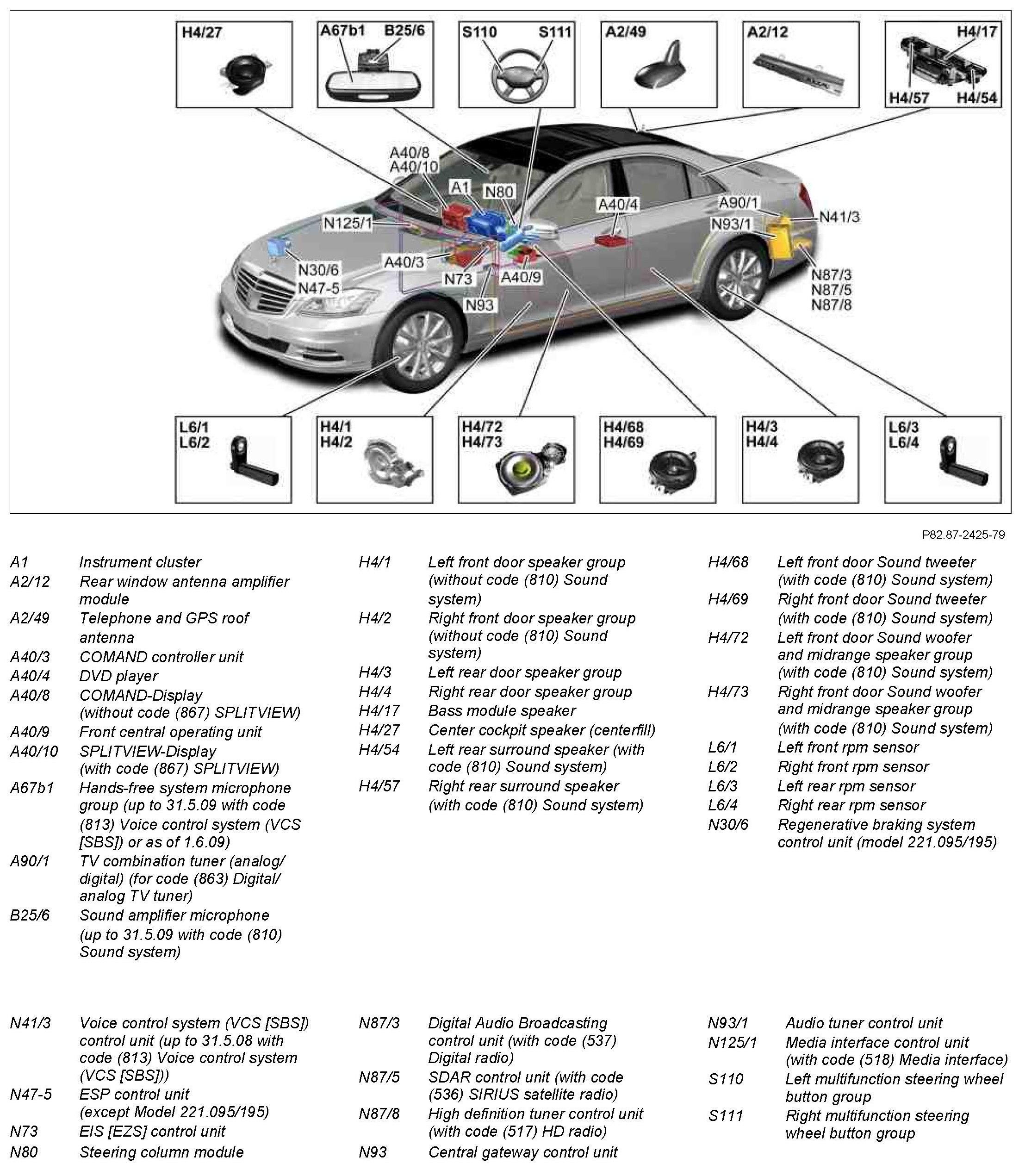

Component Identification:
