GF54.30-P-6110LE Comand Display, Component Description

GF54.30-P-6110LE COMAND Display, Component Description
- except CODE (867) SPLITVIEW
- as of model year 09

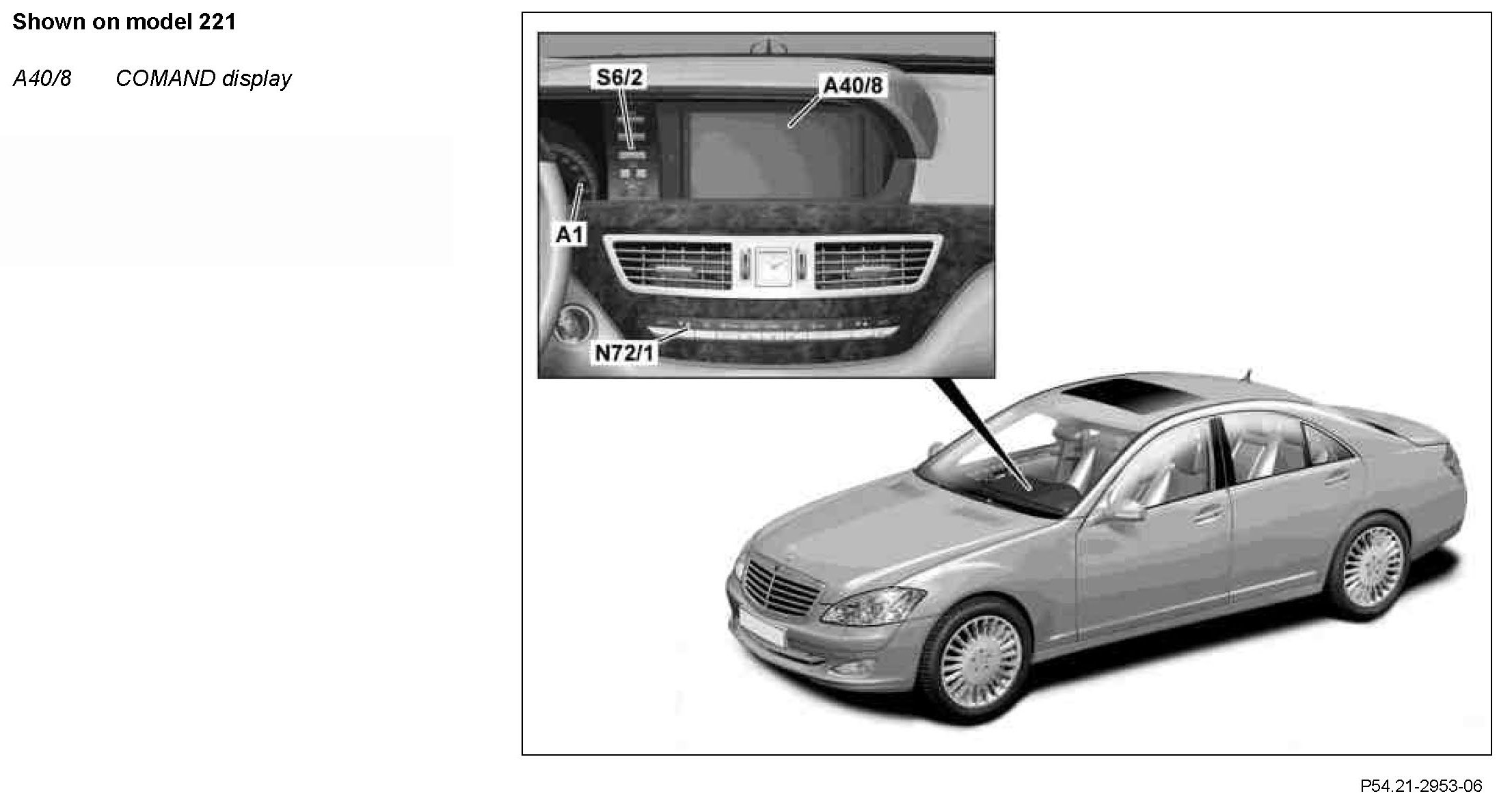

Component Identification:

Location
The COMAND display is located in the center of the instrument panel.

Task
The COMAND display provides uniform display of user-relevant operation and information windows as well as the display of video image information (with code (863) TV tuner digital/analog or code (498) Japan version).
The COMAND display also performs the following tasks:
^ Reading in of signals

Reading in of signals
Signals are read in via the following connections:
^ Telematics CAN (CAN A)
^ Low Voltage Differential Signal (LVDS) line

Telematics CAN
The COMAND display is a subscriber of telematics CAN.
The COMAND display reads in the signals.

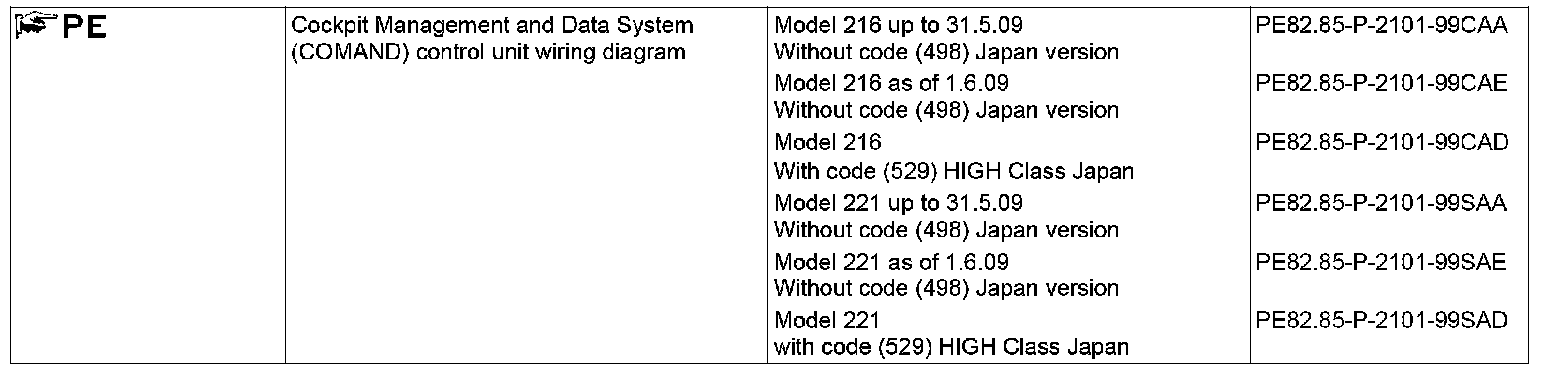

The functions resulting therefrom are described in the corresponding function descriptions (see block diagram or function schematic).

LVDS line
The COMAND display receives all information via the LVDS line for the display of corresponding data content from the COMAND controller unit (A40/3).

Body
The COMAND display is a swiveling 8 -Thin Film Transistor (TFT color screen in 16:9 format with a resolution of 800 X 480 pixels. In addition, two photosensors for automatic brightness control, and an electric motor for manual adjustment about the vertical axis are integrated in the COMAND display.

Variants
- Left-hand drive vehicle
- Right-hand drive vehicle
