Front Crankshaft Seal: Service and Repair

AR03.20-P-3000EL Replace Front Crankshaft Radial Sealing Ring
ENGINES 157, 276, 278 in MODEL 212, 218

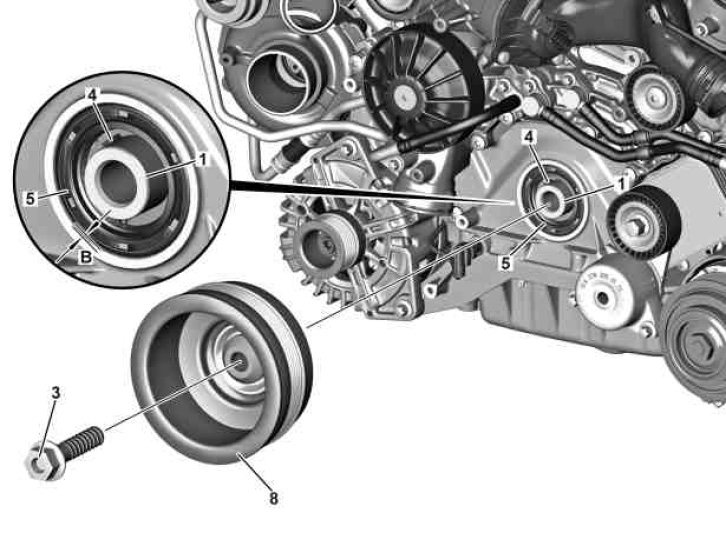

1 Crankshaft
3 Crankshaft center bolt
4 Woodruff key
5 Crankshaft radial seal
8 Belt pulley/vibration damper

B Installation depth








119 589 01 14 00
Sleeve
