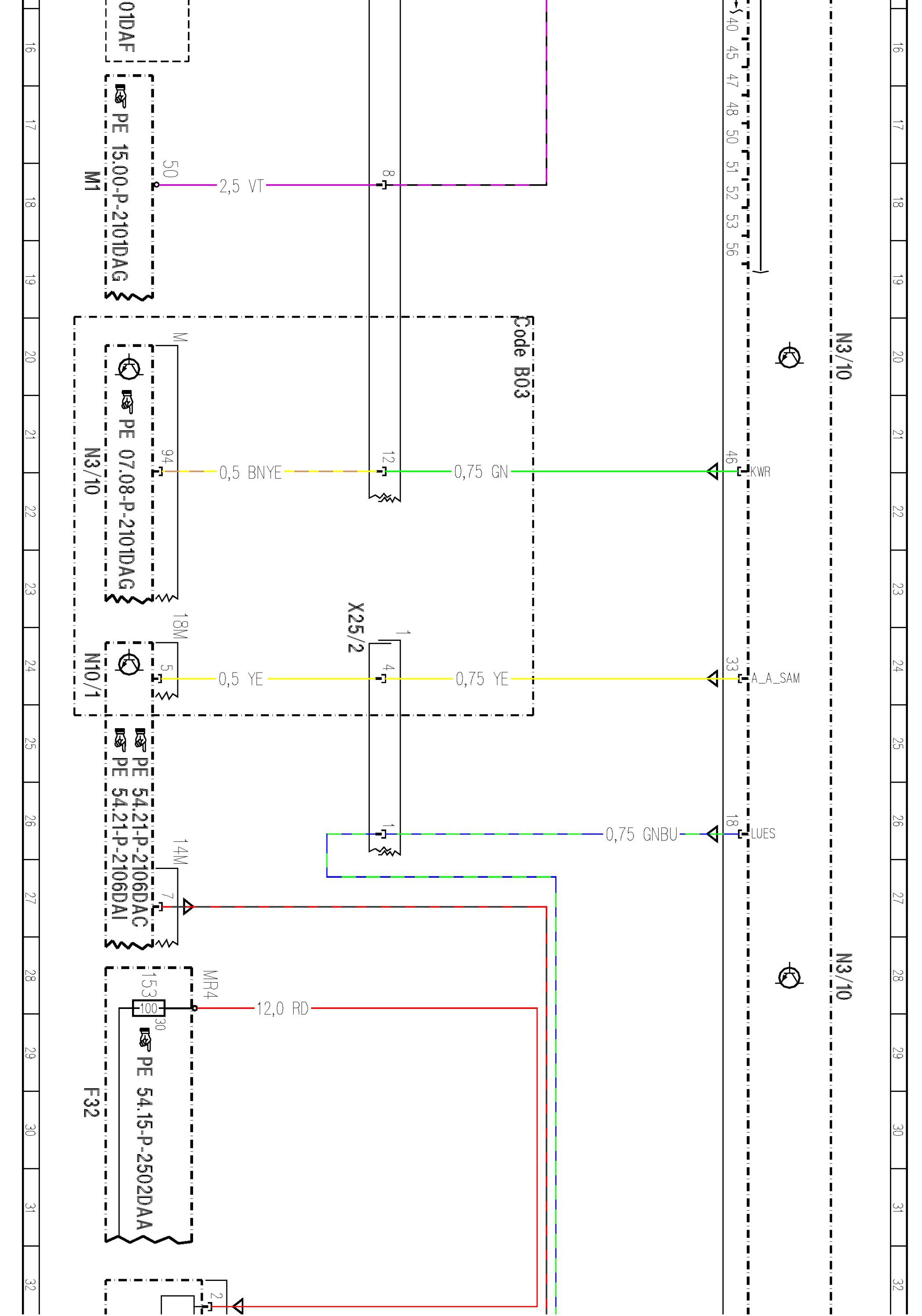

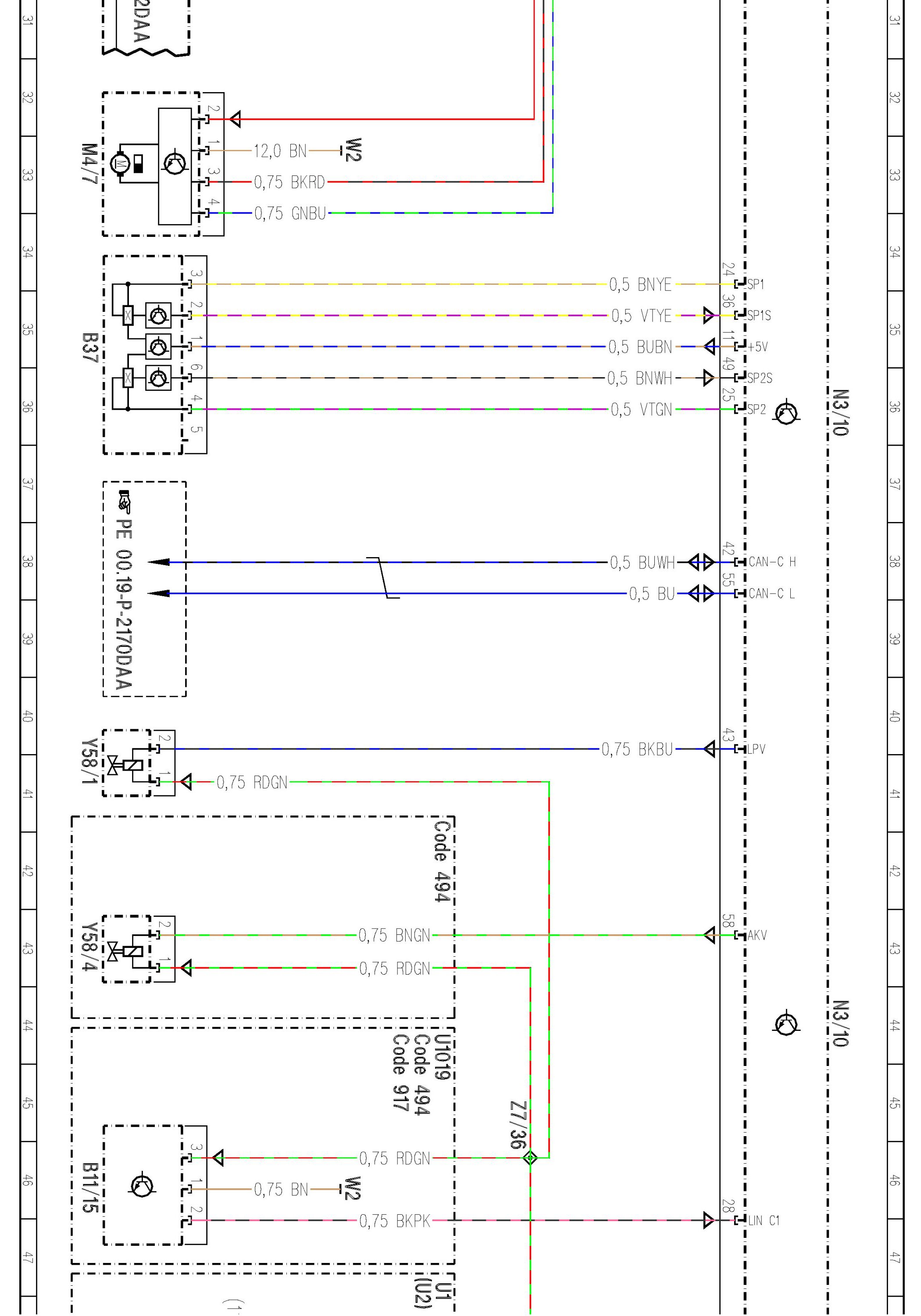

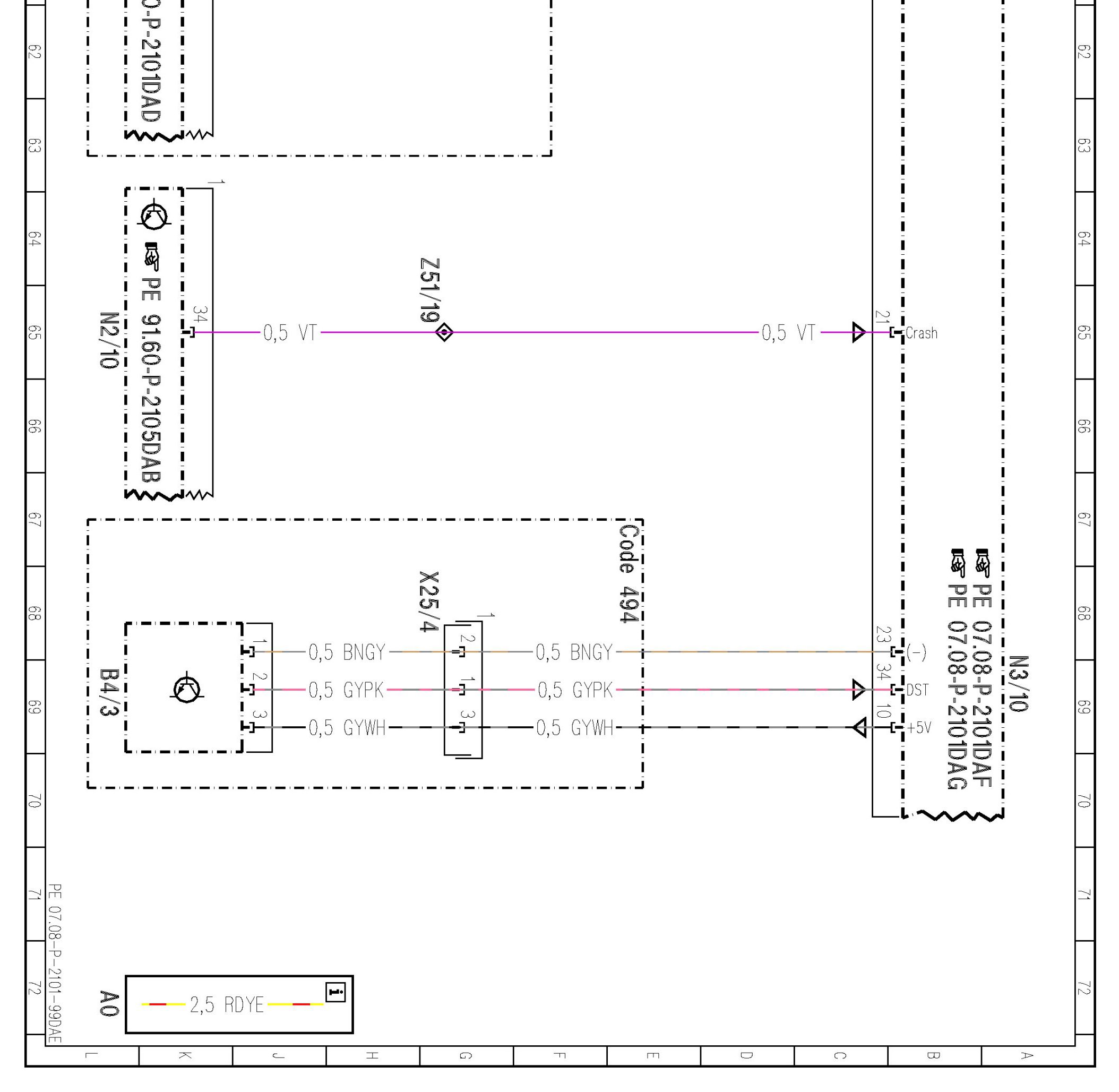

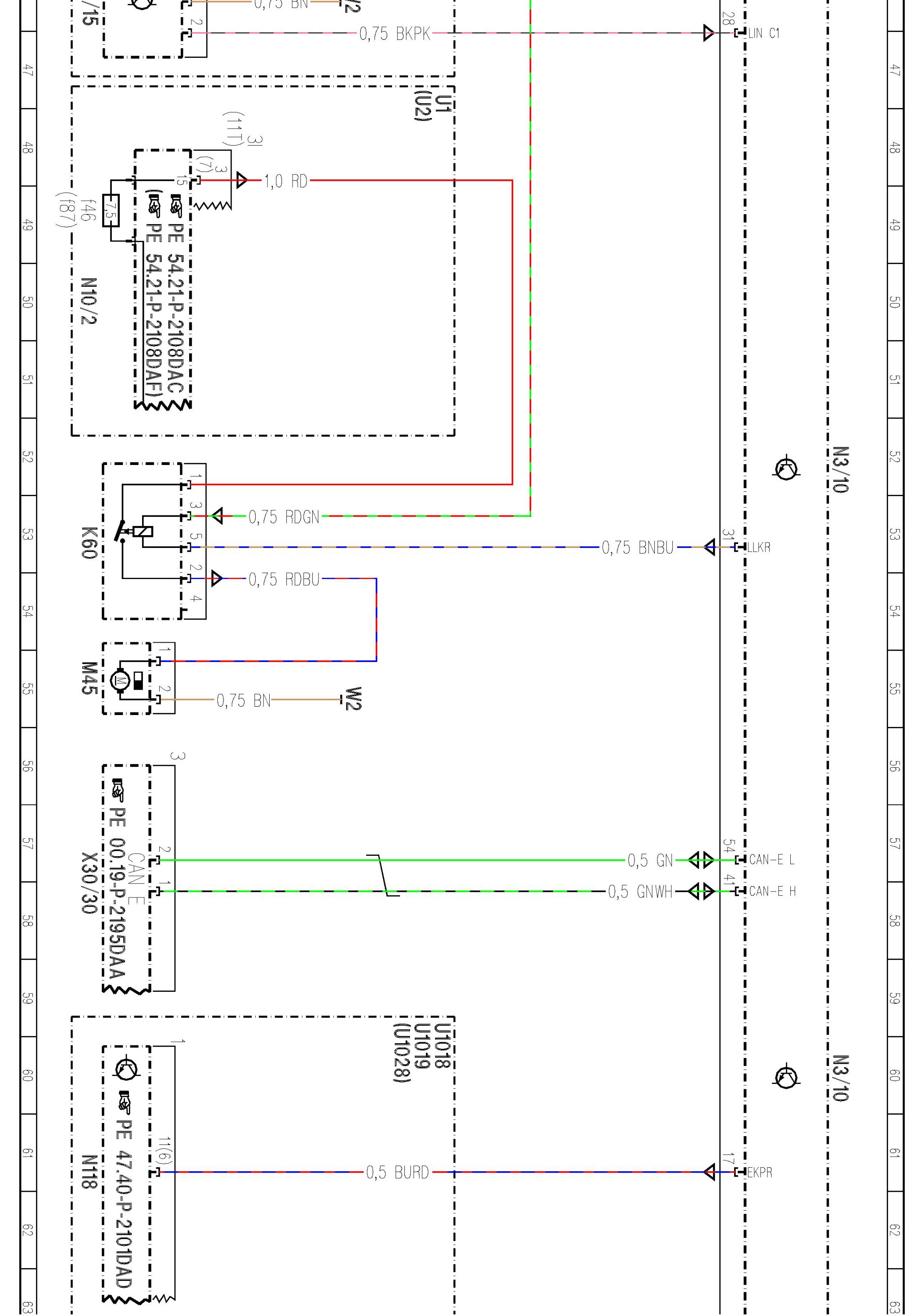

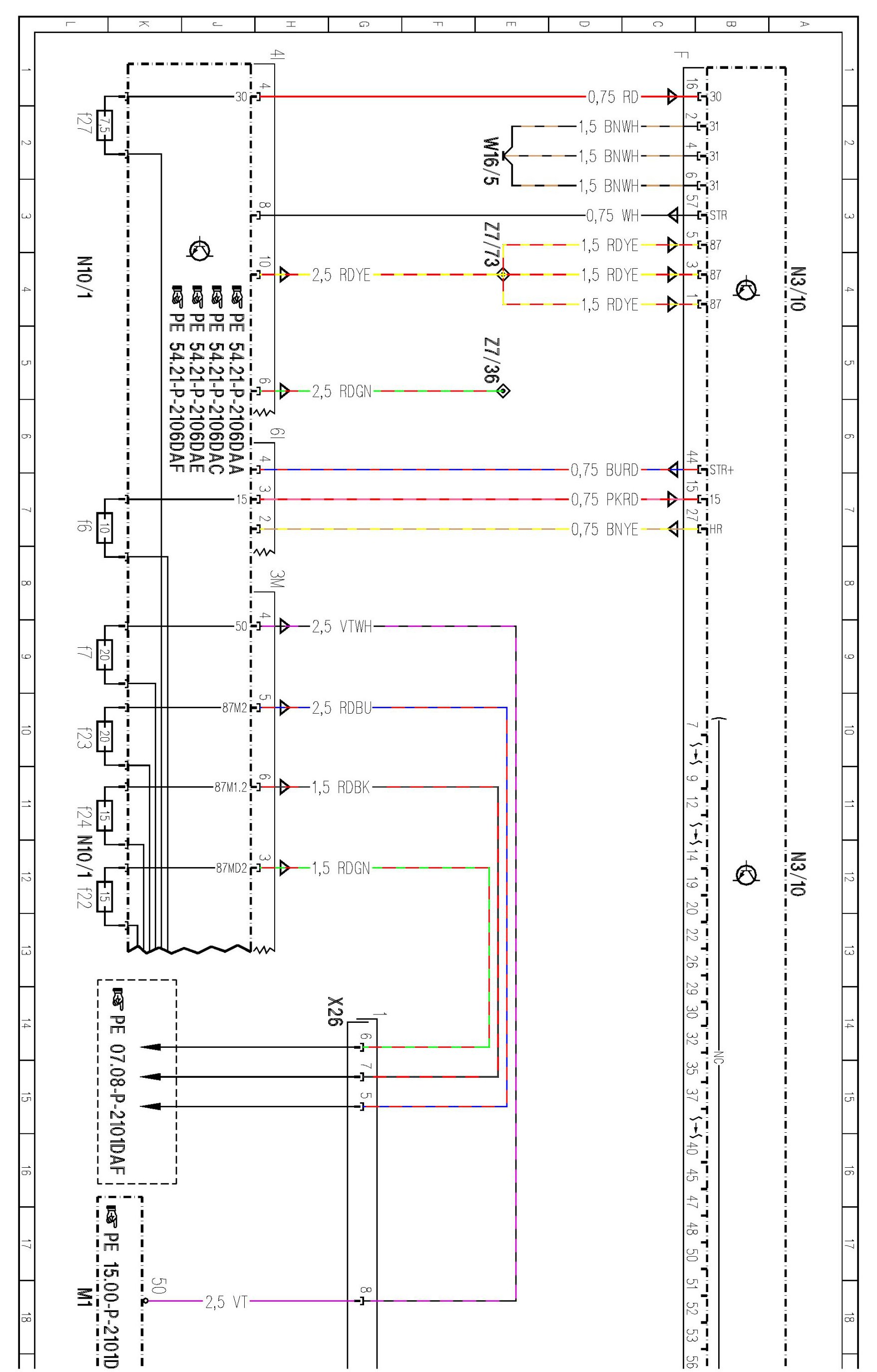

PE07.08-P-2101DAE Gasoline Direct Injection System Control Unit

PE07.08-P-2101DAE Gasoline Direct Injection System Control Unit

ENGINE 157, 278 in MODEL 212

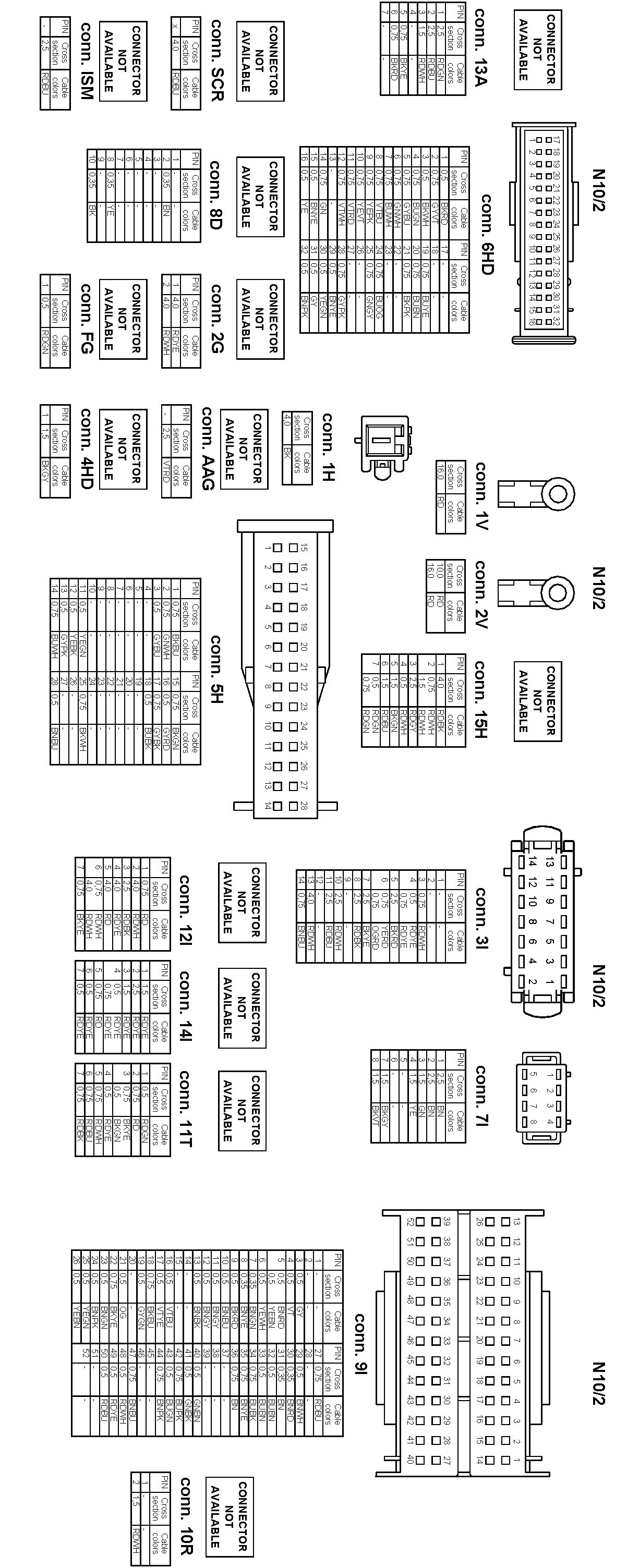

- Control Unit N3/10, Vehicle Connector


















































































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
