Boost Solenoid: Service and Repair

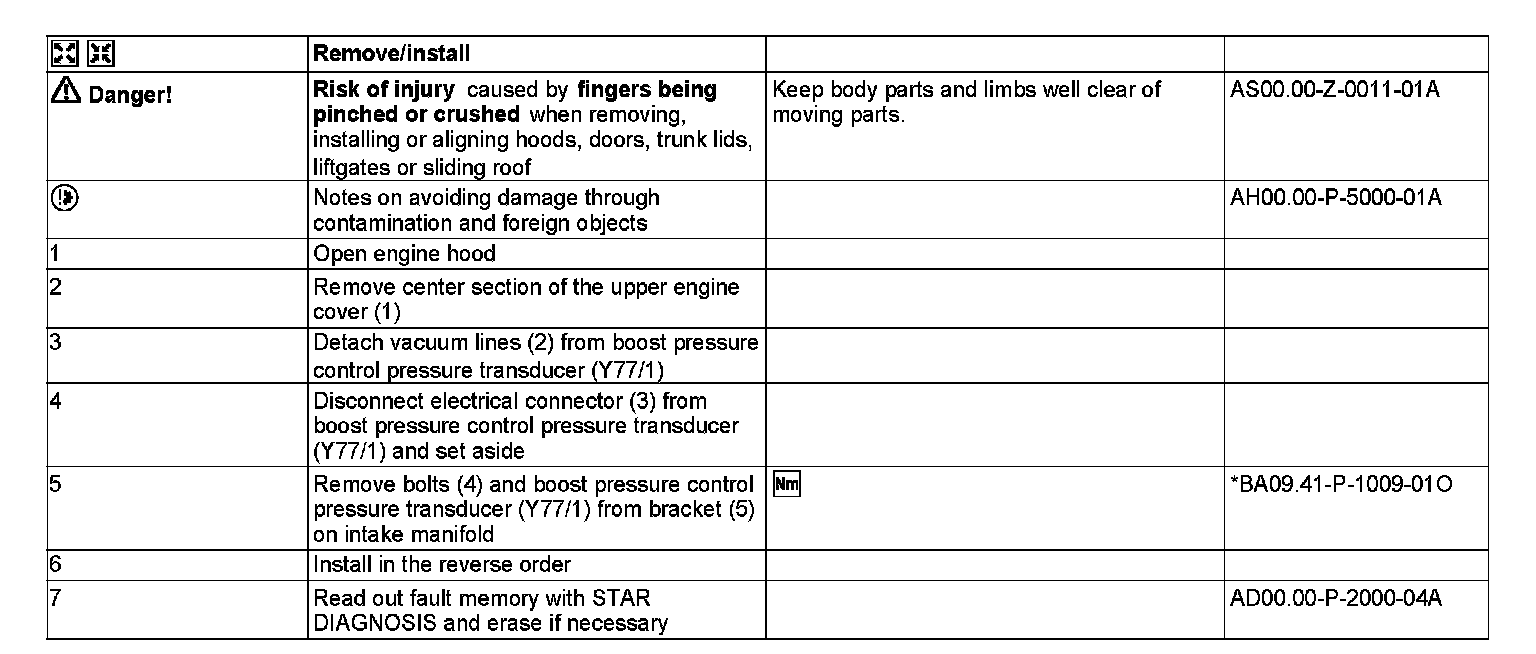

AR07.17-P-7002ELB Remove/Install Pressure Transducer For Boost Pressure Control
ENGINES 157, 278 in MODEL 212, 218
ENGINES 278 in MODEL 207

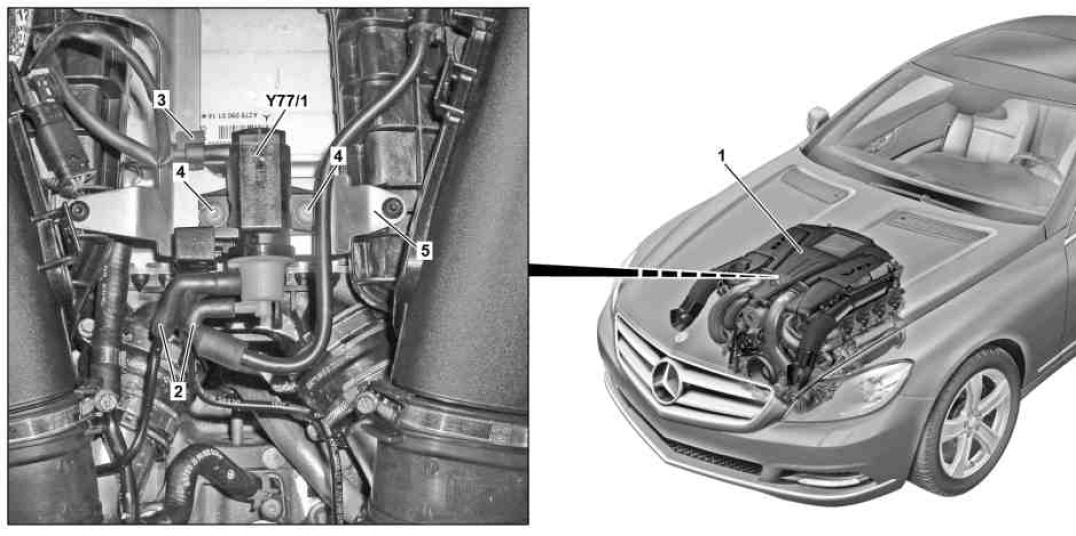

Shown on model 218.373

1 Engine cover
2 Vacuum line
3 Electrical connector
4 Bolt
5 Bracket

Y77/1 Boost pressure control pressure transducer
