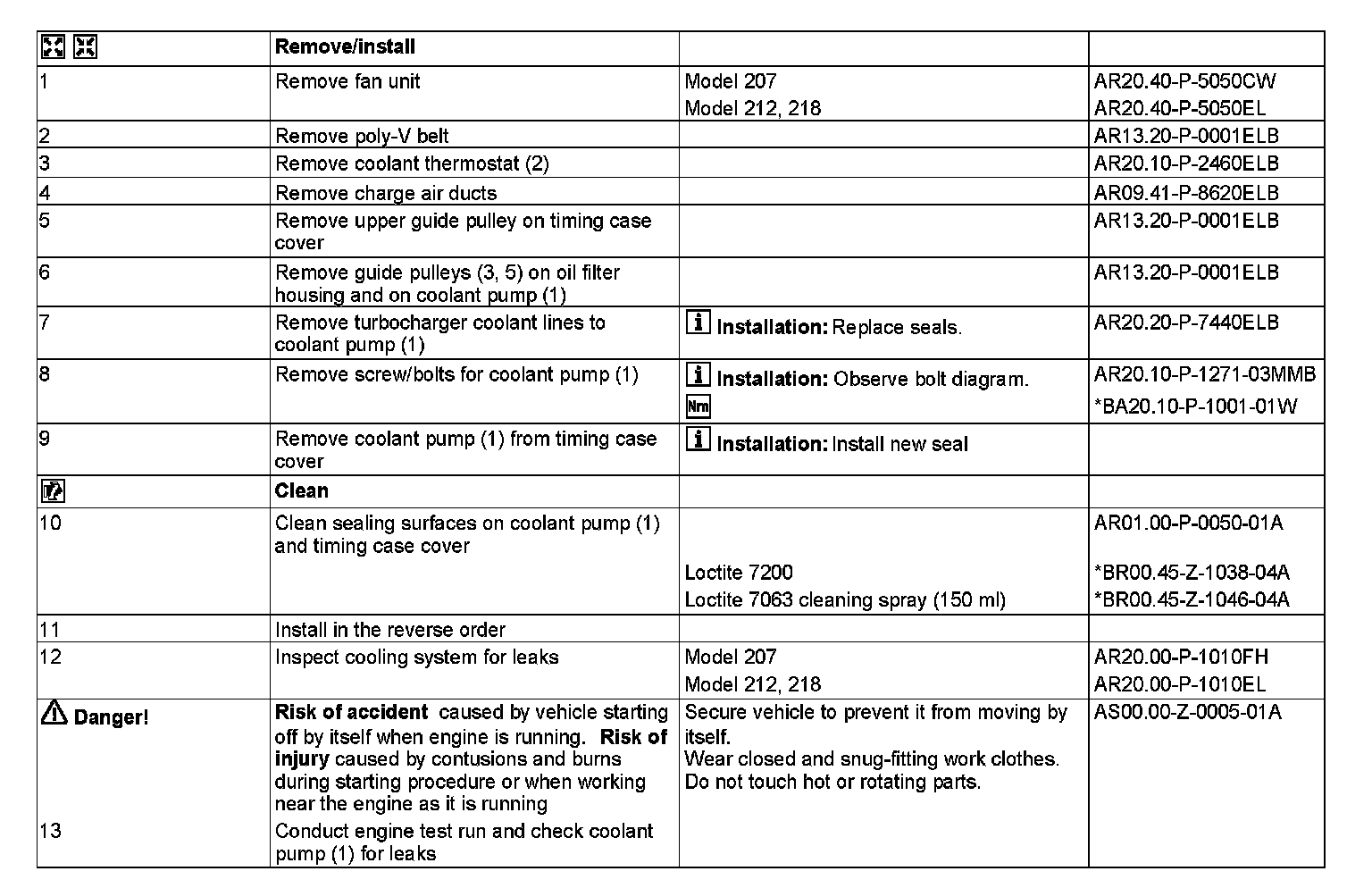

AR20.10-P-1271ELB Remove/Install Coolant Pump
ENGINES 157, 278 in MODEL 212, 218
ENGINES 278 in MODEL 207
1 Coolant pump
2 Coolant thermostat
3 Pulley
5 Pulley
6 Oil dipstick guide tube
7 Pressure line
