Oil Line: Service and Repair

AR18.30-P-6850ELB Oil Line Removal and Installation
ENGINES 157, 278 in MODEL 212, 218
ENGINES 278 in MODEL 207





Shown on engine 278

1r Upper oil line on the right (feed line)
2r Lower oil line on the right (return line)

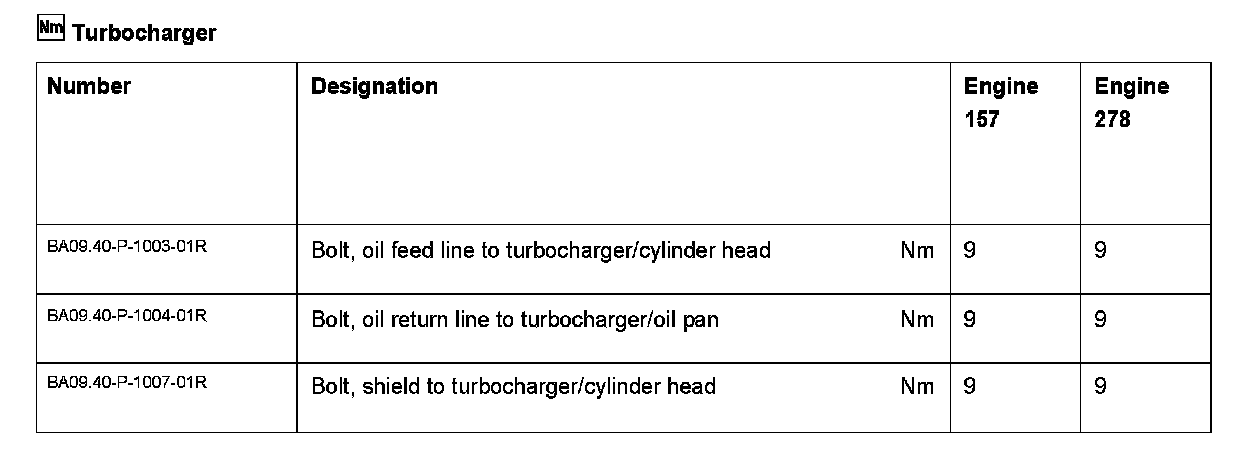

3 Bolt
4 Bolt





Shown on engine 278

1l Upper oil line on the left (feed line)
2l Lower oil line on the left (return line)
5 Bolt
6 Bolt














129 589 00 91 00
Set of stop plugs
