AR22.10-P-1260ELB Remove/Install Front Engine Mounts and/or Engine Support

AR22.10-P-1260ELB Remove/Install Front Engine Mounts And/Or Engine Support
ENGINES 157, 278 in MODEL 212, 218
ENGINES 278 in MODEL 207

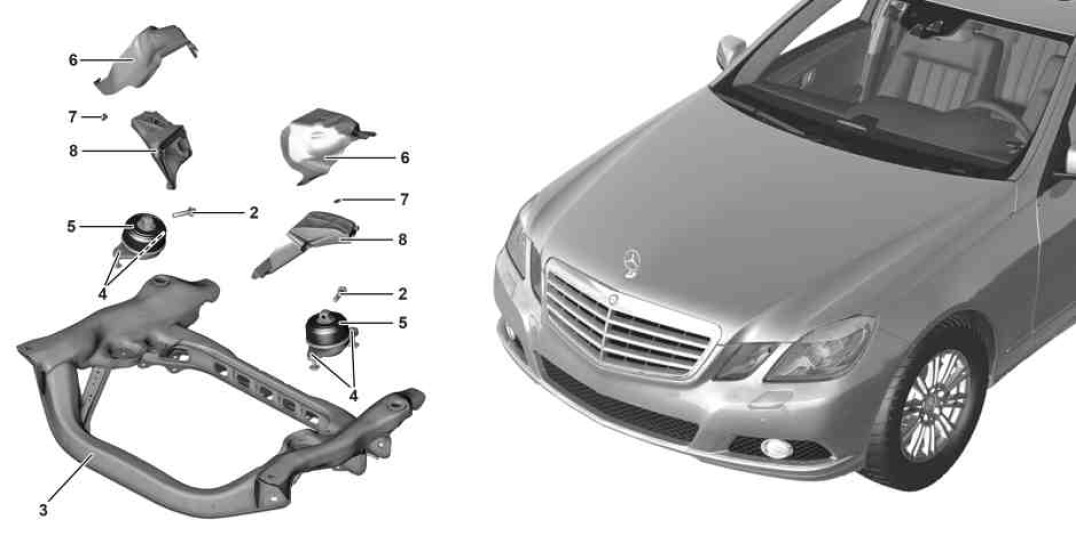

Shown on model 212.073

2 Screw/bolt
3 Front axle carrier
4 Screw/bolt
5 Engine mount
6 Heat shield
7 Retaining clamp
8 Engine support























001 589 81 09 00
Flexible head wrench set
