Coolant Line/Hose: Service and Repair

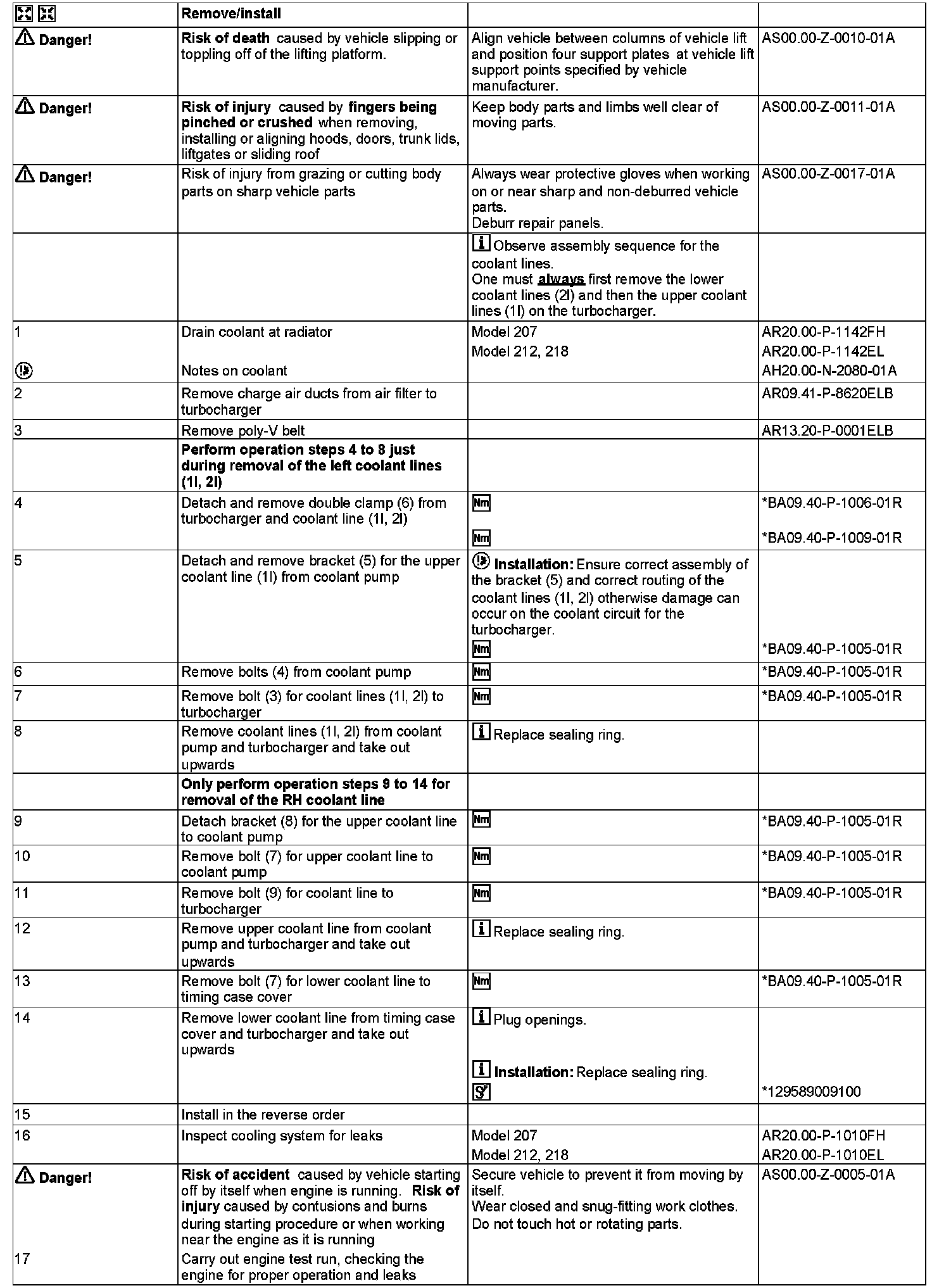

AR20.20-P-7440ELB Remove/Install Coolant Lines
ENGINES 157, 278 in MODEL 212, 218
ENGINES 278 in MODEL 207

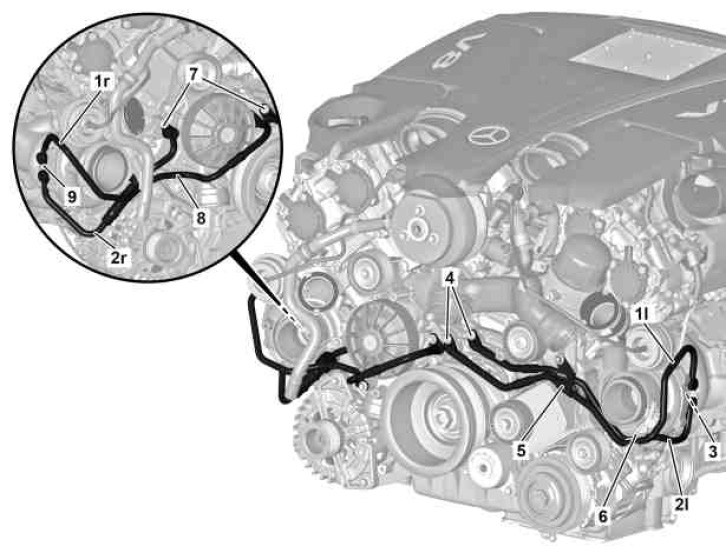

Shown on left engine side

1l Upper coolant line on the left
2l Lower coolant line on the left
3 Bolt
4 Bolt
5 Bracket
6 Double clamp
7 Bolt
8 Bracket
9 Bolt











129 589 00 91 00
Set of stop plugs
