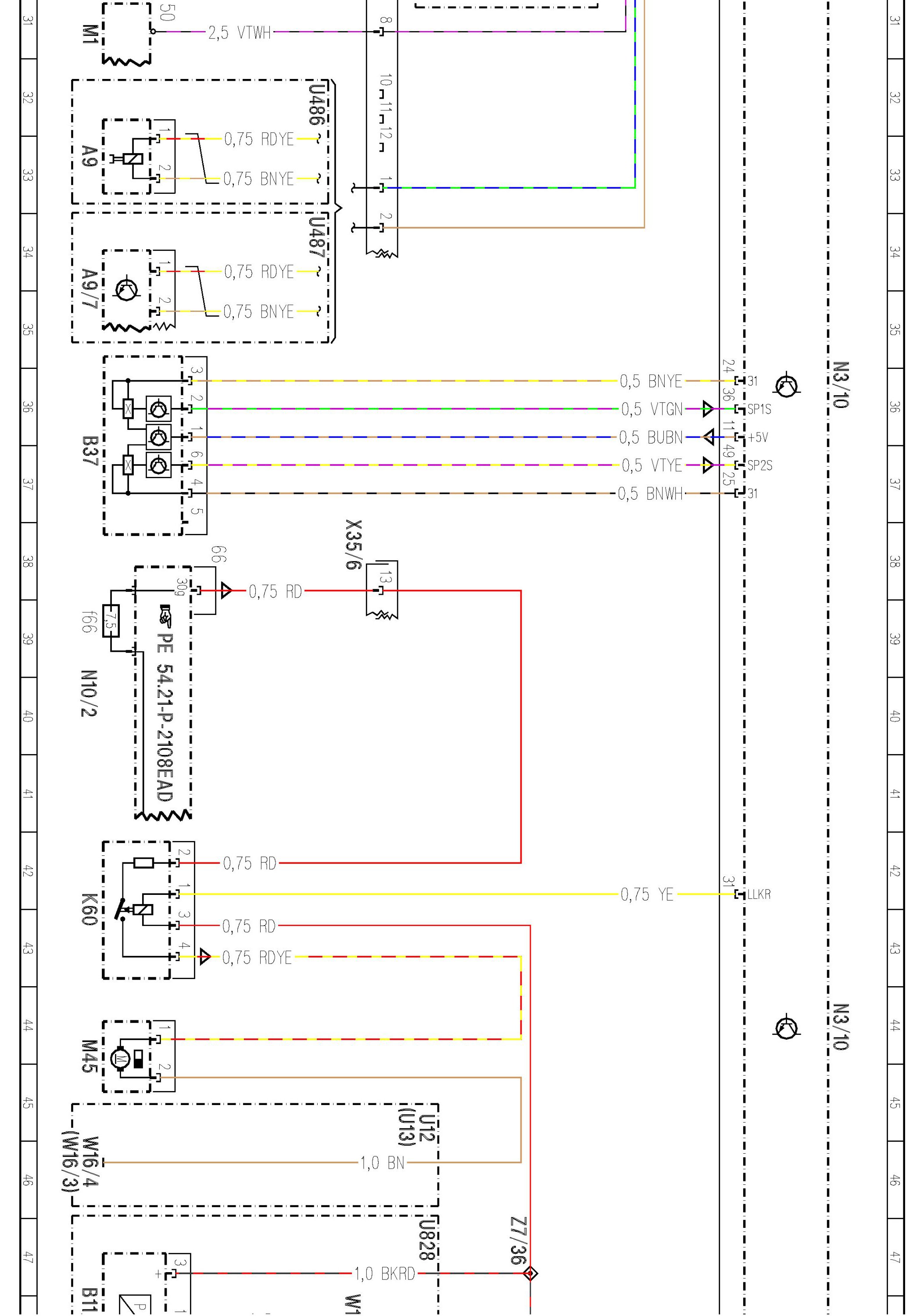

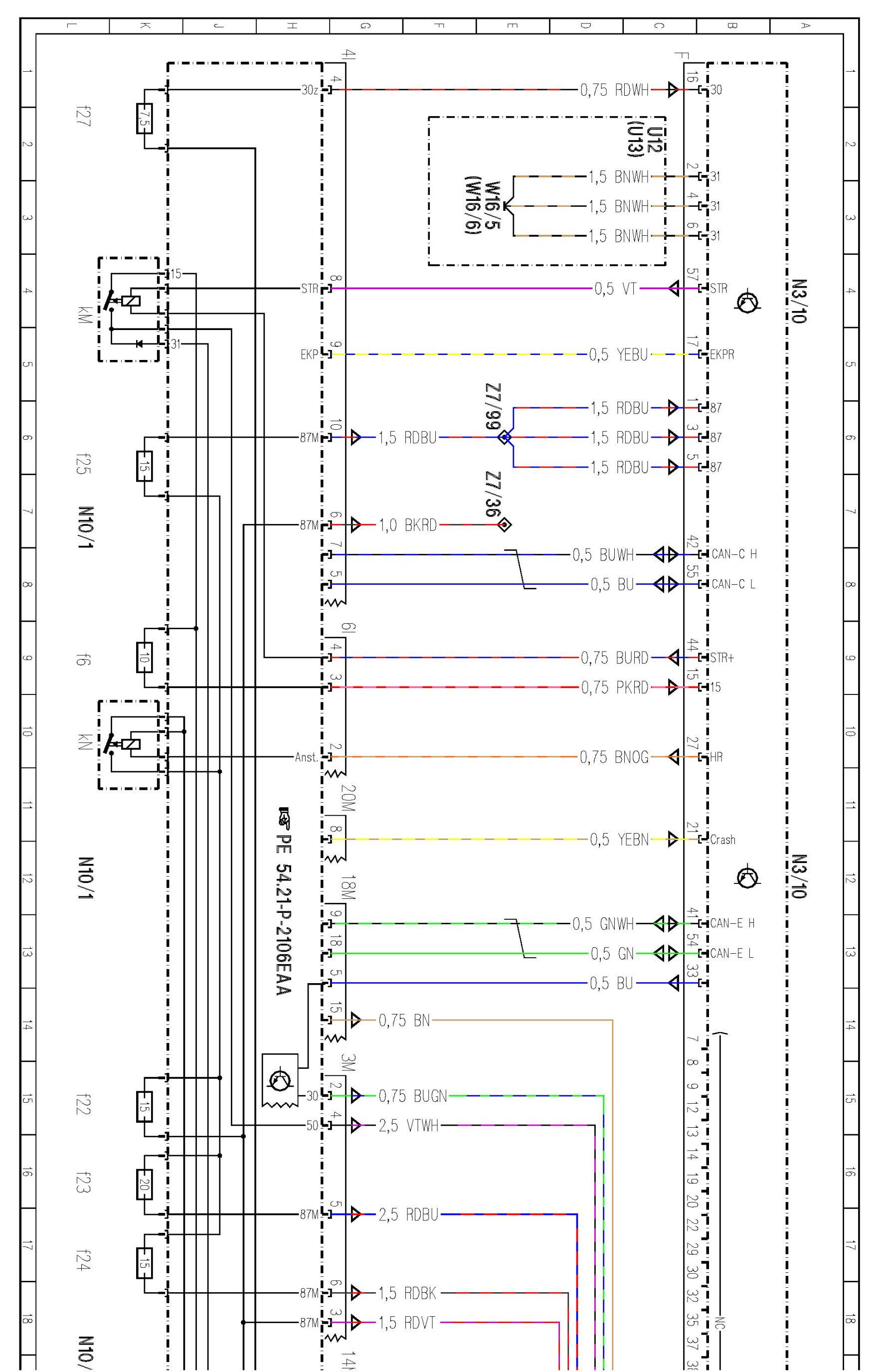

PE07.08-P-2101EAI Gasoline Direct Injection System Control Unit

PE07.08-P-2101EAI Gasoline Direct Injection System Control Unit

ENGINE 278 in MODEL 207

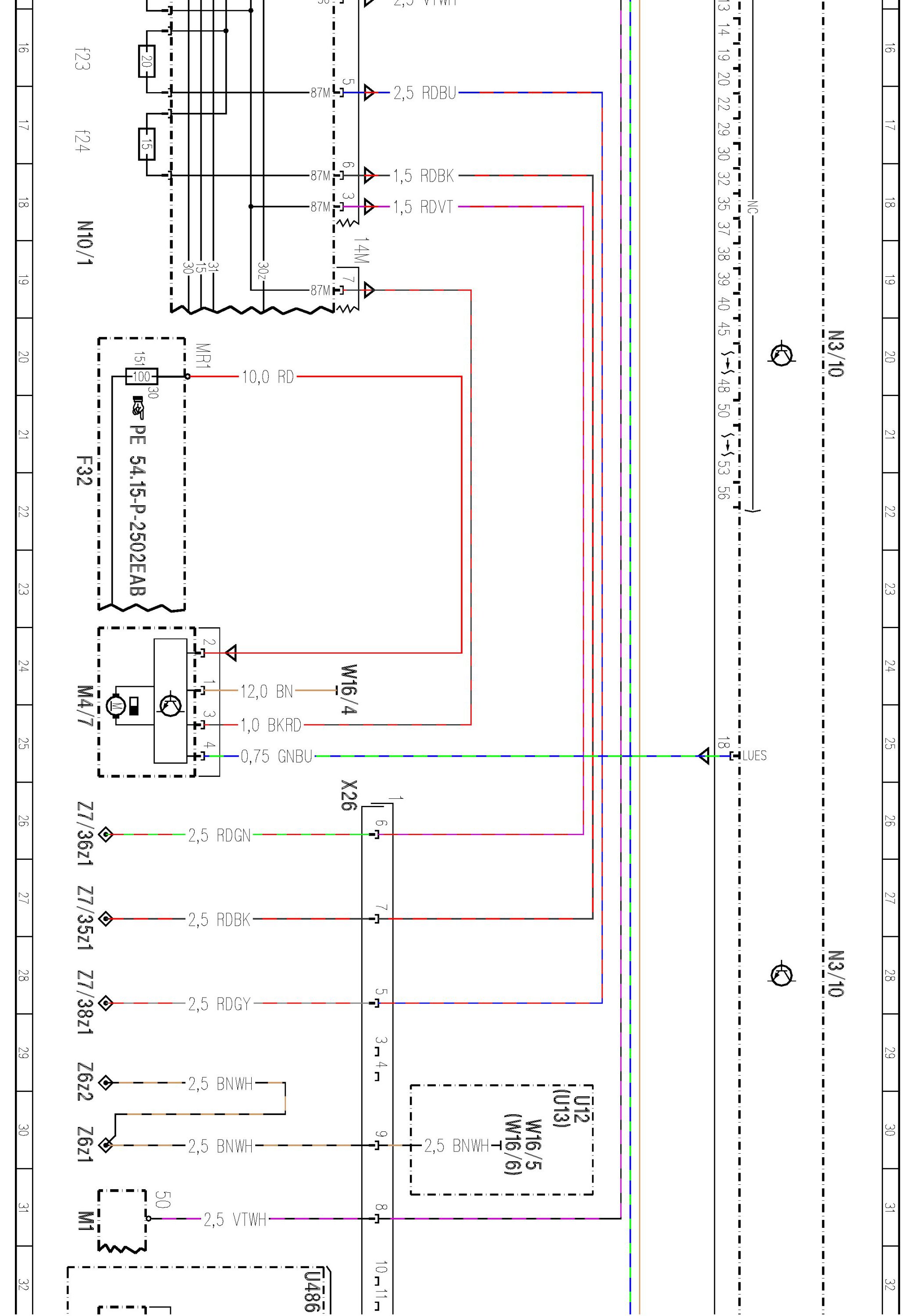

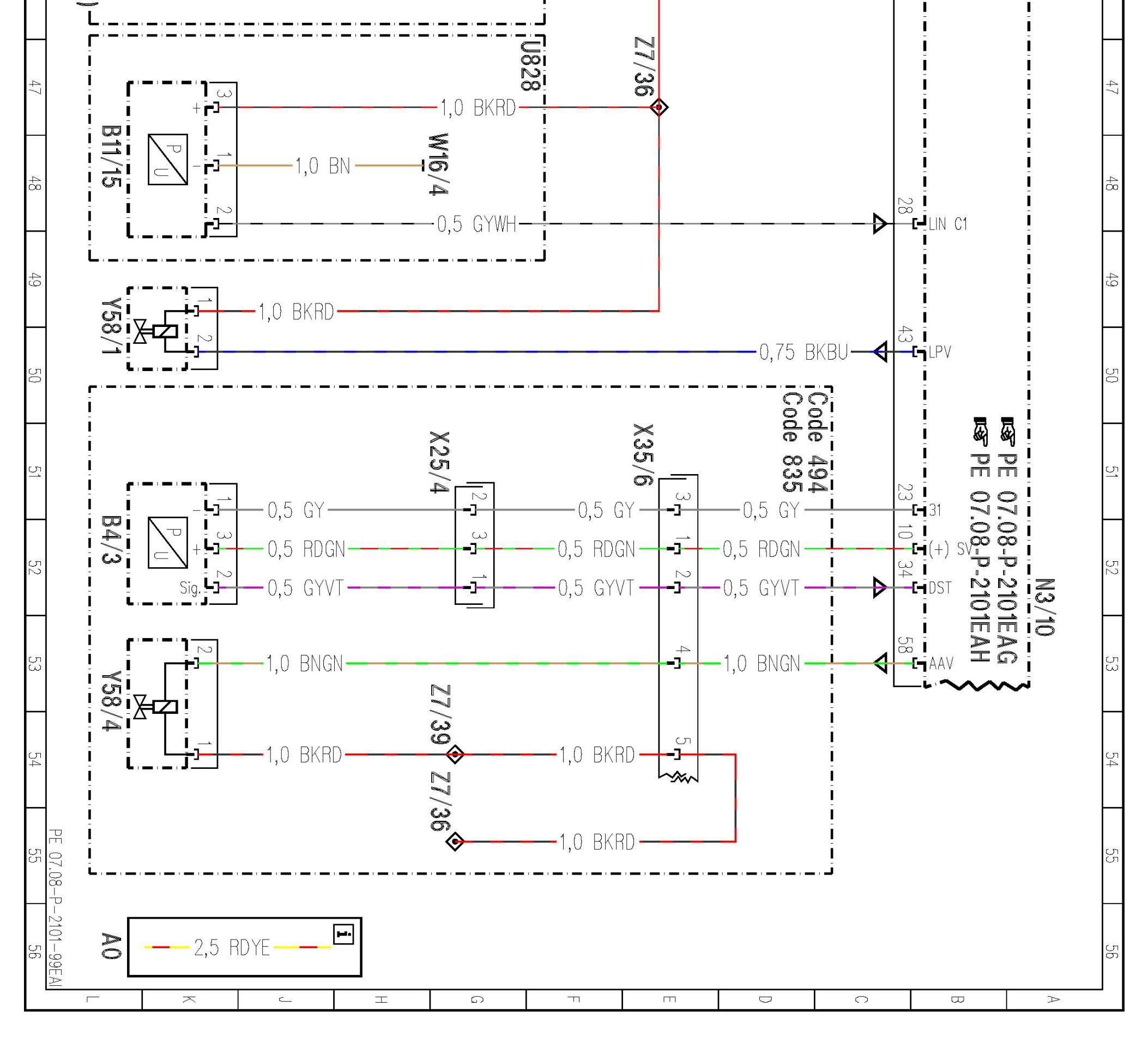

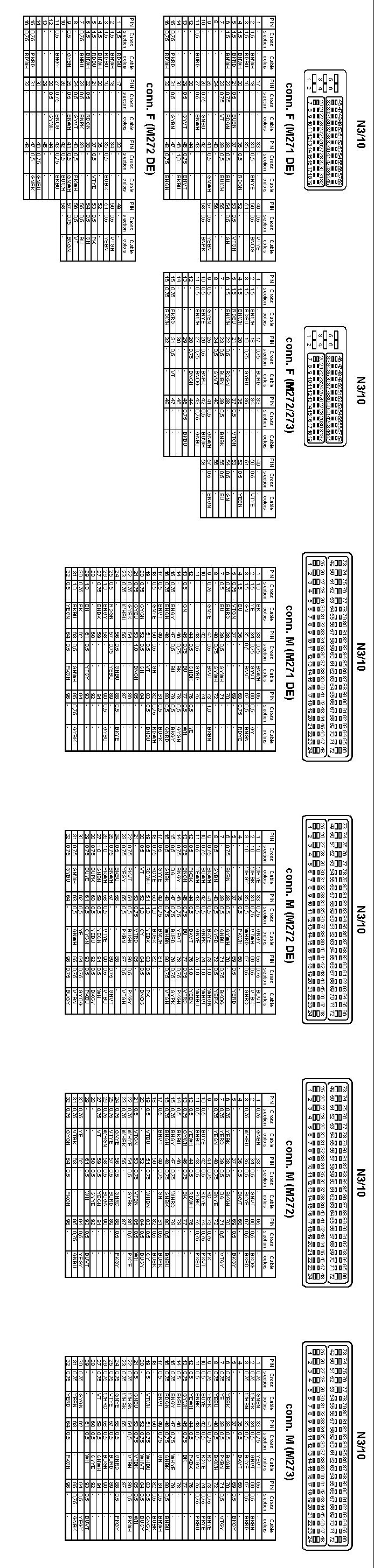

- control unit N3/10, body side






































































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
