Intake Manifold: Service and Repair

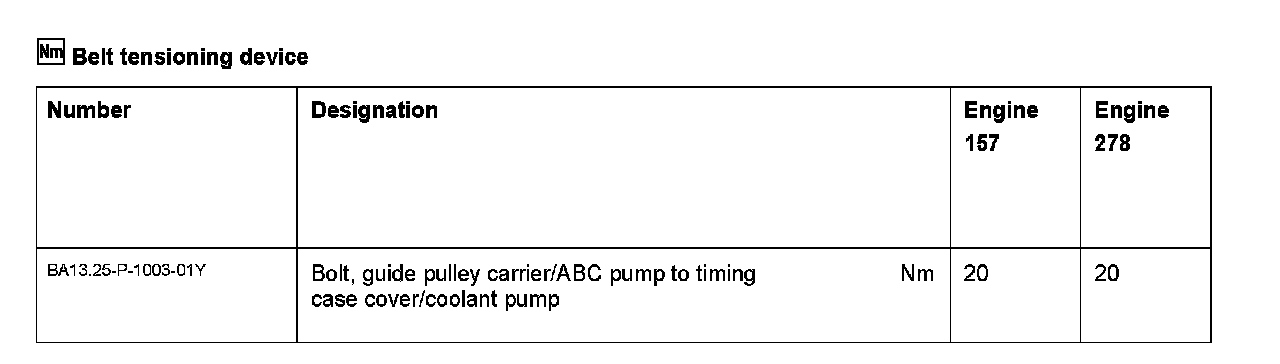

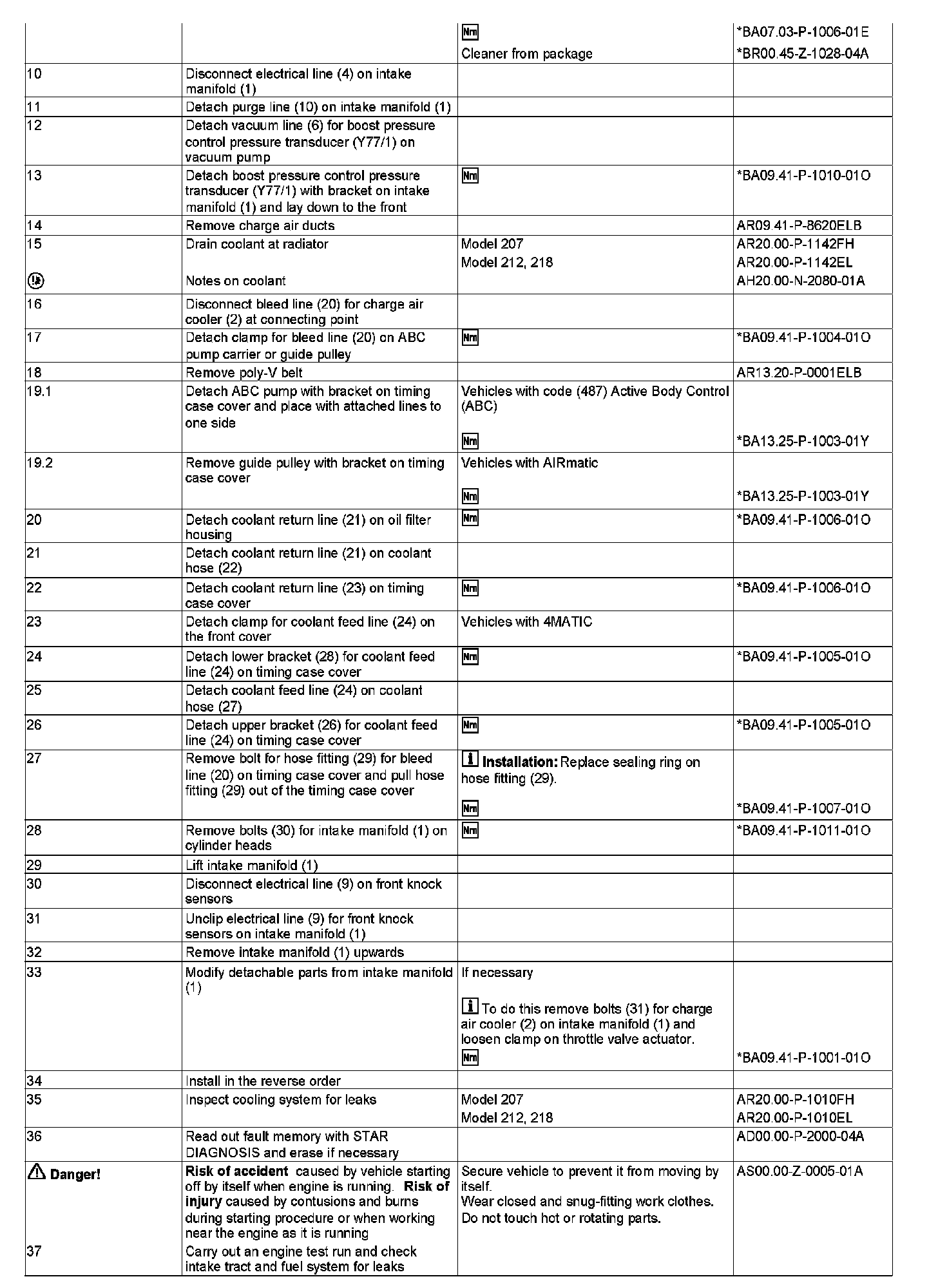

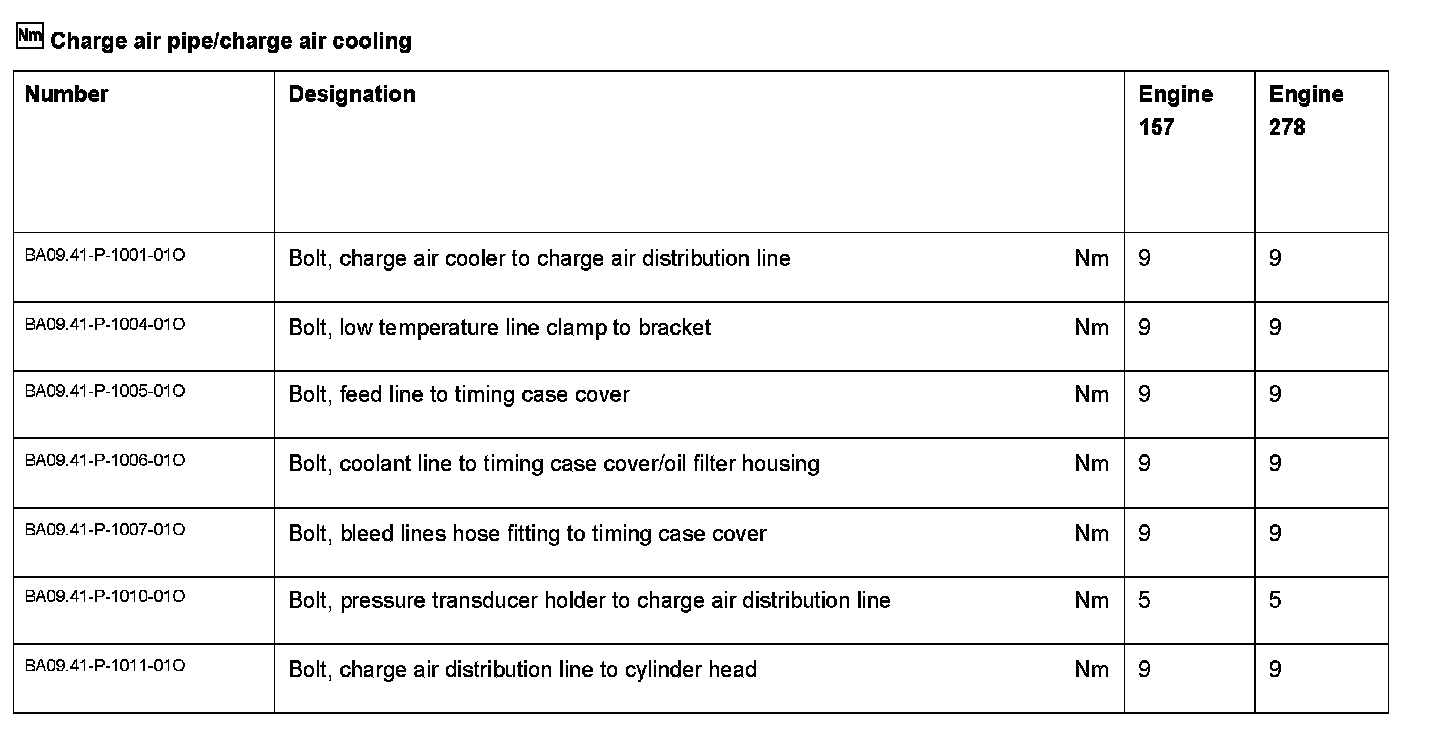

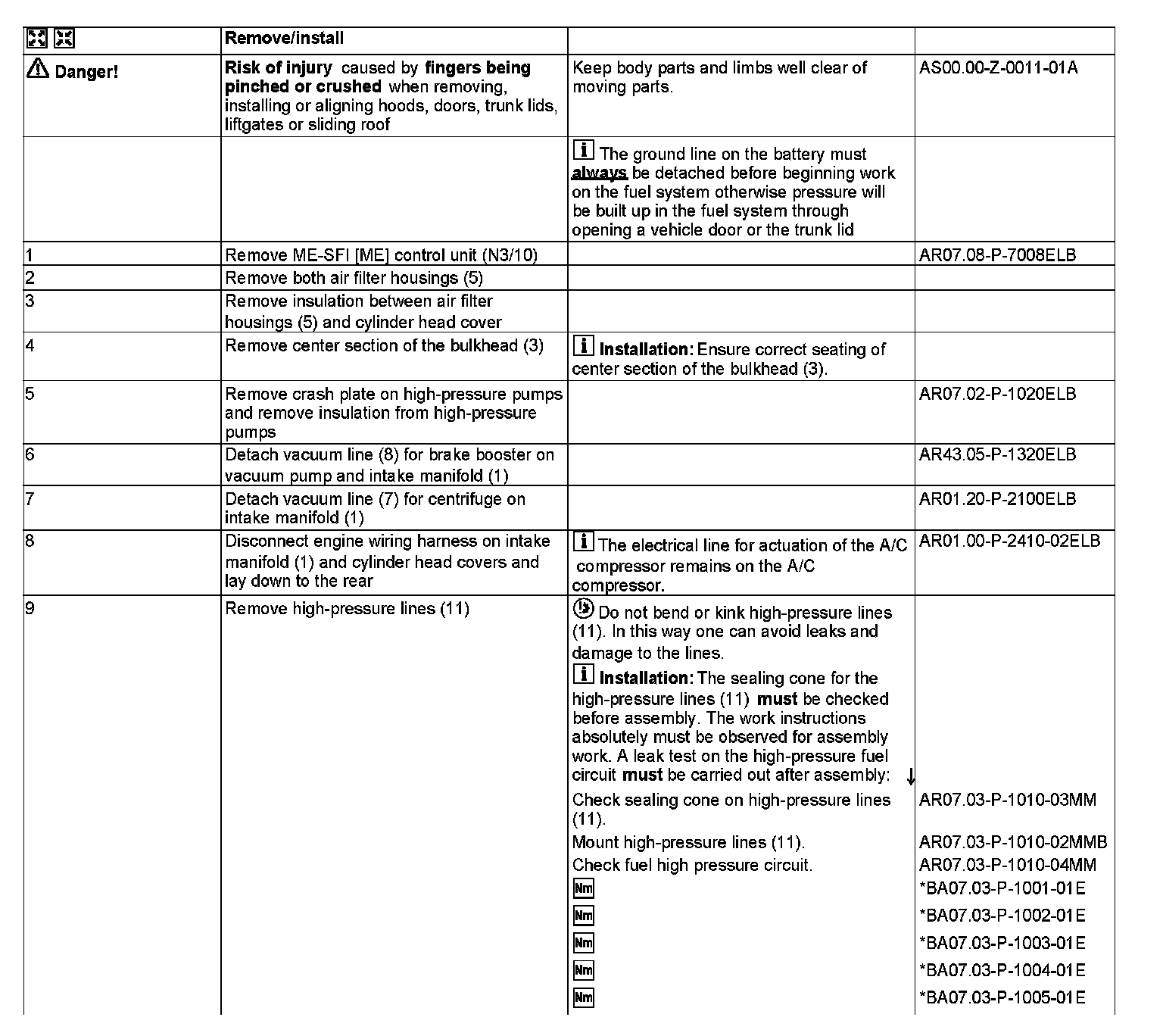

AR09.20-P-1310ELB Remove/Install Intake Manifold
ENGINES 157, 278 in MODEL 212, 218
ENGINES 278 in MODEL 207





Illustrated on model 218.373

1 Intake manifold
3 Bulkhead
4 Electrical line
5 Air cleaner housing
6 Vacuum line
7 Vacuum line
8 Vacuum line
9 Electrical line
20 Vent line
21 Coolant return line

N3/10 ME-SFI [ME] control unit





Illustrated on model 218.373

1 Intake manifold
2 Charge air cooler
11 High-pressure lines
20 Vent line
21 Coolant return line
22 Coolant hose
23 Coolant return line
24 Coolant feed line
26 Bracket
27 Coolant hose
28 Bracket
29 Hose connection





Illustrated on model 218.373

1 Intake manifold
6 Vacuum line
10 Purge line
30 Bolts
31 Bolts

Y77/1 Boost pressure control pressure transducer
