Windshield Washer Hose: Service and Repair
AR82.35-P-6980CW Remove/Install
Windshield Washer Hose

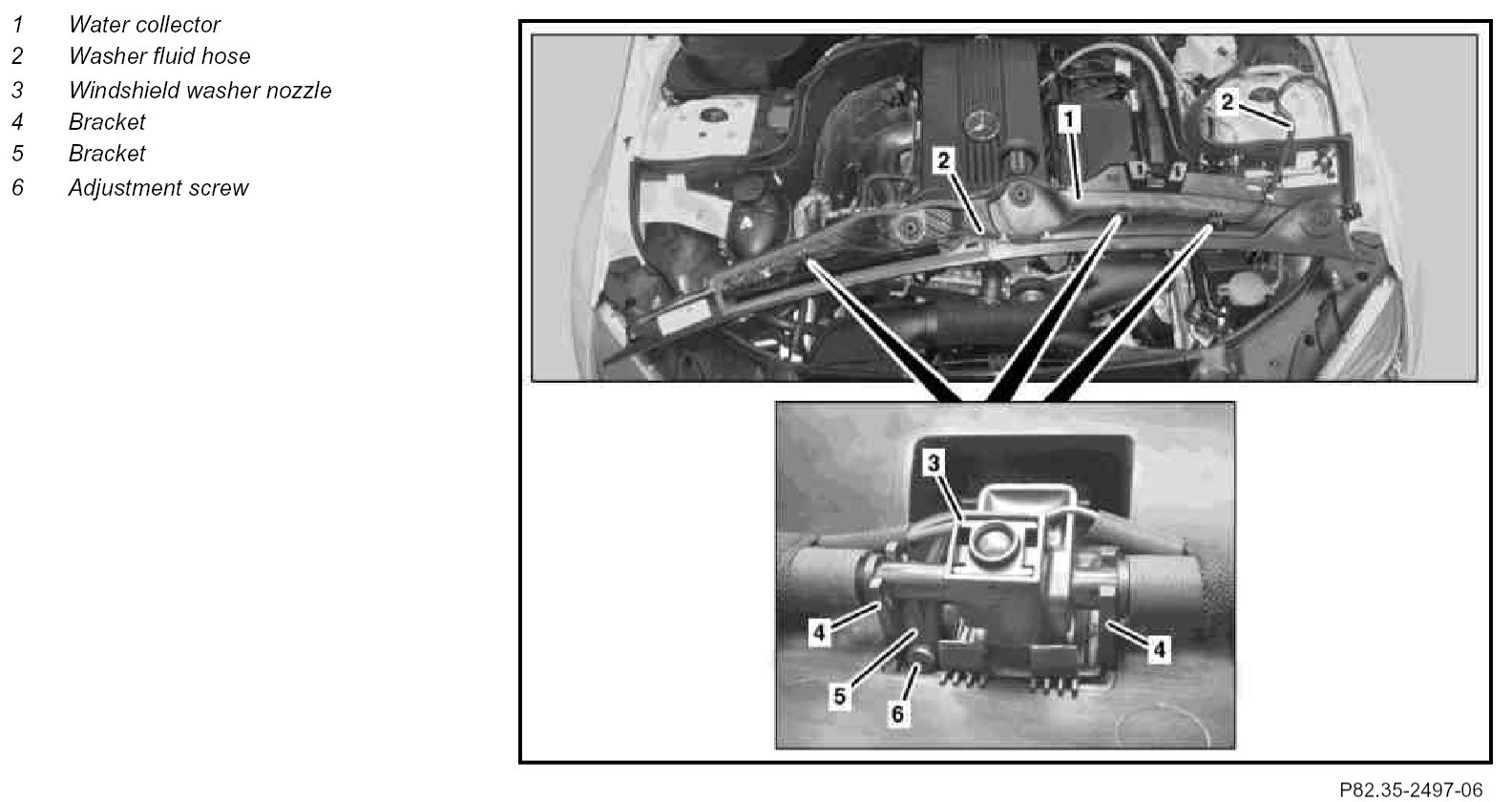

Component Identification:

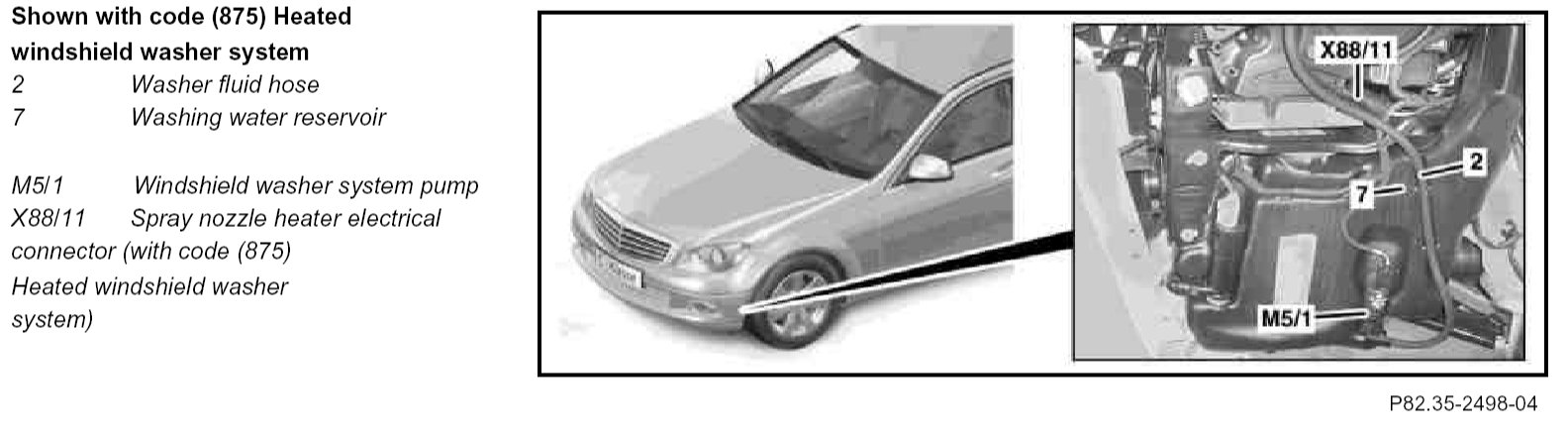

Component Identification:

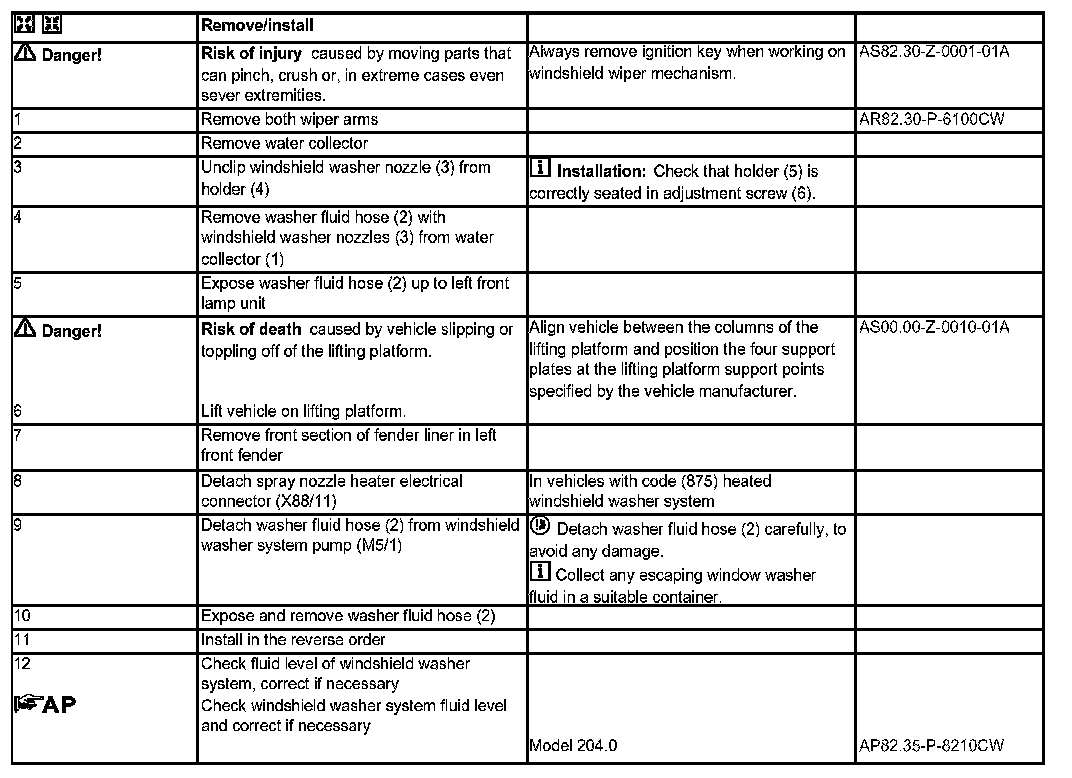

Steps 1 - 12:
